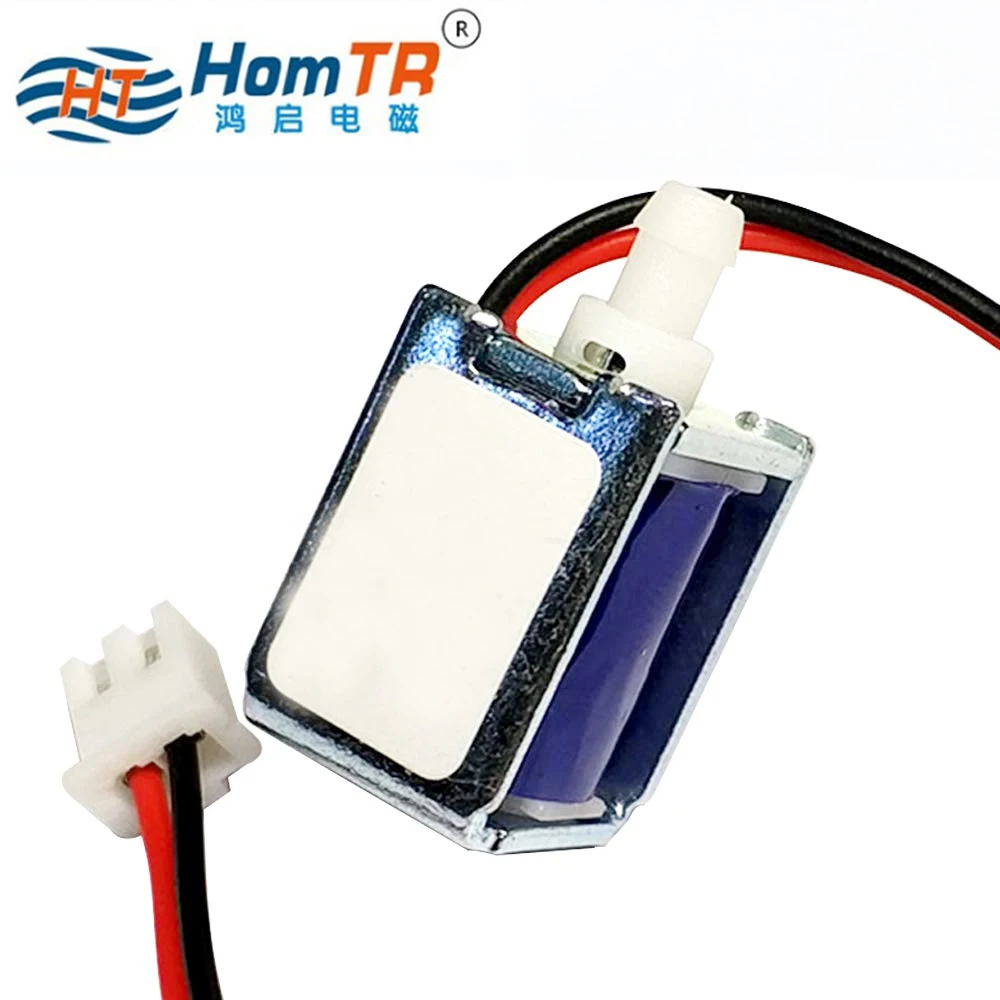

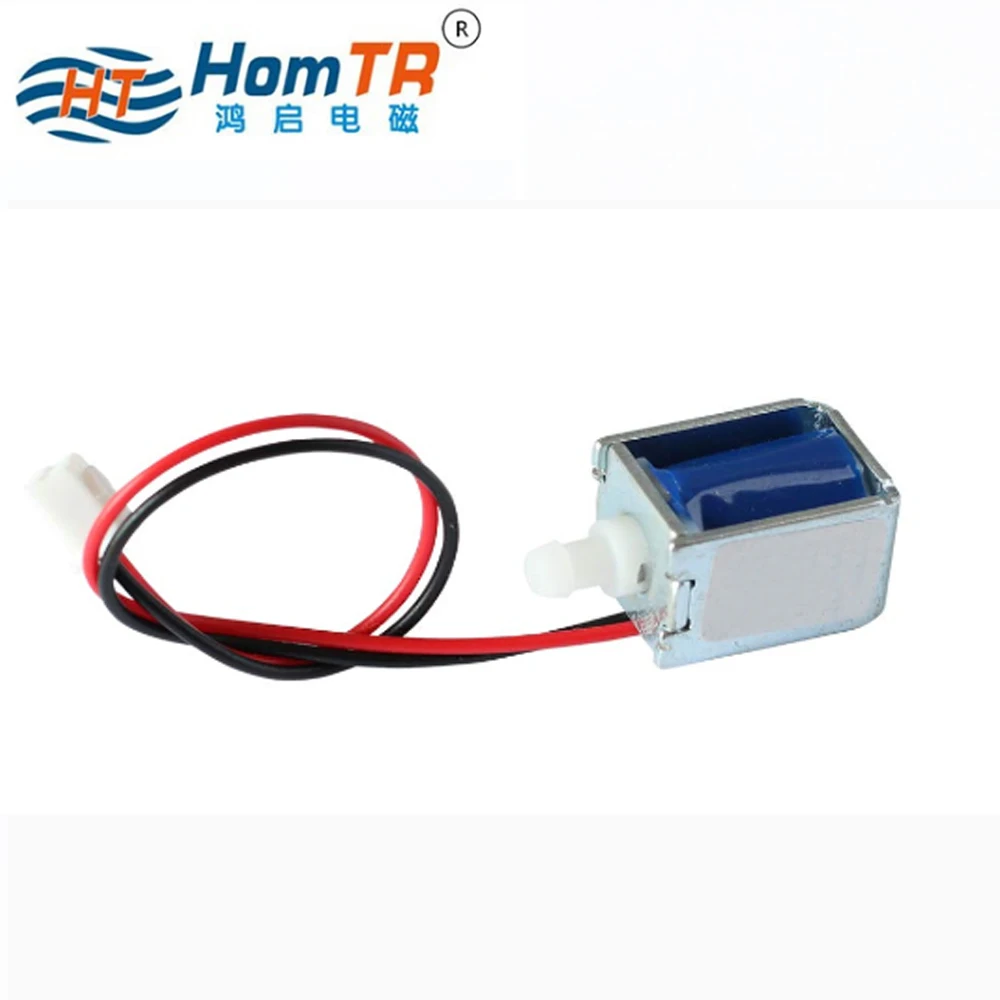

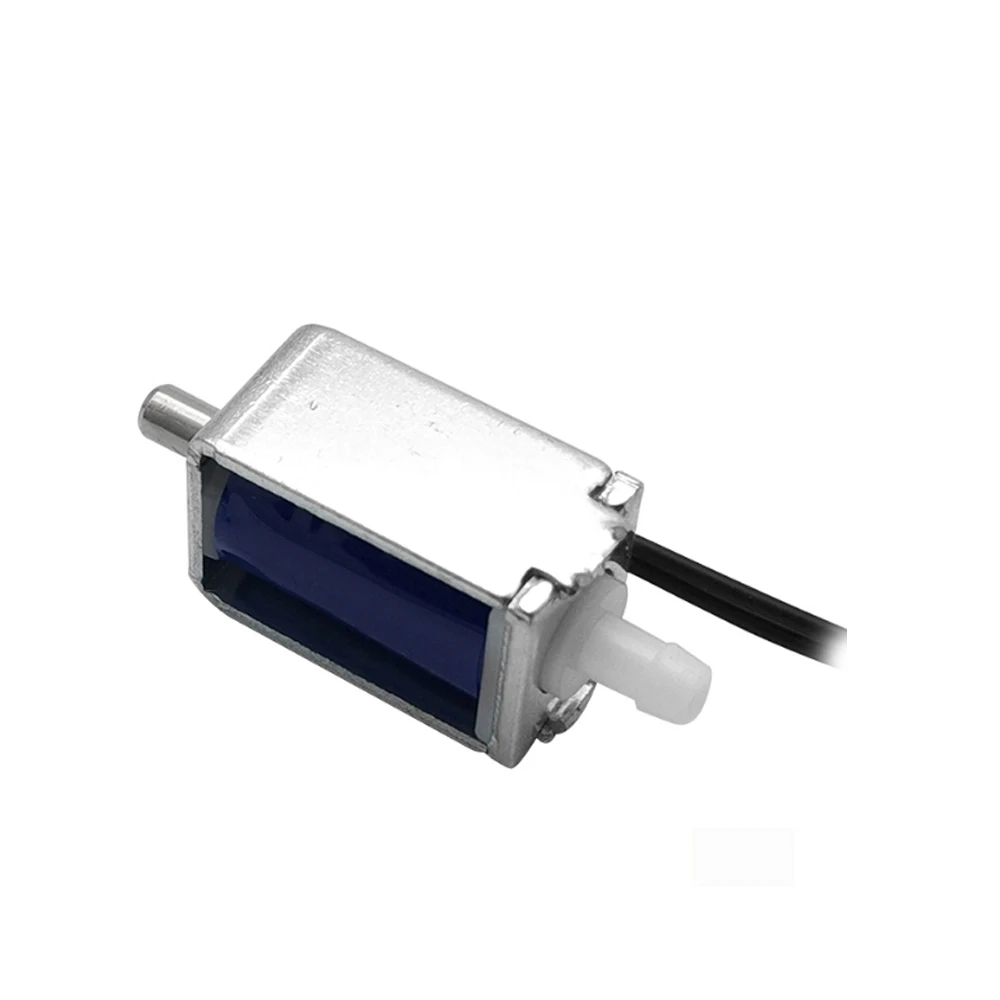

HomTR Small DC 24V 12V 6V 5V 3V Mini Control Micro Solenoid Exhaust Release Valves 1 Way Valve
- Category: Solenoid Valves >>>
- Supplier: Shenzhen,Hongqi,Electromagnetic,Technology,Co.,Ltd.
Share on:
Product Overview
Description
Product Description
It has low vibration and low power consumption.Reliable, compact, and simple to install.
Can be used for gas valve and pump.Widely used in automatic control equipment.
It will become hot when it works because there are so many coils inside. It’s normal phenomenon.
Can be used for gas valve and pump.Widely used in automatic control equipment.
It will become hot when it works because there are so many coils inside. It’s normal phenomenon.

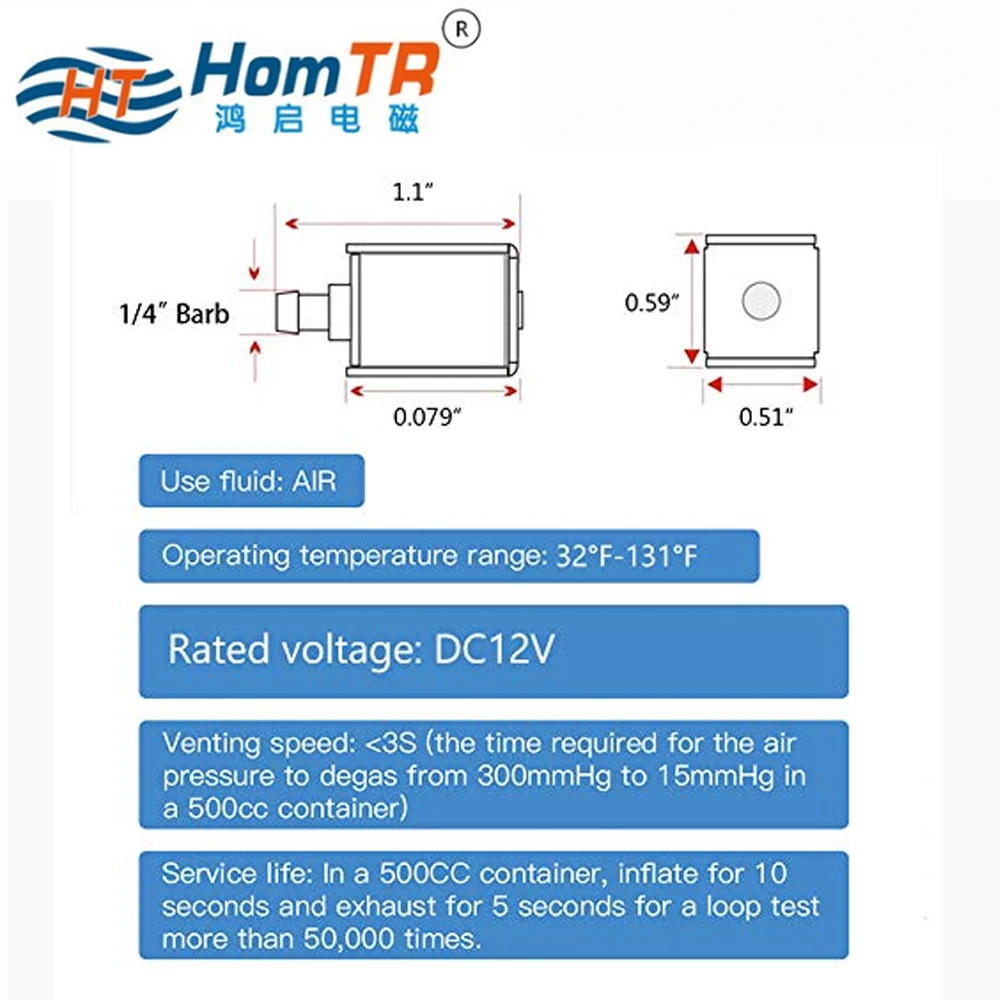

Specification
Common pressure | 300mmHg ( Max 350mmHg) |
Voltage | DC 12V |
Resistance | 120Ω±10%at20℃ |
Ampere | 0.1A |
Watts | 1.2W |
Dielectric strength | 600VAC/1 Sec |
Insulated resistance | 500VDC/100MΩ |
Duty Cycle | 100% |
Insulation Class | B Class (130℃） |
TWO POSITION THREE-WAY VALVE
Application : Household appliances, medical, beauty, massage, adult products, sphygmomanometer, beauty instrument, Essential oil machine, booster technology
Voltage | DC3V | DC3.7V | DC6V | DC12V | DC24V |
Ampere | 120±10%mA | 105±10%mA | 100±10%mA | 100±10%mA | 120±10%mA |
DC Resistance | 25±10%Ω | 35±10%Ω | 60±10%Ω | 120±10%Ω | 200±10%Ω |
Power | 0.36W | 0.39W | 0.6W | 1.2W | 2.88W |
Valve caliber | φ3.2mm | ||||||
Max pressure | 40KPa(300 mmHg) | ||||||
Medium | Air | ||||||
Exhaust speed | ＜4s (from 300 to 15mmHg in a 100cc tank ) | ||||||
Life test | ≥200，000 Times ( Power-on 5s , Power-off 5s ) | ||||||
Air Tightness | ＜3mmHg/min (under 300 mmHg in a 100cc tank ) | ||||||
Temperature | 0-50℃ 30% to 85%RH | ||||||
Valve Types | Normally Opened Normally Close Weight :15 gram | ||||||
Solenoid operating instructions:
Power off : way closed ; Power on : air can pass.
Note : Wires are not divided for +/- connecting , both can do.
Packing & Delivery
40PCS/ PP box
600PCS / CTNG.W.: 13 KG
N.W.: 12.6KG
Company Profie
HOMTR SOLENOID VALVE is the High quality China solenoid manufacturer for innovative electromagnetic actuators to fulfil the specific requirements and needs of our customers in a variety of different industries.
Speed of response to our customers is one of the key factors to our success. This is true in all aspects of our business including prototype development, pre-series and series production. Our lean organisation ensures fast un-bureaucratic decision making, short processing times and highly flexible manufacturing.
Speed of response to our customers is one of the key factors to our success. This is true in all aspects of our business including prototype development, pre-series and series production. Our lean organisation ensures fast un-bureaucratic decision making, short processing times and highly flexible manufacturing.
We providing both ODM/OEM services for our customers. We would be happy to discuss with you and provide more details for your inquiry upon your confirmation. More......
ODM/OEM Order Notes
1. Voltage/current required for solenoid valve ?
2 Form factor What is the required size?
3 Please provide solenoid valve needs air flow or other use flow rate .
4 Solenoid valve operation time after demand energization and power-off time after completion of the operation, (energization and power-off time of a single operation are cycles)
5 Whether there are special requirements for the use of ambient temperature or waterproofing and chemical resistance
6 Appearance of salt spray test required or not (regular 24 hours)
7 Solenoid valve seal pressure, valve opening size and controlled substances (water, air, gas, oil)
8 Are there any other requirements?
9 Sample quantity required, cycle time (regular 3 days / custom 4 weeks or more depending on the actual situation), estimated quantity of post-production, how long to place the order, typical daily capacity is 5K .
2 Form factor What is the required size?
3 Please provide solenoid valve needs air flow or other use flow rate .
4 Solenoid valve operation time after demand energization and power-off time after completion of the operation, (energization and power-off time of a single operation are cycles)
5 Whether there are special requirements for the use of ambient temperature or waterproofing and chemical resistance
6 Appearance of salt spray test required or not (regular 24 hours)
7 Solenoid valve seal pressure, valve opening size and controlled substances (water, air, gas, oil)
8 Are there any other requirements?
9 Sample quantity required, cycle time (regular 3 days / custom 4 weeks or more depending on the actual situation), estimated quantity of post-production, how long to place the order, typical daily capacity is 5K .
