Цифровой Ультразвуковой счетчик воды для жилых помещений

Цифровой Ультразвуковой счетчик воды для жилых помещений

Category: Water Meters >>>
Supplier: Shanghai,Panda,Machinery,(group),Co.,Ltd.

Price:

Price in USD:Details

Quantity:

Product Overview

Description

Product Description

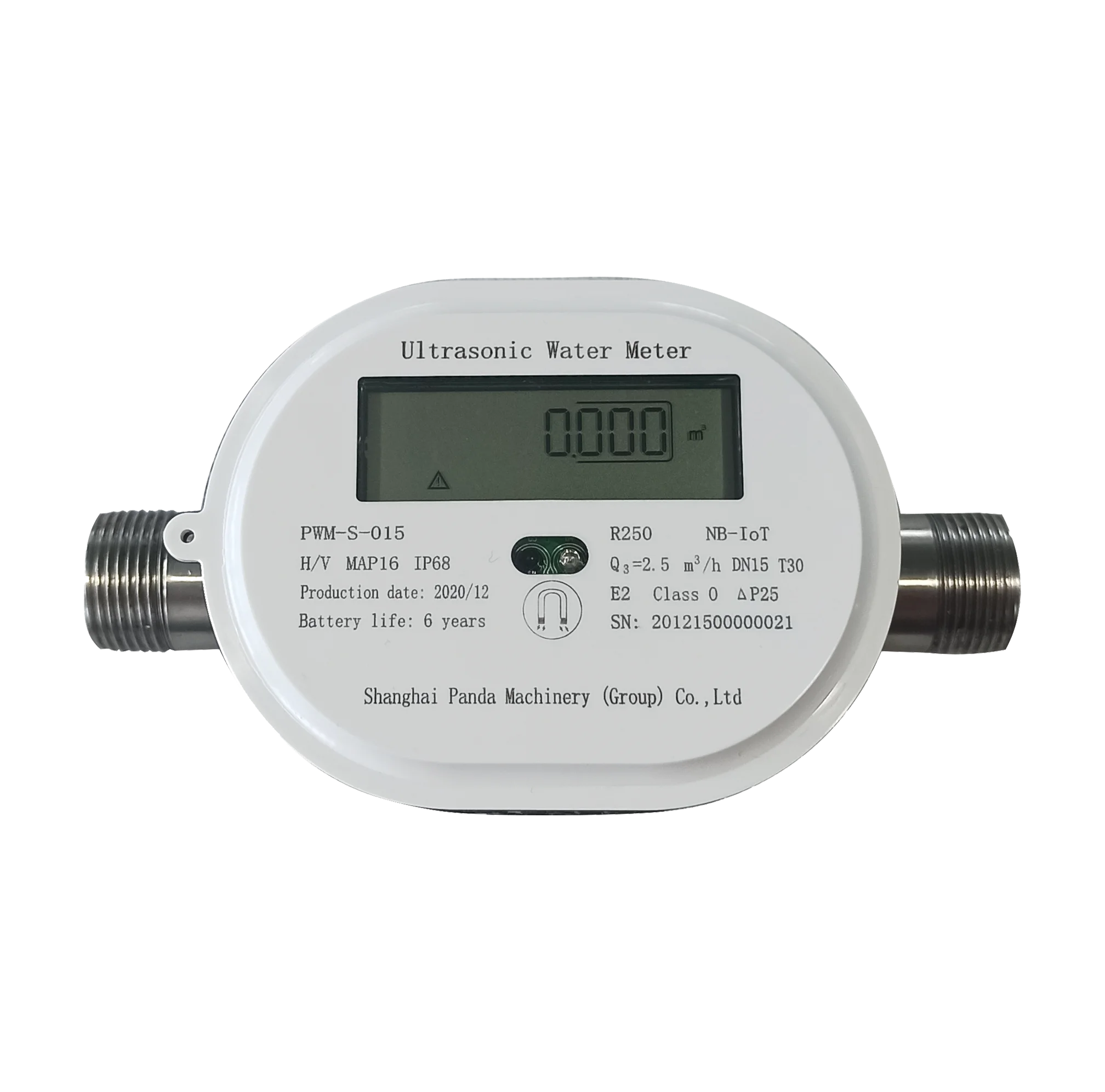

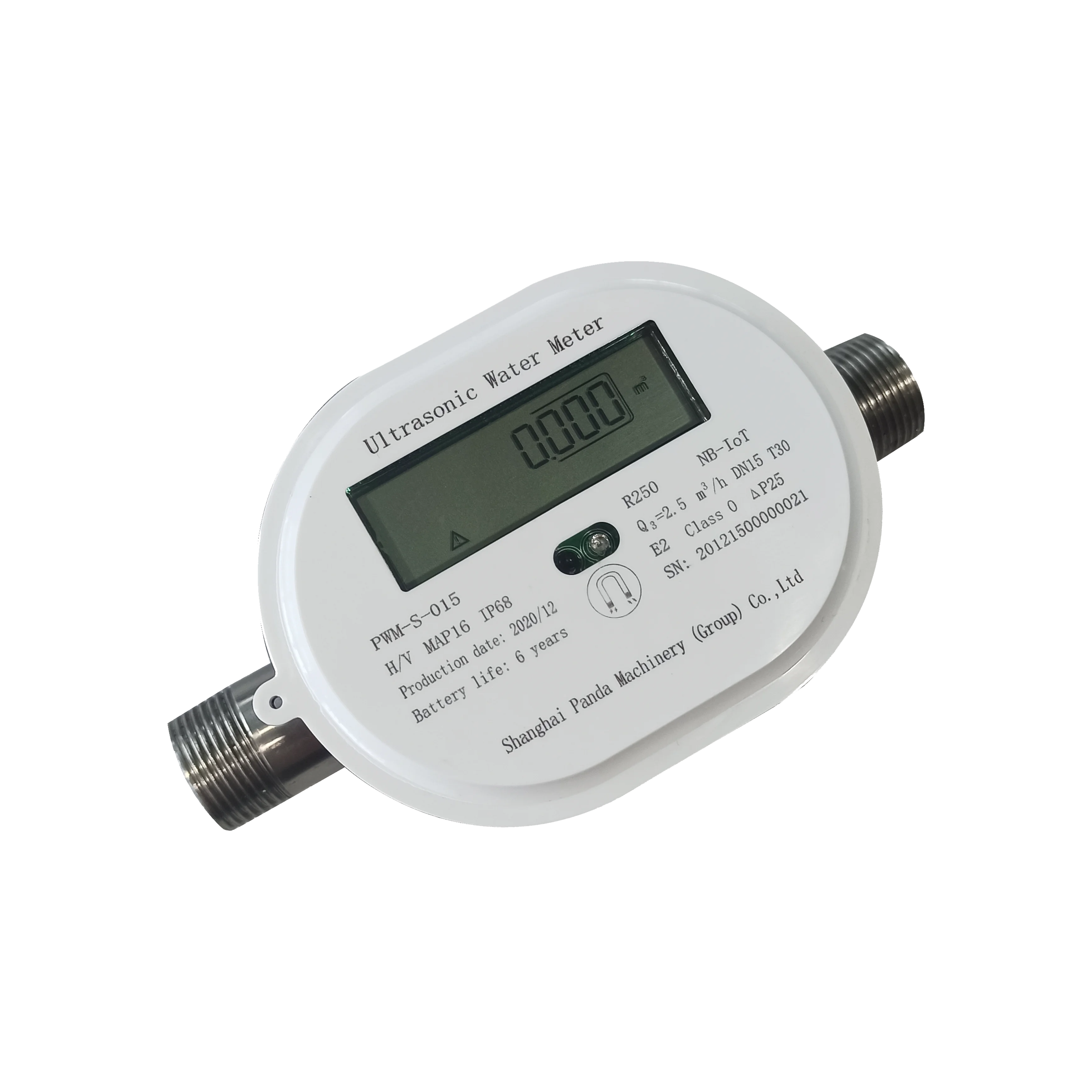

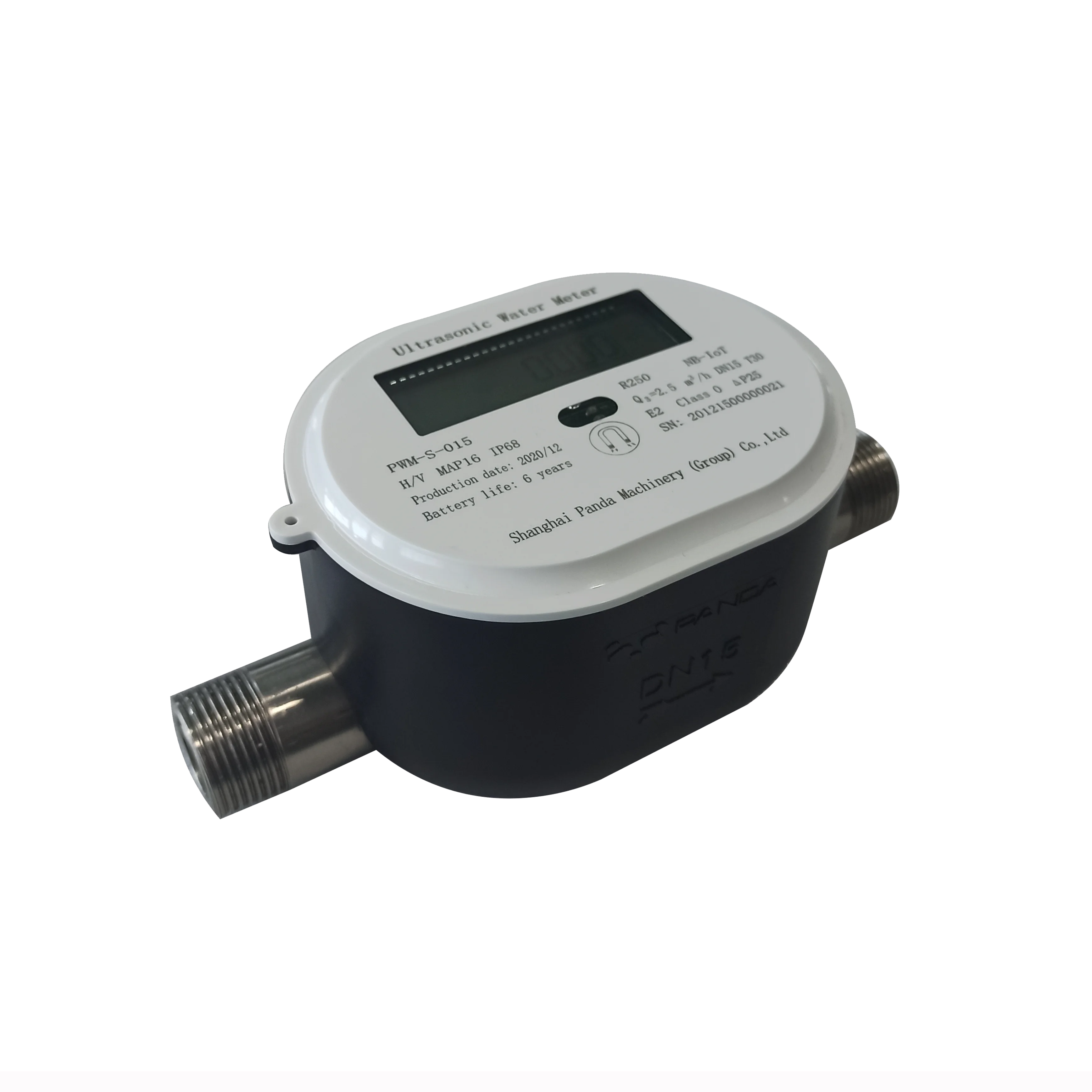

watermeter

small meter1.png small meter6.png

Features:

*Stainless Steel Pipe Material
*Range Is Up To 400
*No Moving Parts, Accuracy Will Not Change After Long Term Working
*With Functions of Self-diagnosis, Flow Sensor Alarm, Temperature Sensor Alarm, Over Range Alarm and Battery Under Voltage Alarm
*Low Consumption Design, Battery Can Continuously Work For 6 Years
*With Optic Electric Interface, Hand-held Infrared Meter Reading Tool Can Read Directly
*Built-in Wireless NB-IoT
*Stainless Steel 316L Is Optional, Meet The Measurement Of Direct Drinking Water
*Bi-directional Measuring Forward And Reverse Flow
*According To Sanitary Standard For Drinking Water

Product Parameters

Technical Specification:

Max. Working Pressure	1.6Mpa
Temperature Class	T30
Accuracy Class	ISO 4064, Accuracy Class 2
Body Material	Stainless SS304(opt. SS316 or SS316L)
Battery Life	6 Years (Consumption<0.6uA)
Protection Class	IP68
Environmental Temperature	-40~+70℃,≤100%RH
Pressure Loss	ΔP16, ΔP25
Climatic And Mechanical Environment	Class O
Electromagnetic Class	E2
Communication	RS485(ModBus), M-bus, NB-IoT, Opt. OCT Pulse
Display	8 digits LCD display volume(m³,L,GAL), flow rate(m³/h,L/min,GPM), low battery power alarm, flow direction, output.
Connection	Thread Connection
Flow Profile Sensitivity Class	U5/D3
Data Storage	Store the data of Day, Month and Year. The data can be permanently saved even power off.
Frequency	1-4times/second
