GreenTouch 42 inch Infrared Multi Touch Frame IR Touch Screen Overlay Kit
- Category: >>>
- Supplier: Shenzhen Greentouch Technology Co. Ltd.
Share on (1600163387926):
Product Overview
Description
Basic Specification GT-IR-TB42
Product Name: | 42 inch infrared touch frame | Bezel Material: | Aluminium alloy |
Total Size: | 972.9x566.9mm | Display Size: | 931.5x524.5mm |
Touch Resolution: | 32767x32767 | Glass: | Without glass (Frame only) |
Response Time: | Less than 10ms | Touch Accuracy: | +/-2mm(Over 95% area) |
Touch Input Objects: | Fingers,opague objects | Touch Durability: | Unlimited |
Size for touch input objects: | 7mm | Interface: | USB2.0 full speed |
Electrical Specification
Scan Rate: | More than 100Hz/s | Communication: | USB2.0 |
Transmission Rate: | 480Mbps | Power Supply Mode: | USB 5V DC |
Supply Voltage: | From 4.75 to 5.25V | Operating Voltage: | Equal to or less than 200MA |
Environmental Specification
Working /StockTemperature: | -15℃~55℃ ,-40℃~75℃ | Working Hudimity: | 10%~90%RH,no condense | ||
Stock Humidity: | 10%~90%RH,no condense | Anti Light Ability: | <80000Lux | ||
Static Electricity: | Equal to grade EN 6100-4-2 2008:3, touching type powerrelease 4KV,air type power release 8KV(Install to display to test) | ||||
Software Compatibility
Firmware Upgrade: | Available | OS Compatibility: | Win7/Win8/Win10,Android/Linux/Mac | ||
API(software interface): | able to provide motive links datasheet,DIY API interface is available | ||||
Reliability And Durability Data Sheet
High Temperature Stock: | 100℃ for 20 hours,normal temperature for 2 hours | ||||
Low Temperature Stock: | -40℃ for 20 hours,normal temperature for 2 hours | ||||
USB Plug In And Out Test: | More than 2000 times | ||||
High/Low Circle Working: | 80℃ for 48 hours,-10℃ for 12 hours | ||||
High Humidity Working: | 80℃ for 20 hours with 85% | ||||

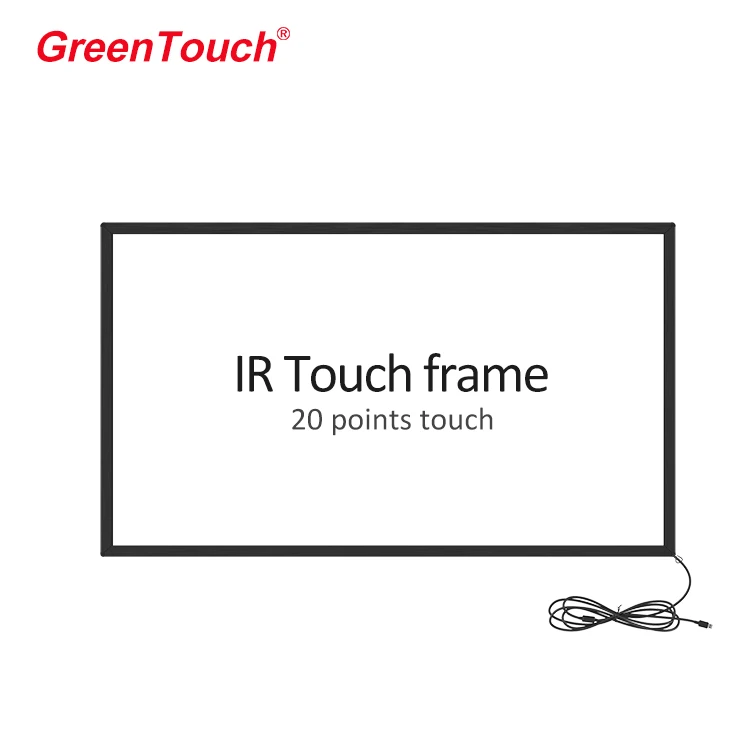

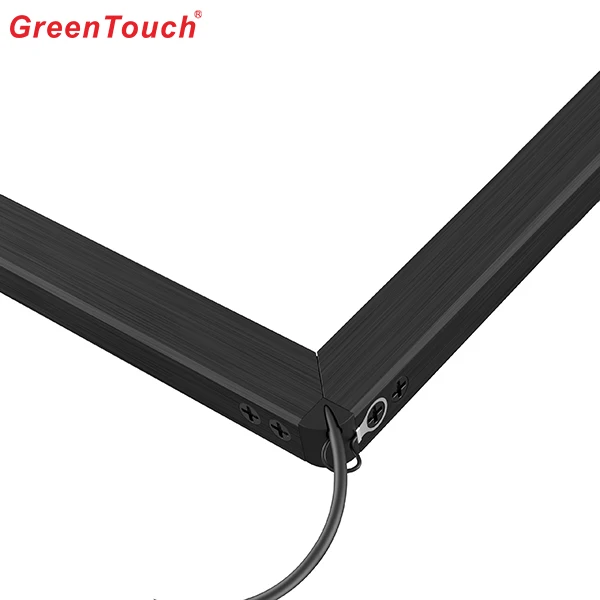

Product show : GT-IR-TB42
Engineering Drawing
