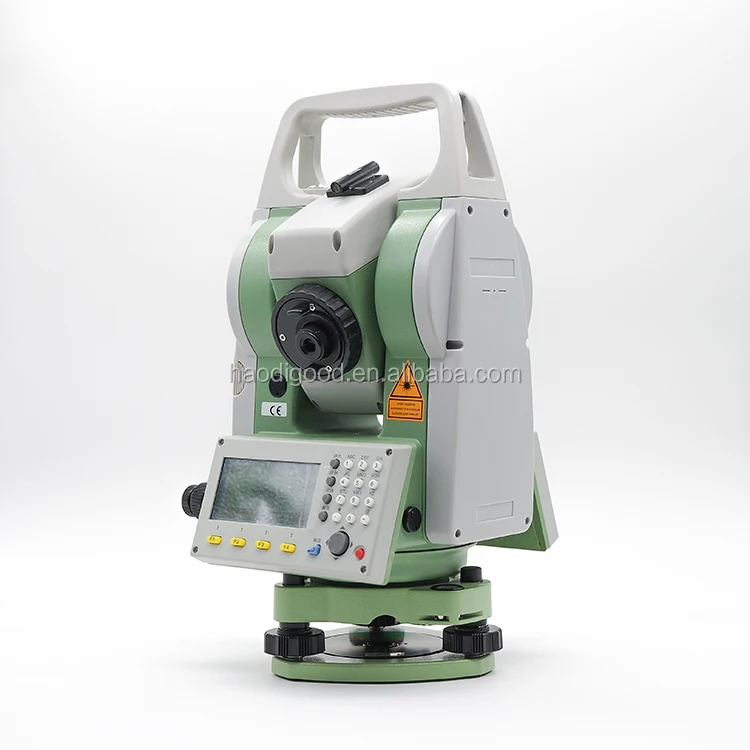

Высокоточный инструмент для обследования, 2 дюйма
- Category: Optical Instruments >>>
- Supplier: Shangrao Haodi Imp&Exp Trading Co. Ltd.
Share on (1600163445337):
Product Overview
Description
Company Information

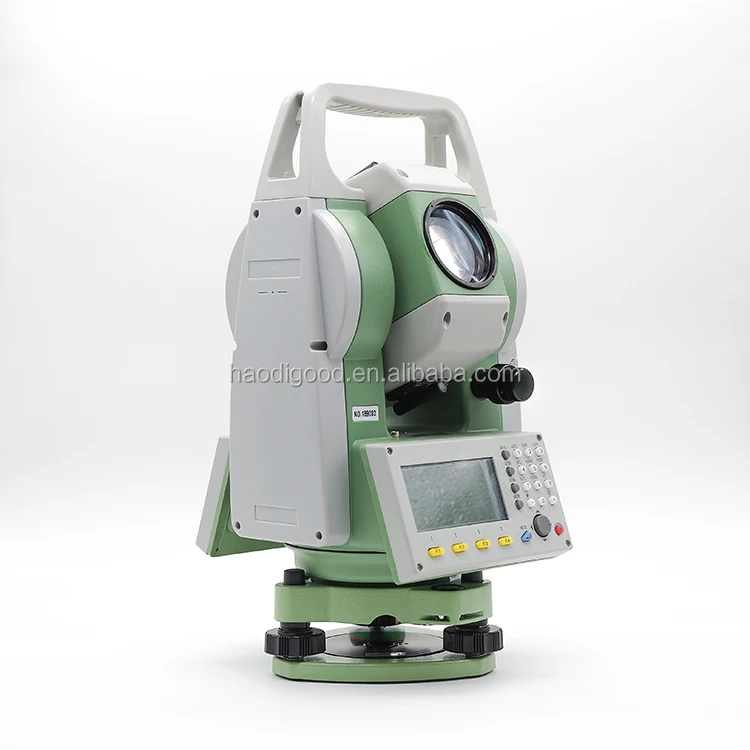

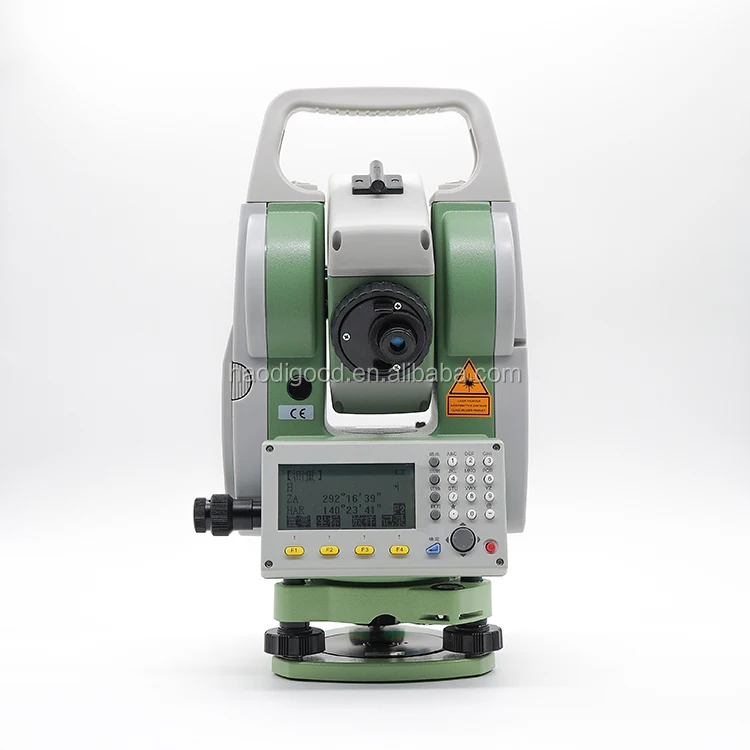

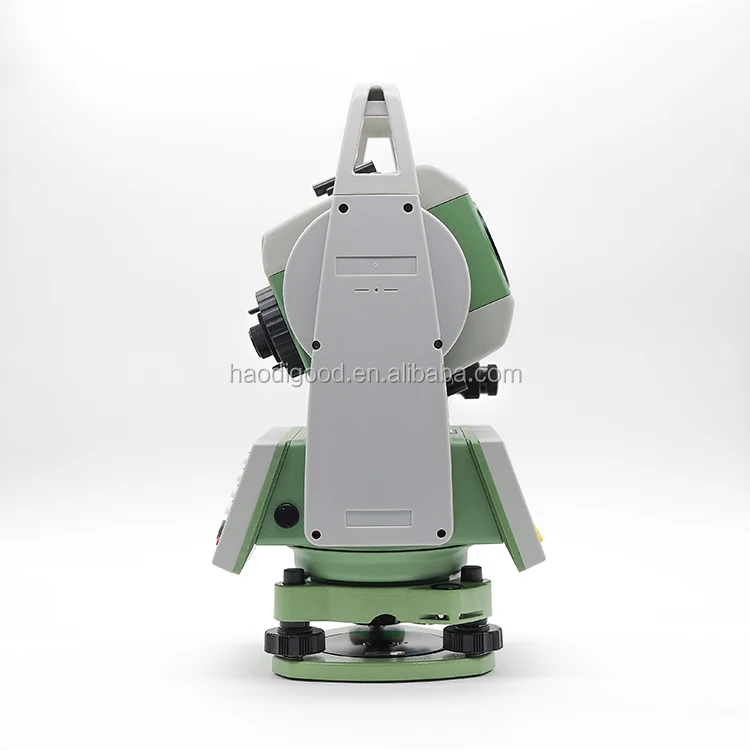

Good Quality TS2-6 Double LCD Screen Surveying Equipment Total Station
| Model | HMT—802R | HMT—802 | HMT—805 | MTS—805R |
| Objective aperture | 45mm(EDM aperture | 45mm(EDM aperture | 45mm(EDM aperture | 45mm(EDM aperture |
| diameter 45mm) | diameter 45mm) | diameter 45mm) | diameter 45mm) | |
| Magnification | 30 × | 30 × | 30 × | 30 × |
| Field of view | 1°30 | 1°30 | 1°30 | 1°30 |
| resolution | 3 " | 3 " | 3 " | 3 " |
| Minimum of | 1.0m (manual focus) | 1.0m (manual focus) | 1.0m (manuak focus) | 1.0m (manual focus) |
| focusing distance | ||||
| Mini prism | 1.5m-1000m | 1.5m-1000m | 1.5m-1000m | 1.5m-1000m |
| Sigle prism | 5,000m | 5,000m | 5,000m | 5,000m |
| Triangular prism | 8,000m | 8,000m | 8,000m | 8,000m |
| Without prism | 500m | —— | 500m | —— |
| With prism/ | ±(2mm+2ppm×D) | ±(2mm+2ppm×D) | ±(2mm+2ppm×D) | ±(2mm+2ppm×D) |
| Reflector accuracy | ||||
| No prism accuracy | ±(3mm+2ppm×D) | ±(3mm+2ppm×D) | ±(3mm+2ppm×D) | ±(3mm+2ppm×D) |
| Normal measurement | 1.2'(normal) | 1.2'(normal)0.7'(quick) | 1.2'(normal)0.7'(quick) | 1.2'(normal)0.7'(quick) |
| 0.7'(quick) | ||||
| Track model | 0.4' | 0.4' | 0.4' | 0.4' |
| Angel accuracy | 2 " | 2 " | 5 " | 5 " |
| Angel measurement | Absolute angle | Absolute angle | Absolute angle | Absolute angle encoder |
| encoder system | encoder system | encoder system | system | |
| minimun reading | 1"/5 " | 1"/5 " | 1"/5 " | 1"/5 " |
| Dispaly | Double LCD display | Double LCD display | Double LCD dispaly | Double LCD display |
| Compensation type | Single /dual spindle | Single /dual spindle | Single /dual spindle | Single / dual spindle |
| Conpensation range | ±3' | ±3' | ±3' | ±3' |
| Water-proof | IP54 | IP54 | IP54 | IP54 |
| Working temperture | -20℃~+50℃ | -20℃~+50℃ | -20℃~+50℃ | -20℃~+50℃ |
| Battery | lithium battery | lithium battery/ | lithium battery | lithium battery |
| /hydrogen battery | hydrogen battery | /hydrogen battery | /hydrogen battery | |
| Charger | input power AC100-240V,ouput | inpot power AC100-240V,output | input power AC100-240V, output | input power AC100-240V, output power DC7.5V |
| power DC7.5V | power DC7.5V | power DC7.5V | ||
| Continuous-time | 10 hours | 10 hours | 10 hours | 10 hours |
| Products size | 343H×172W×177L | 343H×172W×177L | 343H×172W×177L | 343H×172W×177L |
| Weight | 5.4kg | 5.4kg | 5.4kg | 5.4kg |
| Output interface | RS-232C | RS-232C | RS-232C | RS-232C |
| Road software | Yes | Yes | Yes | Yes |
| Storage | 50,000 points | 50,000 points | 50,000 ponits | 50,000 points |
