SH 100 3D Industrial Dry Powder Chemical Powder Mixer Blender
- Category: >>>
- Supplier: Wenzhou CapsulCN Technology Co. Ltd.
Share on (1600163663769):
Product Overview
Description
The SH series are new type mixer machines widely used in the pharmaceutical, chemical, foodstuffs industries and scientific research units. They are suitable for mixing powder or granular materials with good flowing properties.
Products Description
Model | SH-100 |
Vat volume (L) | 100 |
Max. Feeding volume (L) | 70 |
Max. Feeding weight (kg) | 50 |
Rotary speed of main shaft (r/min) | 2~15 |
Power (kw) | 1.5 |
Weight (kg) | 460 |

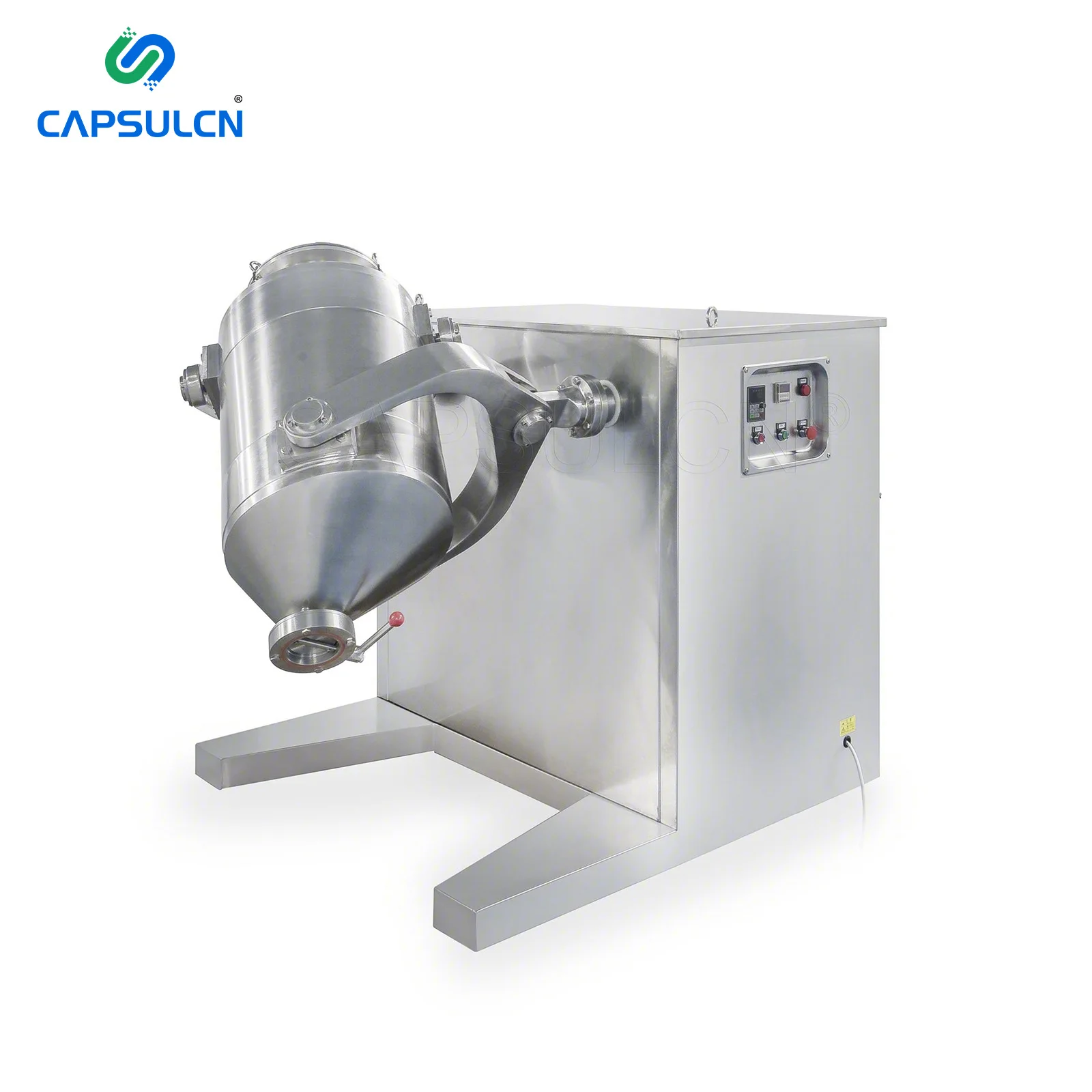

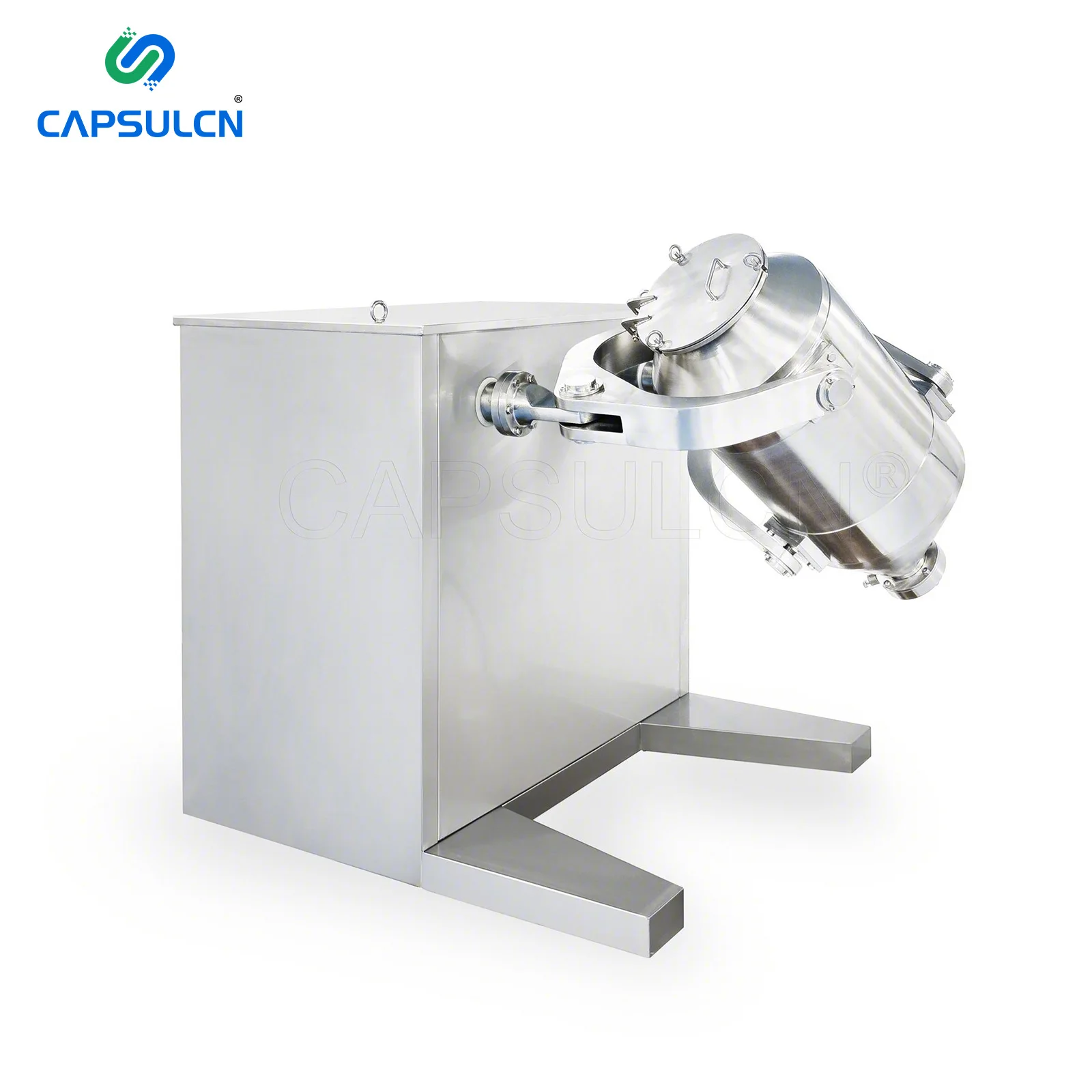

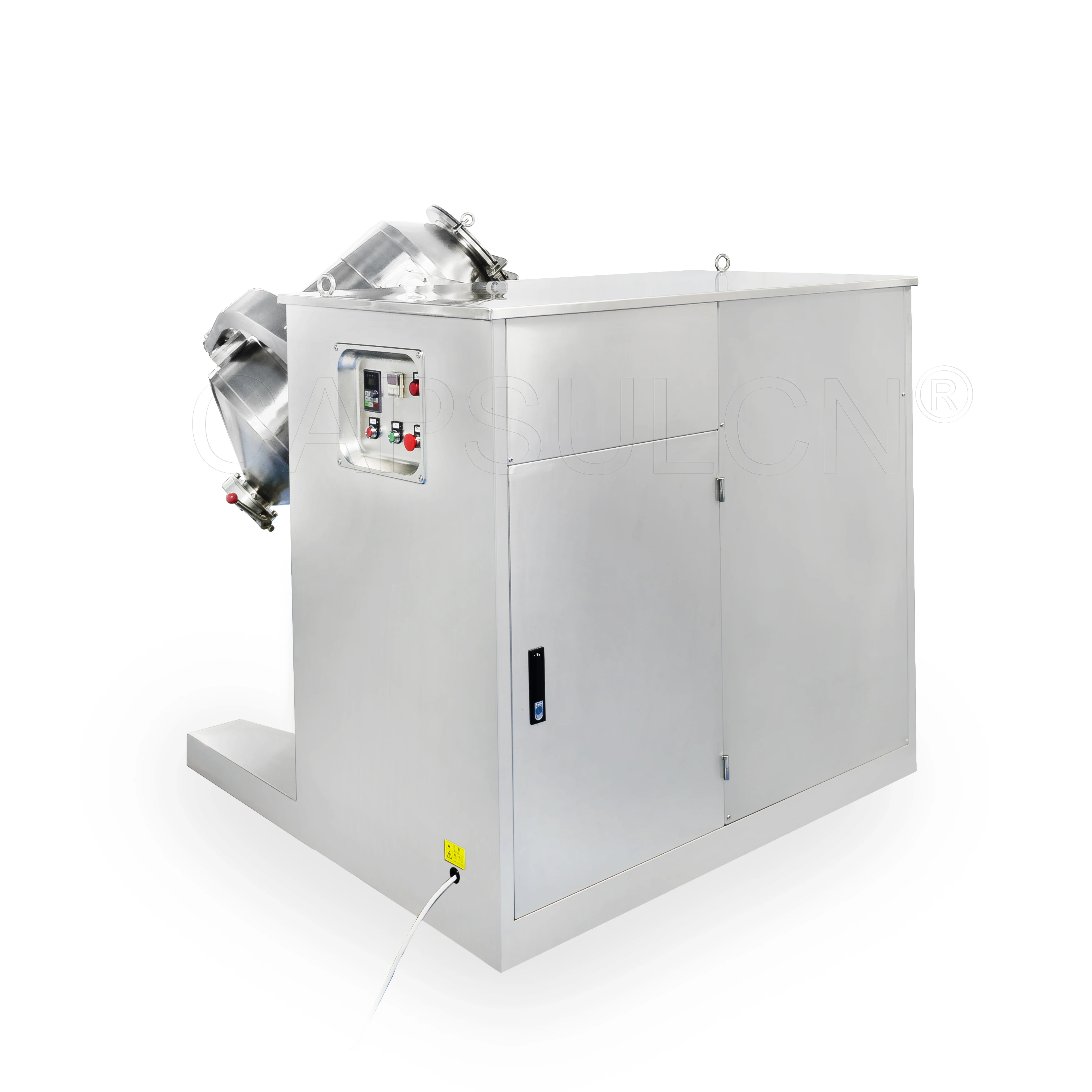

SH-100 3D Dry Powder Chemical Powder Mixer Blender

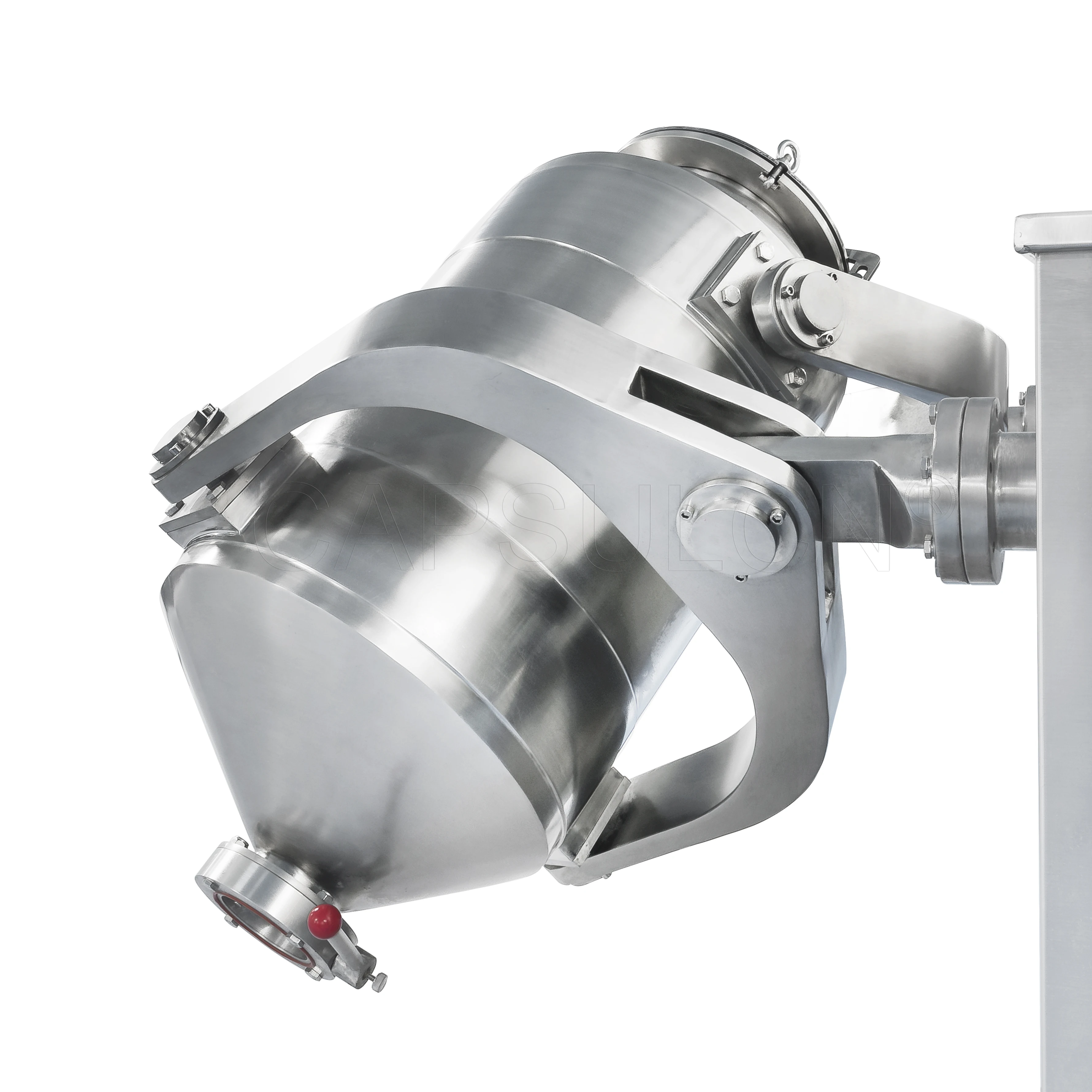

During running the mixing vat has a multidirectional operation that speeds up the flowing and diffusing of materials. It also avoids the gravity segregation and accumulation phenomenon of other general mixers caused by centrifugal action. Therefore, this machine has highly efficient mixing capabiolities.
Structure:
1. As the mixing vat is multidirectional, there are more mixing points involved. The mixing homogeneity is much higher than that of a general mixer and drug homogeneity error is lower than that of general mixers.
1. As the mixing vat is multidirectional, there are more mixing points involved. The mixing homogeneity is much higher than that of a general mixer and drug homogeneity error is lower than that of general mixers.
The max charging volume of the SH series three dimensional motion mixer is one time higher than that of general mixer (max charging volume of a general mixer is 40% of full barrel volume).

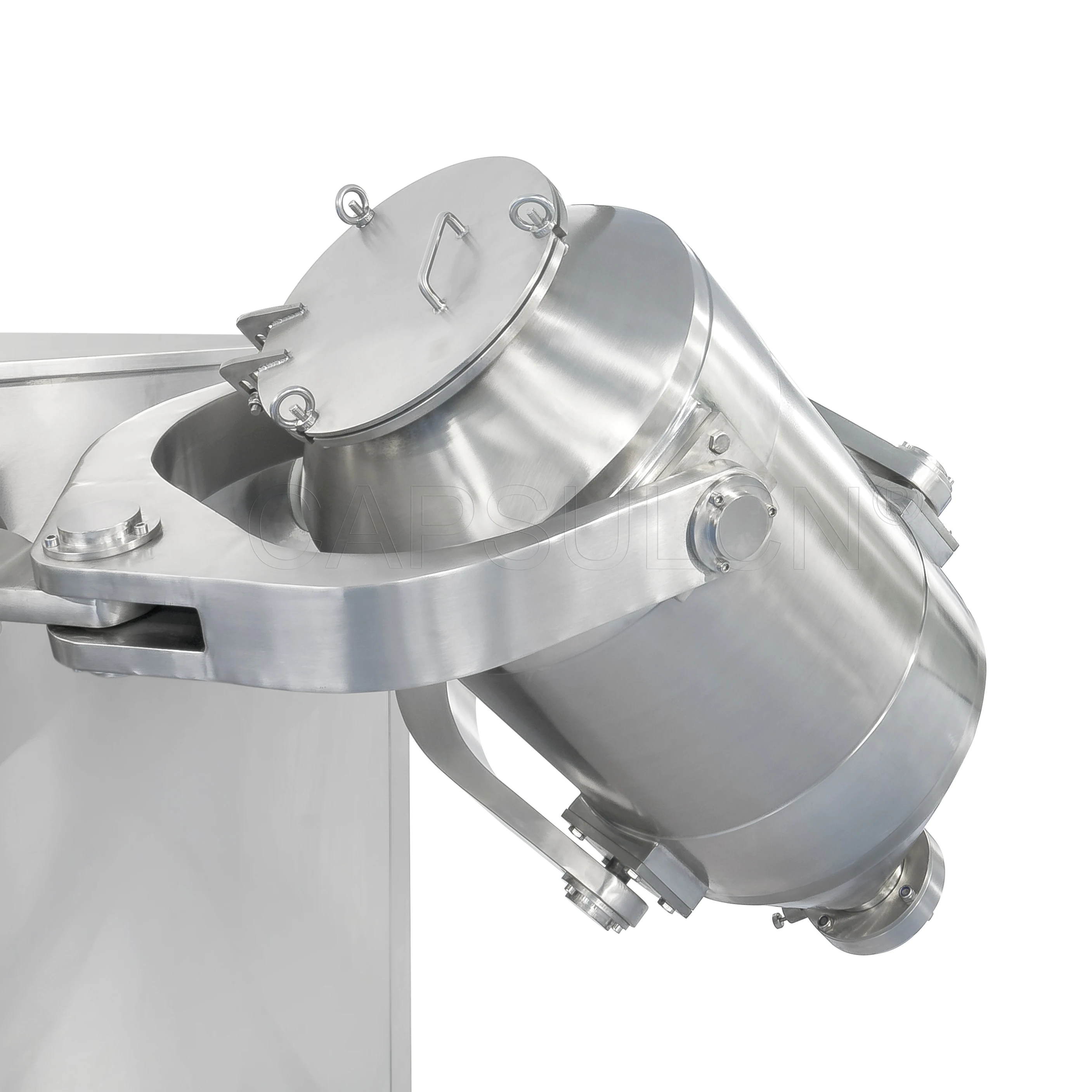

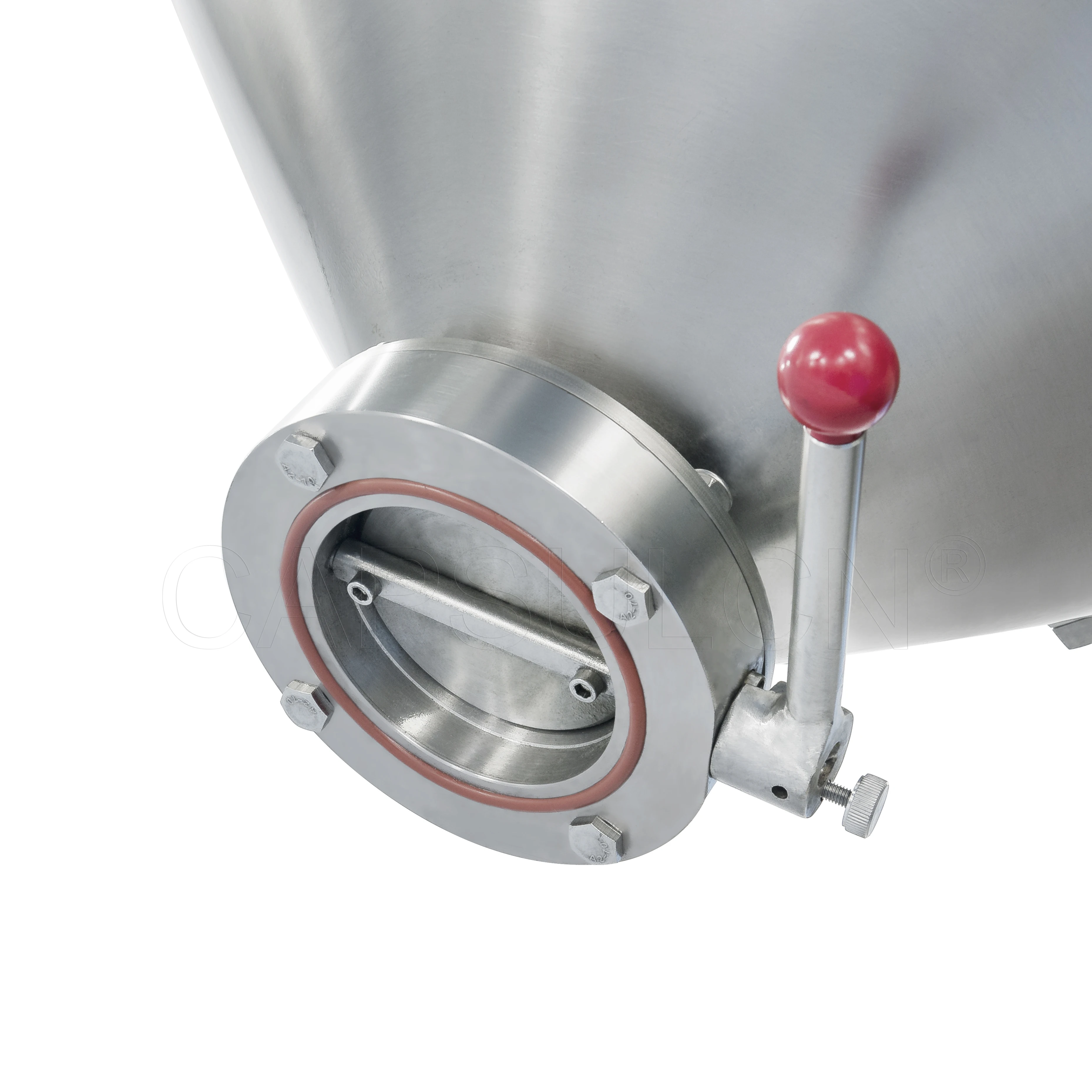

2. It has a unique mixing vat design, the inner walls of which are fine polished. There is no dead angle, no contamination and the materials are discharged automatically under gravity function without any residue.
3. The materials are mixed in a completely sealed vat.
2. It has a unique mixing vat design, the inner walls of which are fine polished. There is no dead angle, no contamination and the materials are discharged automatically under gravity function without any residue.
3. The materials are mixed in a completely sealed vat.

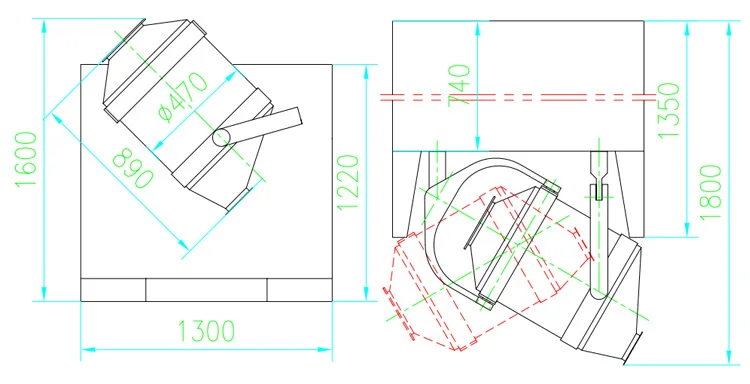

Details Images
Product packaging
1. Before the machine leaves the factory it has already been tested so the user can rest assured it is in working order.
2. Transportation: The vat volume is under 600L (including 600L) and is fully integrated. No foundation bolts are required. Machines with a vat volume of over 600L have a split package and foundation bolts are required.
3. Installation: The user should unload the machine carefully and with no accidental bumps on the machine or parts because the machine is of high.
4. All screws have been up for transportation.
5. The machine should be placed squarely on the floor eliminating the gap between the corners and the ground to avoid shaking during running.
6. The equipment should be installed under the guidance of our trained staff.
7. After installation, open the back cover, turn the pulley by hand, and connect the power when the machine is running stable. There are some notes about connecting power:
(1) The spindle should be turned in the same direction as the arrow.
If there are discrepancies, adjust the power phase.
(2) The testing of rotary speed should be from slow to fast, adjusting gradually and not beyond the speed requirements.
1. If you find the stand is not stable during the testing, stop the machine, and put a rubber shock pad of 10-16mm under the machine.
2. The test time should be not less than 10 minutes.
3. If testing is normal, you can feed materials in for testing but do not exceed the regulated volume.
4. After testing, the user should ask the skilled worker to explain the operation of the machine.
5. Maintenance: In new machines the lubricant should be changed every three months. The chain should be greased every six months.
2. Transportation: The vat volume is under 600L (including 600L) and is fully integrated. No foundation bolts are required. Machines with a vat volume of over 600L have a split package and foundation bolts are required.
3. Installation: The user should unload the machine carefully and with no accidental bumps on the machine or parts because the machine is of high.
4. All screws have been up for transportation.
5. The machine should be placed squarely on the floor eliminating the gap between the corners and the ground to avoid shaking during running.
6. The equipment should be installed under the guidance of our trained staff.
7. After installation, open the back cover, turn the pulley by hand, and connect the power when the machine is running stable. There are some notes about connecting power:
(1) The spindle should be turned in the same direction as the arrow.
If there are discrepancies, adjust the power phase.
(2) The testing of rotary speed should be from slow to fast, adjusting gradually and not beyond the speed requirements.
1. If you find the stand is not stable during the testing, stop the machine, and put a rubber shock pad of 10-16mm under the machine.
2. The test time should be not less than 10 minutes.
3. If testing is normal, you can feed materials in for testing but do not exceed the regulated volume.
4. After testing, the user should ask the skilled worker to explain the operation of the machine.
5. Maintenance: In new machines the lubricant should be changed every three months. The chain should be greased every six months.
Recommend Products

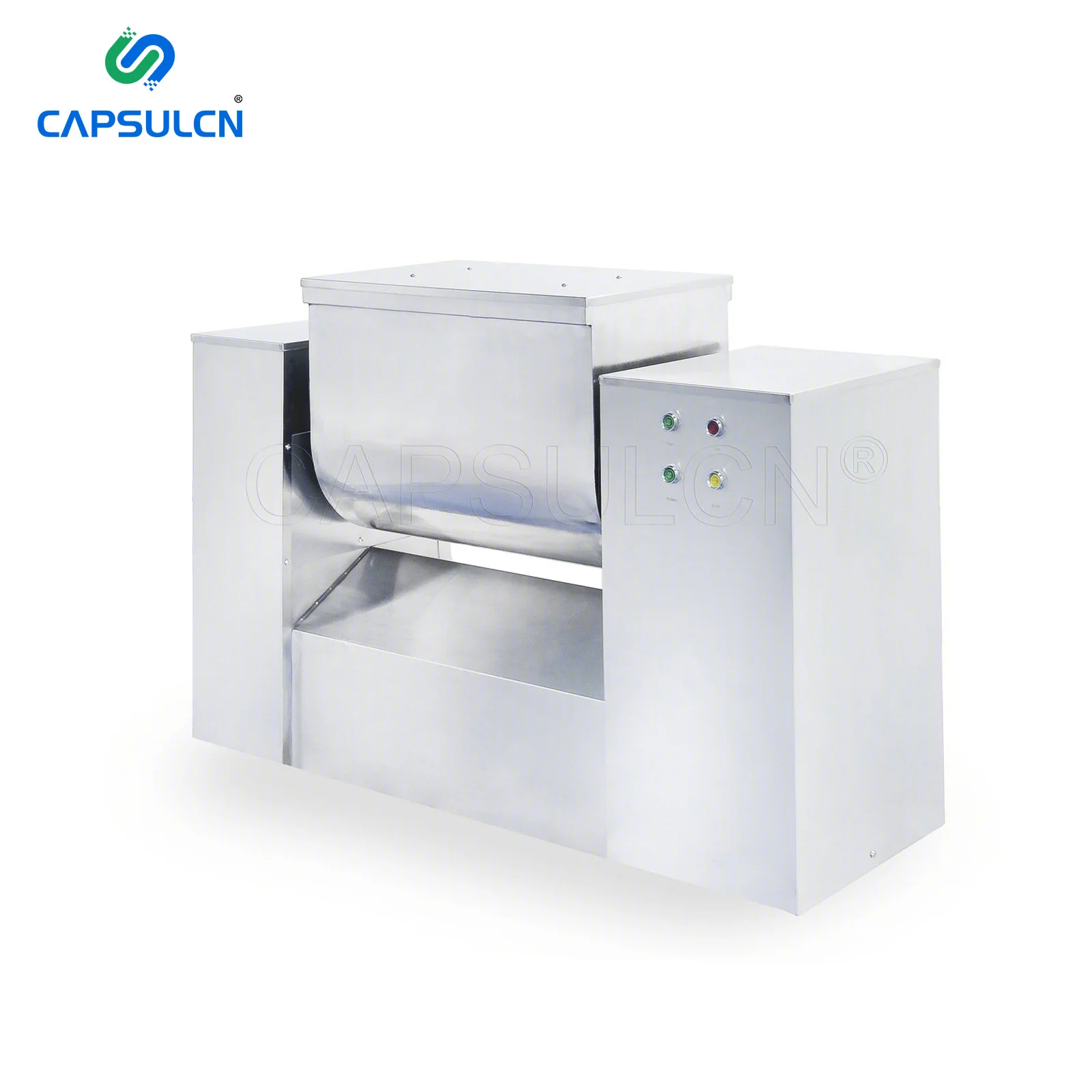

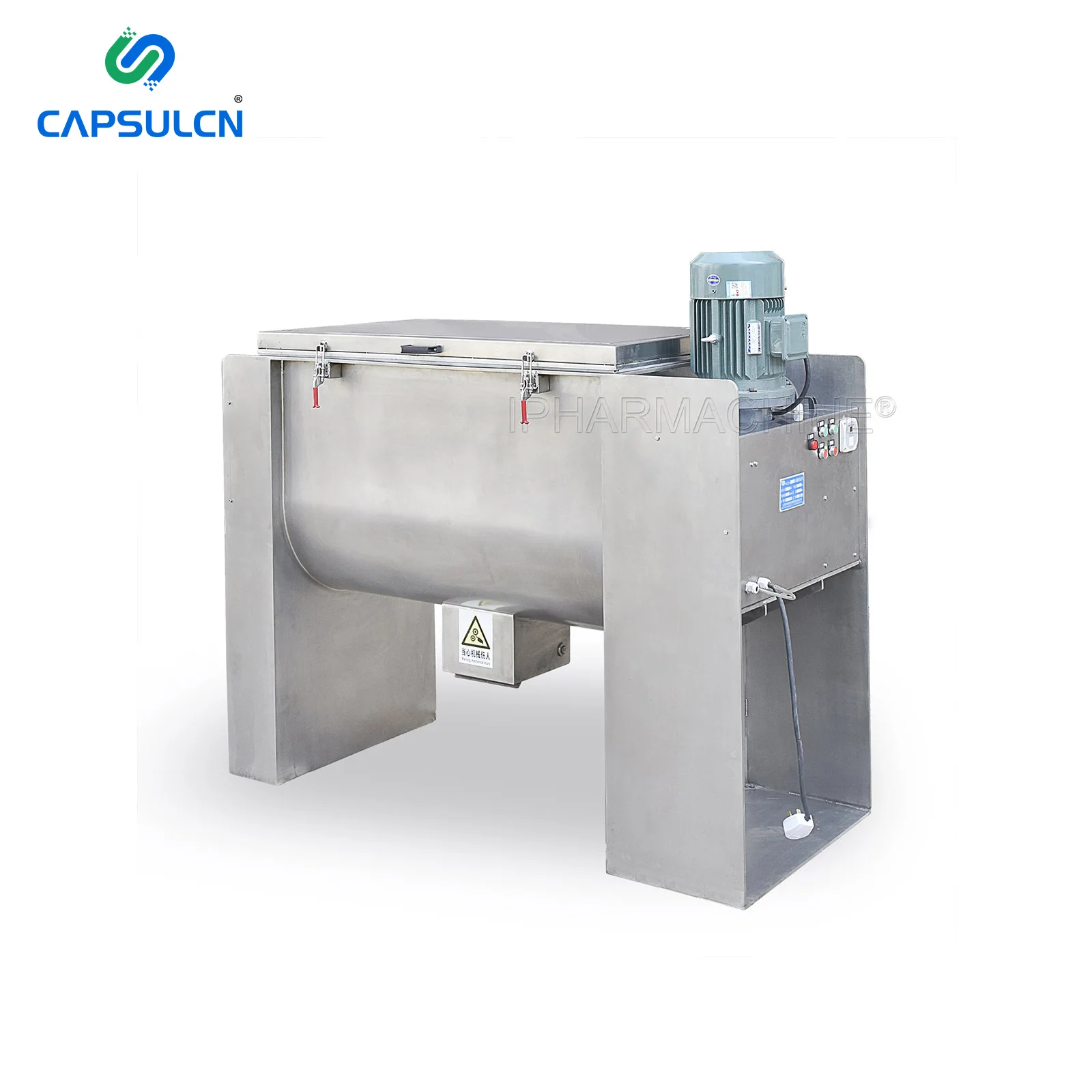

We have various types of mixers, please tell us your needs, and we will recommend a suitable machine for you!
