Product Overview

Description





Product Description

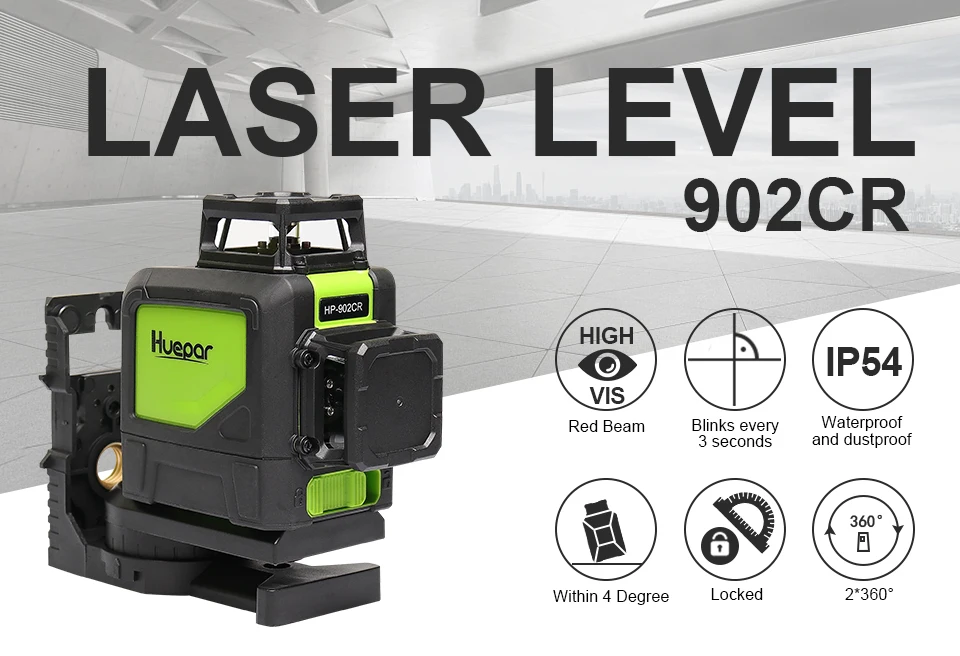

902CR Laser Level Features:

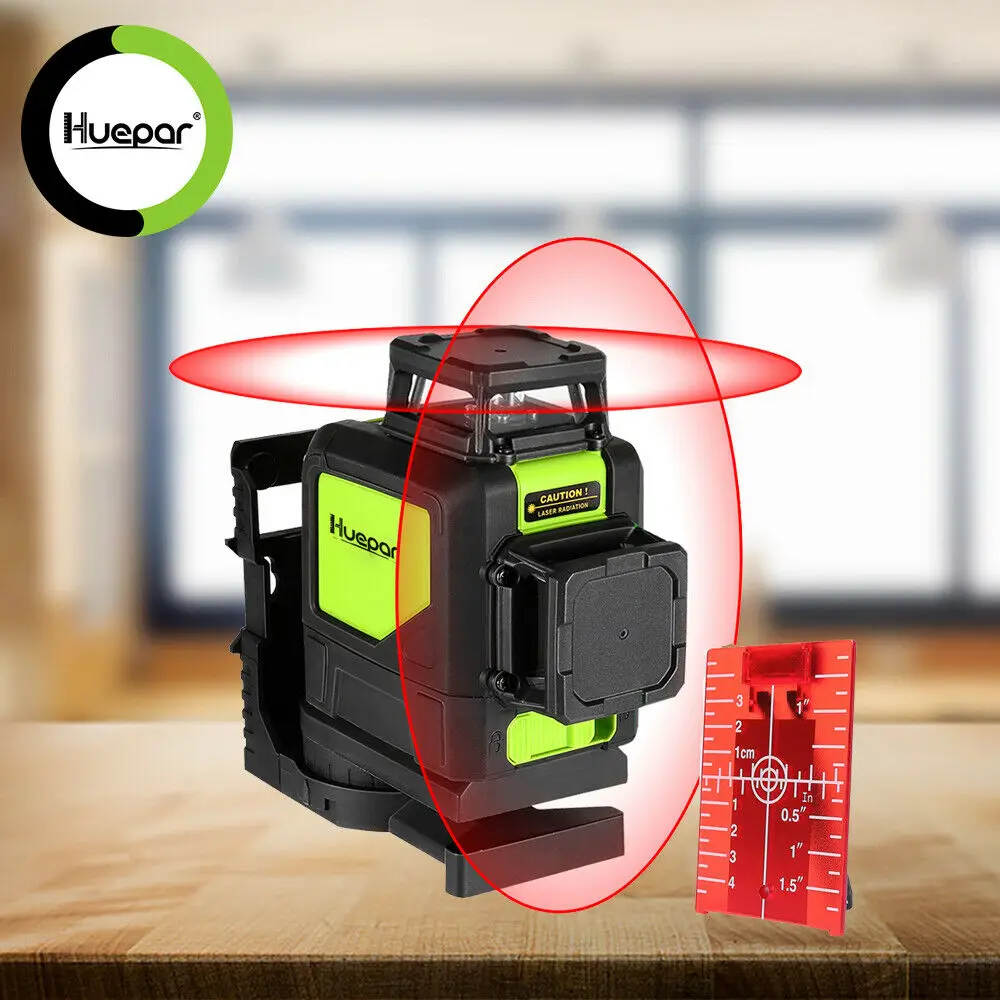

★ 360° horizontal, vertical and cross laser projecting for full range of precision alignment
★ 360° magnetic swivel bracket
★ Leveling and self-leveling
★ 2 robust laser windows clearly project Line laser visible up to 30m
★ 1-button operation to switch multifunctions
★ Indicator will flash under an out-of-level condition
★ 360° Precise Positioning
★ 2-Pulse Mode
★ High Precision and Self-leveling
★ User-friendly Design


Warning: Avoid direct exposure of the laser beam to the eyes.
The laser would be affected by strong sun light when work outside.

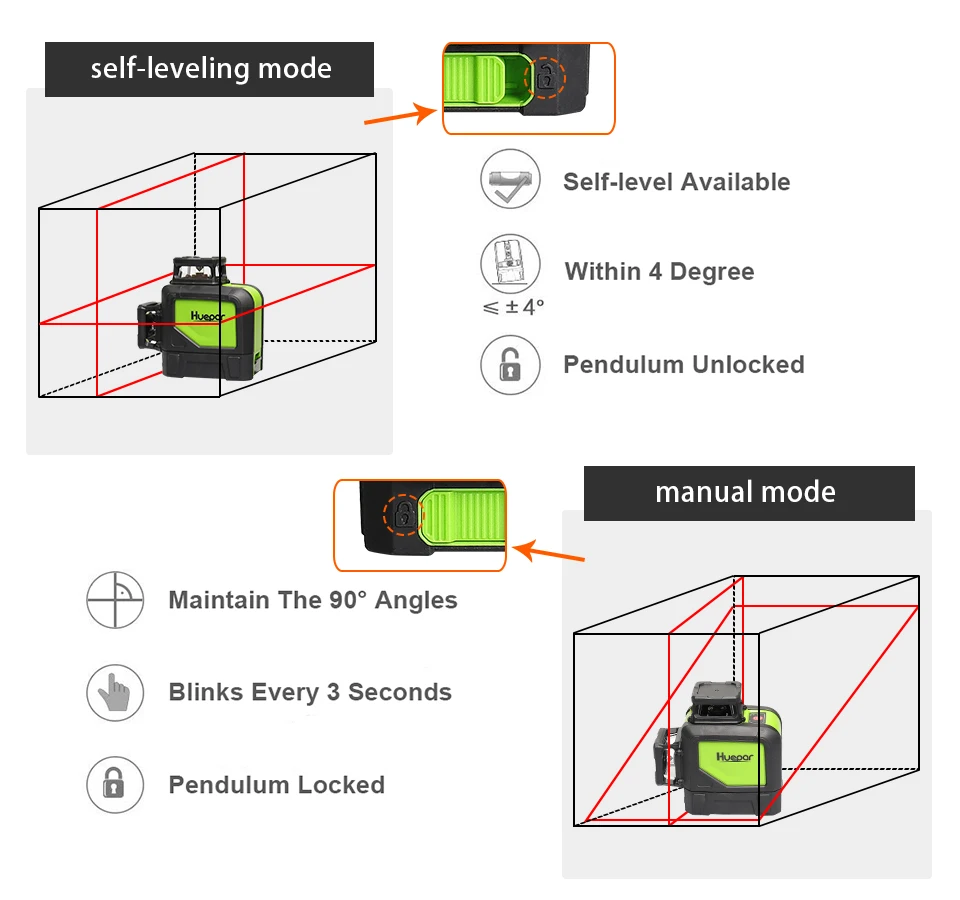

Two modes of use, with lock design, reduce losses and lock the movement.
Self-leveling mode
Manual mode

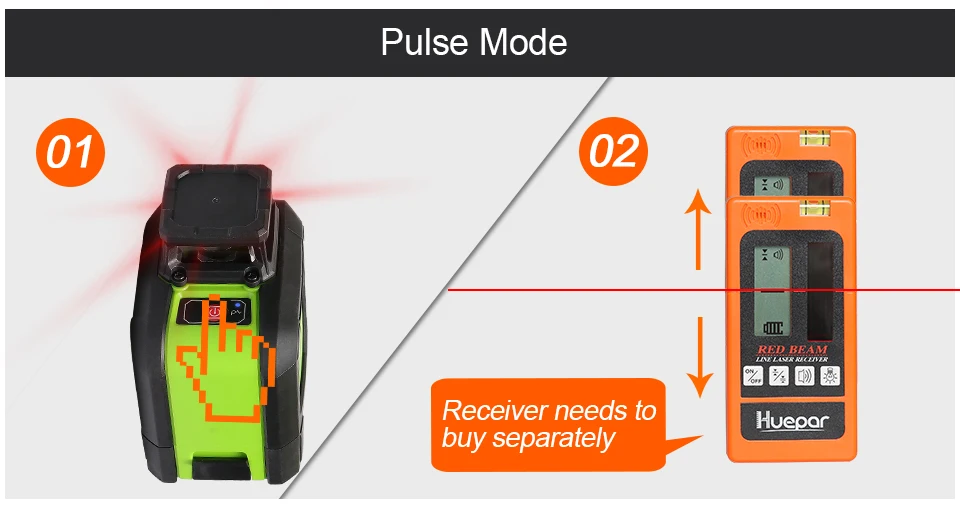

Pulse Mode：
➤ Unlock the pendulum, press and hold the power button (for about 5 seconds) to turn on the pulse mode, then turn it on red.
➤ When outdoor work is required (the receiver needs to be purchased separately, the laser receiver LR510 can receive pulses.
➤ The receiver frequency is 10khz and the Huepar brand is the best pairing.

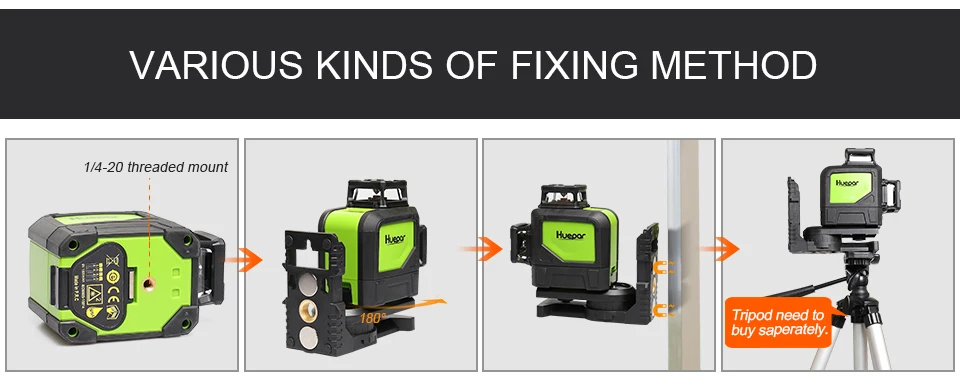

Various kinds of fixing method:
➤ Strong Magnetic L mount with triop thread can attaches the laser to any steels easily, turning around 180-degree as you like.
➤ It can also accepts a standard tripod screw to do height adjustment.

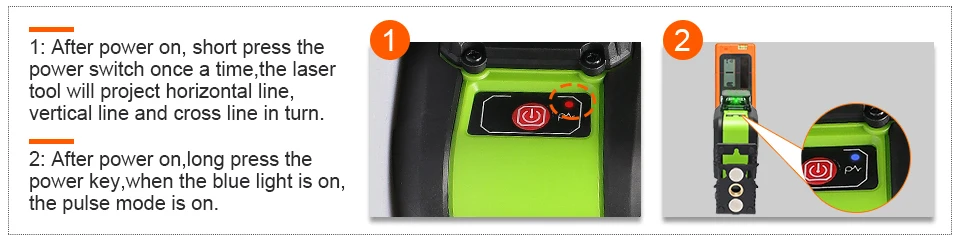

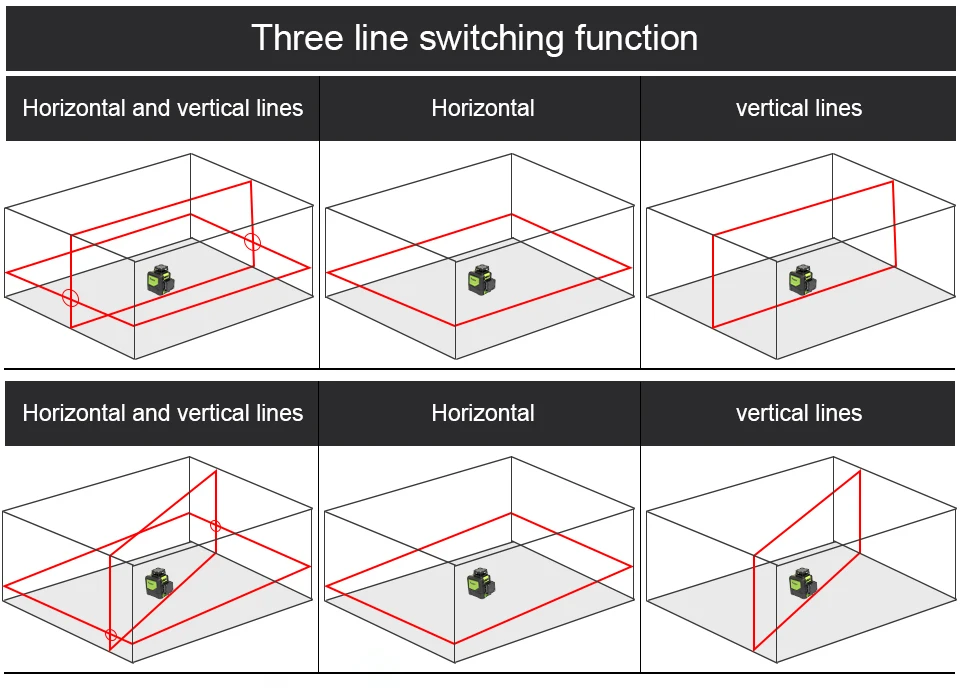

Three kinds of circuit switching functions:
➤ Each time the power button is pressed once, the laser tool projects horizontal lines, vertical lines, and cross lines in sequence.
➤ 360° cover horizontal line and 360° vertical line (H360°/V360°)










Specification




item
value
Warranty
2 years
Certification
CE, FCC, ROHS
Dot Numbers
0
Customized support
OEM, ODM
Place of Origin
China
Brand Name
Huepar
Model Number
902CR
Size
8.5x10 cm(3.4"x3.8")
Precision
±3mm/10m ±1/9 In. at 33 Ft.
Wavelength
635nm
Laser Class
Class II(IEC/EN60825-1/2014), <1mW power output
Laser Wavelength
635
Leveling Accuracy
±3mm/10m
Horizontal/Vertical Accuracy
±3mm/10m
Leveling/Compensation Range
4°±1°
Working Distance (Line)
30m(100 LUX)
Operating Time
10 hours with all laser beams on
Laser power
Horizontal line 40mW, Vertical Line40mW
Power Source
4 AA (LR6) (not included)

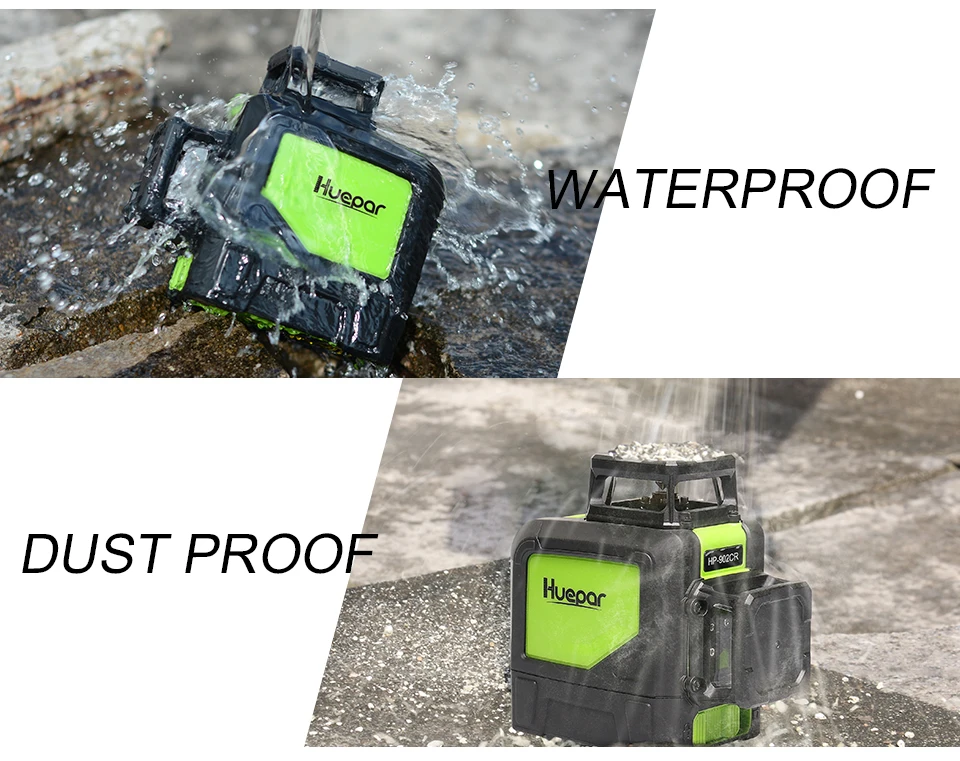

Dust and splash protection
IP54, waterproof, dustproof and shockproof, reliable and tough


Packing & Delivery

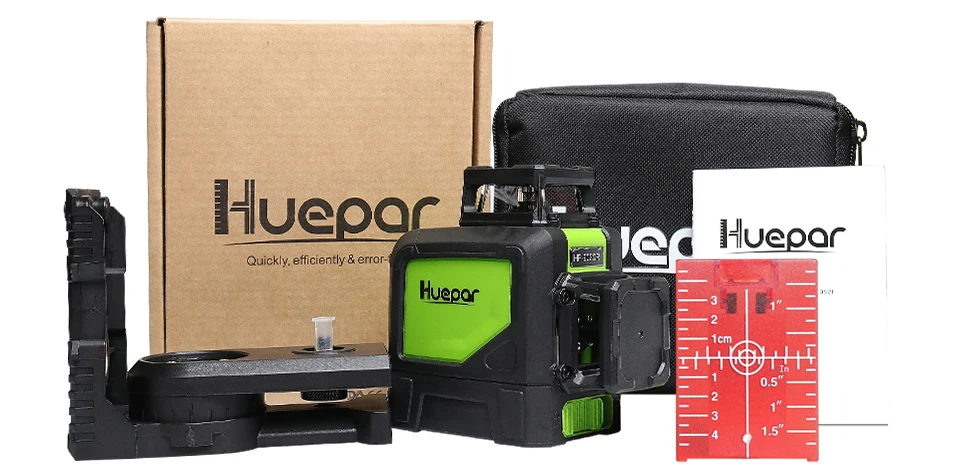

Packing Includes
* 1 X Huepar 902CR laser level( No including battery )
* 1 X Magnetic pivoting Base
* 1 X Laser target
* 1 X Cloth case
* 1 X English User's Manu


Company Profile


A quality oriented manufacturer for measuring tools that have been dedicating to supply reliable quality&high
cost-effective&satisfactory after service to the high-end market.








FAQ


1.How can you guarantee payment safety?
Our company supports TRADE ASSURANCE service. If you will choose payment through ALIBABA TRADE ASSURANCE service, you payment will be guaranteed. Because we are not able to receive payment until you confirm goods receipt

2. What kinds of shipment for goods and how long time it takes?
Our company supports DHL, FEDEX, UPS, by sea and other methods. Shippment day is 3-5 workdays after payment receipt.

3.what can you buy from us?
Laser Level,Laser Distance Meter,Accessories,Power Tool,Garden Tool

4. What kind payment method we accept?
T/T, L/C at sight, Western Union, Trade Assurance on Alibaba and PayPal

5. Do you have other items not displayed on your website?
Yes, our company supplies full survey range products. If you are looking for product not displayed on our website. Please contact us freely. We will reply you on time.
