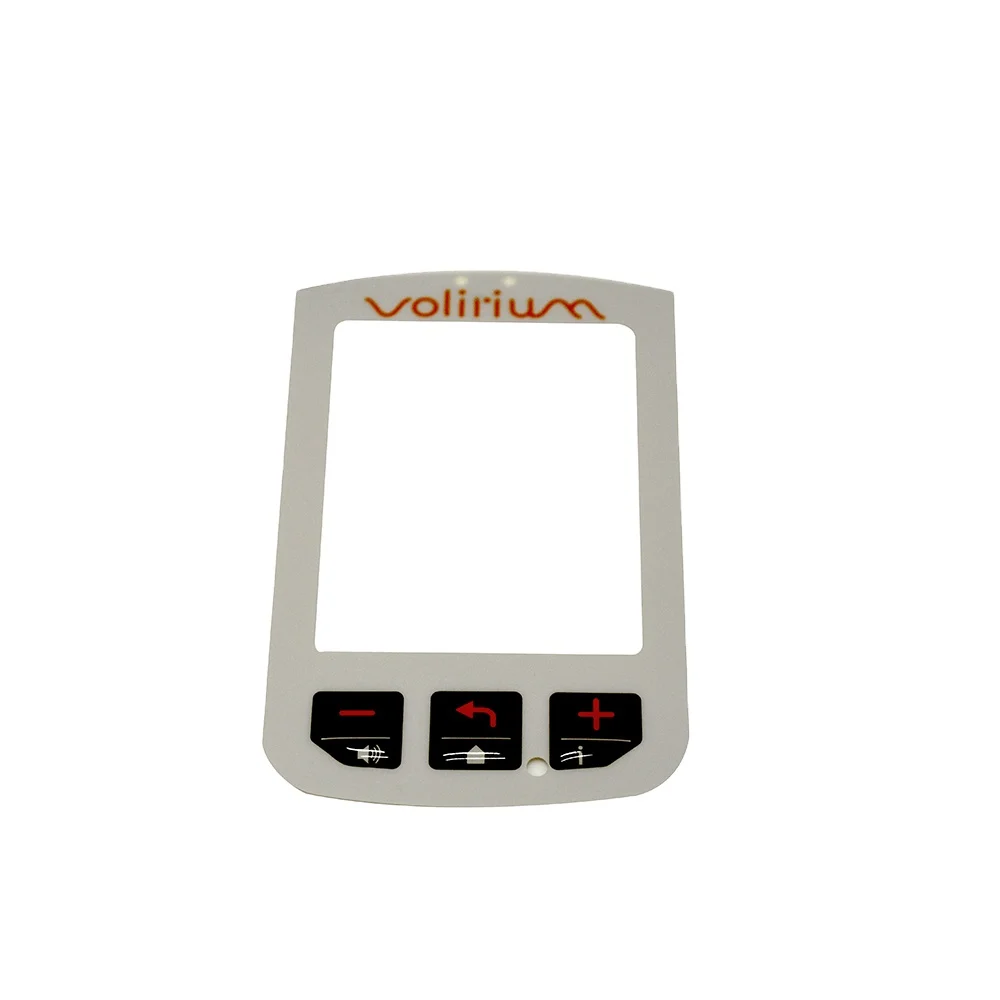

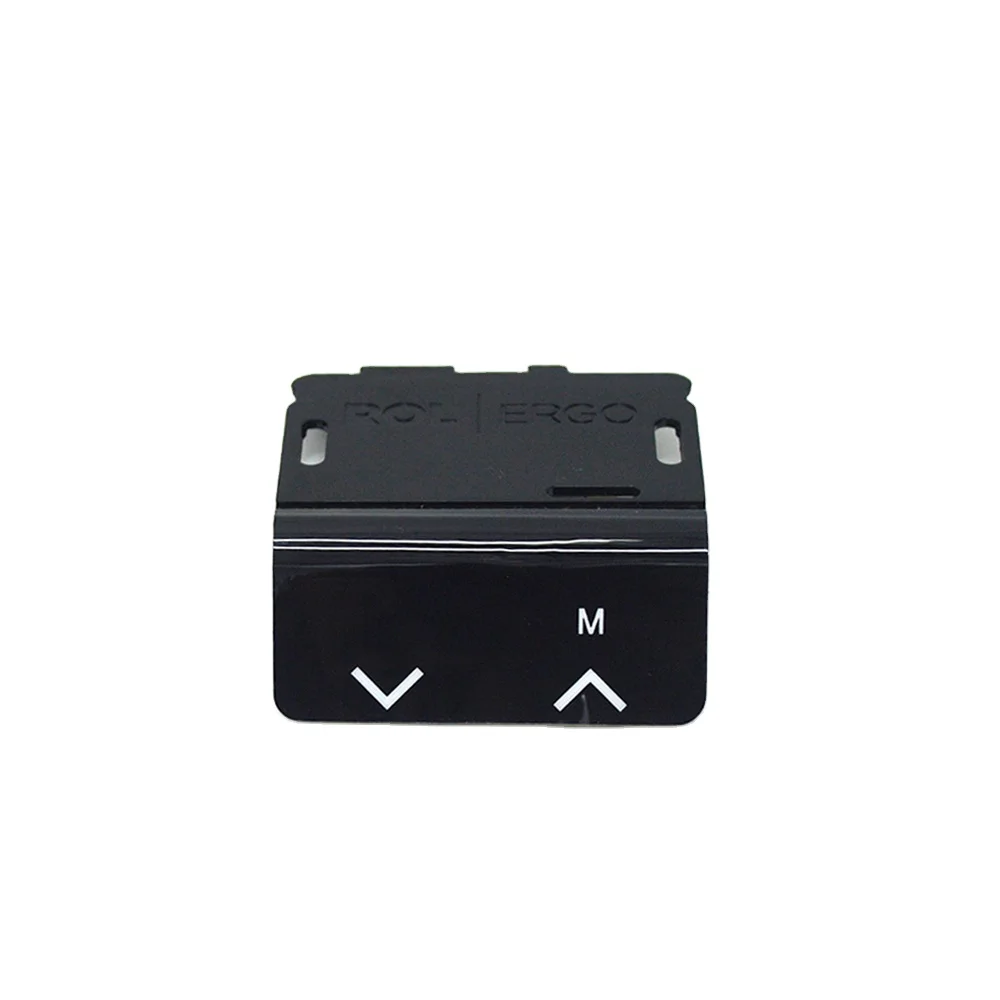

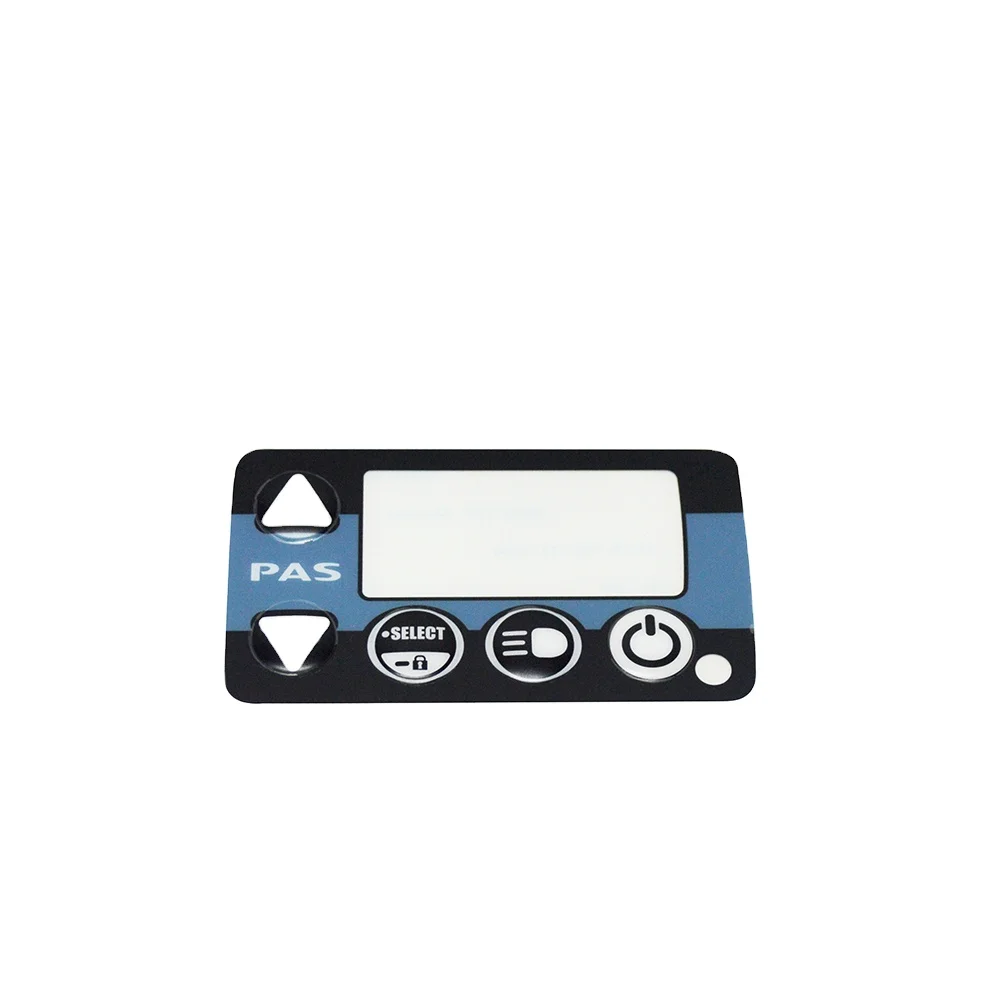

Китайская фабрика, панель управления из ПВХ, графическая пользовательская бытовая техника, клавиатура, многослойная печатная панель, мембранная панель
- Category: Keypads & Keyboards >>>
- Supplier: Shanghai Shanben Industrial Electronics & Instruments. Co. Ltd.
Share on (1600163723902):
Product Overview
Description
Specification
Features :

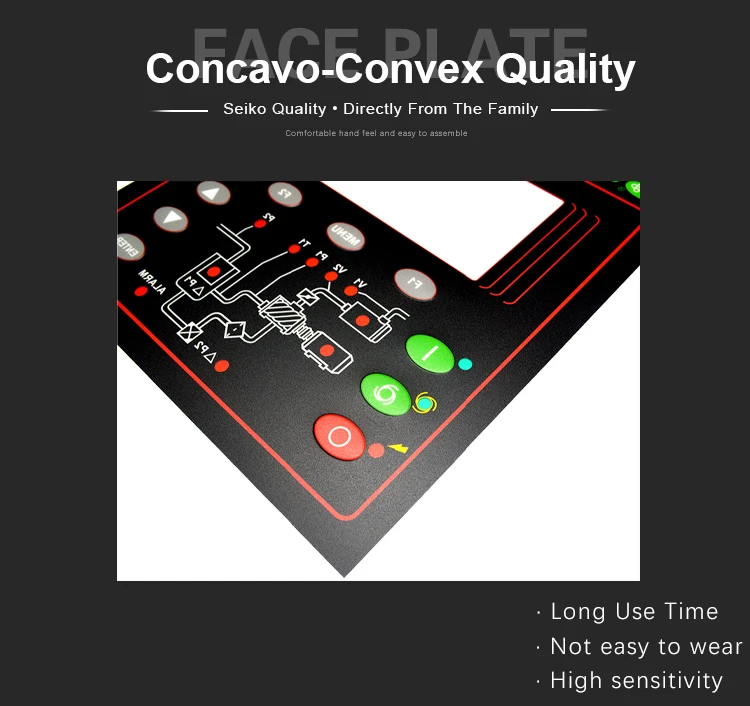

Graphic Overlay, also called Panel, is an important part of membrane switch, which can provide control function and beautiful modern appearance. It is made by printing graphics and text description on such materials as PVC, PC and PET. It is composed of multi-layer polyester and adhesive, which can be directly connected with electronic equipment through flexible circuit board connector. From material to material The main materials suitable for making membrane panel are: PVC (polyvinyl chloride), PC (polycarbonate) and PET (polyester), with the thickness of 0.125 \\ 0.175 \\ 0.25, and three surfaces of sand, matte and smooth. The physical and chemical properties of PC material are good, and it can adapt to many kinds of inks. It is the most common material for membrane switch panel. PC materials can be divided into sand surface and smooth surface. The reason for choosing sand surface materials is that the use of film switches is mostly electronic products, and the panel used as the control system does not want to be interfered by light, while the sand surface is only diffuse reflection, which will not produce bright reflection; at the same time, because the surface is disordered sand like, it has the function of masking scratches. In contrast, smooth materials do not have the above characteristics. But as a smooth material, if combined with the back printing, the color will appear more brilliant. In the case of strong decorative requirements and not frequently touched, the panel is often made of smooth materials, or due to the special needs of some display areas such as LCD, it is more favorable to choose smooth materials. The price of PVC
material is lower, about half of PC material. When producing popular civil products, PVC material can reduce production cost. At the same time, PVC material has good ductility, and can be used to cold press three-dimensional graphics.
Graphic Overlay, also called Panel, is an important part of membrane switch, which can provide control function and beautiful modern appearance. It is made by printing graphics and text description on such materials as PVC, PC and PET. It is composed of multi-layer polyester and adhesive, which can be directly connected with electronic equipment through flexible circuit board connector. From material to material The main materials suitable for making membrane panel are: PVC (polyvinyl chloride), PC (polycarbonate) and PET (polyester), with the thickness of 0.125 \\ 0.175 \\ 0.25, and three surfaces of sand, matte and smooth. The physical and chemical properties of PC material are good, and it can adapt to many kinds of inks. It is the most common material for membrane switch panel. PC materials can be divided into sand surface and smooth surface. The reason for choosing sand surface materials is that the use of film switches is mostly electronic products, and the panel used as the control system does not want to be interfered by light, while the sand surface is only diffuse reflection, which will not produce bright reflection; at the same time, because the surface is disordered sand like, it has the function of masking scratches. In contrast, smooth materials do not have the above characteristics. But as a smooth material, if combined with the back printing, the color will appear more brilliant. In the case of strong decorative requirements and not frequently touched, the panel is often made of smooth materials, or due to the special needs of some display areas such as LCD, it is more favorable to choose smooth materials. The price of PVC
material is lower, about half of PC material. When producing popular civil products, PVC material can reduce production cost. At the same time, PVC material has good ductility, and can be used to cold press three-dimensional graphics.
Keystroke force | 2N ±20% |
Stroke | 0.21mm ±15% |
Contact type | silver glue |
Service life | 10 000 000 |
Operating temperature | -25 to +65 degree |
Storage temperature | -30 to +85 degree Protection IP 65 |
Normal working voltage | 24V |
Maximum working voltage | 50V |
Normal working current | 30mA |

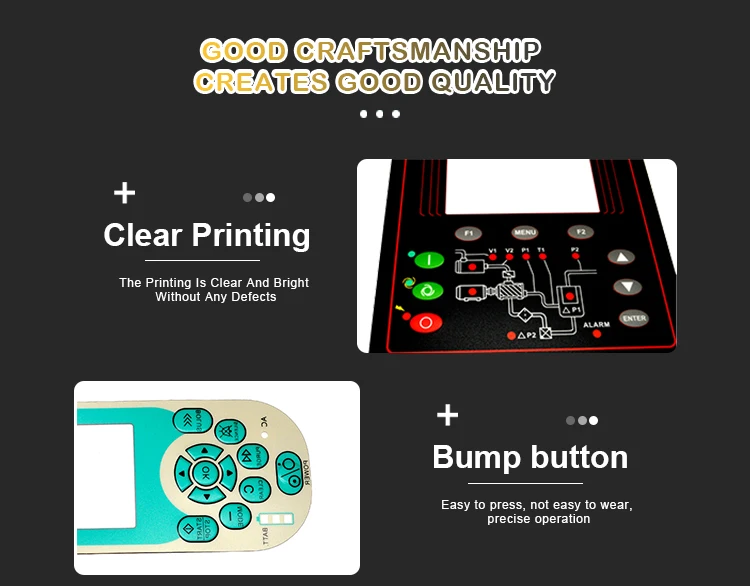

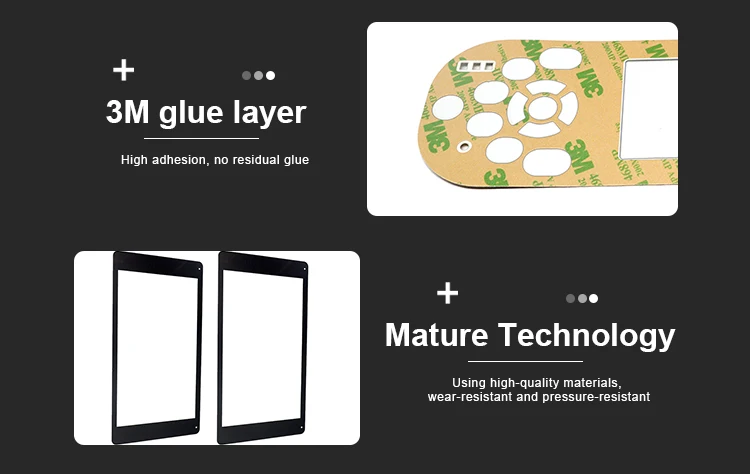

Details Images
Application
Recommend Products

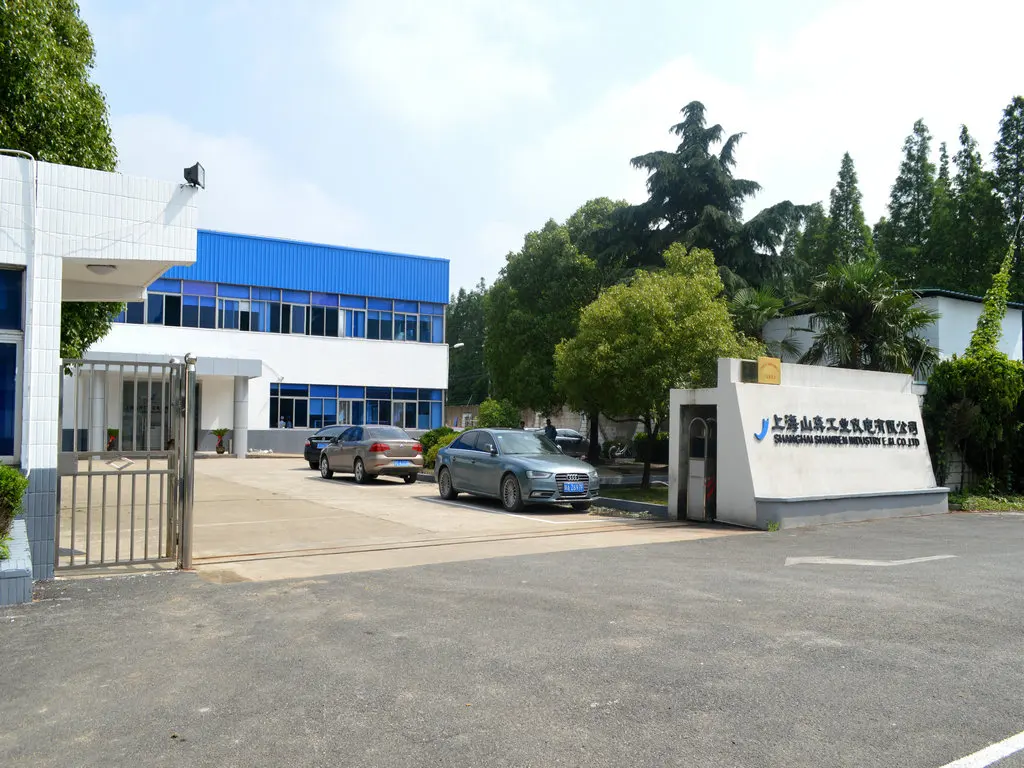

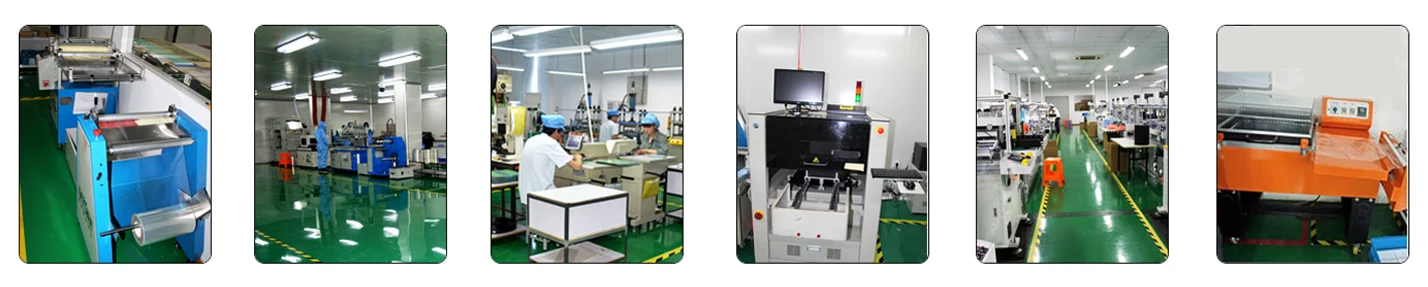

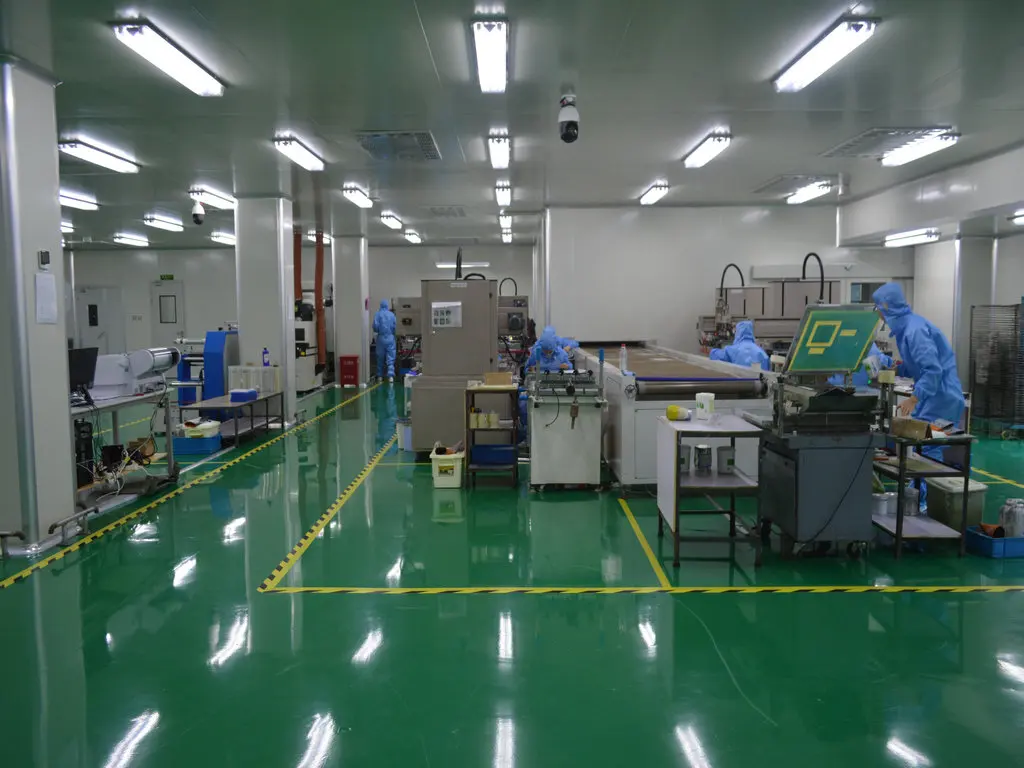

Company Profile and Equipment
Shanben is a manufacturer with independent research and development capabilities. The company has a strong returnee design and development team, the technology is at the leading level in the world and has independent invention patents. The company adopts ERP management system to grasp every operation link in the production process in real time. Carry out every link of all products conscientiously, implement APQP in product development projects, formulate Process Flow Chart and Control Plan for each link, apply FMEA to analyze each small link, process capability CPK control is greater than 1.33, product measurement MSA repeatability and Reproducibility verification minimizes product safety and errors. The company has established an effective management system to ensure effective quality control.
Our users include Ericsson, GE, Tyco, Tesla, METTLER TOLEDO,TOTO, and other well-known companies and Foxconn (Foxconn), DELTA(Delta) and other well-known Taiwanese companies. Your affirmation of our products is our driving force for continuous improvement.
Our users include Ericsson, GE, Tyco, Tesla, METTLER TOLEDO,TOTO, and other well-known companies and Foxconn (Foxconn), DELTA(Delta) and other well-known Taiwanese companies. Your affirmation of our products is our driving force for continuous improvement.
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
FAQ
Q1:Are you a manufacturer or trading agent?
A:We are a experienced manufacturer and we also have a professional overseas sales team to serve our customers all over the world.
Q2:Can you offer samples?
A:(1)Stock Samples: If you paid the freight cost, we can provide free samples for you.
(2)Customized Samples: We will offer you 5 pcs free samples after we receive the set up cost.
Q3:How to control quality?
A:(1)We process the products strictly based on the raw material list.
(2)Our many engineer own many years experience and are very responsible.
(3)Warranty period is one year. If you find some products is bad, you can tell us, we will give you solutions.
Q4:Is the prototype necessary?
A:Yes.Most of the items are customized orders,so the prototype will be sent to customer for approval.
Q5:How to make an order?
A:Please tell us your material,artwork design,logic circuit principle chart,size,surface,usage etc. And better send us the design drawing or samples together with other detailed datas, then we’ll customize the membrane switch upon your requests.
A:We are a experienced manufacturer and we also have a professional overseas sales team to serve our customers all over the world.
Q2:Can you offer samples?
A:(1)Stock Samples: If you paid the freight cost, we can provide free samples for you.
(2)Customized Samples: We will offer you 5 pcs free samples after we receive the set up cost.
Q3:How to control quality?
A:(1)We process the products strictly based on the raw material list.
(2)Our many engineer own many years experience and are very responsible.
(3)Warranty period is one year. If you find some products is bad, you can tell us, we will give you solutions.
Q4:Is the prototype necessary?
A:Yes.Most of the items are customized orders,so the prototype will be sent to customer for approval.
Q5:How to make an order?
A:Please tell us your material,artwork design,logic circuit principle chart,size,surface,usage etc. And better send us the design drawing or samples together with other detailed datas, then we’ll customize the membrane switch upon your requests.
