Fully Automatic small ring traveller for knitting spinning machine hand maed China

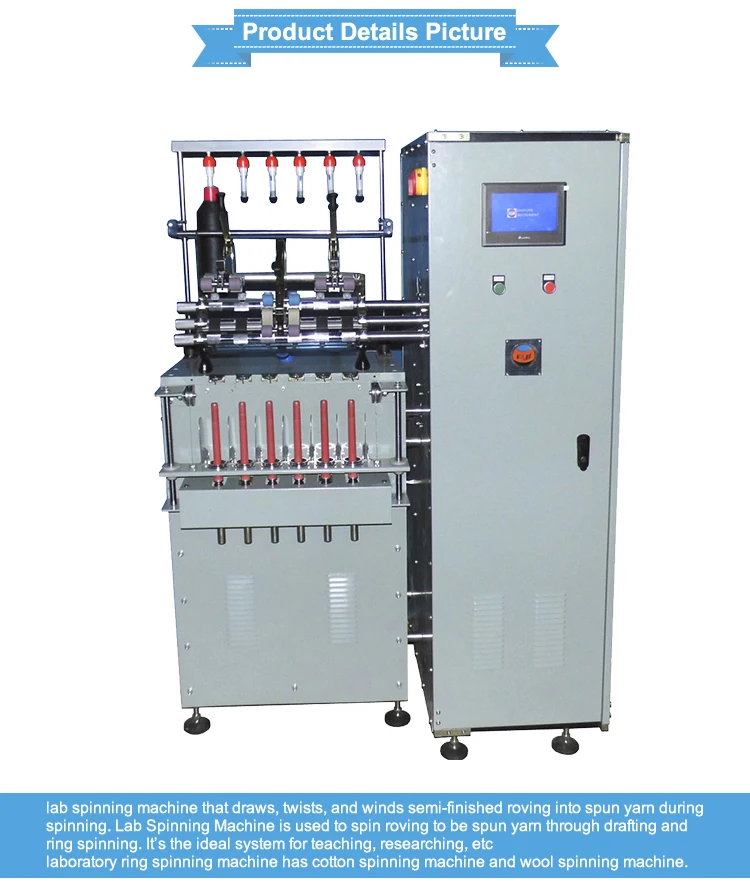

Application of Lab Spinning Machine:
Lab spinning machine is a ring spinning machine that draws, rewinds, or rolls half-finished roving or sliver into a fine yarn.The roving is made of fine yarn through the drafting of the fine gauze machine and by the drawing and holding of the roving machine.
Ring spinning machine is the main machine of spinning, the output and quality of spinning is a comprehensive reflection of the advantages and disadvantages of each process of spinning process.
Key specification of Lab Spinning Machine:
Control mode |
Touch screen & PLC |
Number of spindles |
6 |
Applicable fiber length |
22~50mm |
Draft range |
10~50 |
Draft control |
Automatic |
Roller diameter |
Front roller: Φ25mm, middle roller: Φ25mm, back roller: Φ25mm |
Center distance of rollers |
Front and middle: 43mm |
Pressure mode |
Spring cradle |
Twist settable range |
200~2000 twist/m |
Twist direction |
S or Z |
Max. speed of spindle |
12,000rpm |
Spindle gauge |
70mm |
Spindle length |
205mm |
Ring diameter |
Φ42mm |
Yarn density range |
6~99tex (6~100Ne) |
Capacity |
Approx. 0.25~1kg/h |
Power supply |
AC220V, 50Hz |
Installation in customer's lab Training in FYI showroom
Customer in our factory
1.Are your company a trading one or a factory?
Factory + trade (integration),30 years focusing on test instruments field,More than 10 years exporting experience.
2.After an order is placed, when to deliver?
Generally about 30 days, If we have inventory, we can arrange shipment within 7 days.
Please be aware that our production lead times depend on specific items and item quantities.
3.What about the warranty with after - sales services?
12 months warranty. Engineers available to sevice yarn dyeing machine overseas,after the warranty, the professional after-sale service team will provide perfect technical support on line,and help customer solve problems encountered while using our product, handles guest problems and complaints in a professional and timely.
4.What about the services and product' quality?
Each instruments must be carried out 100% quality examination and test when shipping and delivery goods. each of our product provide video training to show you how to install & operate. our products are widely recognized and trusted by users.
All the products meet with: ISO, ASTM, AATCC, BS, EN, DIN, JIS and other requireable standards.
