SURELINK 2 pairs 4pairs 24awg 1000ft 305meters pull box indoor or outdoor internet cable utp cat5e

Share on:

Price:$10.00 - $40.00
Price in USD:Details


Product Overview

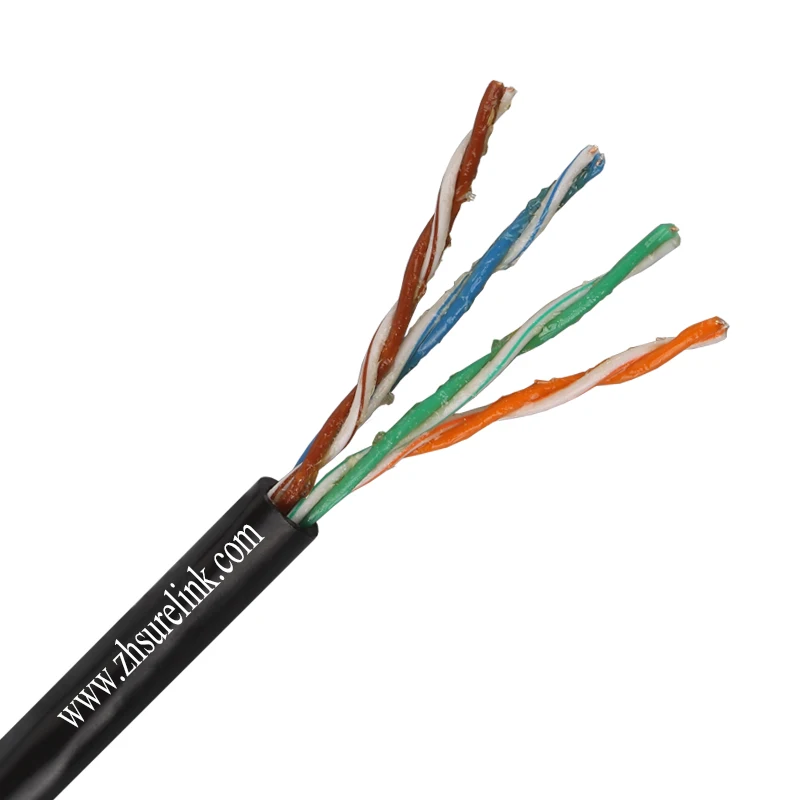

SURELINK 2 pairs 4pairs 24awg 1000ft 305meters pull box indoor or outdoor internet cable utp cat5e



Cable Overview


2 pair cat5e utp lan cable network cable

Material Instruction
1.CCA or 24AWG Soft Plain Copper.
2.Eco-friendly,pollution-free and new materials selected.Promise new material only.
3.Insulation: Solid HDPE;
4.Eco-friendly PE Jacket , high-temperature resistance,long working life.


1. Exceeds ANSI/TIA-568B. 2 and ISO 11801 2nd Edition Class E Category 5e channel standards.
2. Exceed requirements of ANSI/TIA-568B. 2 and IEC 61156-5 Category 5e Component standards;
3. Meets requirements of IEEE 802.3af and IEEE 802.3at for PoE applications.
4. Foil shield reduces ingress of EMI interference to ensure cable performance at high frequency levels.
5. Length cable marking enable easy identification of remaining cable which reduces installation time and cable scrap.
6. Color Availability: Additional cable colors available.


Electronic Characteristics
Impedance: 100± 15(ohms).
Rated Temperture: 75º C
DC Resistance unbalance(%): Max2.5
DC Resistance 20º C: 8.4(Ohms/100m)
Pair-to-Ground Capacitance Unbalance: 330(Pf/100m)
Transfer Impendance: Max 10 mohms/[email protected]
Installation Resistance: >5000MΩ *KM
Dielectric strength: DC 2500V 2S


Standard / Certificate
Reference Standard:YD/T1019-2001,ISO/IEC11801,ANSI/TIA/EIA - 568B
Certificates ISO9001,14000, ROHS.


Transmission Performance for reference


Cable Specification


  Item Name     UTP CAT5E Lan Cable
  TYPE     Cat5E
  Conductor     CCA or 24AWG Stranded Copper
  Number of Conductors      4
  Insulation Material     HDPE
  Application     Lan cable
  Jacket     PE
  Operating temperature     -50 ° C - +70 ° C
  Standard     EIA/TIA 568B.2 & ISO/IEC 11801/ ASTM / BS
  Certificate     CE/ISO/RoHS Approved


Meterial Description




Related Package

Package Details:
305meters or 1000ft pull box or wooden drum

Two boxes into a carton



OEM / Related Production For Lan Cable

OEM  custom-made  production  according  to  different  customer's  request. Shape, PVC ,color, Conductor  diameter, degree of  tightness, logo  design, Inner and Outer package design, all of below  request  are  available.

    Product      Network Lan Cable
    Type     CAT3/CAT5E/CAT6/CAT6A/CAT7
   Conductor     23 AWG/24 AWG/26 AWG BC/CCA
    Insulation     HDPE (high density polyethylene)
    Shielding     Pet Tape/ Aluminum Foil
    Ripcord      Nylon
    Cross     PP
      Drain Wire     0.40mm tinned copper/CCA or BC
      Jacket     PVC/LSZH/PE
    Operating temperature     -20 ° C - +60 ° C
    Working Life     20~25 years
    Applications     Computer network cabling project
     Broadband network communication
     Digital ISDN network and ATM 155mbps network
     Long distance and local area network commubication


Related Hot Models



Manufacturer Introduction


Zhuhai Surelink Communication Cable Co.,Ltd is one of the leading manufacturer in the cables and telecom accessories.  We have more than 20 years experience in this line.Our factory has over twenty production lines and 300 employees.


Our productions comply with ISO9001.Professional team,powerful factory and strict quality control give best service to our clients and the quality guarantee in every order.


Our products have been widely installed in Telecom companies and many distributors around the world.
We export to more than 70 countries and our annual revenue is more than hundreds of million USD.


We have established a close relationship with many companies around the world and we sincerely look forward to woking with all clients from all over the world.

Main Cable Categories Provided by Us


1.Optical Fiber Cable and Patch Cord
2.Lan and Network Cable and Patch Cord
3.Alarm Cable and Speaker Cable
4.Drop Wire and Telephone Cable
5.Communication Cable
6.Coaxial Cable
7.Electrical Wire and Power Cable
8.Telecom Accessory.

Company Show





Workshop and Quality Test



Package and Delivery


Payment and Shipping


We usually use T/T

T/T deposit before production and balance when shipment.

Payment terms: Western Union, Escrow, Paypal, T/T ,L/C


If the quantity of the order is not very big, we usually send by express delivery,such as TNT,DHL,UPS,FEDEX or EMS.

For big order,we will ship the goods by air or by sea.
