Digital ultrasound probe pocket machine ultrasound system
- Category: Health & Medical >>>
- Supplier: Xuzhou,Sunbright,Electronic,Technology,Co.,Ltd.
Share on:
Product Overview
Description
Products Description

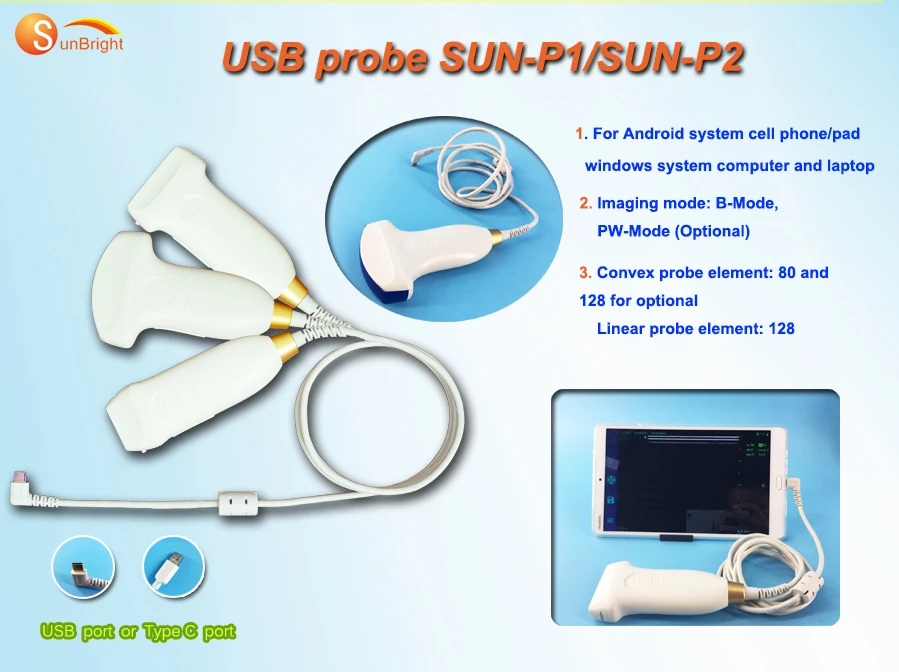

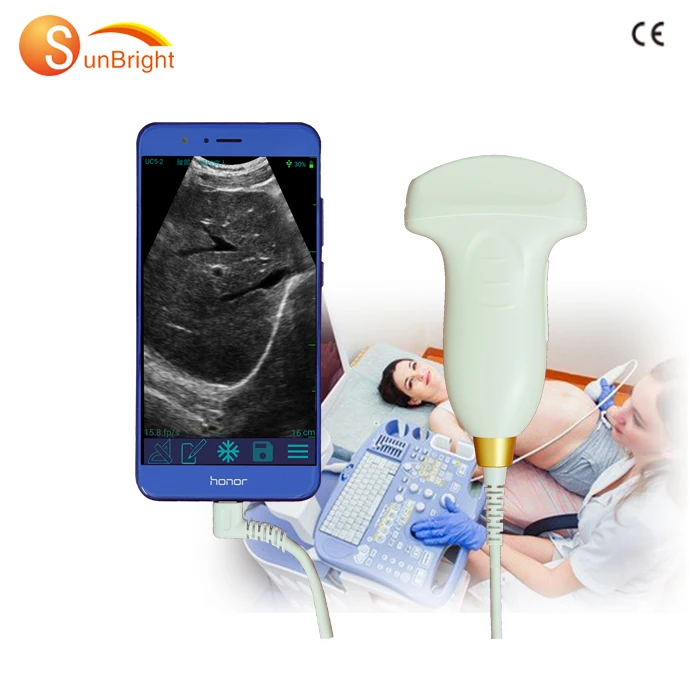

Digital ultrasound probe pocket machine ultrasound system
Fast description:
1. Portable and ease-of-use pocket ultrasound system.
women, pediatric patients and neonates.
parts,Nerve,Abdomen,Obstetrics,Gynecology,Urology,etc.
1. Portable and ease-of-use pocket ultrasound system.
2. Imaging mode: B-Mode, PW-Mode in optional.
3. 80 Probe element,256 Gray scale level,100 frames Cine review.
4. Compatible Device:Android /Windows System.
5. Multi-specialty uses, such as adults, pregnant
women, pediatric patients and neonates.
6. System software application: Vascular,Small
parts,Nerve,Abdomen,Obstetrics,Gynecology,Urology,etc.
Physical Specifications:
Dimensions and Weight |
Width: < 135mm Depth: < 80mm Height: < 30mm Weight: < 150g |
Operating Environment |
Ambient temperature: 10~30 deg Relative humidity: <80% Atmospheric pressure: 700 hPa~1060 hPa |
Storage & Transportation Environment |
Ambient temperature: -20~55 deg Relative humidity: <95% Atmospheric pressure: 700 hPa~1060 hPa |
Transducer Types & Scanning Methods
Transducer Types
1.Linear array transducer
2.Convex array transducer
3.Phased array transducer(coming soon)
Scanning Methods
1.Electronic linear
2.Electronic convex
3.Electronic sector
System software application
Vascular, Small parts, Nerve, Abdomen, Obstetrics, Gynecology, Urology
Measure
Distance,Area ,Volume ,Ratio (distance or area),OB measure package,Body mark
Annotations
Text
Arrow
Ellipse
Rectangle
1.Linear array transducer
2.Convex array transducer
3.Phased array transducer(coming soon)
Scanning Methods
1.Electronic linear
2.Electronic convex
3.Electronic sector
System software application
Vascular, Small parts, Nerve, Abdomen, Obstetrics, Gynecology, Urology
Measure
Distance,Area ,Volume ,Ratio (distance or area),OB measure package,Body mark
Annotations
Text
Arrow
Ellipse
Rectangle
Technical Parameter |
Power consumption:1W Imaging mode: B-Mode, M-Mode,PW-Mode Frequency: Convex (3-5Mhz) Probe element: 80 and 128 for optional Gray scale level: 256 Dynamic range:>120dB Maximum frame rate: 20 FPS (probe dependent) Cine review: 100 frames System scanning depth: linear probe: ≤70mm Convex probe: ≤240mm Image Save: JPG, DICOM Port: micro USB3.0/2.0 |
Compatible Device |
Android System: Huawei P10, Honor 9, Mate 9... Samsung S8, S9, Note8... LG:V20, G6... Windows: OS≥windows 8.1, CPU≥Intel CoreM |

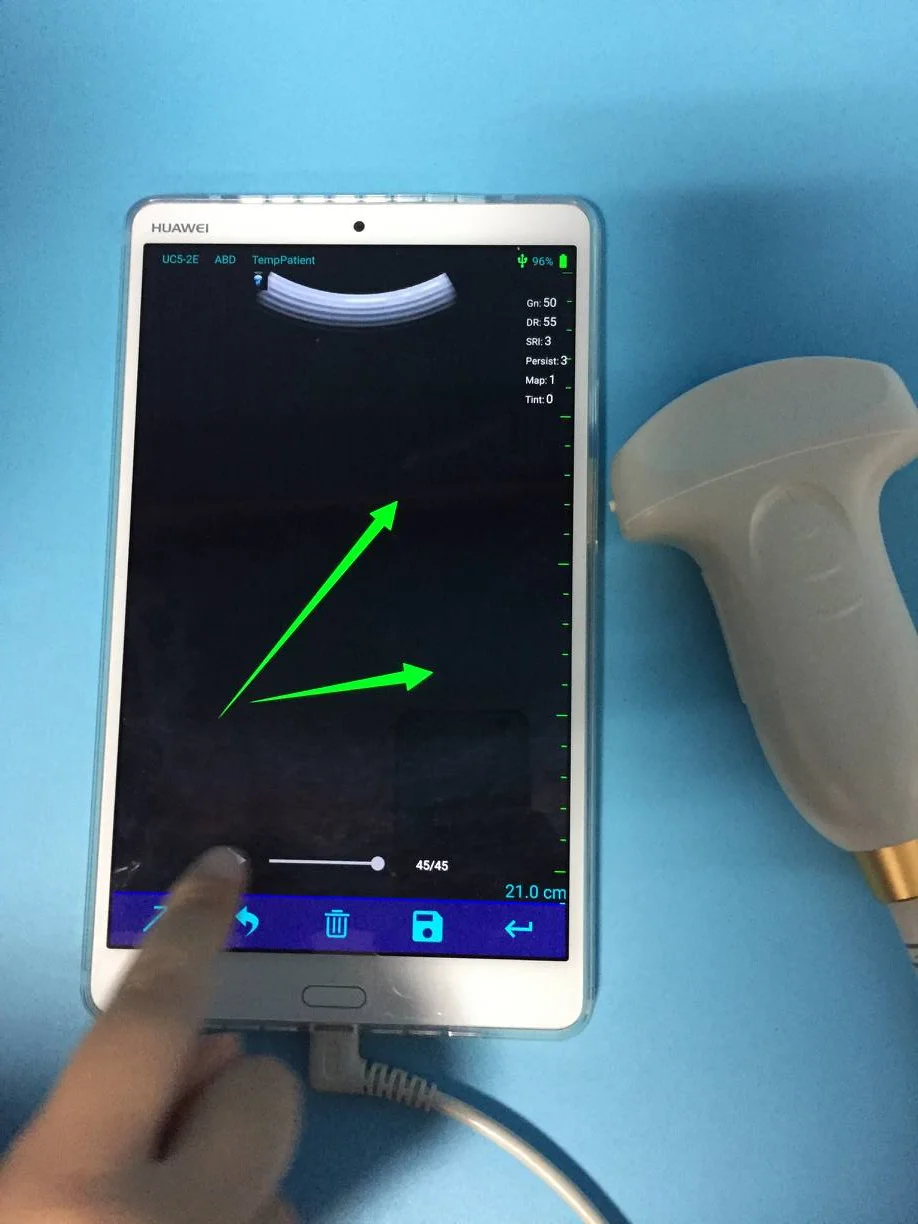

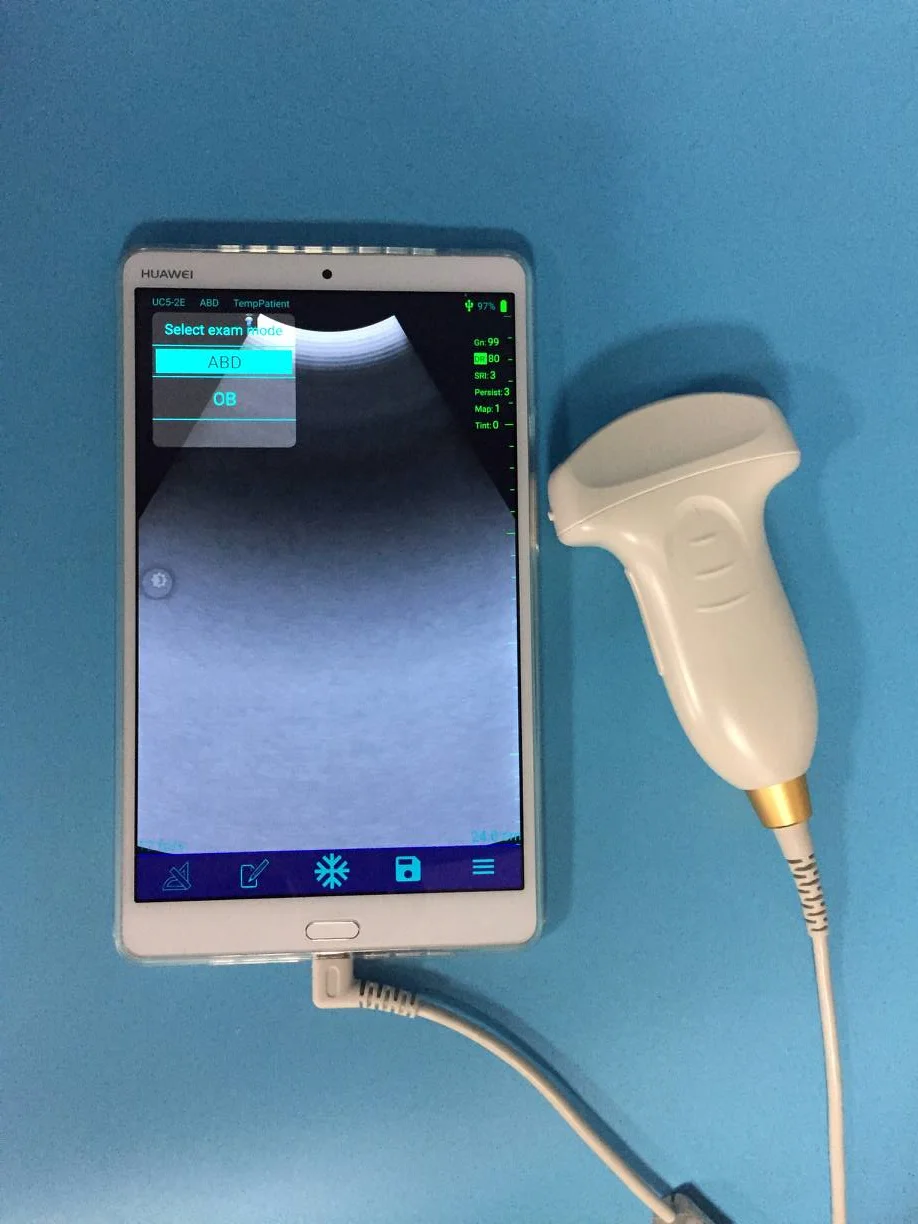

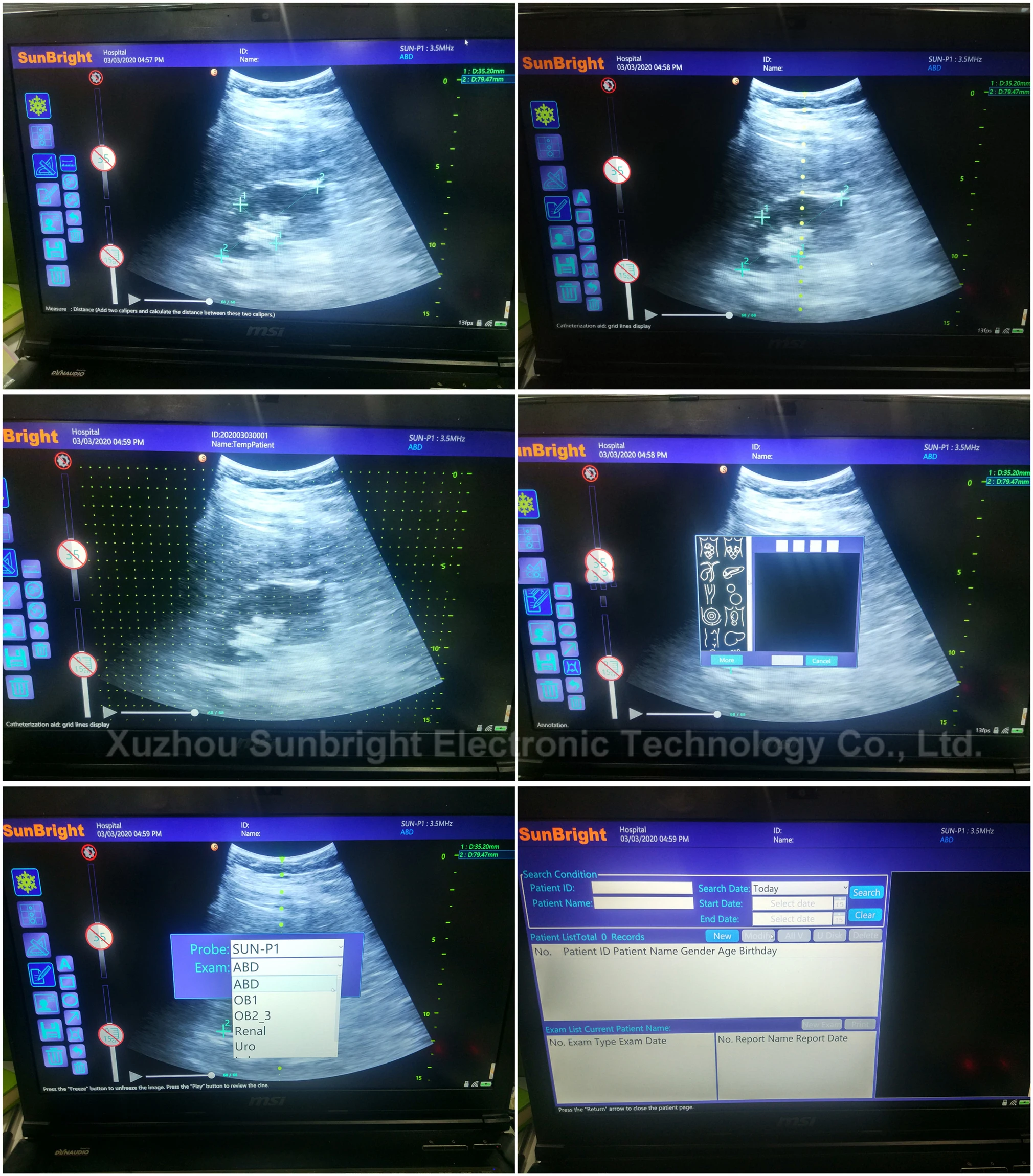

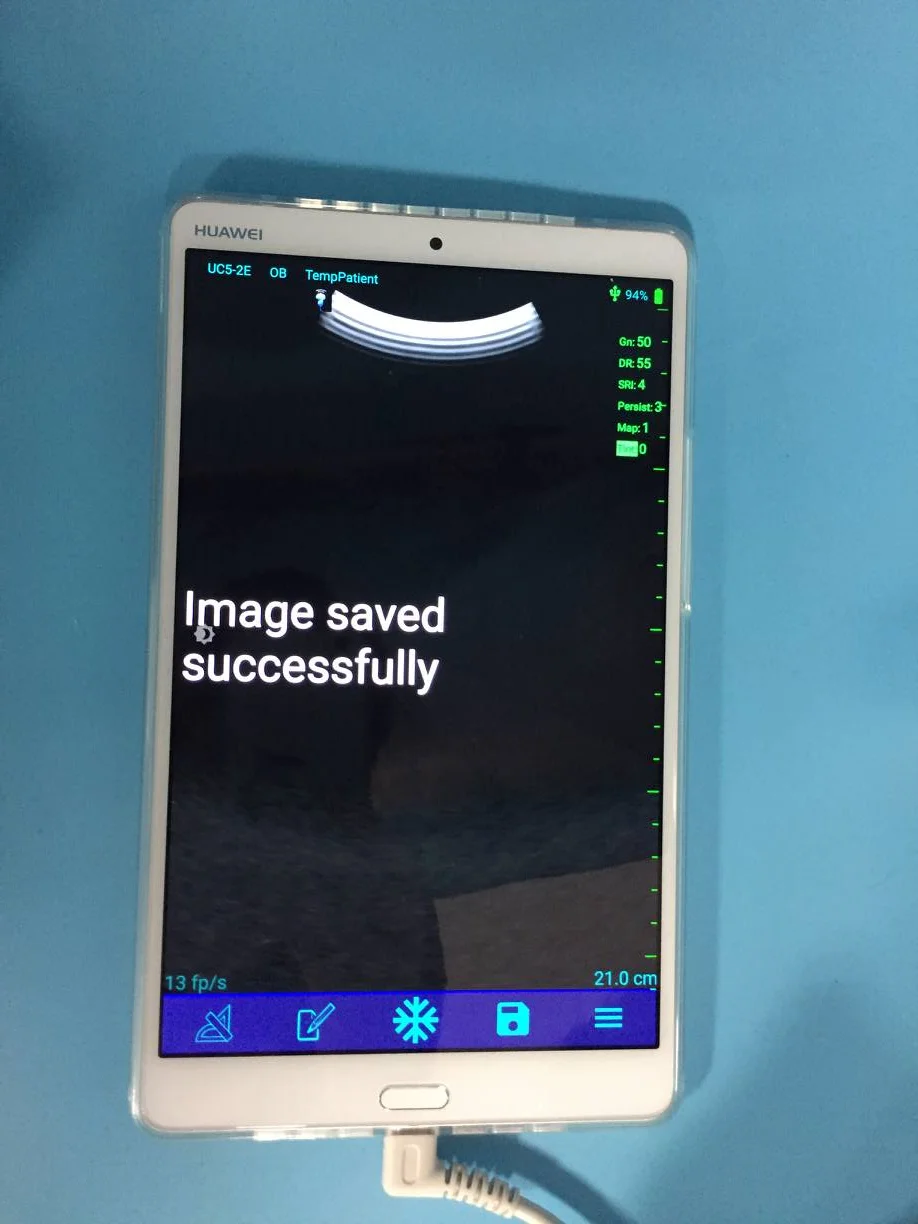

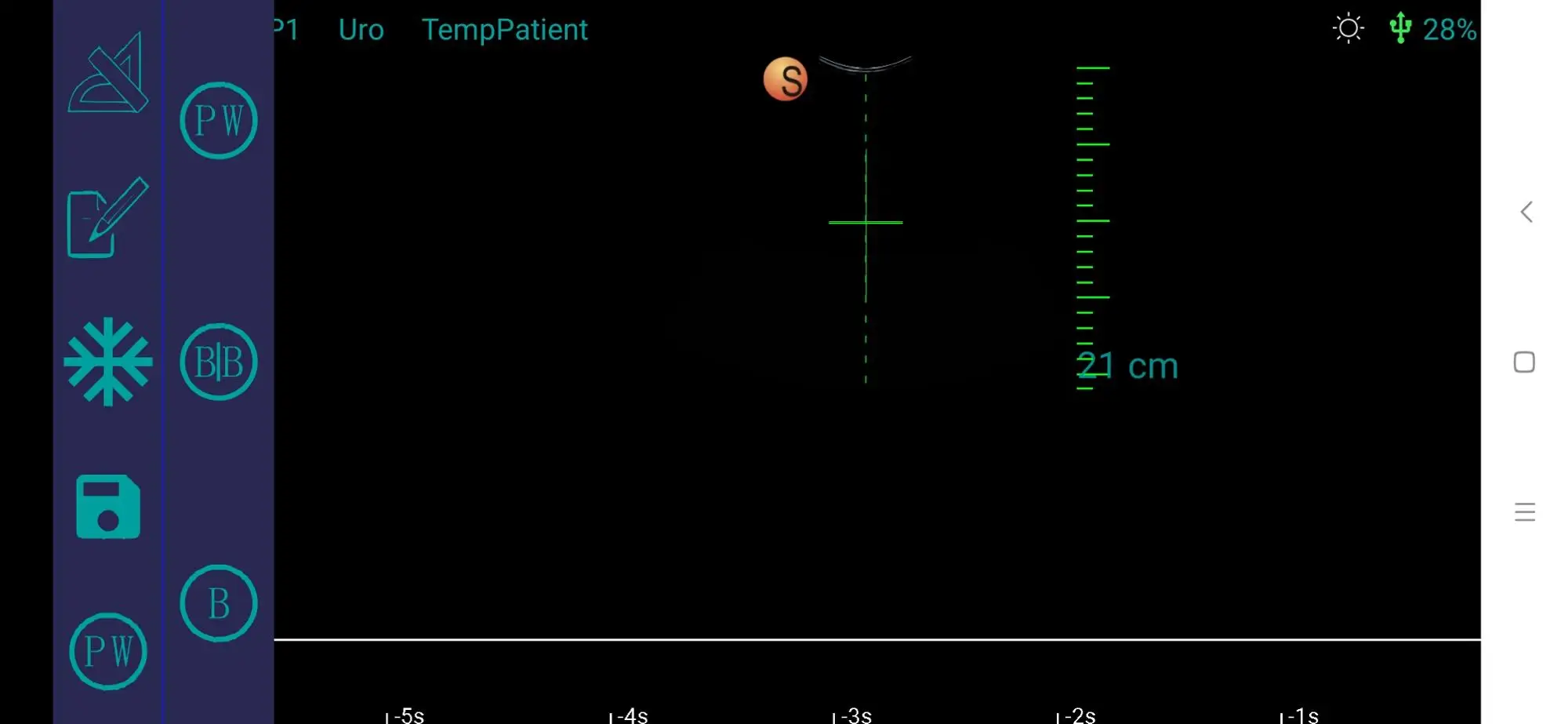

Scanning images

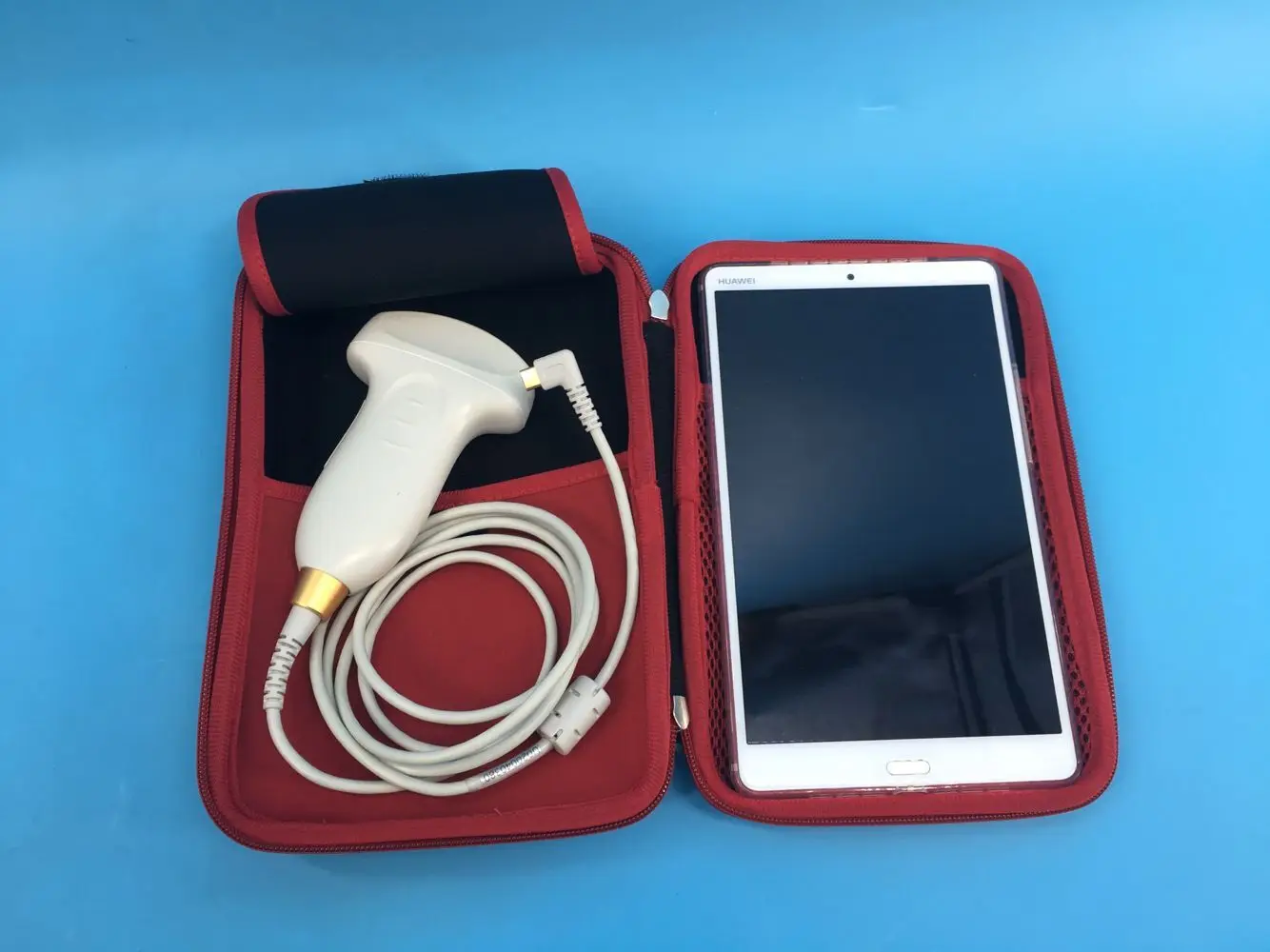

Standard Congfiguration:
Probe + Ultrasound software package
Probe + Ultrasound software package
Recommend Products

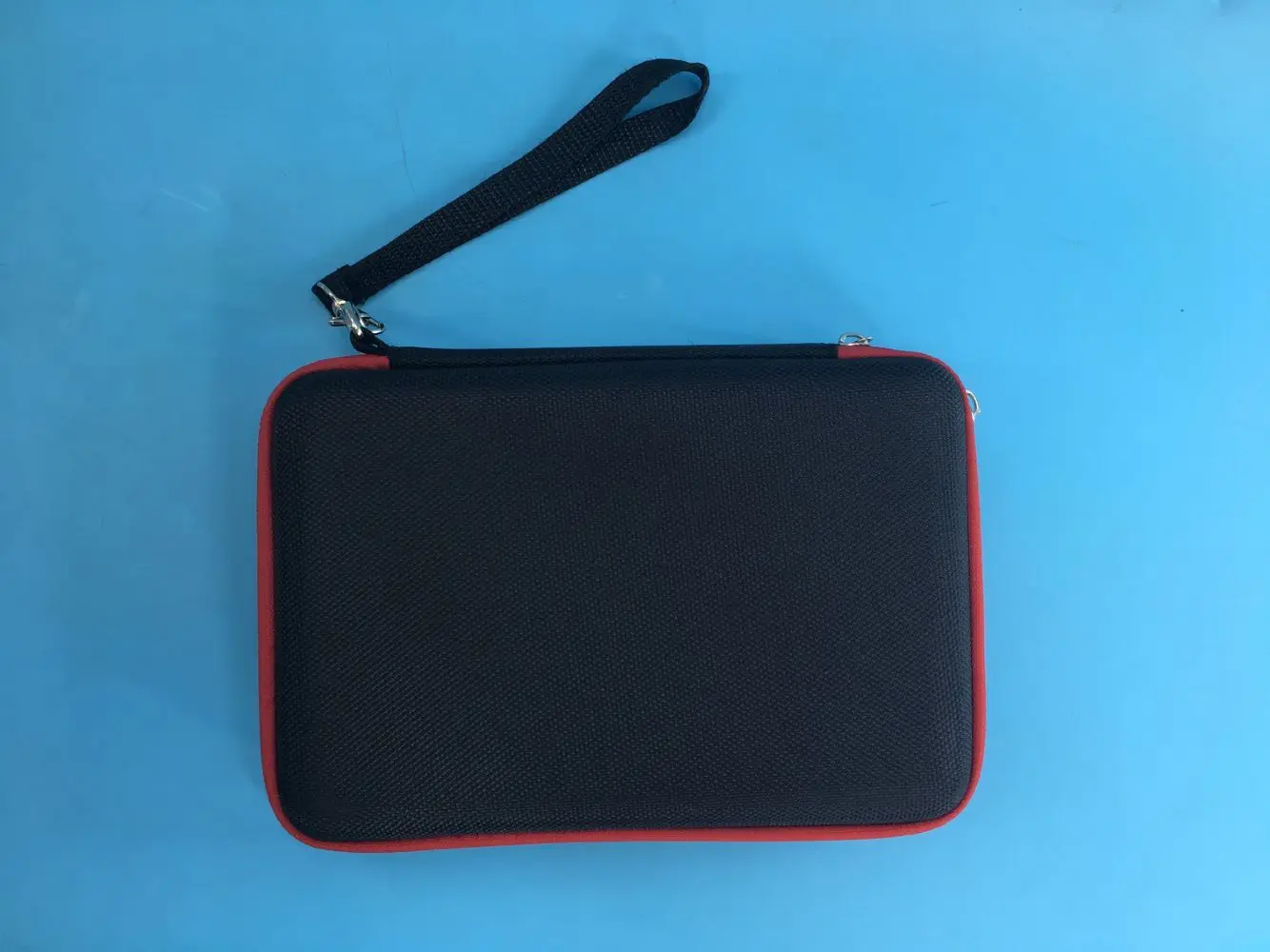

Packing and delivery
Why Choose Us
Certifications
Exhibition

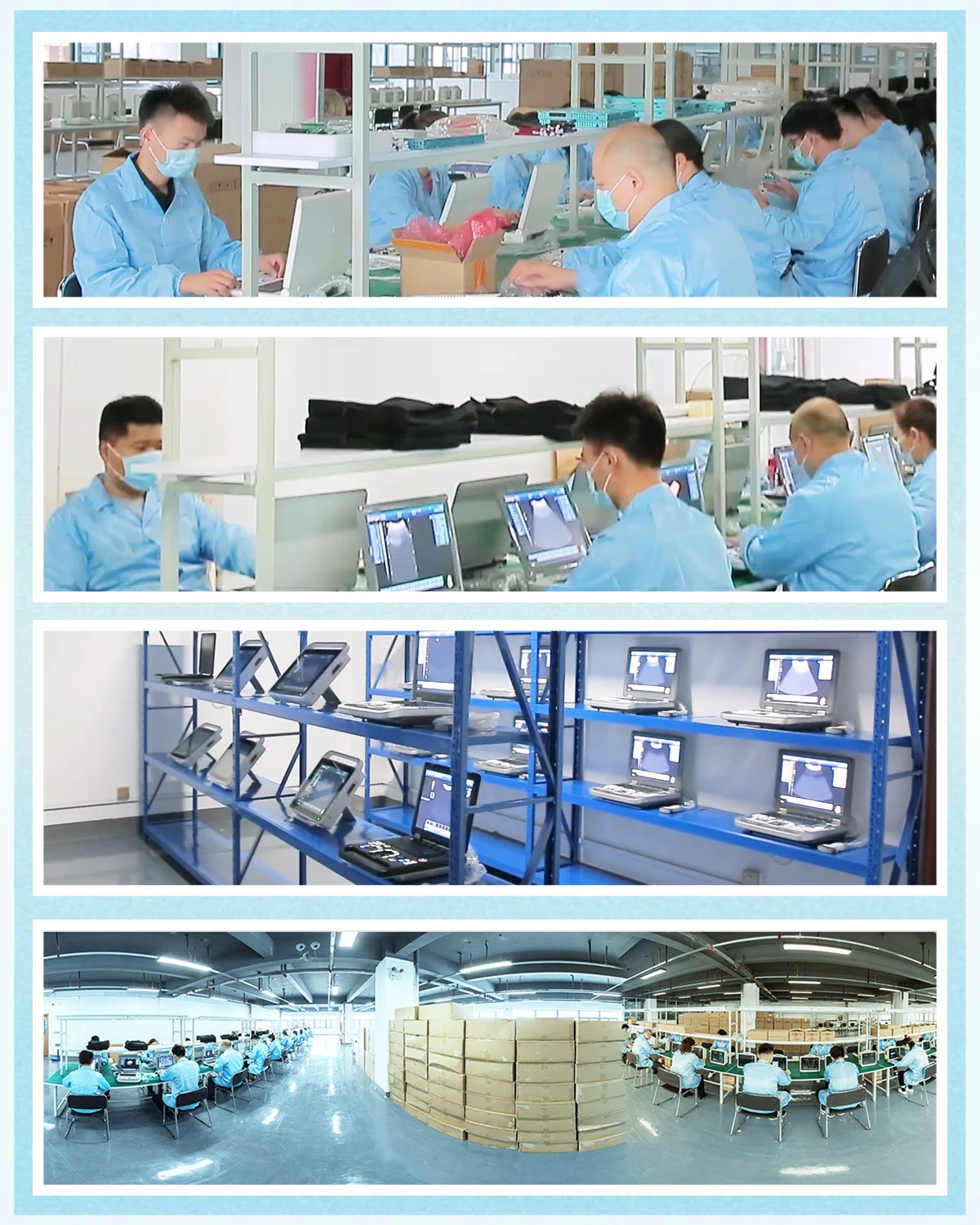

Workshop
