Zhegui Electric Power Transformer 6kv/11kv/22kv/33kv Three Phase Oil Immersed Distribution Transformer 300kva transformer
- Category: >>>
- Supplier: Zhejiang Zhegui Electric Co. Ltd.
Share on (1600164986581):
Product Overview
Description
Products Description
Voltage Available: 10kV, 11kV, 15kV, 20kV, 33kV, 35kV... ...to110kV. Voltage can be customized.Use new structure, with reasonable design. Optimize the insulation technology, improve the mechanical strength and anti short circuit ability. The core is made of high quality cold rolled silicon steel, the surface coating paint, with low loss and noise. The appearance is fancy, with easy and reliable operation.
Product Features
▶ using the corrugated tank sealing structure, enclosure, to prevent contact with air, water in contact with the transformer, reducing the degree of aging of the oil, to extend the service life of the transformer; Through the elastic deformation of corrugated to adjust the volume change of transformer oil heat bilges cold shrink.
▶ The product structure for the outdoor type, oil-free pillow,anti-fouling high level; ensure safe operation and reliability of the grid.
▶ The transformer has a pressure release safety devices, when a transformer failure pressure is too high. It can be safely released reliably through the pressure relief valve to prevent the expansion of the accident.
▶ The product structure for the outdoor type, oil-free pillow,anti-fouling high level; ensure safe operation and reliability of the grid.
▶ The transformer has a pressure release safety devices, when a transformer failure pressure is too high. It can be safely released reliably through the pressure relief valve to prevent the expansion of the accident.
Product Paramenters
S11 Series 30~1600kVA 10kV Oil Immersed Transformer Technical Specification Data | ||||||||||||||||
Rated Capacity | Voltage Composition | Vector Group | No-load power （W） | Load Loss (75℃) (W) | No-load Current (%) | Impedance (%) | ||||||||||
High Voltage (kV) | Tapping Range | Low Voltage(kV) | ||||||||||||||
30kVA | 6 6.3 10 10.5 11 | ±5％ or ±2×2.5％ | 0.4 | 280 Dyn11 or Yyn0 | 100 | 630/600 | 1.5 | 4.0 | ||||||||
63kVA | 150 | 1090/1040 | 1.2 | |||||||||||||
80kVA | 180 | 1310/1250 | 1.2 | |||||||||||||
100kVA | 200 | 1580/1500 | 1.1 | |||||||||||||
125kVA | 240 | 1890/1800 | 1.1 | |||||||||||||
160kVA | 6 6.3 10 10.5 11 | 280 | 2310/2200 | 1.0 | ||||||||||||
200kVA | 340 | 2730/2600 | 1.0 | |||||||||||||
250kVA | 400 | 3200/3050 | 0.9 | |||||||||||||
315kVA | 480 | 3830/3650 | 0.8 | |||||||||||||
400kVA | 570 | 4520/4300 | 0.8 | |||||||||||||
500kVA | 680 | 5410/5150 | 0.8 | |||||||||||||
630kVA | 810 | 6200 | 0.6 | 4.5 | ||||||||||||
800kVA | 980 | 7500 | 0.6 | |||||||||||||
1000kVA | 1150 | 10300 | 0.6 | |||||||||||||
1250kVA | 1360 | 12000 | 0.5 | |||||||||||||
1600kVA | 1640 | 14500 | 0.5 | |||||||||||||
Product Details

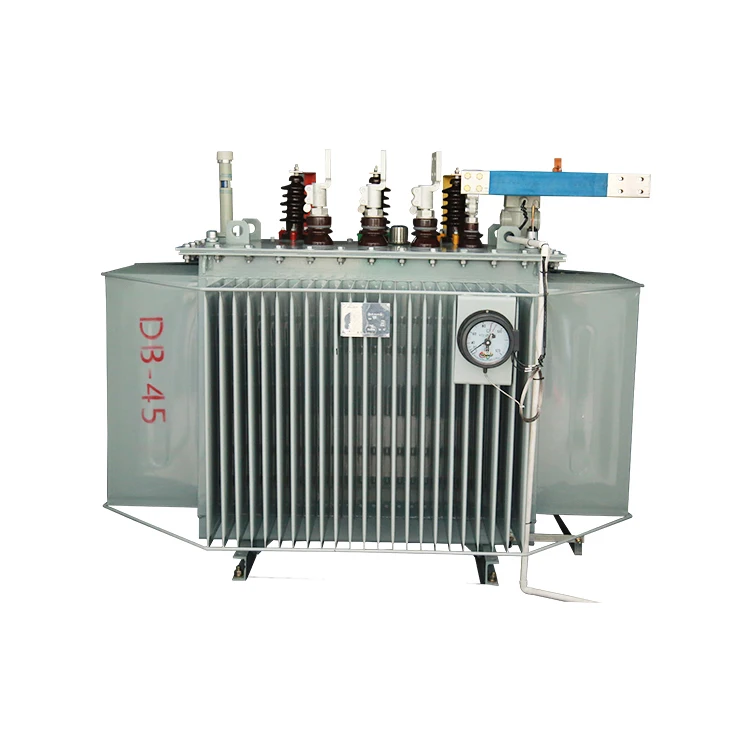

Oil-immersed transformer body
Oil-immersed transformer core

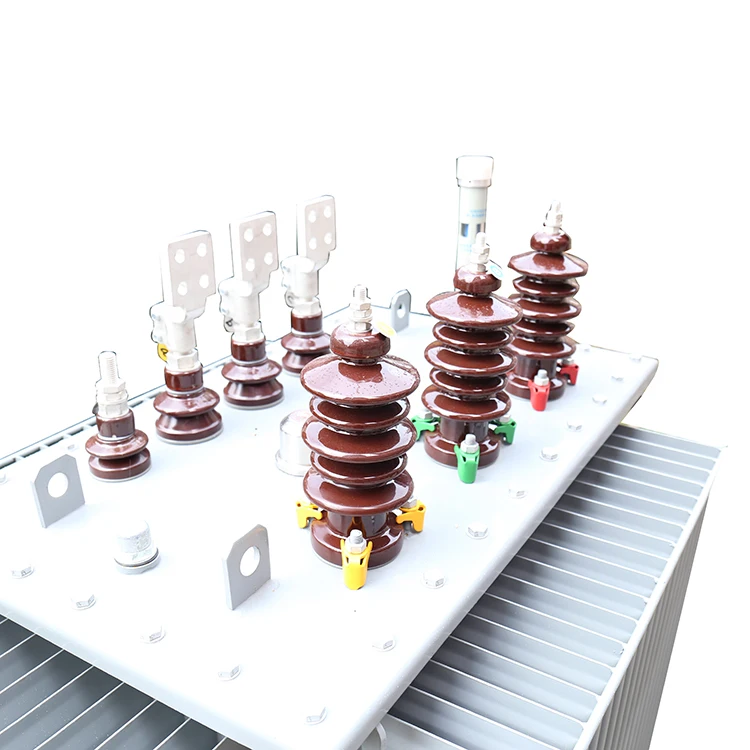

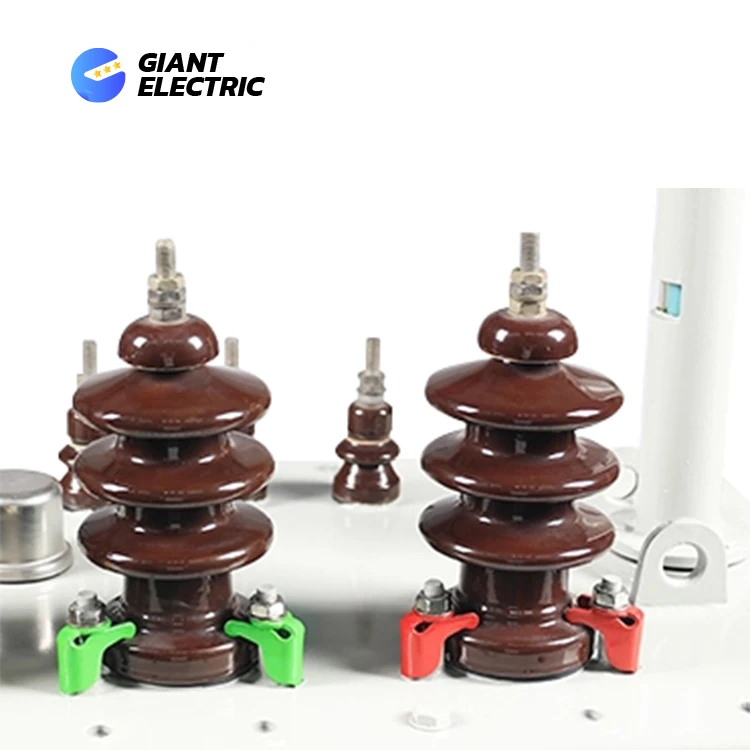

High voltage terminal

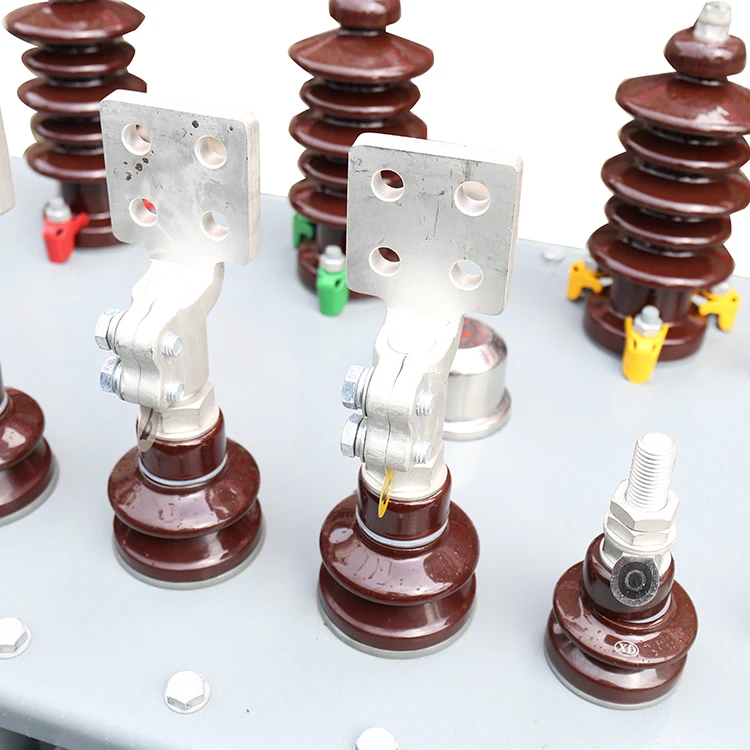

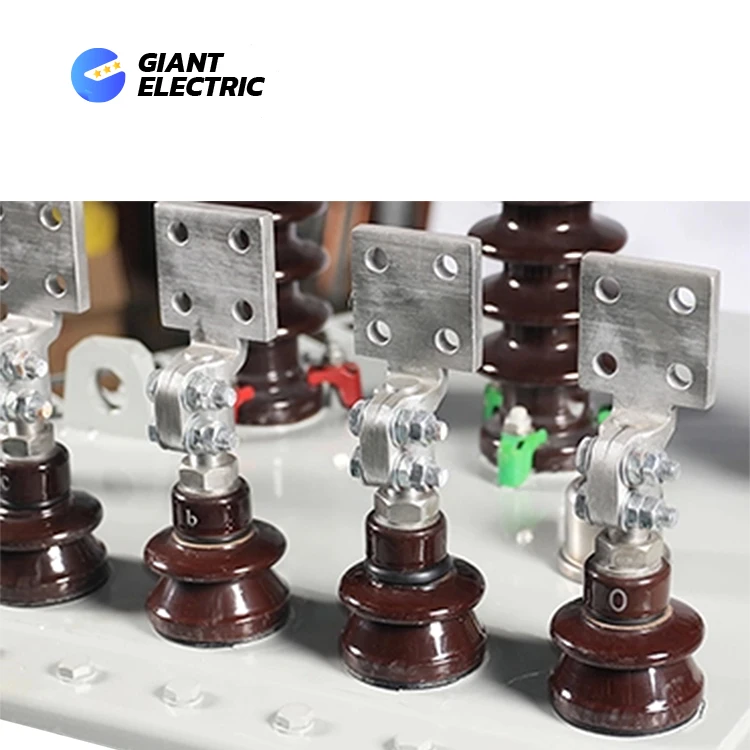

Low voltage terminal
Oil level gauge

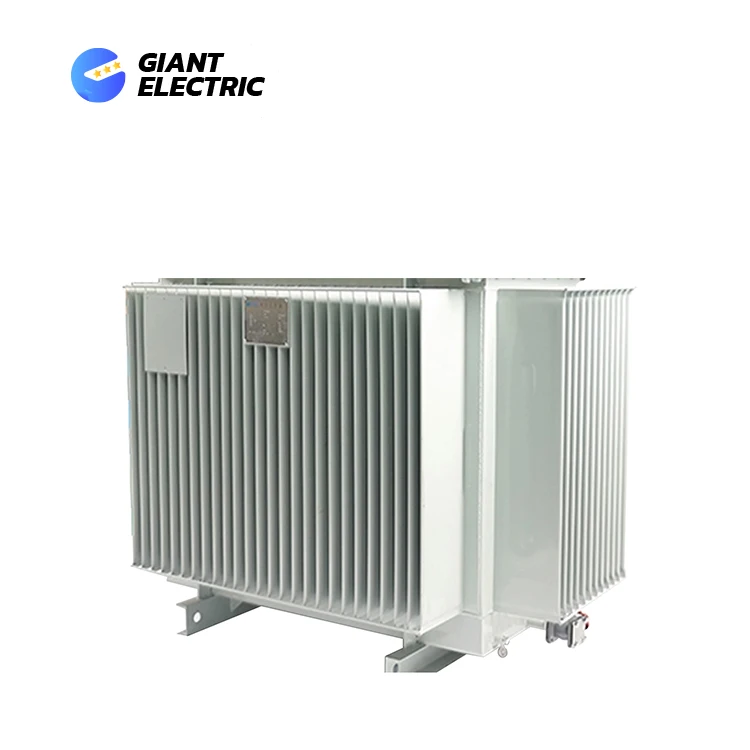

Oil-immersed transformer tank
