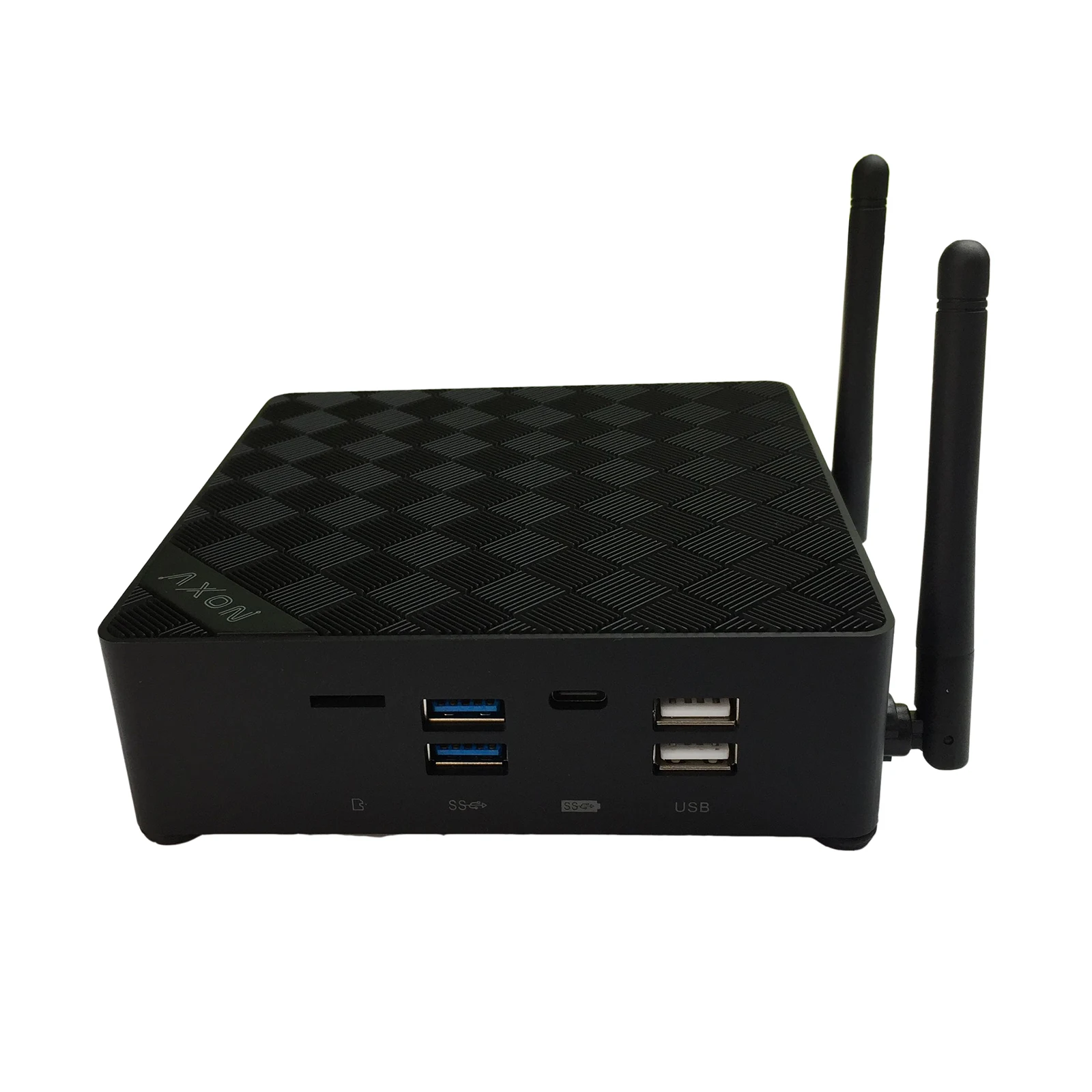

B1Compact anless intel celeron J4125 4GB mini computer dual core minipc low power 4k Intel Desktop PC mini pc windows10 Mini PC
- Category: >>>
- Supplier: Shenzhen Osook Technology Company Limited
Share on (1600165394640):
Product Overview
Description
B1 Compact fanless intel celeron J4125 4GB ram dual core full minipc low power 4k Intel Desktop PC mini pc windows10 Mini PC

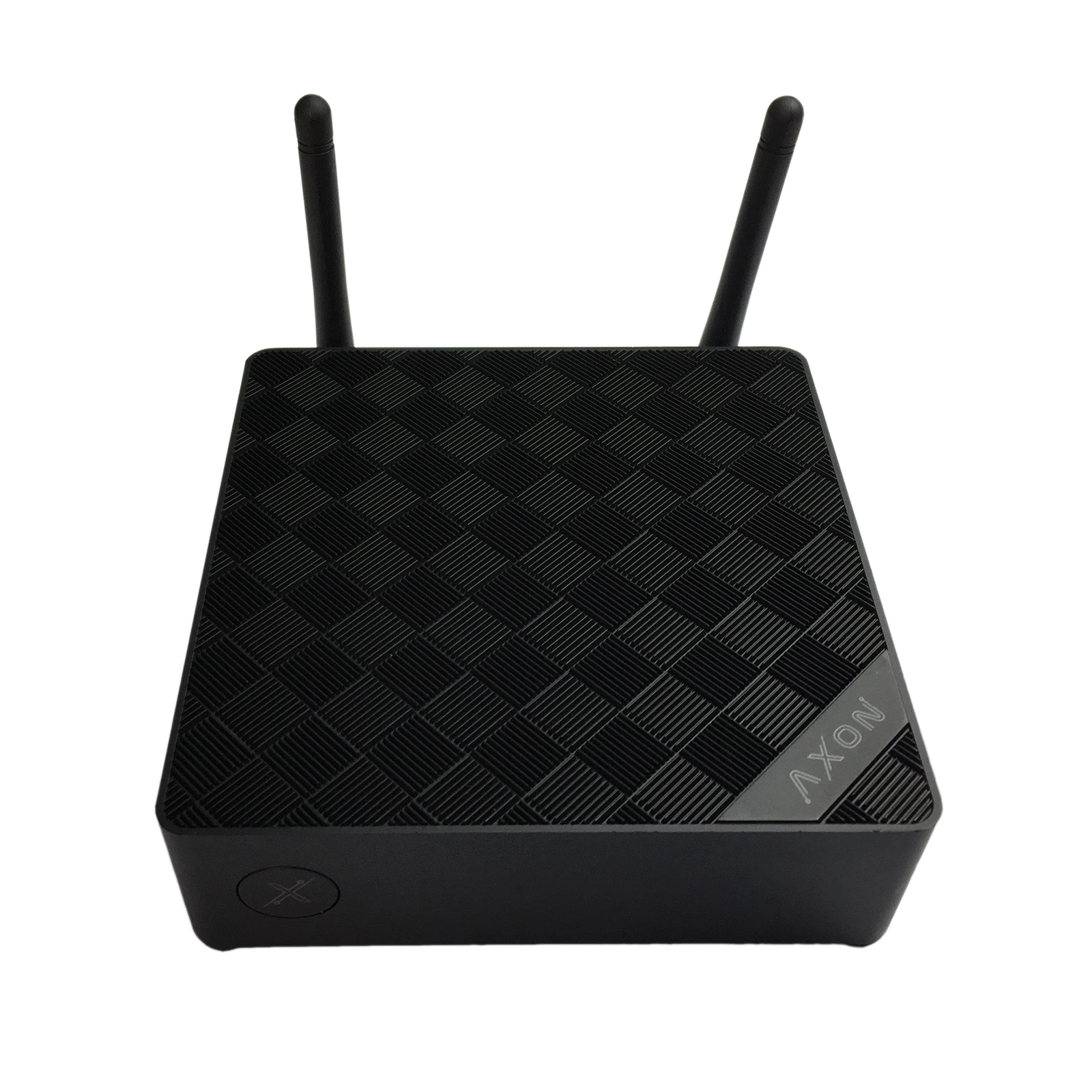

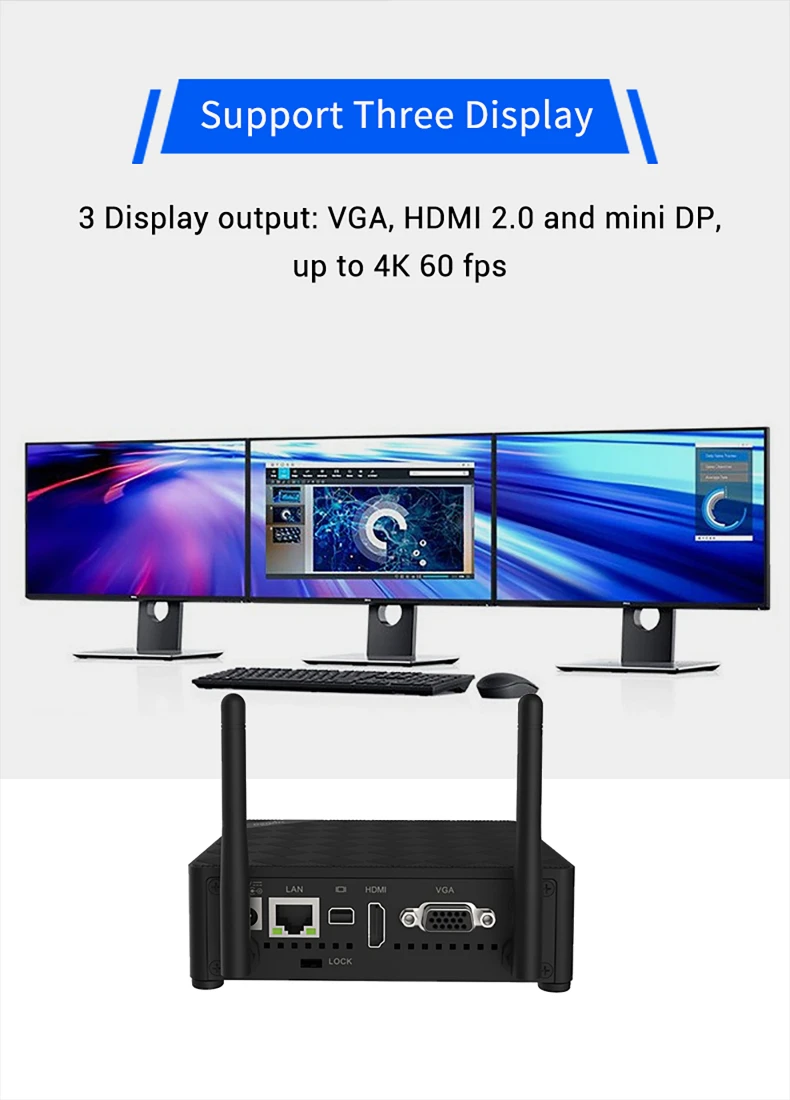

B1 is a compact fanless low power mini computer stick powered with Intel celeron J4125 process with 4GB LPDDR4 RAM, 64GB storage, windows 10 operation system. It is a full desktop mini computer (mini pc) Windows 10 Pro featured with two displays by a VGA port, HD port and mini DP, support up to 4K 60fps ultra HD output.

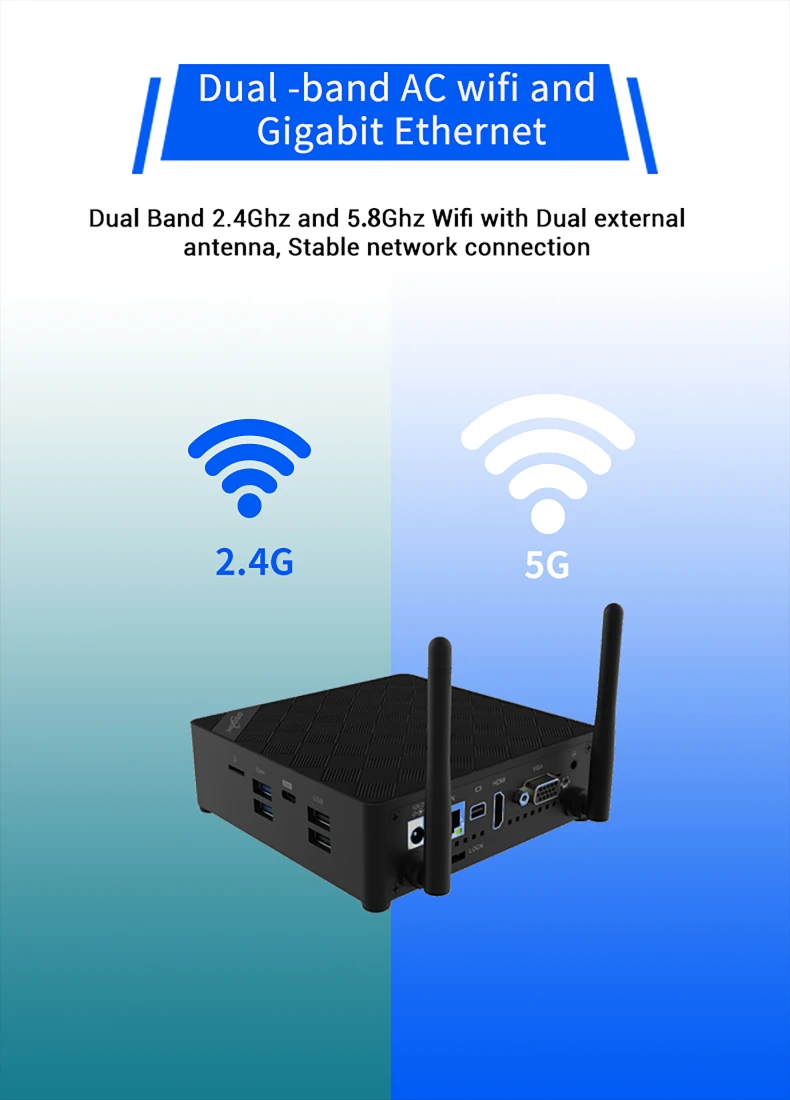

Its CPU base speed is up to 2.0Ghz,boost speed 27Ghz. It comes fast dual band 2.4Ghz and 5.8Ghz AC wifi in Two external Wifi antennas, and Gigabit Ethernet, good for for gamimg as a gaming pc.
It support support SATA SSD or NVME SSD, easy to expand to larger and fast speed SSD.

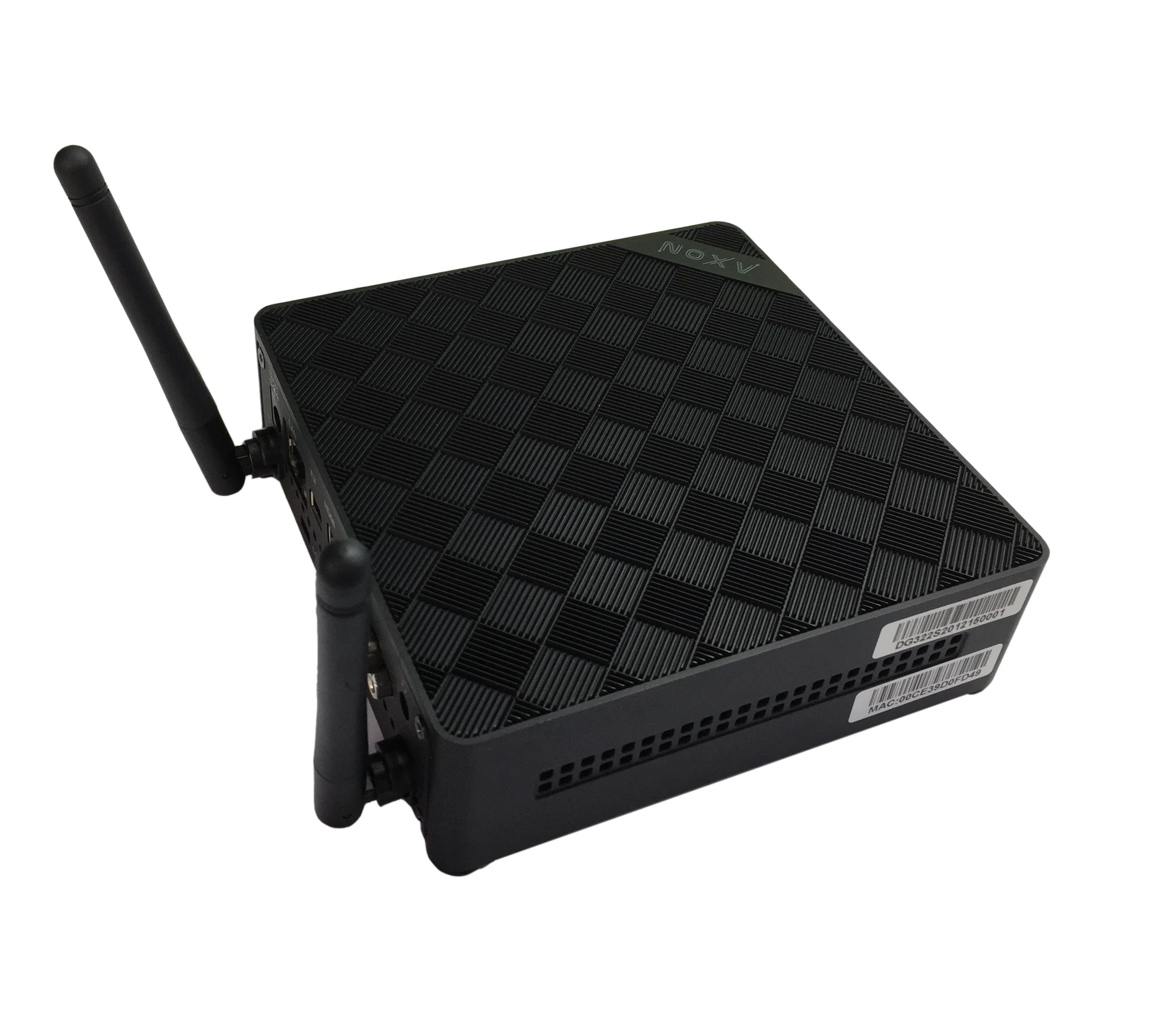

It is small, equiped with aluminum heatsink for excellent heat dissipation, it can be used widely in different senarios, for online surfing, shoping, kids e-study, conference, education, digital singae or other commercial usages.

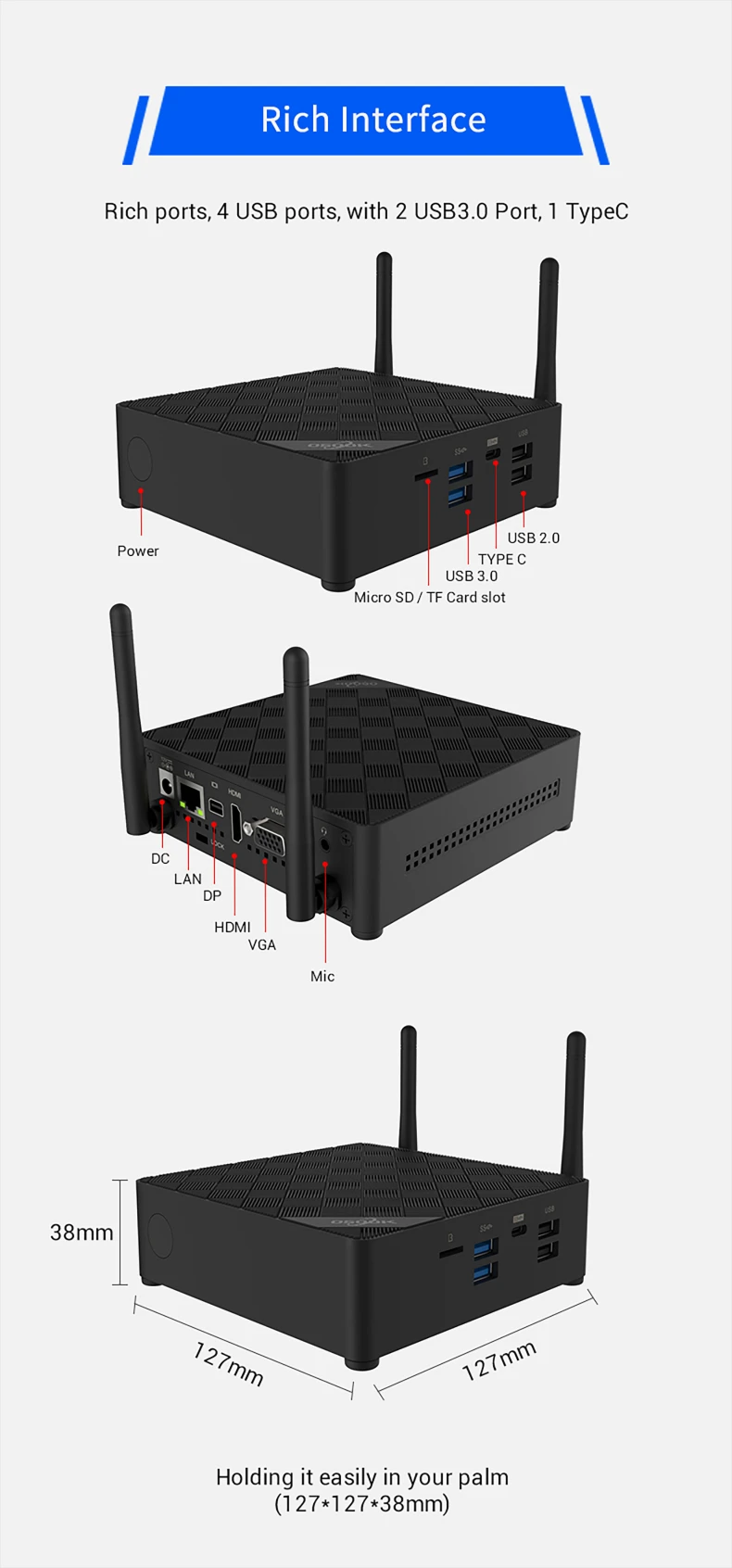

With 2 USB3.0, 2 USB2.0 and a Type C ports, it is excellent to connect many other devices.
Specifications:
| Product Model | B1-GML | |
| cooling system | up to 10W TDP passive cooled | |
| Brief Introduction | Mini PC winows10 BOX powered by DC , with Triple display | |
| Key Function | HD 2.0 4K@60 MINI DP 4K@60 VGA USB3.1 GEN1 X2 TF card USB TYPEC:usb3.1 gen1 WIFI 802.11 AC dual band | |
| Mechanical | Unit dimension (L×W×H) | 127*127*38mm |
| Unit Material | TBD | |
| Project Status | ||
| HARDWARE SPEC | ||
| Processor | Model | Gemini Lake/Gemini Lake R (subject to BIOs upgrde) |
| Architecture | Intel Celeron | |
| CPU support | N4000/N4100/J4005/J4105, N4020/N4120/J4025/J4125 | |
| CPU Speed | Base 1.1G-2.0G;Turbo burst 2.3G-2.9GHz | |
| Cache | 4MB | |
| GPU | UHD600 750MHZ | |
| System OS | System OS | WINDOWS 10 Pro Entry/ IOT |
| DDR | Volume | 4GB LPDDR4 |
| Storage | eMMC | 32GB/64GB/128GB (TBC) |
| WiFi Module | Standard/Frequency Range | M.2 KEY-E; AC7265 AC DUAL-BAND 2X2 |

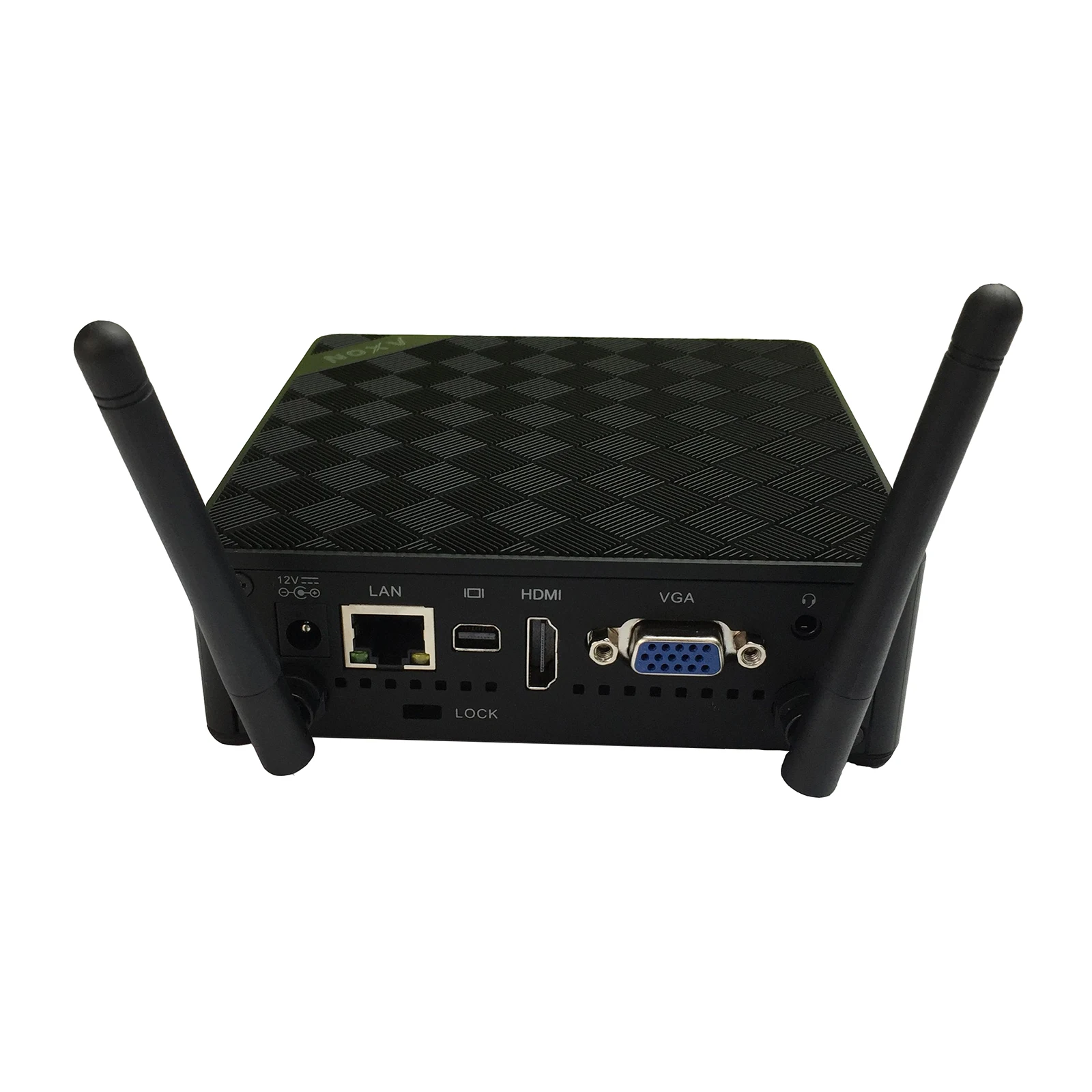

| DISPLAY Output | Resolution | HDMI2.0 4K@60 MINI DP 4K@60 VGA |
| Connector | DC CNN | 12V/2A |
| TYPE C | x1(usb3.1) | |
| Micro SD / TF Card slot | ×1 | |
| USB3.0 Type A (Host) | x2 | |
| USB2.0 Type A | x2 | |
| HD output Type A | x1 (HD 2.0) | |
| DP output (MINI DP) | x1(dp1.2) | |
| VGA | x1 | |
| RJ45 | x1(Gb lan) | |
| Phone Jack(φ3.5mm) | x1(Mic&L/R) | |
| Antenna | Outside x2; | |
| Connector(inside) | 2.5" HDD | x1 |
| M.2 SSD(M-KEY 2280) | x1(support SATA SSD or NVME SSD) | |
| M.2 WIFI(E-KEY 2230) | x1(support AC7265 2T2R DUALBAND OR OTHER) | |
| Button / Keys | Power ON/OFF | ×1 |
| BIOS recovery(inside) | x1 | |
| Environment | Working temp | 0 to 30 |
| Storage temp | -10 to 40 | |
| Finished good dimension | ||
| Packaging details | ||
| BIOS | Auto powered on | Yes |
| Schedule powered off | Optional | |
| Schedule powered on | Optional | |
| VESA mount | Support | |
