Product Overview

Description

Product descpriton

Performance
Passenger capacity	2-3 seats
Max.Speed	25 km/h
Range	100 km
Climbing Ability	15%
Braking Distance	≤6m
Min.Turning Radius	6m
Min. Ground Clearance	150mm
Recharge time	8~10h
Dimension
Overall L×W×H	4800mm×1700mm×2000mm
Platform LXWXH	3200×1700mm
F/R Tread	1270/1470mm
Axle Distance	2560mm
Curb Weight	1200kg
Max. loading	3000kg
Configuration
Motor	8.5KW DC
Controller	CURTIS DC control
Battery	72V/ 6V(230Ah)×12pcs
Charger	220V portable
Body & Roof	Steel chassis + FRP body
Steering	Recirculating ball stearing gear + electronic power
Brake mode	Front and rear drum hydraulic brake, dual circuit hydraulic brake, parking brake device
Tire	Steel wheel front165R13C/rear185R13C vacuum radial tire

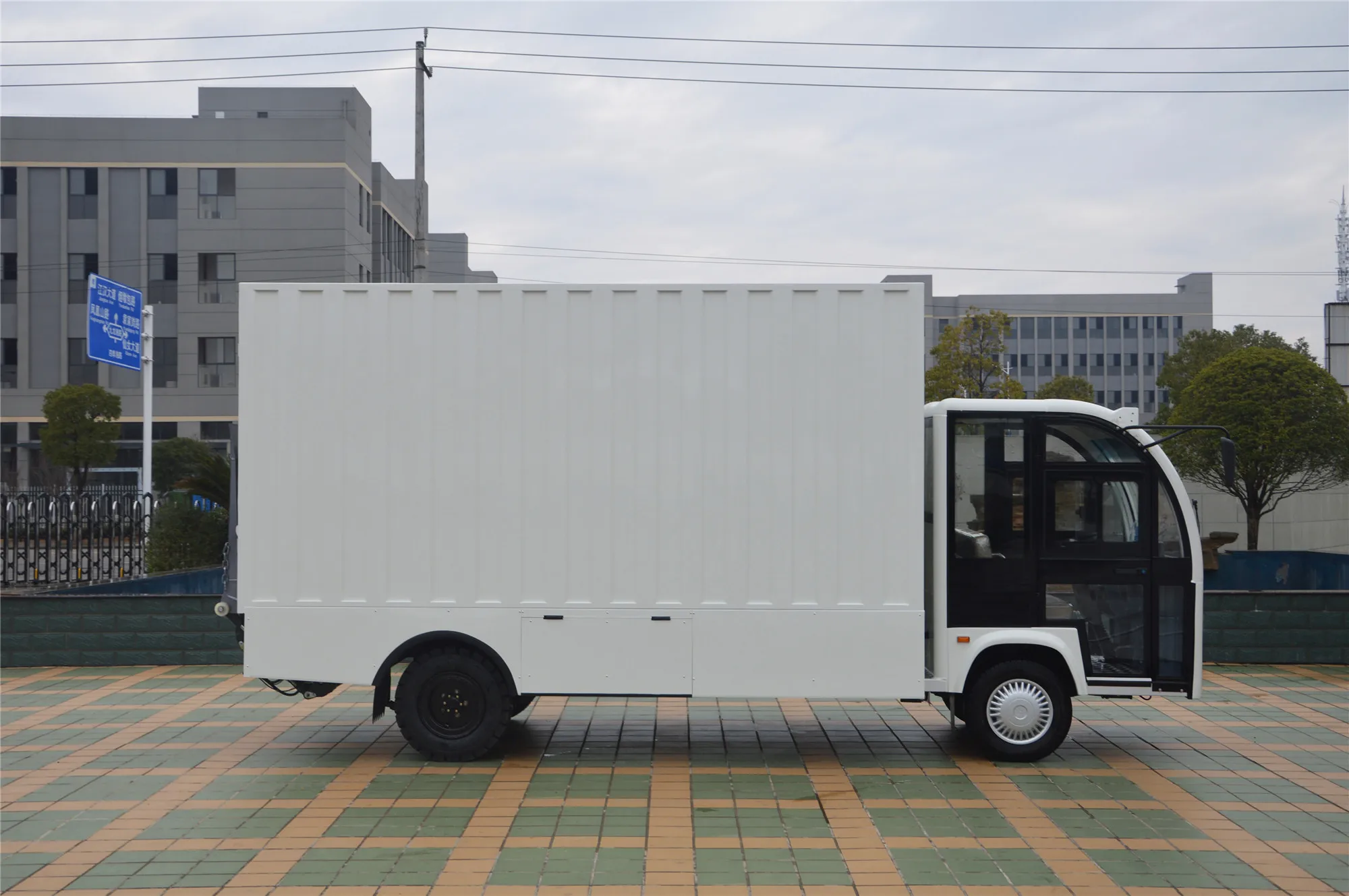

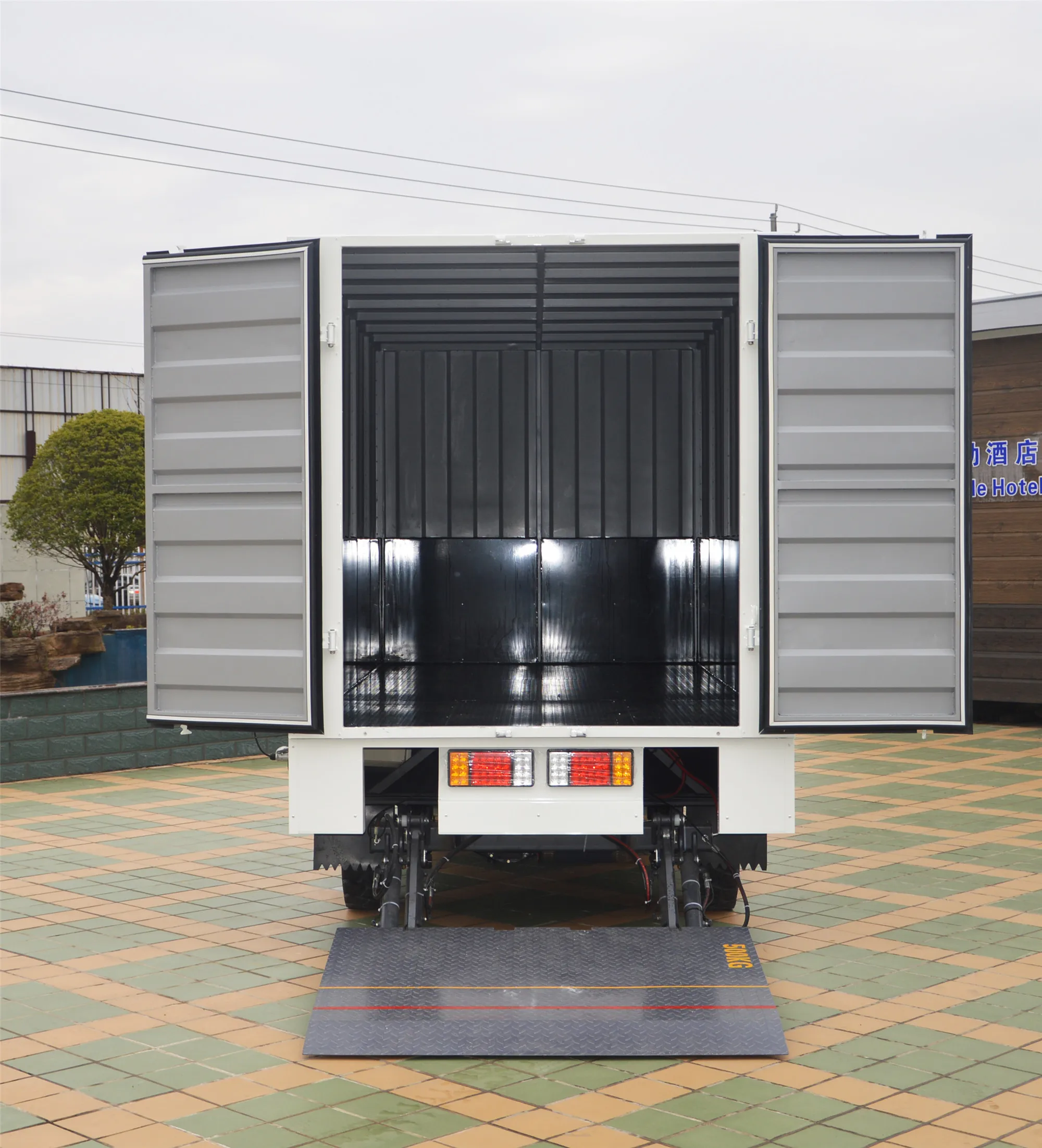

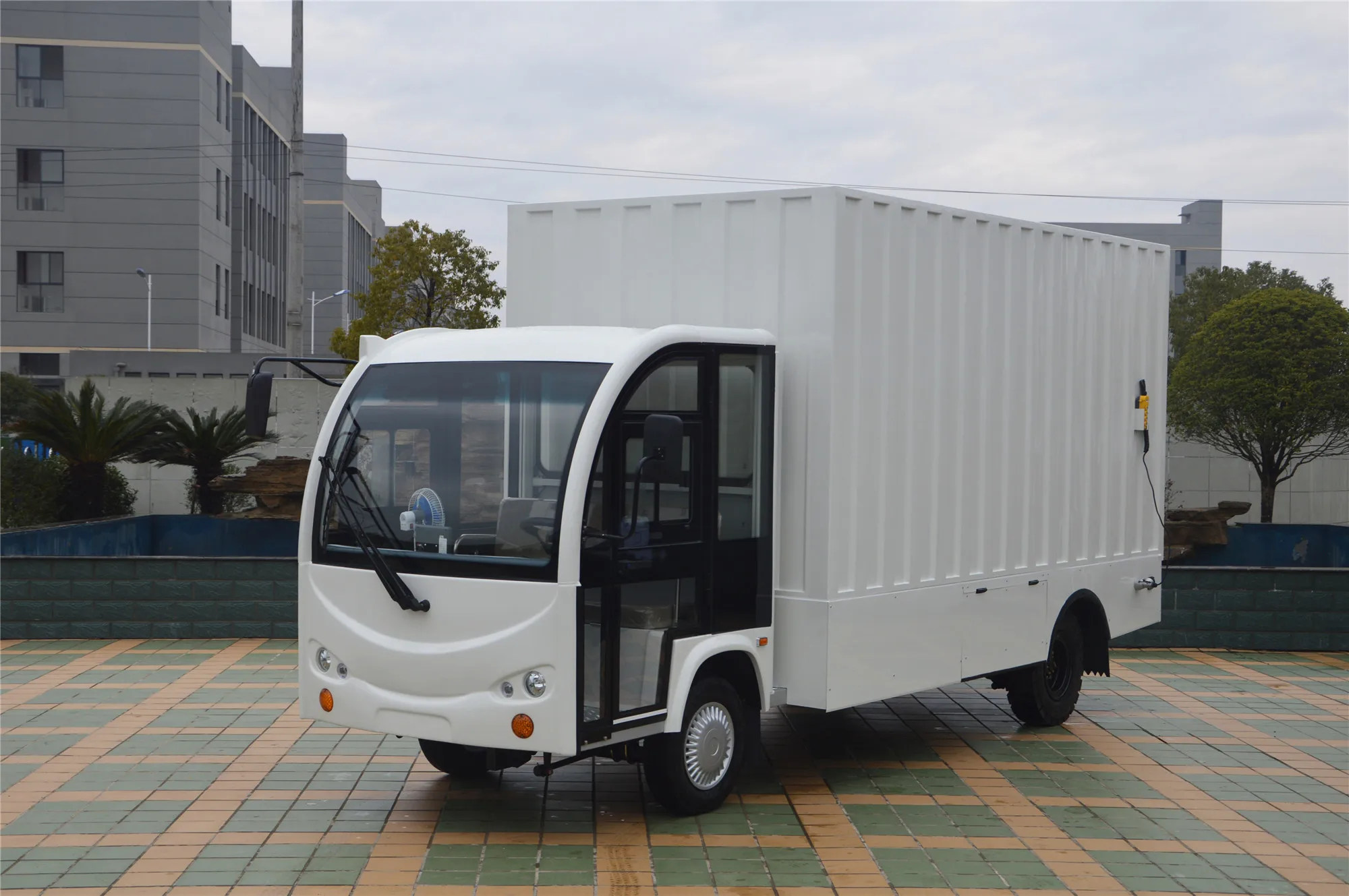

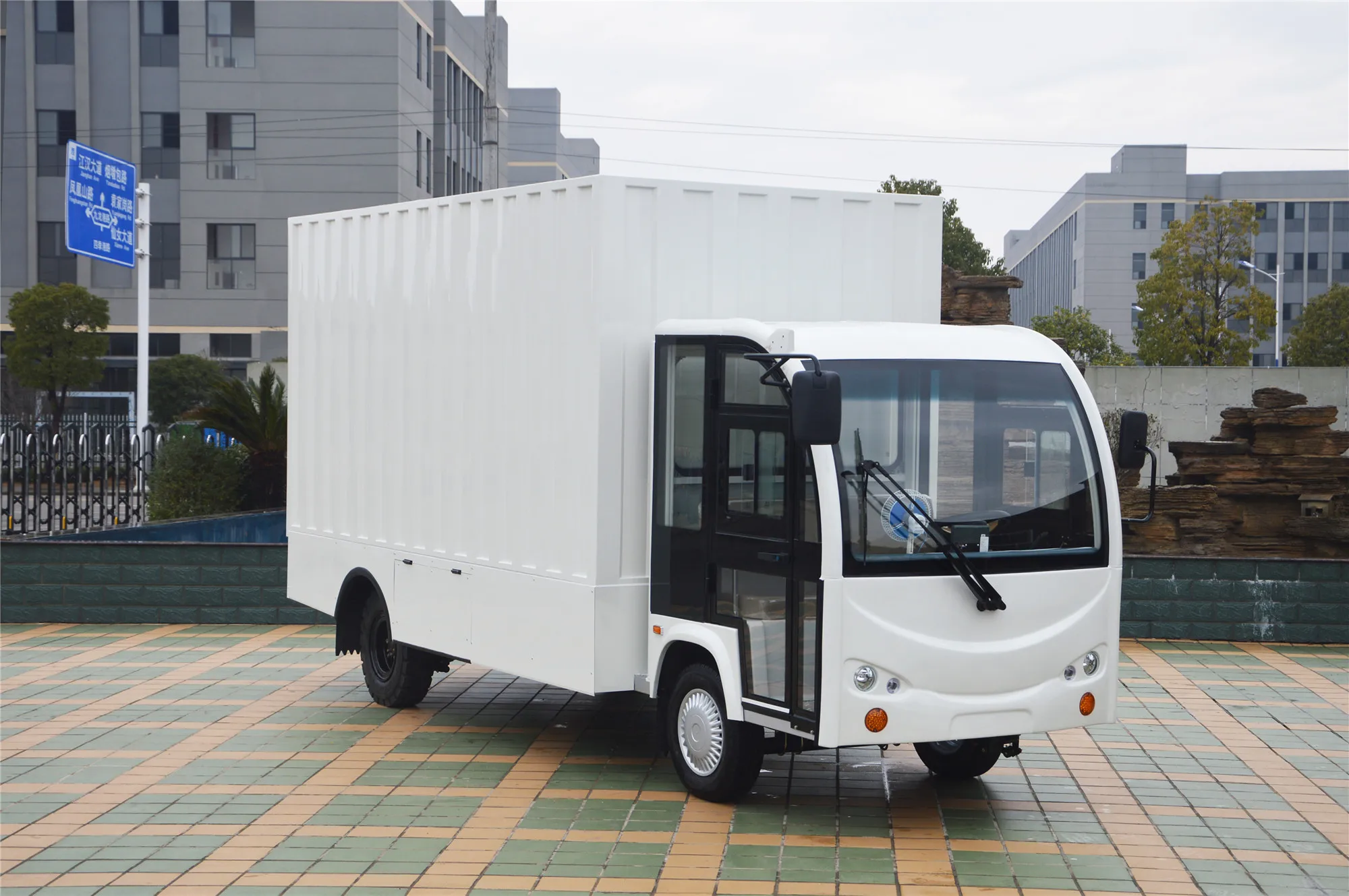

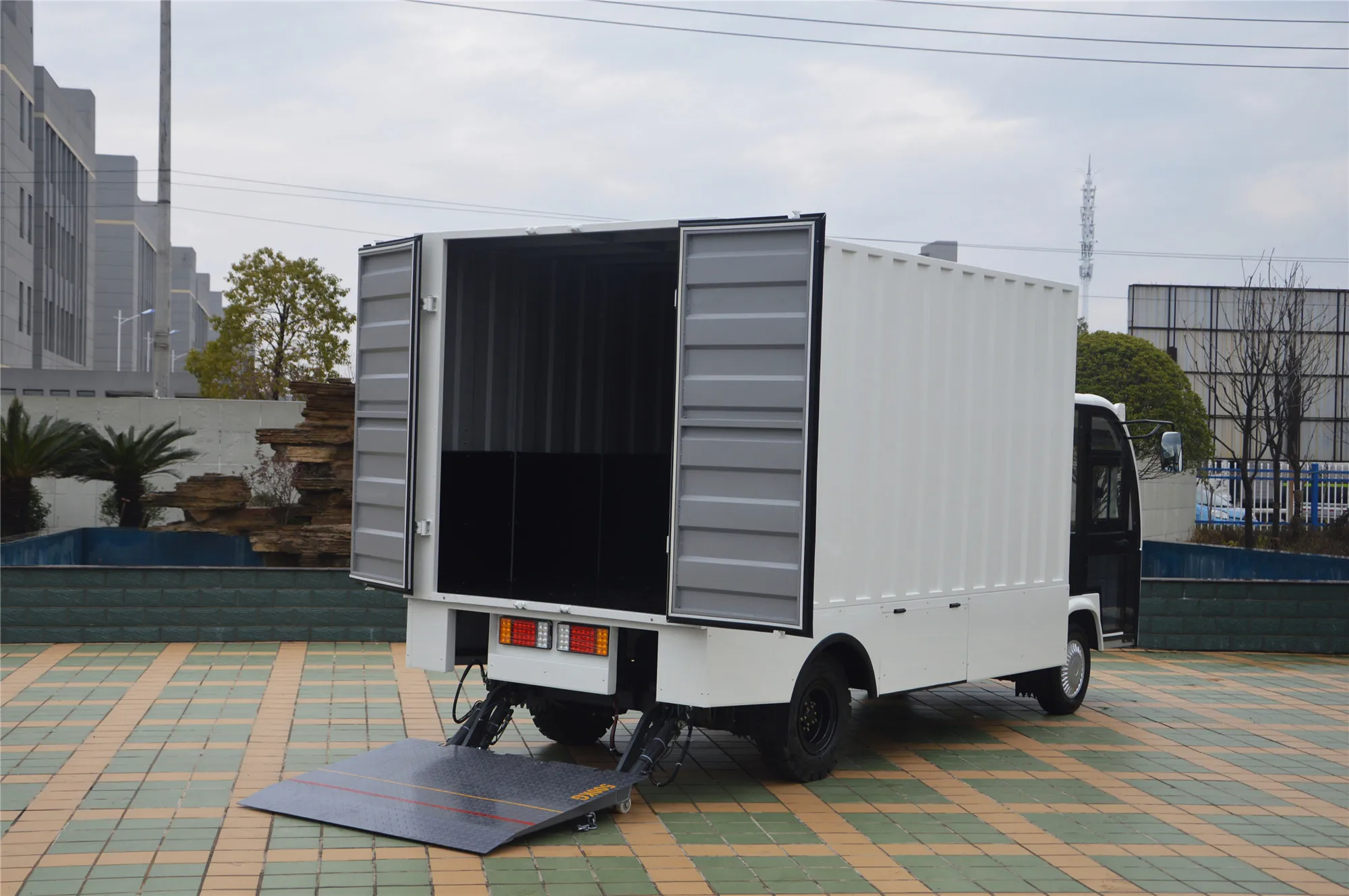

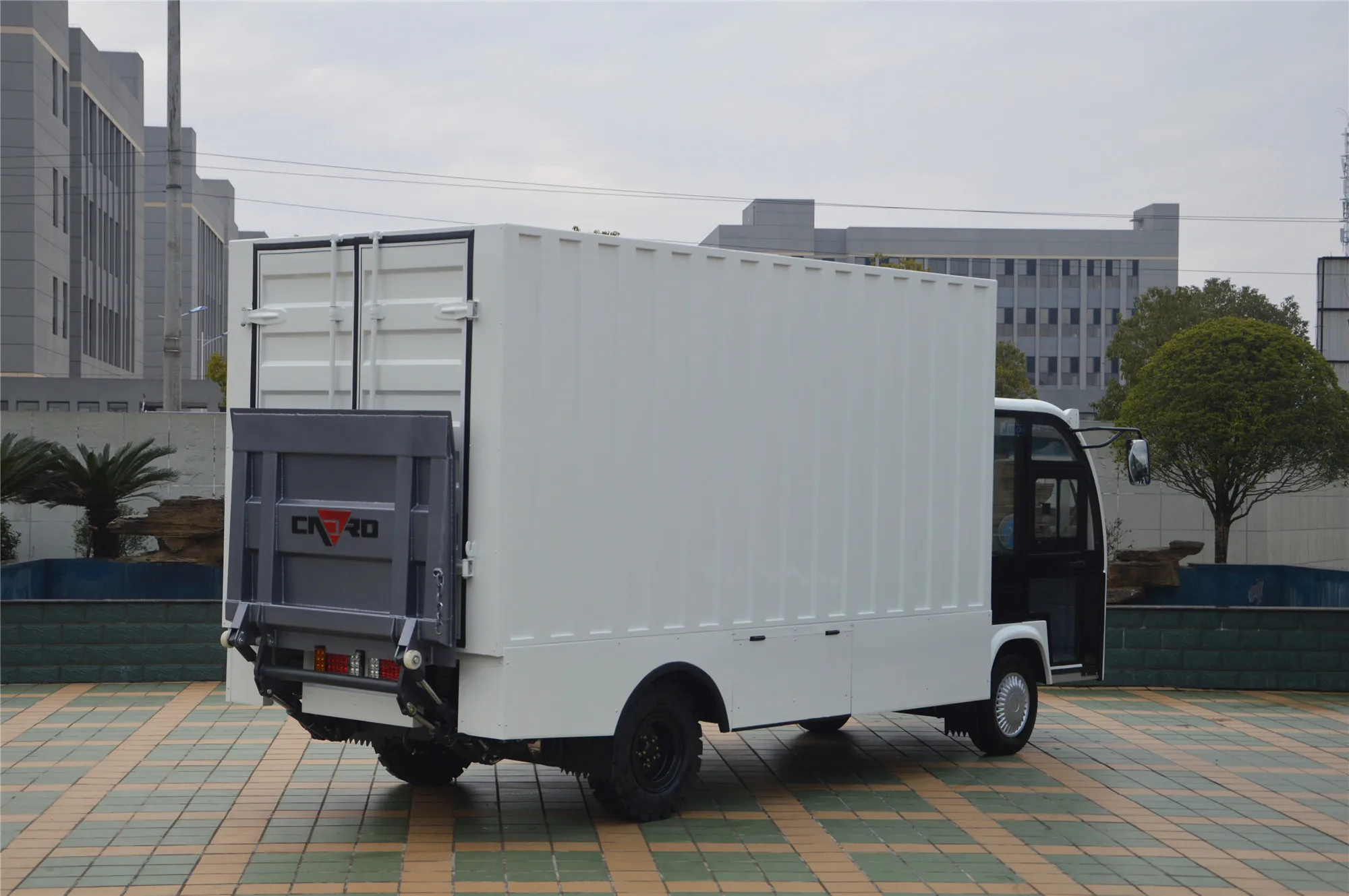

Detailed imagines

Our Company

Yichang Xinwei New Energy Vehicle Manufacturing Co.,Ltd is a professional manufacturer with long history located in Yichang, Hubei which closely sits alongside the Yangtze River, we are the reliable makers specialized in all kinds of electric vehicles since 2010. Our product range covers electric sightseeing cars, electric golf carts, electric vintage cars, electric trucks, electric bus and many other various customized electric cars. Our products have gained a lot of popularity from our customers and markets. From us you will always get the premier service and be impressed with our performances.



Certificate





Our Advantage

• Rich manufacturing history in electric vehicle field.


• Advanced R&D team


• Up-to-date design and technology, constructional and exterior


• Flexible choice of any desired product type.


• Strong ability in customizing and solution providing.


• Firm criteria in workshop management.
