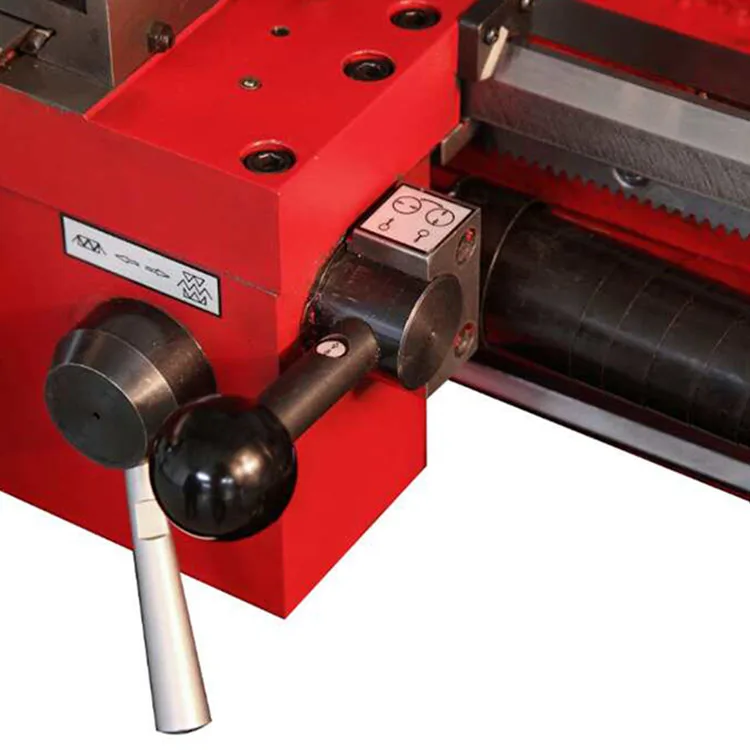

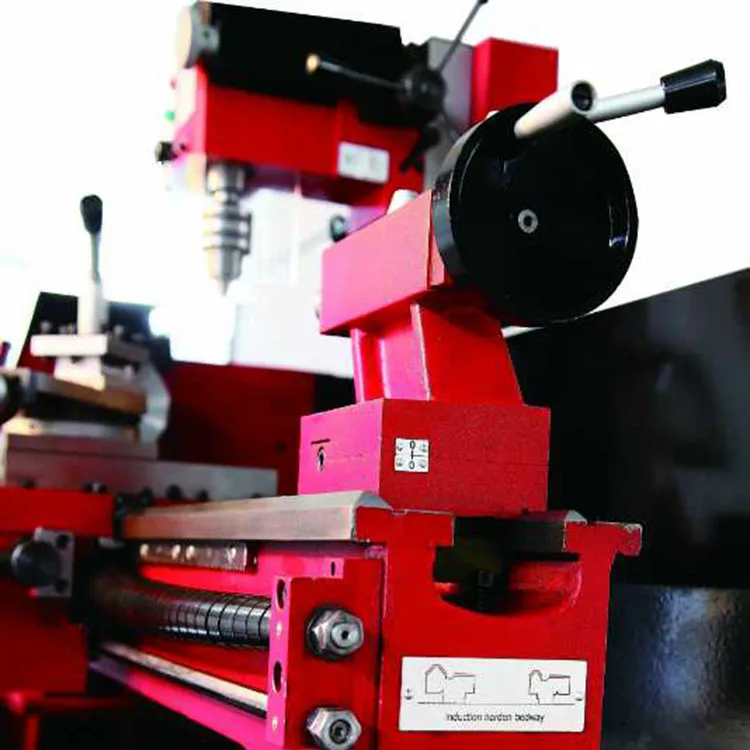

mini manual Lathe machine cnc lathe
- Category: >>>
- Supplier: Shanghai Zhong Jing Imp. & Exp. Corporation
Share on (1600165437214):
Product Overview
Description
Product Detail
Product Description

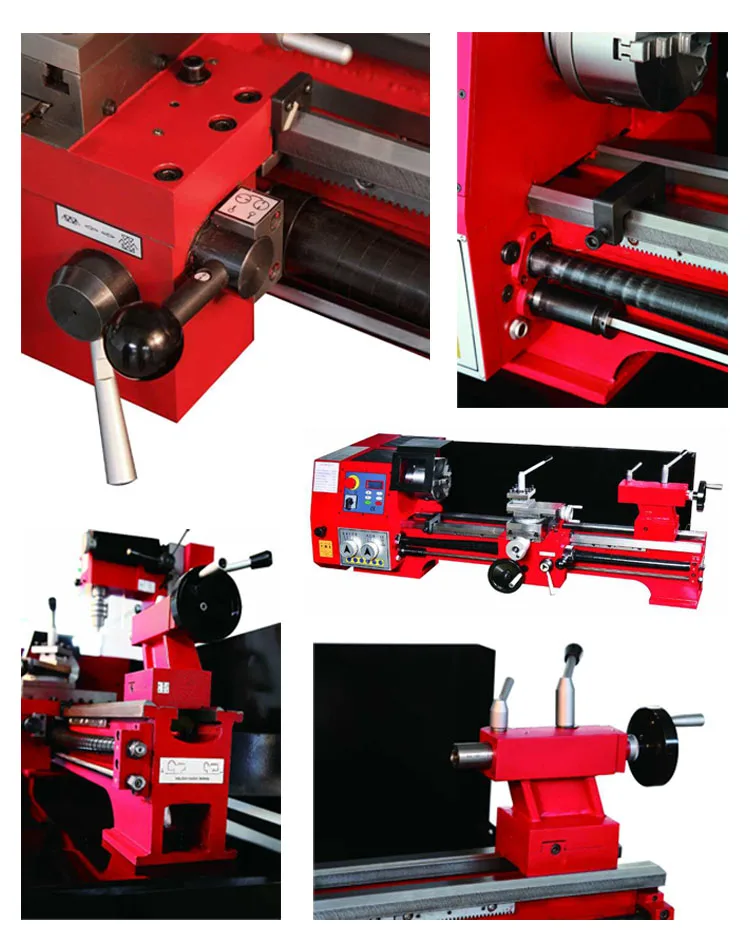

SC4x510 Mini Lathe Machine Feature:
1.1000W high torque, brushless motor
2. Near silent running
3. Integral splash guard
4. Metric and imperial thread cutting
5. Electronic variable spindle speeds
6. Full range of accessories available
|
Specification |
|
|
Swing over bed |
305mm |
|
Distance between centers |
700mm |
|
Hole through spindle |
38mm |
|
Spindle taper |
MT5 |
|
Spindle nose |
D type |
|

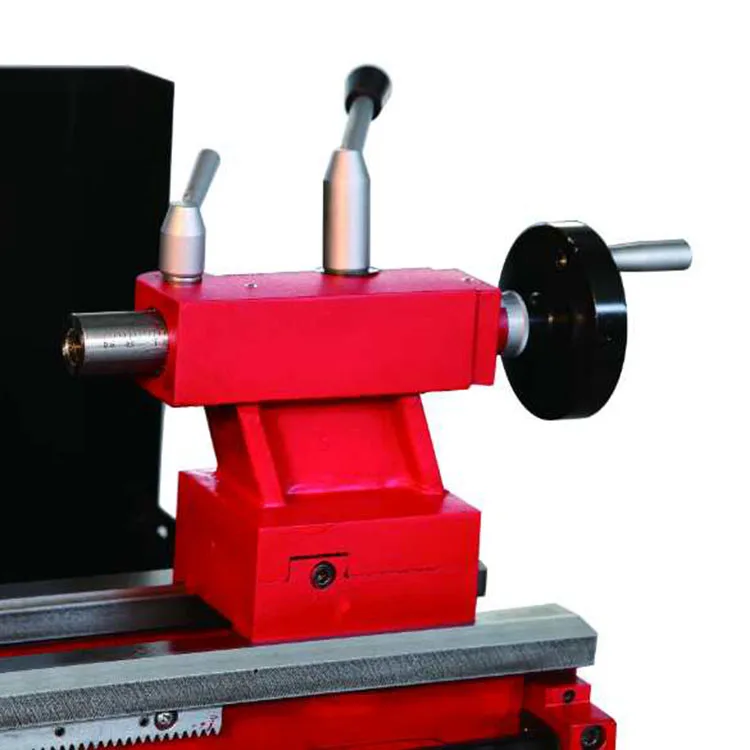

Tailstock taper |
MT3 |
|
Cross slide travel |
155mm |
|
Compound travel |
80mm |
|
Metric version |
0.25-2.5mm (15 thread pitches) |
|
Imperial version |
12-80 TPI (6 thread pitches) |
|
Motor output power (Brushless motor) |
1500W |
|
Spindle speed (variable speed) |
100-2000±10% rpm |
|
Overall dimension (LxWxH) |
1500X750X730mm |
|
Packing size (LxWxH) |
1550X890X670mm |
|
Weight (Net/Gross) |
215/255kg |

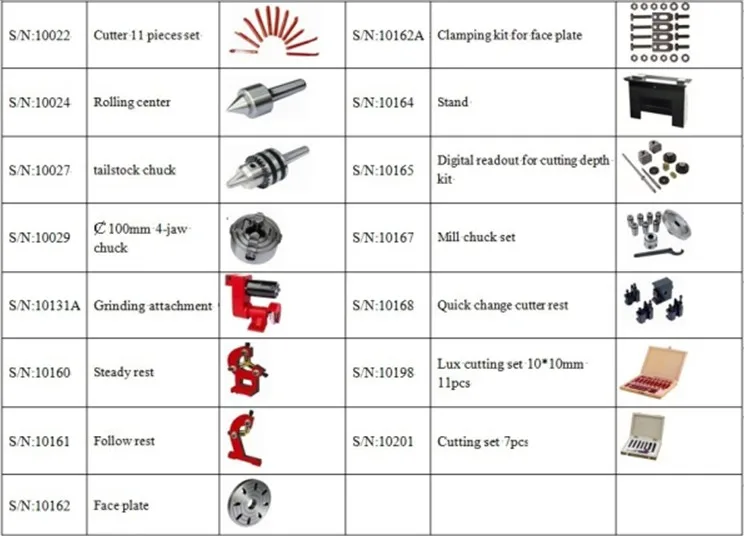

Optional Accessory
Company Information
Certifications

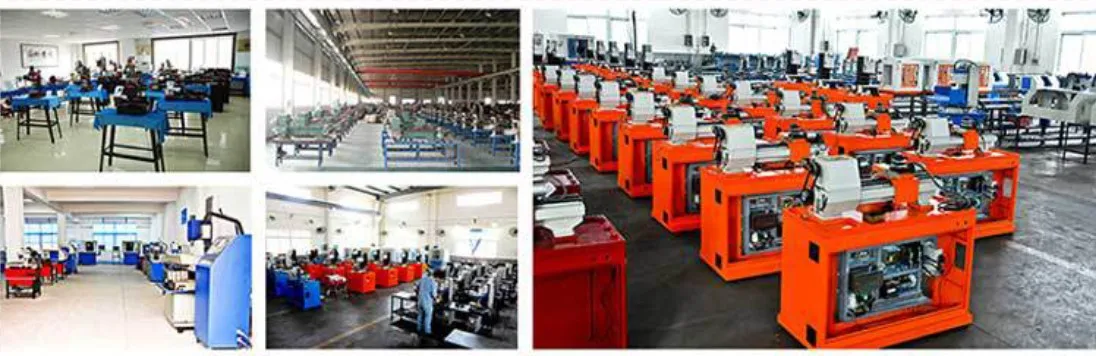

Our Factory

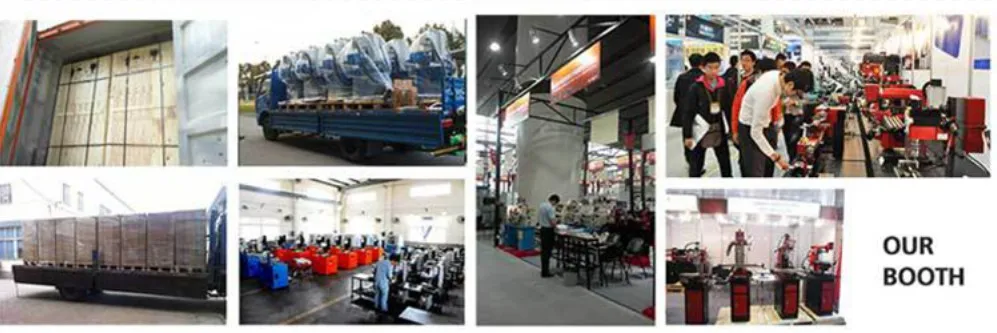

Delivery&Exhibition
