Product Overview
Description
Product Description

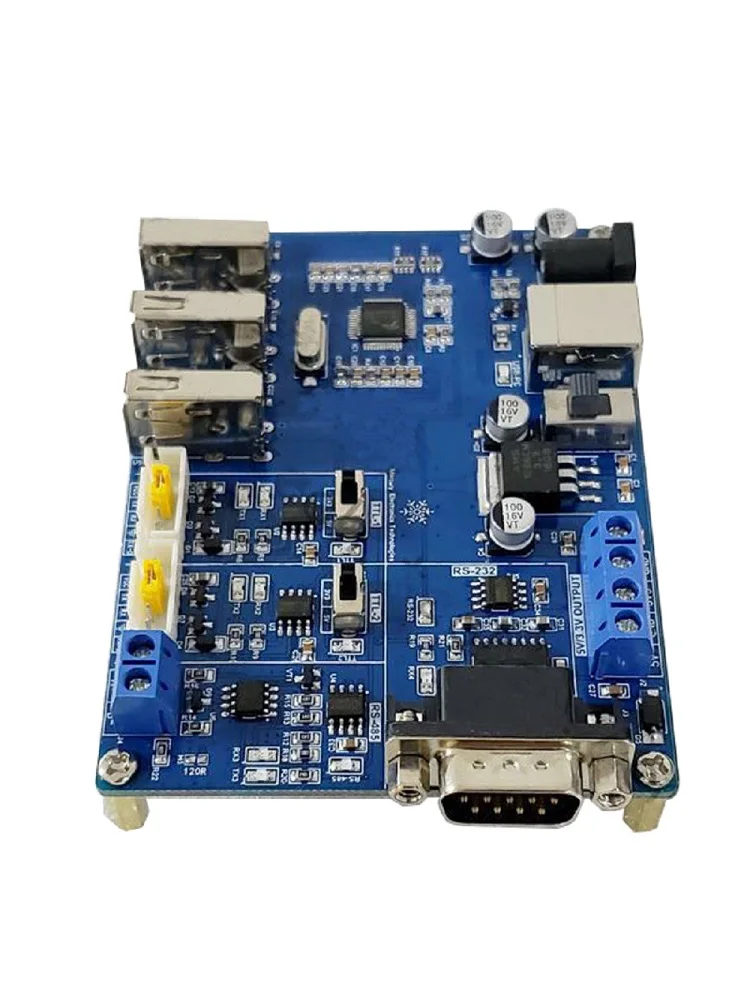

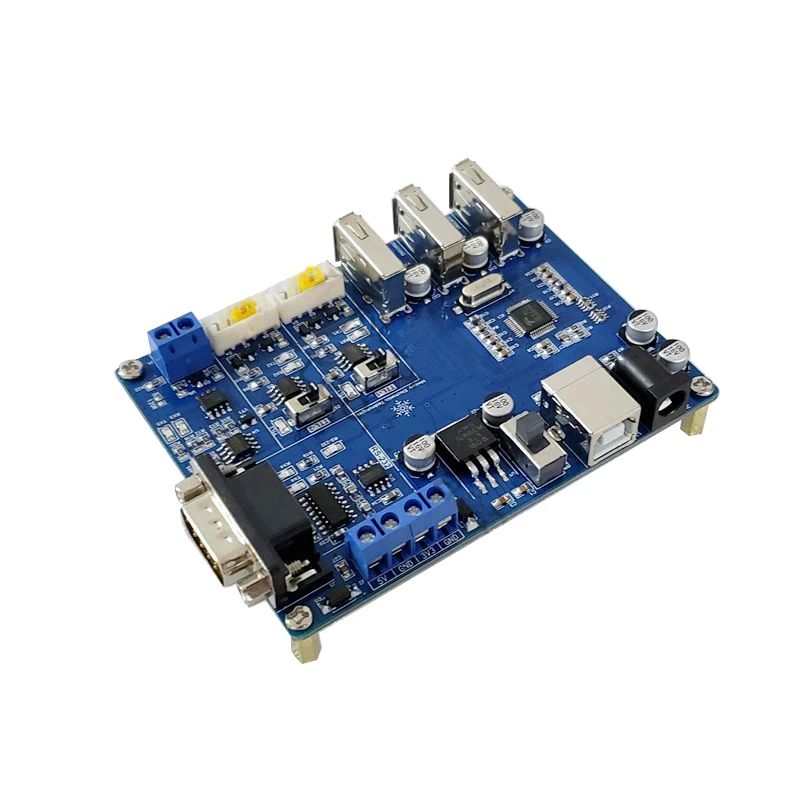

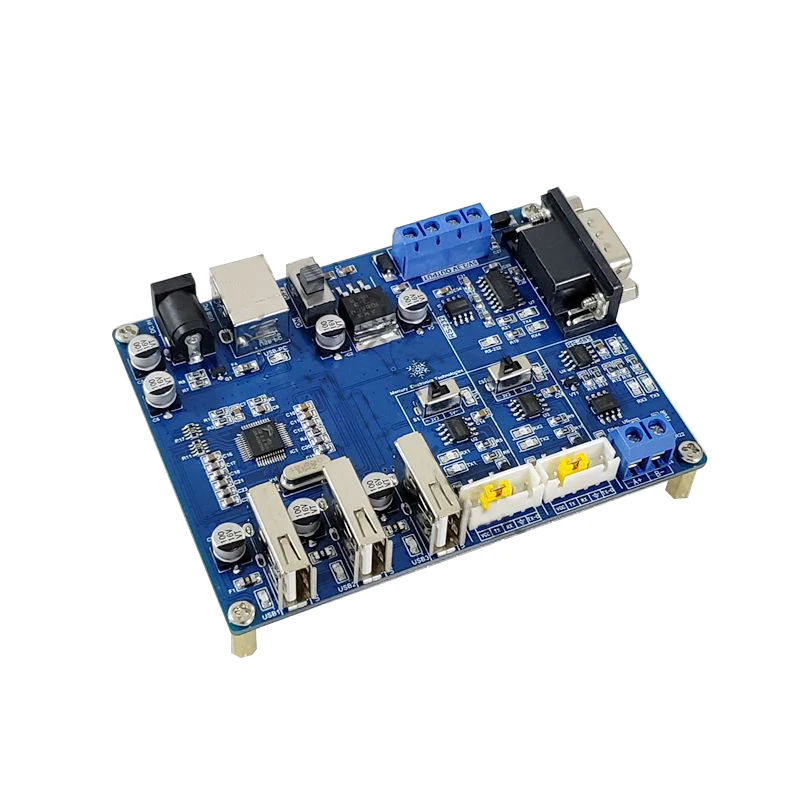

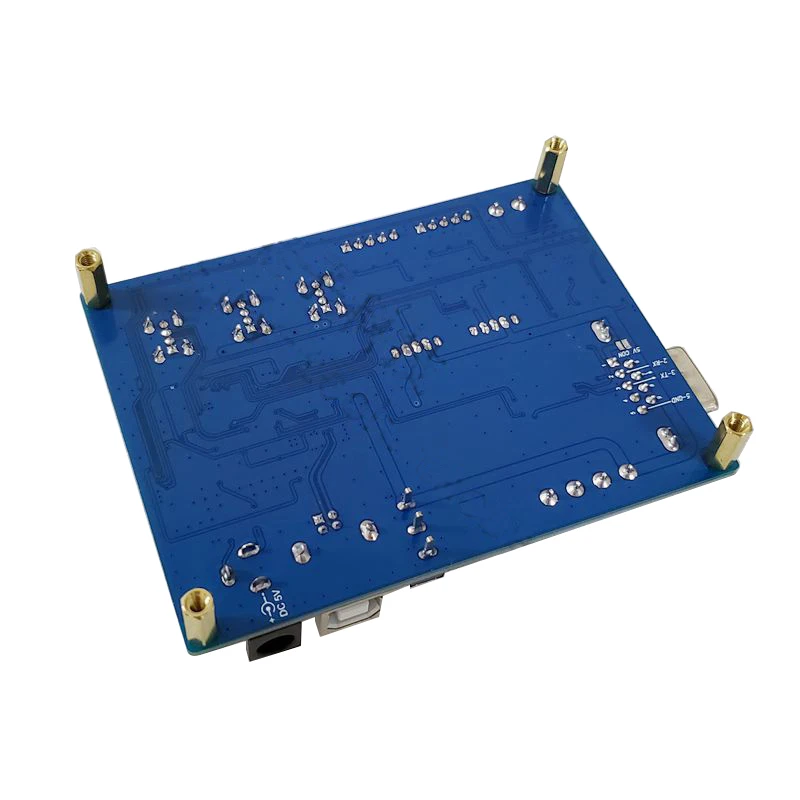

SuperHub USB to TTL, USB to RS232, USB to RS485 Serial Port Adapter Expanding USBHUB Multi-Port
SuperHub can realize USB port expansion, USB to TTL, 232, 485 serial ports and 5V/3.3V power output, which integrates multiple functions to facilitate the development of engineers. This product can realize 3 USB2.0 interface expansion, 2 TTL serial ports (5V/3.3V level switchable), 1 RS-232 interface and 1 RS-485 interface, and provide 1.5A power output (5V /3.3V two voltages, with external power supply.)
All interfaces can be used at the same time, independent of each other, and do not affect each other. The linked computer will display 4 different serial ports (serial numbers are consecutive).
This product has an external 3A power supply and 1 M USB cable for normal use. When there is no external power supply, the maximum output of 5V/3.3V power supply is 500mA.
Main Feature：
● Single USB interface expansion, multi-function integration, simplifying operation and wiring.
● Support Windows/Linux/Mac 32/64 bit operating system
● Achieve 3 USB2.0 high-speed interface expansion (480Mbps), which is convenient for connecting to debugging tools such as emulators and U disks.
● With USB device insertion monitoring, the corresponding interface LED will light up only when the USB device is operating normally.
● 2 TTL serial port expansion, support 5V/3.3V level switching, speed up to 921600bps.
● 1 RS-232 serial port expansion, the highest speed is 460800bps
● 1 RS-485 serial port expansion, the maximum speed is 115200bps.
● All serial ports have independent running, sending and receiving indicators.
● All functions can be used at the same time, independent of each other without interference.
● 5V/3.3V power output (in the case of external power supply, 5V maximum 2.5A, 3.3V 1.5A, the sum of the two does not exceed 2.5A, and 0.5A without external power supply)
Size:75mm*100mm
All interfaces can be used at the same time, independent of each other, and do not affect each other. The linked computer will display 4 different serial ports (serial numbers are consecutive).
This product has an external 3A power supply and 1 M USB cable for normal use. When there is no external power supply, the maximum output of 5V/3.3V power supply is 500mA.
Main Feature：
● Single USB interface expansion, multi-function integration, simplifying operation and wiring.
● Support Windows/Linux/Mac 32/64 bit operating system
● Achieve 3 USB2.0 high-speed interface expansion (480Mbps), which is convenient for connecting to debugging tools such as emulators and U disks.
● With USB device insertion monitoring, the corresponding interface LED will light up only when the USB device is operating normally.
● 2 TTL serial port expansion, support 5V/3.3V level switching, speed up to 921600bps.
● 1 RS-232 serial port expansion, the highest speed is 460800bps
● 1 RS-485 serial port expansion, the maximum speed is 115200bps.
● All serial ports have independent running, sending and receiving indicators.
● All functions can be used at the same time, independent of each other without interference.
● 5V/3.3V power output (in the case of external power supply, 5V maximum 2.5A, 3.3V 1.5A, the sum of the two does not exceed 2.5A, and 0.5A without external power supply)
Size:75mm*100mm
Specification
item | value |
Type | USB Adapter |
Use | COMPUTER, Multimedia, IOS, etc |
Brand Name | YIDAMA-TONGLE |
Model Number | MCS-99A |
Place of Origin | China |
Guangdong | |
USB Type | Standard |
Material | PVC, Tinned Copper |
Connectors | USB 2.0 Connector |
Jacket | PVC |
Products Status | Stock |
Shielding | Braid |
Conductor | Tinned Copper |
Function | USB HUB Multi-Port |
Color | Blue |
