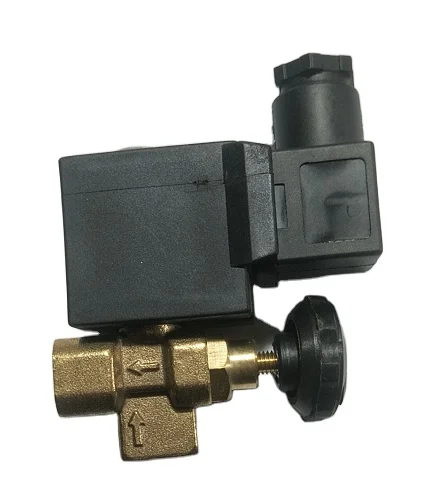

KT Orifice Adjustable Steam Solenoid Valve DL 6K/ DL 6F G1/4 hot water valves

Product Overview

Description



    We will give you a reply within 24 hours after receiving your inquiry.















KT Orifice Adjustable Steam Solenoid Valve DL-6K/DL-6F G1/4 hot water valves

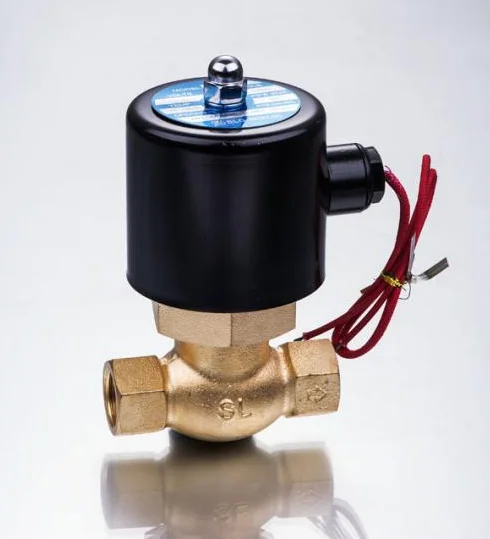

                                                                         2L170-10 hot water solenoid valve



The specification
Model	2L170-10	2L170-15	2L170-20	2L200-25	2L300-35	2L300-40	2L500-50
Working medium	Air, water, steam
Motion pattern	Guide type
Type	Nomarlly closed
Aperture of orifice(mm)	17			20	30		50
CV	4.8			12	20		48
Pipe size	3/8"	1/2"	3/4"	1"	1-1/4"	1-1/2"	2"
Operation fluid viscosity	Below 20 CST
Working pressure(bar)	1~15
Max.pressure(bar)	22.5
Temperature range	-5~180 degrees centigrade
Voltage	DC12V, DC24V, AC24V, AC36V, AC110V, AC220V, AC380V
Voltage range	Plus or minus 10%
Material of valve	Brass
Material of seal	PTFE



      If you have special requirements, please feel free to contact us.













Stock, Quality Testing & Packing:
(1)We have stock for the order of small quantity(less than 50 pcs)
(2)Quality test: 100% pressure test and leakage test before packing.
(3)Packaging Detail: Standard export packing with SLGPC brand or according to customer's special requirement.

Delivery details:
Within 5 working days after confirmation, shipping ways can be by sea, by air or courier, furthermore, we can ship the goods according to customer's special request.



Return & Refund terms:
If there are defective parts, we can change the new one for you within half a year , and we can mend it for you within a year.



Our advantage:
(1)We can do the designs according to customers’ requirements.


(2)We can open customers’ own mold as per their requirements.

(3)We can offer you a good after-sell service.


(4)Prompt delivery.

(5)Small order is welcome, the MOQ is 1 pc.







This is Betty ,  assistant manager of foreign trade department is at your service, if you need any further information, please feel free to contact me. My contact information is as follows:
TEL:0086-574-88816815
FAX:0086-574-88847138
CELL:0086-15669012130
Skype:rxb992
WeChat:461486689





PS: It is ok to arrange samples for your quality testing.
