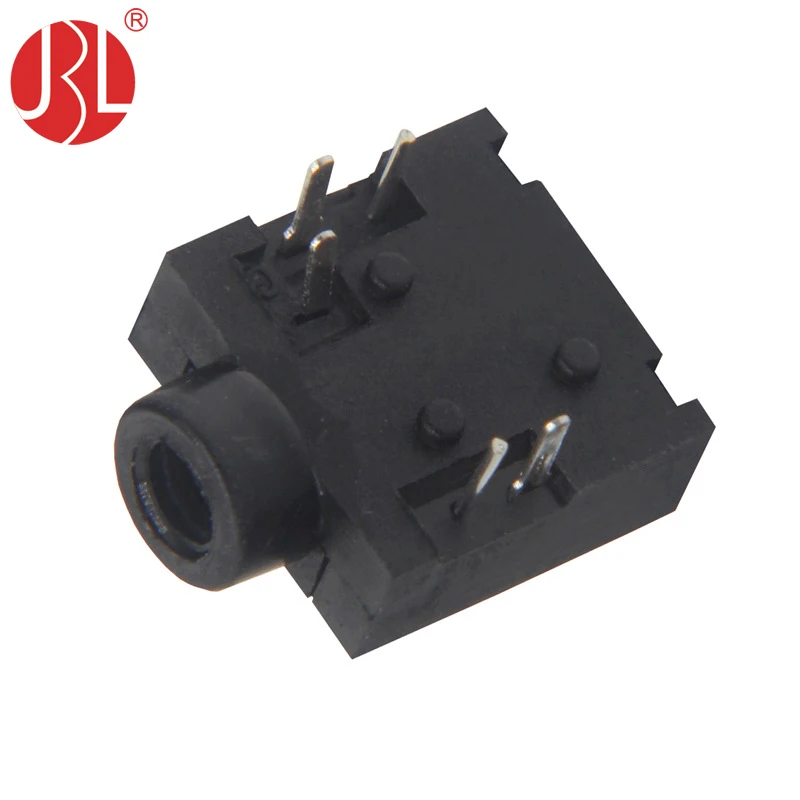

High quality audio jack connector PJ-204B Pcb installation laptop power adapter connector switch 2.5mm female right angle DIP

Share on:

Price:$0.08 - $0.10
Price in USD:Details


Product Overview


Give you better reason to choose us

1.The height of the switch handle can be customized according to customer needs 2.Meet ROHS and REACH standards And Small orders accepted
3.We have a professional design, development and production team of more than 200 people

Our advantages are more than these, please check below...............

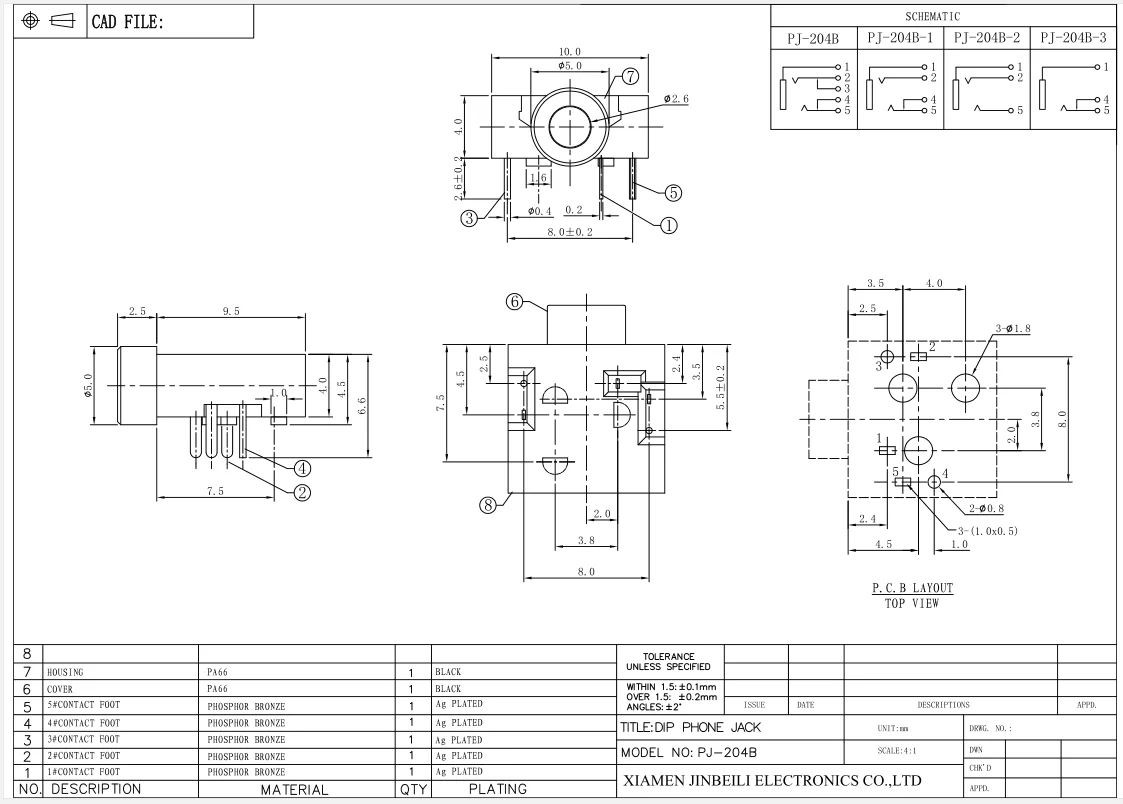

Spec Sheets

Product parameter
1. Rating:DC 30V 0.5A
2. Contact Resistance: 100mΩMax
3. Insulation Resistance: 100MΩMin
4. Dielectric Strength: AC 500V for 1min
5. Insertion and withdraw forces: 3-30N
6. Operating Life: 5,000 cycles
7. Salt Spray Test: NSS 24H(Can be customized according to customer requirements) 8.Operating Temperature:-20°C~+70°C

If you need original PDF Format data sheet to refer to , please contact us

Hot/More Products

4.We have a long-term cooperative freight forwarding company that can ensure timely delivery of goods
5.We have professional merchandisers and professional one-to-one service personnel to ensure better pre-sale, in-sale and
after-sale services6.We also have professional automated production equipment

Our goal is to have more customers with the best service and the best products in the industry.Please rest assured to choose us.
because we are more professional..........

R&D Development
Our engineer design and develop products by software and 3D printer to provide a precision pattern
We design tools for moduling, including metal cutting, surface processing to provide high quality products in a short time
It can stample materials such as stainless steel, aluminum, and brass in diameters from 2mm to 30mm

Plastic Molding
All the plastic parts of switches are custom in our factory.Molding process materials includes: thermoplastic, silicone and elastomer
Automate Assembly Line
most of products are assembled by full automated , only a little by manual, for high efficiency. We have advanced facilities to assemble over 100000 pcs products per day
Testing & Inspection
We strictly test each product by this reflow soldering machine to test if the product is stable and high temperature resistance

Xiamen Jinbeili Electronicsl Co.,ltd specializes in the manufacture of connector parts, DC jack connectors and switches. The main products are computer high-speed USB connectors, tact switches, toggle switches, pushbutton switches, headphone sockets, power sockets, etc.

Our company was founded in 1999 and has more than 300 employees with 2 plants in Dongguan, Guangdong Province. Our products are widely used in electrical appliances, industrial equipment, meters, ventilation systems and fitness equipment. Combining R&D experience and advanced manufacturing equipment, we proudly announce that all our switches and other electronic products comply with RoHS and REACH environmental protection requirements.

Our company has passed ISO9001 and IATF 16949 quality management system certification. High-quality products, competitive prices and satisfactory after-sales service will win customer satisfaction and market share. Now that our products are welcomed by Europe, America and Southeast Asia, we will continue to develop in the right direction and continue to develop the JINBEILI connector brand, and improve the quality of products and services to meet your specific needs.



Factory Inside


Notes :

1, Our switches are available for Reflow Soldering, Wave Soldering and Manual Soldering

2 , Operating Temperature Range : -20℃ to + 70

3, Please keep our products away from moisture and sunlight to avoid oxidation when storing them.

Manual soldering
Max Temp
Max Time
2 S
less than 2  times
Operating Temp
-20℃ to + 70℃

Wave Soldering
Pre-Heat Temp
Pre-Heat Time
1.3 minutes
Max Soldering Temp
Soldering Time
2s - 3s
Deliver Speed


1, Q : Could you provide me the spec data sheet for further reference ?

A: Of course. Please contact us via Alibaba , we will send you PDF format sheet as soon as possible

2, Q : Do you customize material of switch as buy's requirement ?

A : Yes, we do. we customize different colors, materials, shapes etc. Please provide us your spec sheet and requirement

3, Q : Could I get a sample to test ?

A: Sure, we provide you free sample, but shipping cost should be paid by buyer

4, Q : How quick could you deliver a order ?

A: For custom order, it takes about 15 days normally. It depends on quantities of your order.
