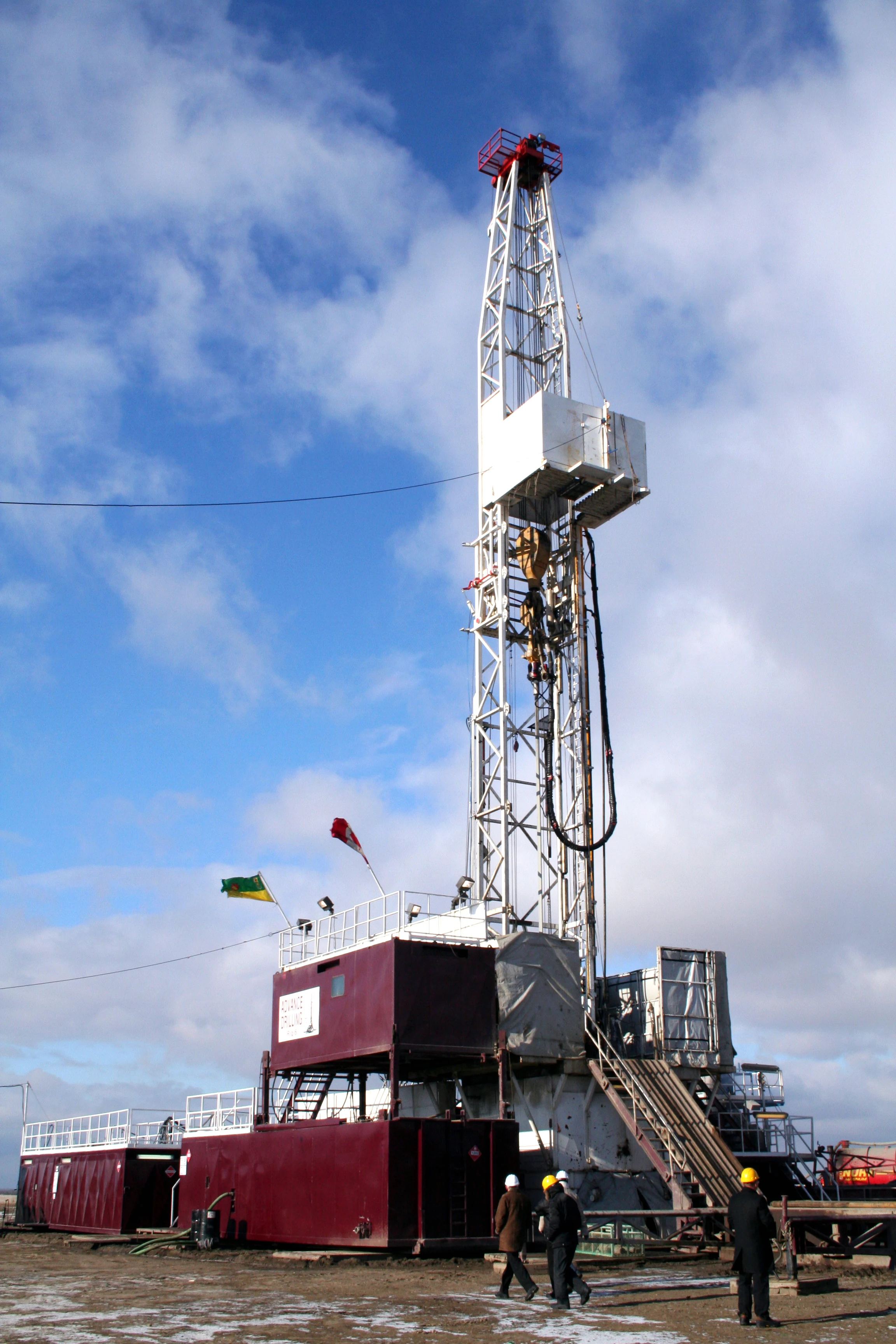

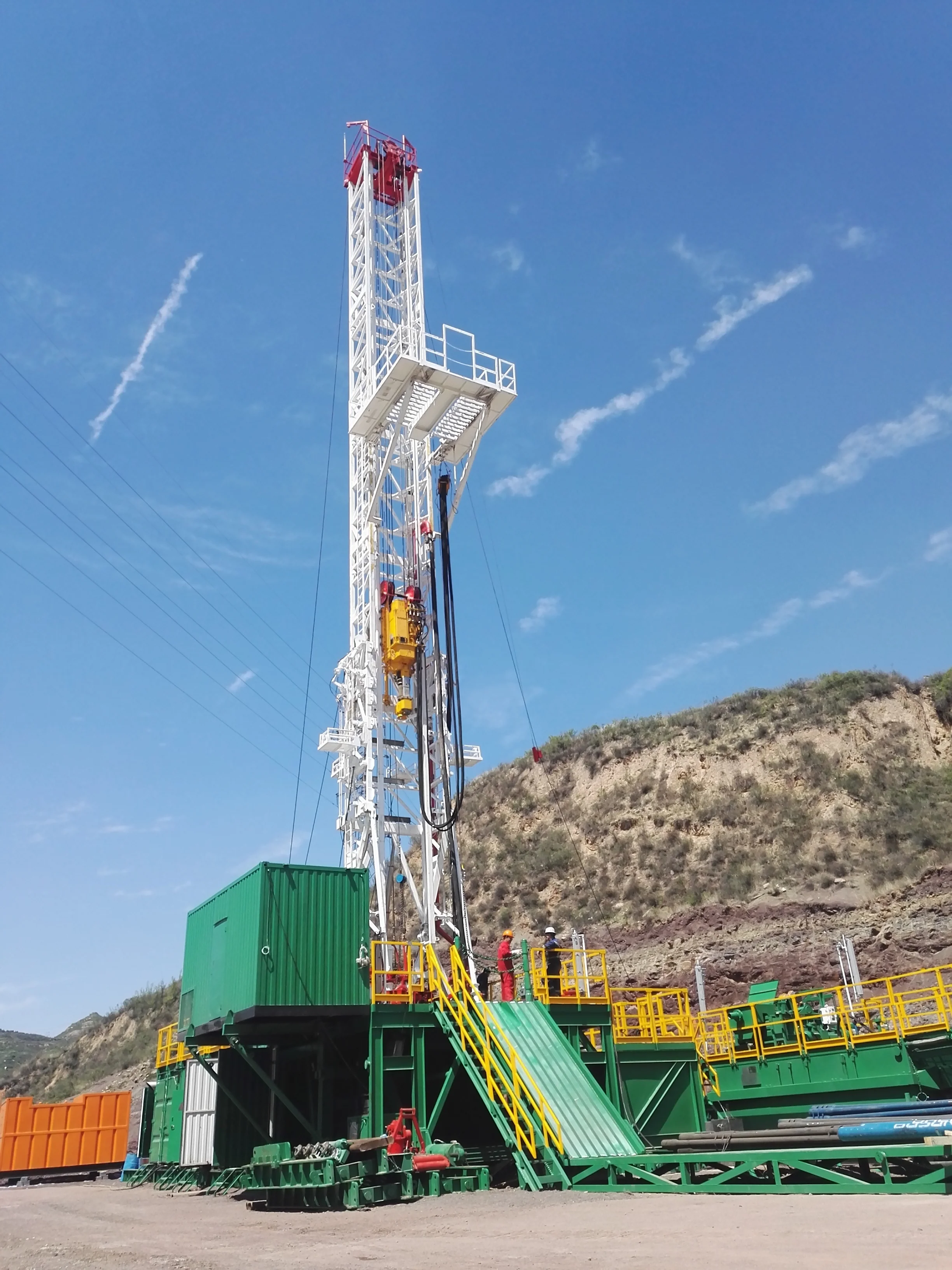

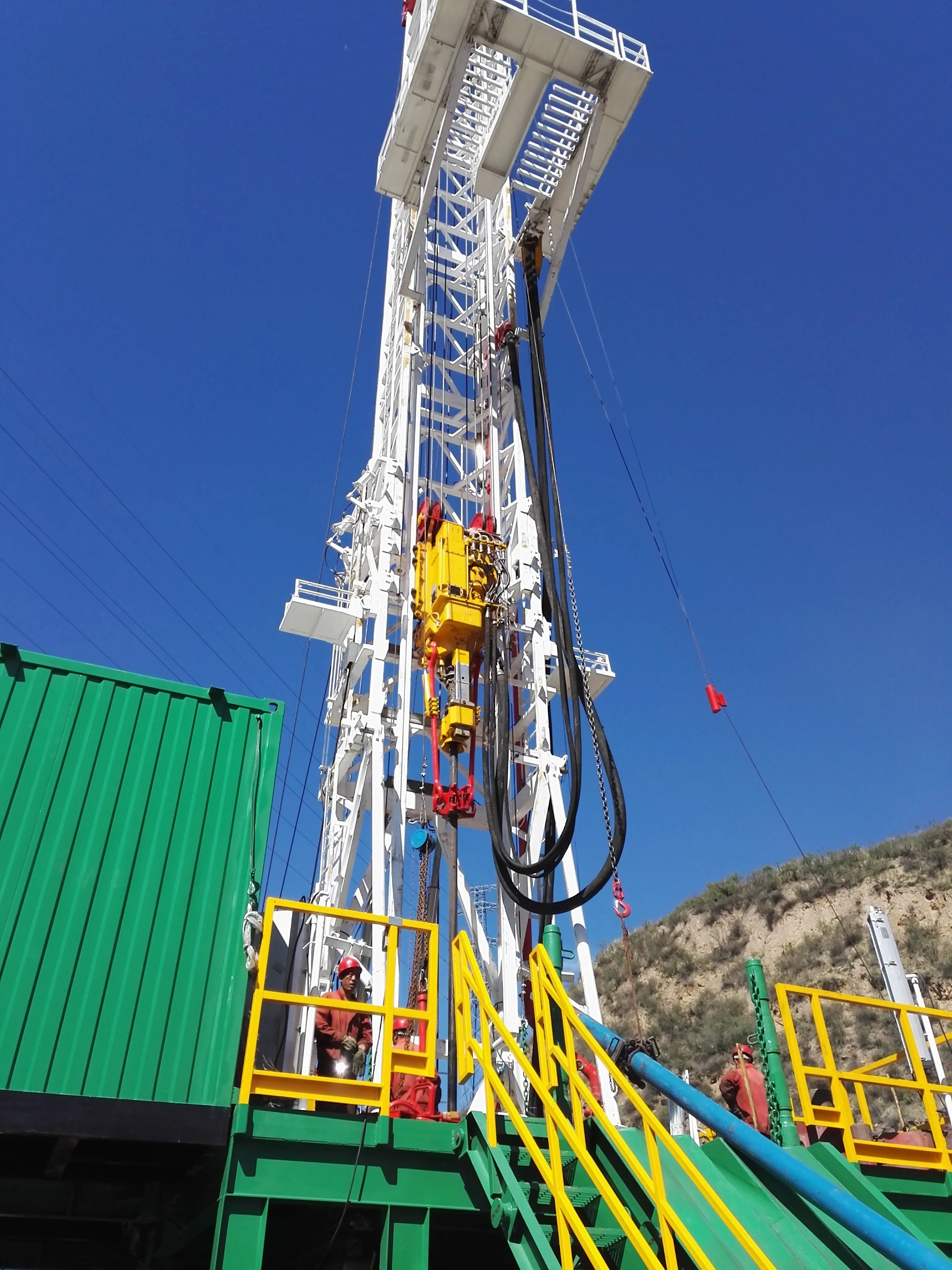

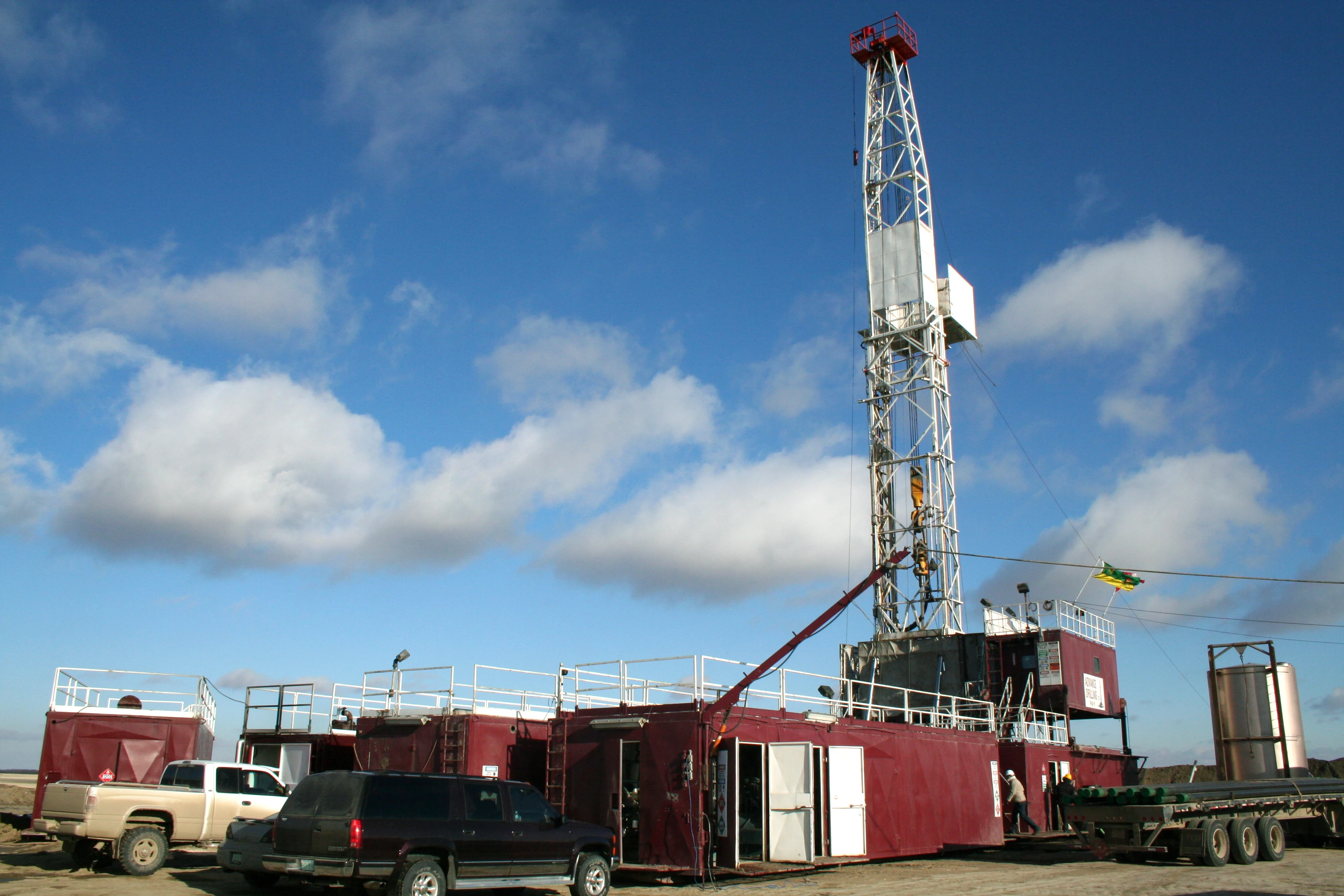

RG 1000 м, буровая установка, оборудование для бурения нефти
- Category: >>>
- Supplier: RG PETRO-MACHINERY GROUP CO. LTD.
Share on (1600166017670):
Product Overview
Description
Product Description
Feature:
1. Drilling rig drive can be divided into mechanical drive, alternating current drive, direct current drive, compound drive and other forms, with reasonable power matching, high transmission efficiency and reliability. The machine layout is reasonable, the use of standardized, modular design, a variety of combinations of versatility, interchangeability, high degree of integration, installation, transport fast.
2. The derrick structure is in the form of type A, type K, etc., which is assembled in sections, connected by bolts or pin shafts. The lifting is divided into vertical lifting in sections or overall rotating lifting, and equipped with buffer device in place to ensure stable and safe positioning.
3. The substructure is in the form of spiral lift, double lift, box stacked, telescopic and so on.
4. The main brake adopts band brake or hydraulic disc brake, the auxiliary brake adopts pneumatic water-cooled push-disk brake, electromagnetic eddy current brake, or the auxiliary brake is made by energy consumption braking of ac frequency conversion motor.
5. Rotary table drive is divided into combined mechanical drive and independent ac or dc drive, which can realize the positive rotation, reverse, suspension, release of the rotary table, equipped with reverse torque release device, to ensure the safe release of rotary table drilling string torque.
6. Complete peripheral equipment such as solid control, well control, high-pressure pipe manifold, electronic control system, mud pump group, oil and water tank, etc. Modular design, standardized interface, can be arbitrary matching, can be customized.
2. The derrick structure is in the form of type A, type K, etc., which is assembled in sections, connected by bolts or pin shafts. The lifting is divided into vertical lifting in sections or overall rotating lifting, and equipped with buffer device in place to ensure stable and safe positioning.
3. The substructure is in the form of spiral lift, double lift, box stacked, telescopic and so on.
4. The main brake adopts band brake or hydraulic disc brake, the auxiliary brake adopts pneumatic water-cooled push-disk brake, electromagnetic eddy current brake, or the auxiliary brake is made by energy consumption braking of ac frequency conversion motor.
5. Rotary table drive is divided into combined mechanical drive and independent ac or dc drive, which can realize the positive rotation, reverse, suspension, release of the rotary table, equipped with reverse torque release device, to ensure the safe release of rotary table drilling string torque.
6. Complete peripheral equipment such as solid control, well control, high-pressure pipe manifold, electronic control system, mud pump group, oil and water tank, etc. Modular design, standardized interface, can be arbitrary matching, can be customized.
Specification
Model | ZJ10/600 | ZJ20/1350 | ZJ30/1800 | ZJ40/2250 | ZJ50/3150 | ZJ70/4500 | ZJ90/6750 |
Max Hook Load (kN) | 600 | 1350 | 1800 | 2250 | 3150 | 4500 | 6750 |
Nominal Drilling Depth（114 mm）m | 500～1000 | 1200～2000 | 1600～3000 | 2500～4000 | 3500～5000 | 4500～7000 | 6000～9000 |
Drawworks Power (kW) | 110～200 | 335～510 | 410～710 | 746～1120 | 1100～1492 | 1492～2240 | 2200～2985 |
Lines | 6 | 8 | 8，10 | 8，10 | 12 | 12 | 14，16 |
Wire line Dia, (mm) | 22 | 29 | 29，32 | 29，32 | 35 | 38 | 45 |
Mast height (m) | 29 | 31，33 | 33，41，43 | 41，43 | 45 | 45，46，48 | 48 |
Max hook speed (m/s) | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 |
Substructure height (m) | 3 | 4.5 | 5，6 | 6，7.5 | 7.5，9 | 10.5 | 12 |
RT Hole Dia. (mm) | 444.5 | 444.5，520.7 | 520.7，698.5 | 698.5 | 952.5 | 952.5 | 952.5，1257.3 |
Main Brake | band brake | band and disc brake | band and disc brake | disc brake | disc brake | disc brake | disc brake |
auxiliary brake | 224WCB | 224WCB | 324WCB，FDWS30 | 324WCB，FDWS40，dynamic braking | DS50，DSF50，dynamic braking | DS70，dynamic braking | Dynamic braking |
*Mud pump power hp×qty | 500×1 | 800×2 | 1000×2，1300×2 | 1300×2 | 1300×3，1600×2 | 1600×3 | 1600×3，2200×3 |
*engine power (kW)×qty | 230×1 | 470×1 | 402×2，810×3 | 810×3，1310×2 | 810×3，1310×3 | 1310×4 | 1310×5 |
means not first parameter

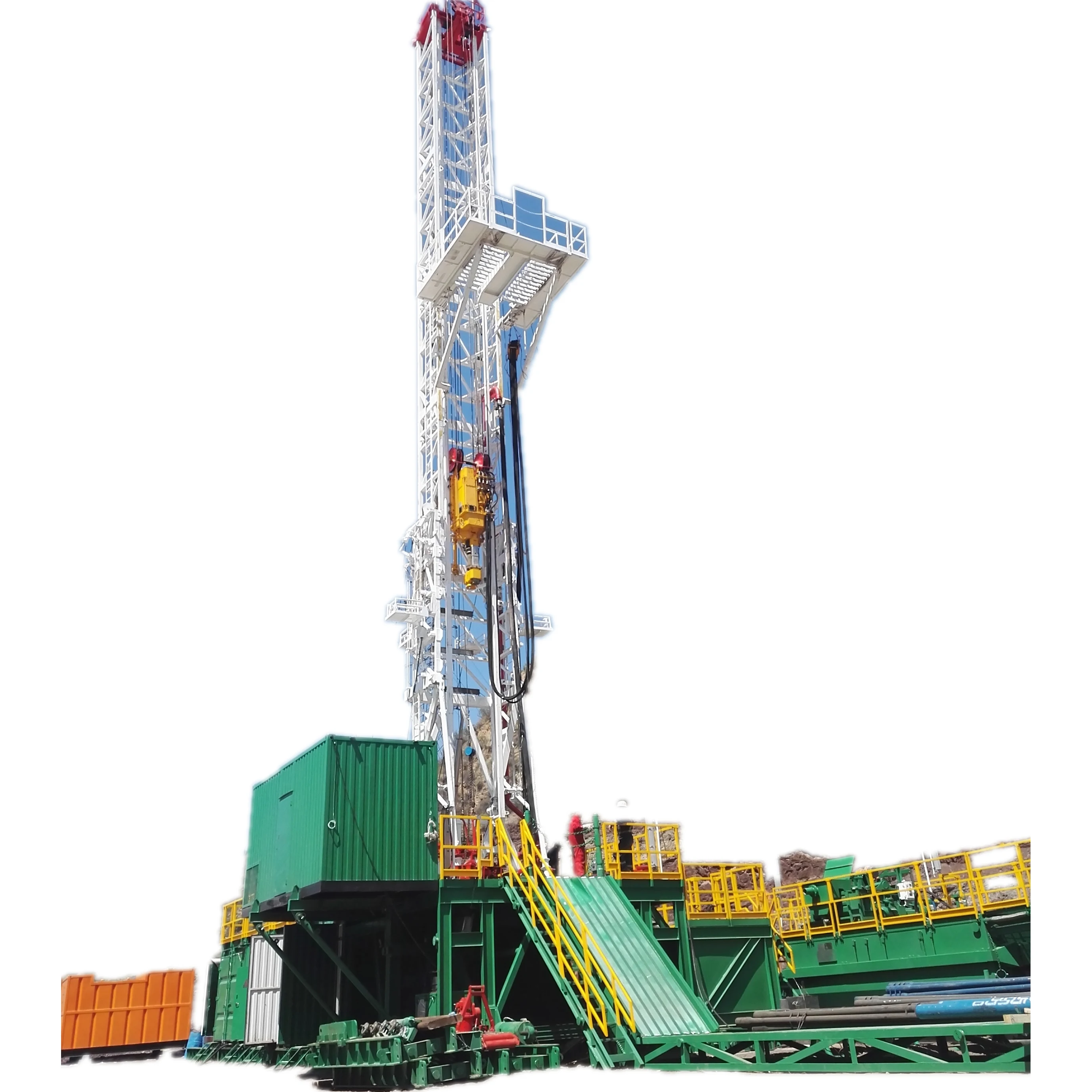

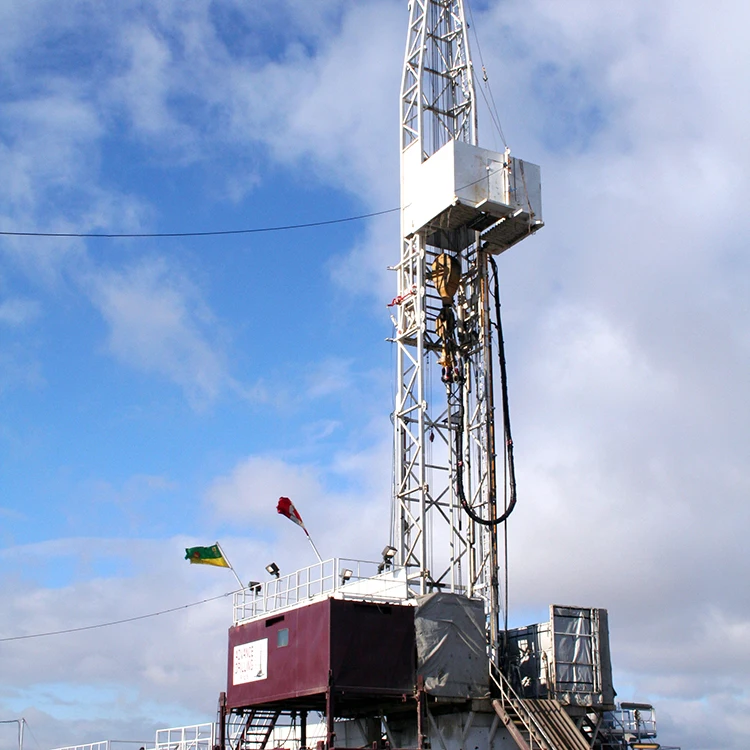

Product Display
Company Profile
RG PETRO-MACHINERY GROUP CO. LTD. was named No.2 Petroleum Machinery Manufacturing Plant of National Petroleum Industrial Ministry of China, reformed from state-owned enterprise to a limited liability company in 2004. In 2016，company was reformed as incorporated company.RG PETRO-MACHINERY GROUP CO., LTD. is National Technical Equipment Production Base, Light-duty Drilling Rigs Production Base, National Innovative Enterprise, National High and New Technology Enterprise, State Torch Plan Key New-and High-tech Enterprise, National New Product Trial Production, Top One Hundred Enterprise of Independent Innovation in China, Top Ten Enterprise of Petroleum Equipment in China, Henan Province Petroleum Drilling Equipment Export Base and Henan Province Top Twenty Enterprise of Patent Application, and a member of IADC.
Our products cover 12 series with over 200 kinds, including truck-mounted drilling rigs, skid-mounted drilling rigs, trailer-mounted drilling rigs, work over rigs, logging equipments, etc. Especially, RG PETRO-MACHINERY GROUP CO., LTD. firstly proposed an idea for portable drilling equipments with characteristic of quick-carrying and operation automation in China, and put it into the development of portable drilling equipments. RG PETRO-MACHINERY GROUP CO,. LTD. developed the first 3000m truck-mounted drilling rig in China and was awarded the state-level second-class award of advance science and technology, awarded the national recognition with the Shenzhou V Spacecraft, and the award is the highest science and technology award in the petroleum equipments industry till now. 4000m truck-mounted drilling rig and 4000m trailer-mounted drilling rig developed by RG PETRO-MACHINERY GROUP CO., LTD. is the largest self-propelled drilling equipment in the worldwide, with high-competitive in the international market, providing the advanced drilling equipment for factory drilling.
The company is supplying the logging and cementing technology and the oil & gas services and to be best international advanced integration oil & gas equipments manufacture and services supplier.
Certifications
Customer Photos
Exhibition
FAQ
1. What are the delivery times?
In general, it will take 35-60 days after receiving deposit. The specific delivery time depends on
the items and quantity of your order.
the items and quantity of your order.
2. Do you have a MOQ limit?
Yes it depends on the products size and production process.
3.What are your payment methods?
T/T, L/C,D/P,D/A, Western Unions payments are available.
4. What after-sales service can you provide?
RG GROUP has set up professional service branches for major oil fields abroad. It has developed a whole-process and
all-round after-sales service system, including equipment installation and debugging, maintenance, testing, operation training and spare parts supply.
