Shenzhen OEM Assembly Led Grow Ring Light SMD PCB Board LED Driver Panel PCB Circuit Board PCBA Led PCB
- Category: Other PCB & PCBA old >>>
- Supplier: Shenzhen Huaxing Pcba Limited
Share on (1600166162048):
Product Overview
Description

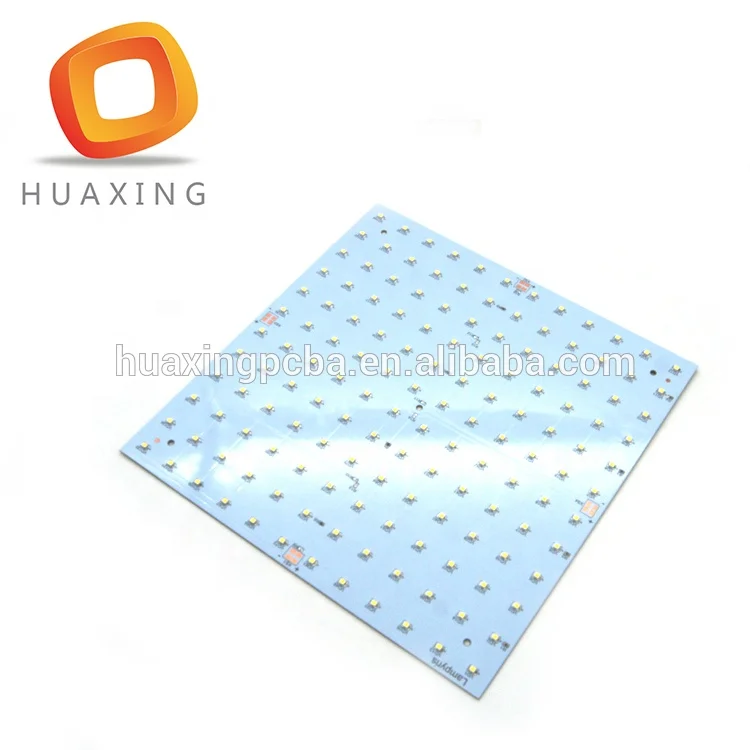

Shenzhen OEM Assembly Led Grow Ring Light SMD PCB Board LED Driver Panel PCB Circuit Board PCBA Led PCB
1. Technical Capacity of PCB Manufacturing
| Item | Mass Production | Pilot Run Production |
| Capacity | Capacity | |
| Layer Counts | 1~18, HDI | 20~28 , HDI |
| Material | CME1,CME3,FR-4, High TG FR4 , Halogen-free FR4 , aluminium ,Ceramic(96% Alumina) | |
| Teflon,PTFE(F4B,F4BK), Rogers(4003,4350,5880)Taconic(TLX-8,TLX-9), Arlon(35N,85N) etc. | ||
| Material Mixed Laminate | 4 layers -- 10 layers | 12 layers |
| FR4+Ro4350 , FR4+Aluminium , FR4+ FPC | ||
| Maximum Size | 610mm * 1200mm | 1200mm * 2000mm |
| Board Outline Tolerance | ±0.15mm | ±0.10mm |
| Board Thickness | 0.125mm--6.00mm | 0.1mm--8.00mm |
| Thickness Tolerance ( t≥0.8mm) | ± 8% | ±5% |
| Thickness Tolerance( t<0.8mm) | ±10% | ±8% |
| Minimum Line / Space | 0.10mm | 0.075mm |
| Trace width Tolerance | 15%-20% | 10% |
| Minimum Drilling Hole (Mechanical) | 0.2mm | 0.15mm |
| Minimum laser hole | 0.1mm | 0.075mm |
| Hole Position/hole Tolerance | ±0.05mm PTH:±0.076MM NPTH:±0.05mm | |
| Mini hole ring | 0.075mm | 0.05mm |
| OutLayer Copper Thickness | 17um--175um | 175um--210um |
| InnerLayer Copper Thickness | 17um--175um | 175um--210um |
| Mini Solder Mask Bridge | 0.05mm | 0.025mm |
| Impedance Control Tolerance | ±10% | ±5% |
| Surface Finishing | HASL, Lead free HASL, Immersion gold, Immersion tin, Immersion Silver. | |
| Plated gold , OSP, Carbon ink, | ||
| 1-2L Lead-time | 3-7 days | 1-2 days |
| 4- 8L Lead-time | 7-10 days | 2-7 days |
| 10-18L Lead-time | 10-15 days | 4-9 days |
| 20-28L Lead-time | 15-20 days | |
| Acceptable File Format | ALL Gerber Files,POWERPCB,PROTEL,PADS2000,CAD,AUTOCAD,ORCAD,P-CAD,CAM-350,CAM2000 etc. | |
| Quality Standards | IPC-A-600F and MIL-STD-105D CHINA GB<4588> | |
Our Services
We can provide quick turn prototype and small quantity PCBs with short lead time.
The quality of Our products is excellent and stable. We choose the best material for all our products.
We will send the boards to you by DHL, TNT, UPS, FEDEX and so on to saving the transport time.
For responsing promptly, we will reply your e-mail from 9: 00am to 23: 00pm by two shifts.
All Kinds of trunking can be produced by our sophisticated craftsmen and our special machinery.
Even Strange and complex shapes doesn't have to be any problem.
Please send us PCB files or Gerber data so that we can quote for you soon.
PCB Making
Mold Making & Hardware
Company Information
HUA XING PCBA LIMITED is a privately owned company founded in 1998, With a qualified, experienced and dedicated team of professionals, HUA XING PCBA LIMITED is able to provide a full compliment of services to our clients with a complete systems design, build, integration and after-sales support. HUA XING PCBA LIMITED offer a full suite of design services; from schematic design, board layout, component selection, firmware design,mechanical design to PCB,PCBA,Chip Cloning, we can help you procure components, PCB FPC making , mold making , Plastic Injection ,assemble, package, and deliver the finished goods to you, or even drop ship to a third party. If you require only one aspect of the above, we have the flexibility to adapt to your needs and requirements.
Packaging & Shipping
FAQ
In order to assist our customers and expedite the PCB services, we have detailed below the commonly asked questions about PCB manufacturing.
What service can you provide?
We can provide PCB gerber file design,Copy and Clone,OEM and ODM service.
Not only produce PCB,PCB Assembly,but also Plastic Enclosure,and Complete products
Are my design files secure when I send them to you?
Your files are held in complete safety and security while Hua Xing PCBA Limited is in possession of them. Your files are never shared nor will any third parties have access to your design files. Since they are your property, we respect the copyright of your files. The customer controls the disposition of these files per your requirements and written approval.
For small quantity orders, can you produce prototype PCBs?
Yes. Hua Xing PCBA Limited has the capability to produce PCBs in any amount. But,the greater the quantity, the greater the cost savings.
Do you have an order minimum?
We accept order with as low as a quantity of 1 (piece or panel).
What is the standard thickness of laminate that Hua Xing PCBA Limited uses?
1.6 mm (0.063″)
What are all your options for laminate thickness?
We can handle the following non-standard thicknesses: 0.2mm (0.0079″), 0.4mm (0.016″), 0.6mm (0.024″), 0.8 mm (0.032″), 1.0 mm (0.04″), 1.2mm (0.047″), 2.0mm (0.079″), and 2.3mm (0.091″).
Do you have the capability of manufacturing high frequency materials? Rogers?
While expensive, we can manufacture these materials. Contact us for pricing prior to placing an order.
What options exist for the thickness of copper?
0.5 oz, 1.0 oz, 1.5 oz, 2.0 oz, 2.5 oz, 3.0 oz, 3.5 oz, 4.0 oz, 4.5 oz and 5.0 oz.
What are the color options for PCB solder masks?
Green, black, blue, red green, yellow and white
What are the options for surface finishes?
The options include HASL, Immersion gold, Immersion tin, Immersion Silver, OSP, and HASL lead free. Call for other options.
What file formats do you accept for PCB assembly?
Gerber and CAM Auto CAD DXF, DWG formats.
If any need, feel free to send us gerber files, PCB specification and BOM list, we'll quote within 48hours
