CM10FN coating thickness gauge Iron based non ferrous based dual use paint film thickness gauge Paint thickness gauge

Product Overview

Description

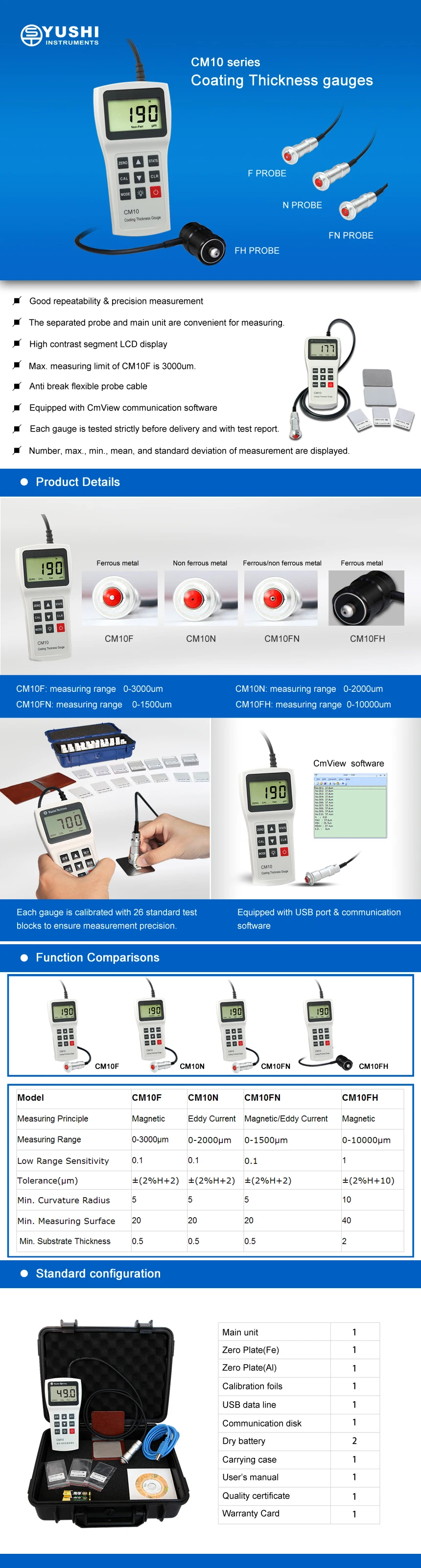

  CM10 Series Coating Thickness Gauges





Application

Painting, Varieties of Anti-Corrosion Coating, Powder Spraying, Plastic, Rubber, Synthetic Material, Phosphate Coating, Chromium, Zinc, Aluminum, Tin, Cadmium, Oxide Film and Phosphate Film coating thickness meaurement, etc.



Brief Introduction

YUSHI CM10 Series Coating Thickness Gauges adopt two modes of coating thickness measurement: magnetic and eddy current. Magnetic Method (Fe) is for measuring the thickness of non- magnetic coatings on steel, iron and other ferromagnetic metal substrates. Eddy Current Method (NFe) is for measuring the thickness of non-conductive coatings on copper, aluminum, stainless steel and other non-ferromagnetic substrates.



Technical parameter

Model	CM10F	CM10FH	CM10N	CM10FN
Measuring Principle	Magnetic	Eddy Current	Magnetic/Eddy current	Magnetic
Measuring Range	0-3000μm	0--2000μm	0-1500μm	0-10000μm
Low Range Sensitivity	0.1	0.1	0.1	1
Tolerance(μm)	±(2%H+2)	±(2%H+2)	±(2%H+2)	±(2%H+10)
Min.Curvature Radius	5	5	5	10
Min.Measuring Surface	20	20	20	40
Min.Substrate Thickness	0.5	0.5	0.5	2
Display	High-contrast segment LCD screen (LED backlight)
Statistics function	Number of measurements, maximum, minimum, average, standard deviation
Calibration method	One-point, two-point calibration
Operating temperature	-10℃~+50℃
Automatic shut-down	Automatic shutdown after 3 minutes of inactivity
power supply	Two 1.5V AA batteries, when the battery power is low, there will be a low voltage prompt
Weight	Weight
Size	149mm×73mm×32mm (H×W×D)
