Christmas Holiday business 9 ounce paper coffee tea juice paper cup machine
- Category: >>>
- Supplier: Zhejiang Lifeng Machinery Co. Ltd.
Share on (1600166409495):
Product Overview
Description

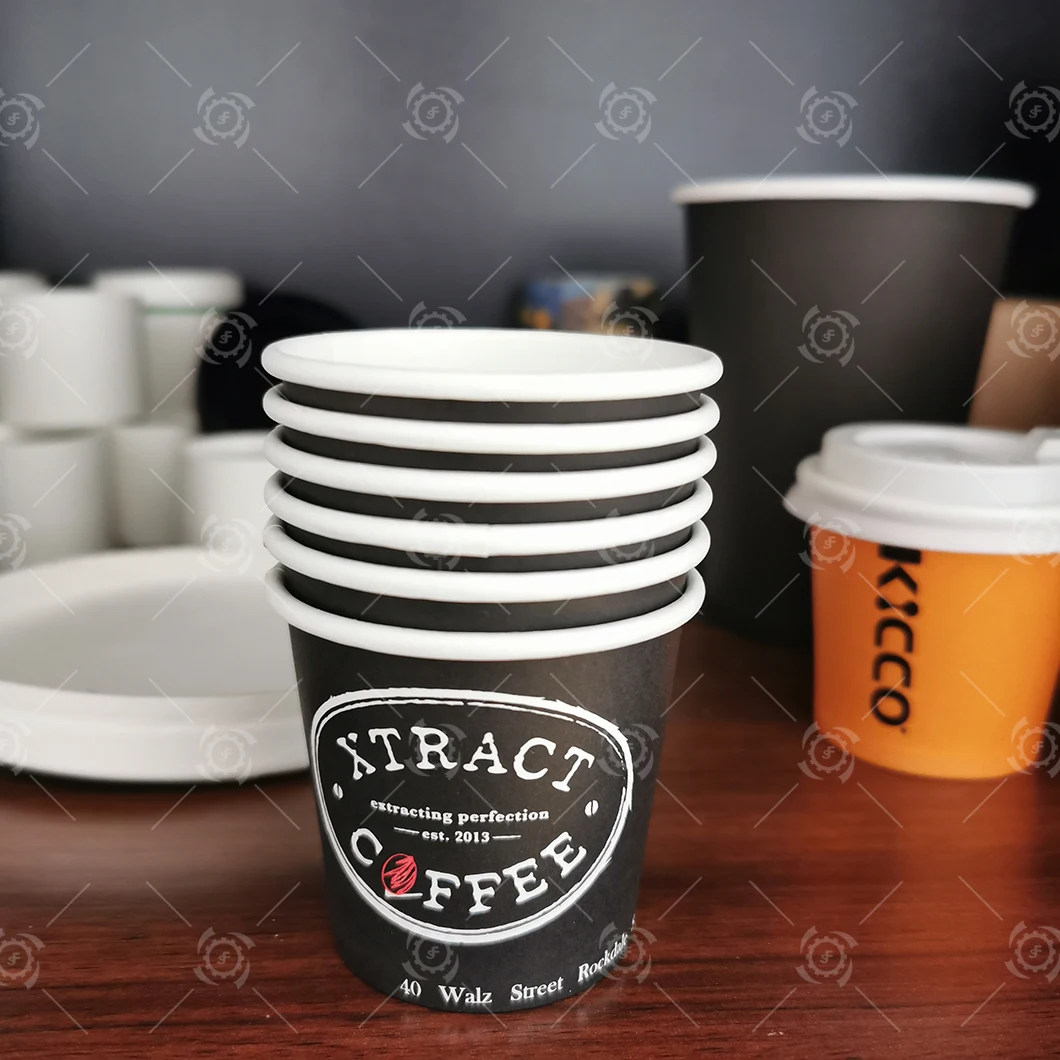

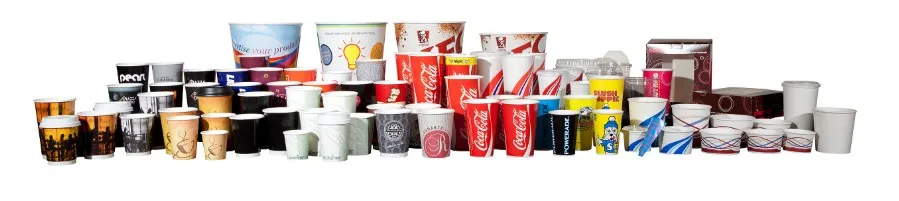

Paper cup machine produce Compostable Paper Cups Disposable Paper Coffee Cups Water Paper Cups, Hot Cocoa, Cold Beverage Rolled Rims, Recyclable Juice Paper Cups Perfect for Home & Office
Product Overview
HIGH QUALITY
HIGH PERFORMANCE
LOW FAILURE
SIMPLE CONTROL
SEASY MAINTENANCE
VERSATILITY
MULTIPLE SIZE

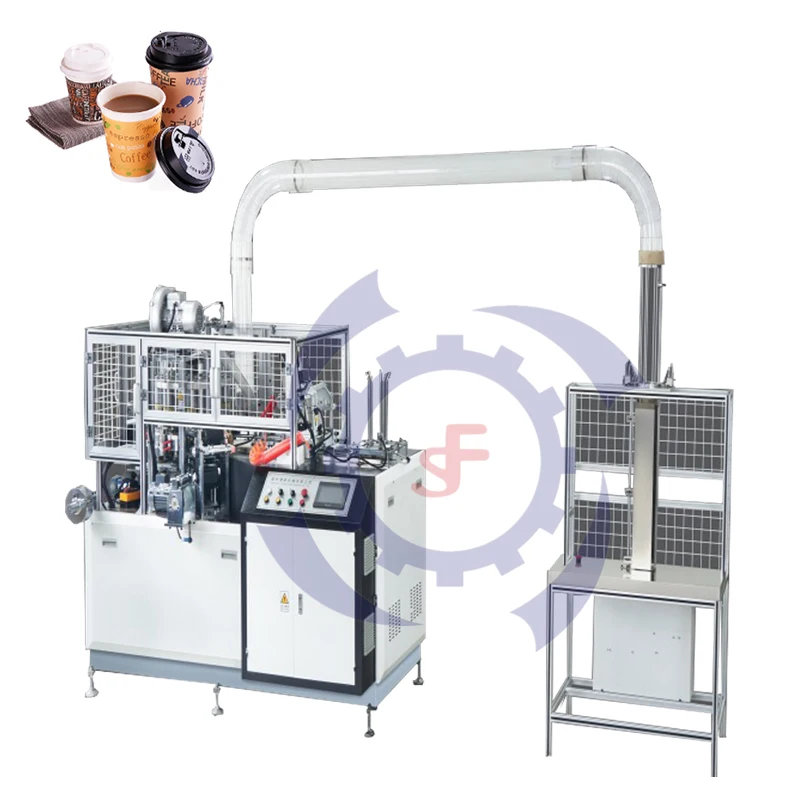

Model:BH-800 GROOVED WHEEL TYPE SINGLE DISC CUP MACHINE
Description BH-800 model paper cup forming machine has the advantages of high performance, high efficiency and high quality:
1.High speed paper cup forming machine comes with two turnplate, open intermittent cam mechanism and gear transmission, longitudinal axis structures. The cam is made in Korea.
2. The whole machine adopts automatic lubrication system, which makes all mechanical parts working much more smoothly.
3. Bottom sealing by hot air devices, so that the machine is efficient, the hot air device is imported from Switzerland.
4.The new machine with higher working speed (100pcs/min) than RD-12/22 machine, so there is extra Switzerland Leister hot air device for the side sealing, so side sealing is done by both Hot air and Ultrasonic.
5. Cup side sealing by ultrasonic, Evergreen which is made in Taiwan.
6. Cup top curling has two steps, rotary curling and heating figuration, which makes the curling more stable and with better appearance (round and smooth).
7. The machine comes with PLC control system, sensor failure detecting and it stops working automatically if the machine has any problem, it can greatly improve operation safety and reducing labor cost. THE PLC, touch screen, Invertor, temperature controller and sensor is made in Korea.
8. All bearing of the machine is made in Japan (NSK brand), and the vacuum generator is made in Japan (SMC brand).
9. More efficient and higher performance.
10. It is easy to make cups with different sizes by changing moulds.
11. With automatic cup delivery system and counter.
12. The machine dimensions is smaller than GRT09 machine, more compact.
1.High speed paper cup forming machine comes with two turnplate, open intermittent cam mechanism and gear transmission, longitudinal axis structures. The cam is made in Korea.
2. The whole machine adopts automatic lubrication system, which makes all mechanical parts working much more smoothly.
3. Bottom sealing by hot air devices, so that the machine is efficient, the hot air device is imported from Switzerland.
4.The new machine with higher working speed (100pcs/min) than RD-12/22 machine, so there is extra Switzerland Leister hot air device for the side sealing, so side sealing is done by both Hot air and Ultrasonic.
5. Cup side sealing by ultrasonic, Evergreen which is made in Taiwan.
6. Cup top curling has two steps, rotary curling and heating figuration, which makes the curling more stable and with better appearance (round and smooth).
7. The machine comes with PLC control system, sensor failure detecting and it stops working automatically if the machine has any problem, it can greatly improve operation safety and reducing labor cost. THE PLC, touch screen, Invertor, temperature controller and sensor is made in Korea.
8. All bearing of the machine is made in Japan (NSK brand), and the vacuum generator is made in Japan (SMC brand).
9. More efficient and higher performance.
10. It is easy to make cups with different sizes by changing moulds.
11. With automatic cup delivery system and counter.
12. The machine dimensions is smaller than GRT09 machine, more compact.
Products Description

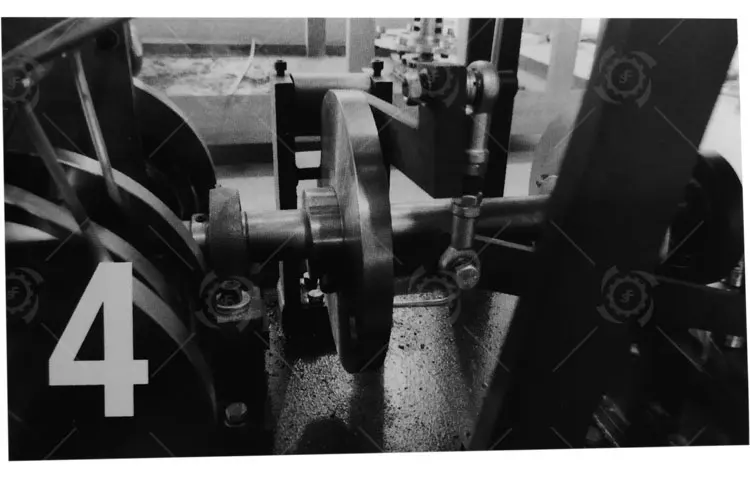

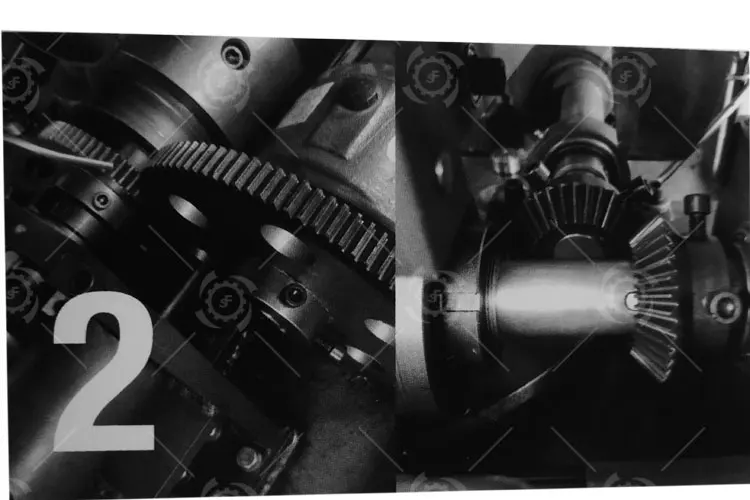

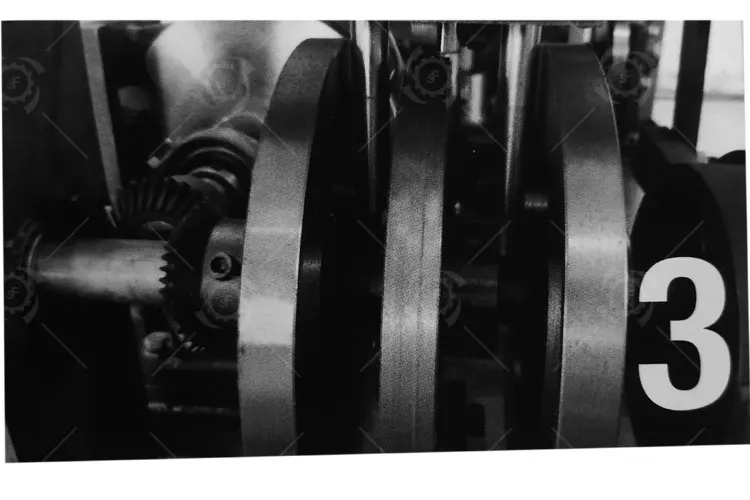

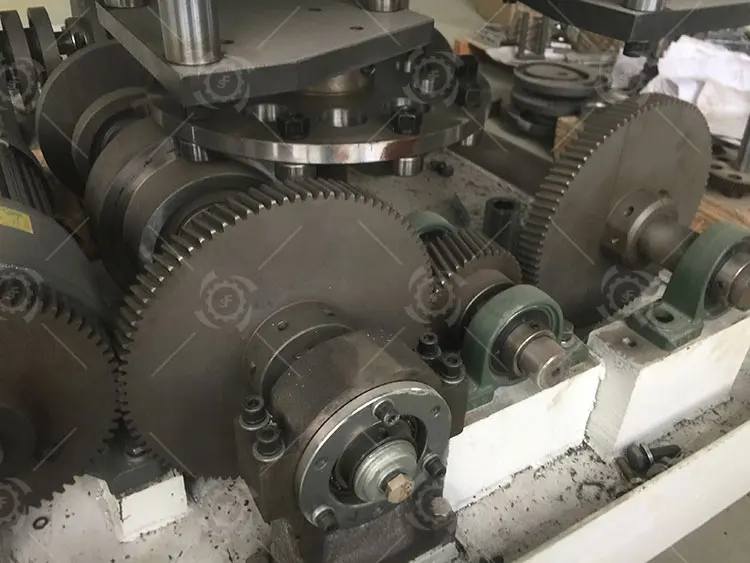

Adopt open cam for the dividing moving,compare with index gearbox,easy maintenance,stable and reliable,easy replace broken parts

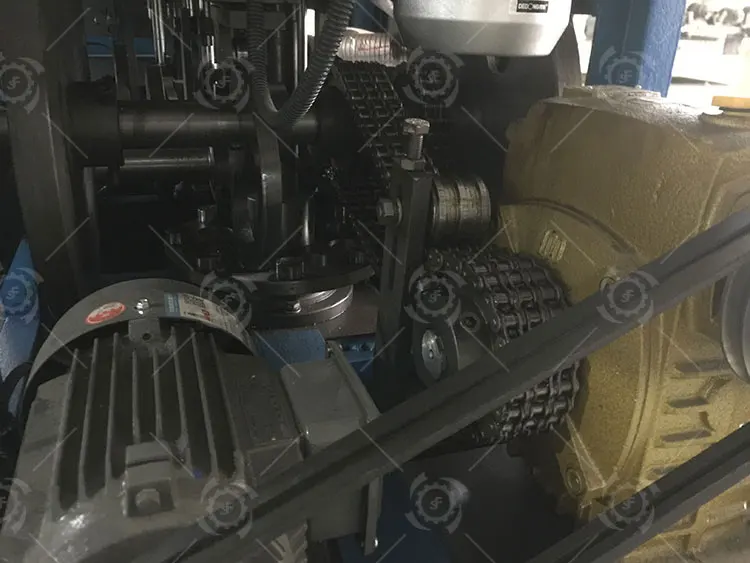

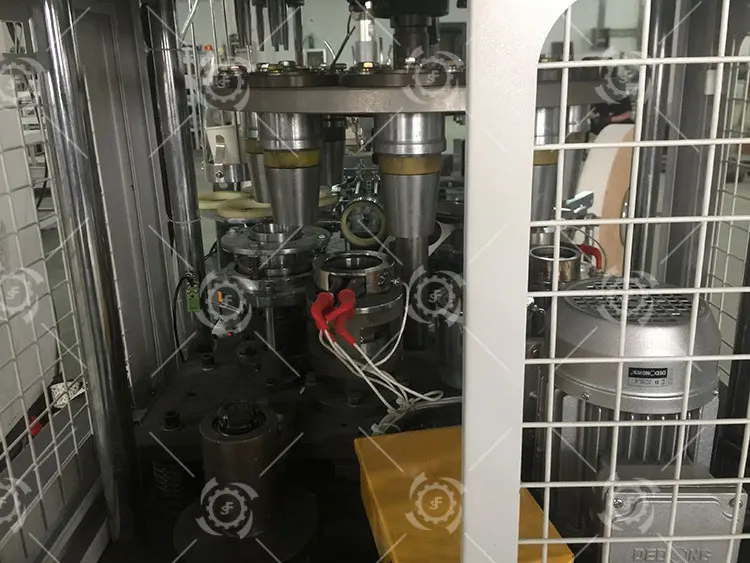

The inside of the machine is simple,and each operating position is automatically lubricated
Features:
1: Advanced indexing cam open structure,manufacturing precision,ensuring and stability of the machine operation. 2: Swiss import
Leiter flameless hot air system,stable performance,high production efficiency. 3: Using high-strength structural profiles,compact
machine structure stable. 4: All use of standardized parts production,versatility,excellent interchange eability ,easy maintenance
of equipment . 5: Using automatic lubrication system ensures high speed operation of the machine for a long time without a break.
6: Intelligent design,PLC automatic control,servo motor,automatic fault alarm,counting, detection,parking 7: Automatic shutdown
isolation. 8:we use spray lubrication to add oil,so you only need to use three barrels of oil which is much less than other
company.
1: Advanced indexing cam open structure,manufacturing precision,ensuring and stability of the machine operation. 2: Swiss import
Leiter flameless hot air system,stable performance,high production efficiency. 3: Using high-strength structural profiles,compact
machine structure stable. 4: All use of standardized parts production,versatility,excellent interchange eability ,easy maintenance
of equipment . 5: Using automatic lubrication system ensures high speed operation of the machine for a long time without a break.
6: Intelligent design,PLC automatic control,servo motor,automatic fault alarm,counting, detection,parking 7: Automatic shutdown
isolation. 8:we use spray lubrication to add oil,so you only need to use three barrels of oil which is much less than other
company.
PRODUCT SPECIFICATIONS
No | Model | BH-800 with cup holder,PLC,ultrasonic |

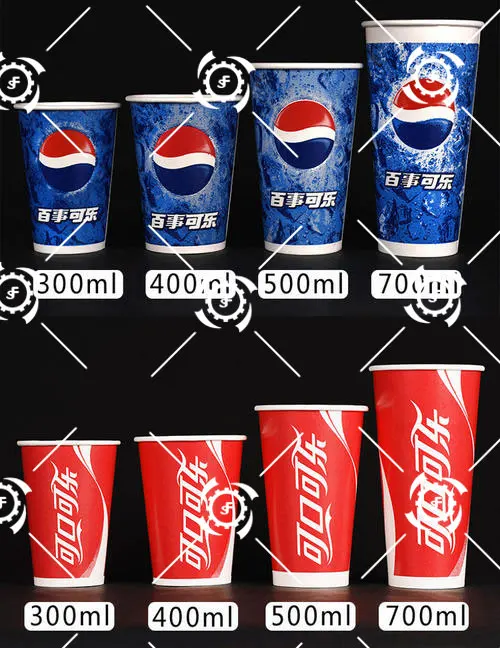

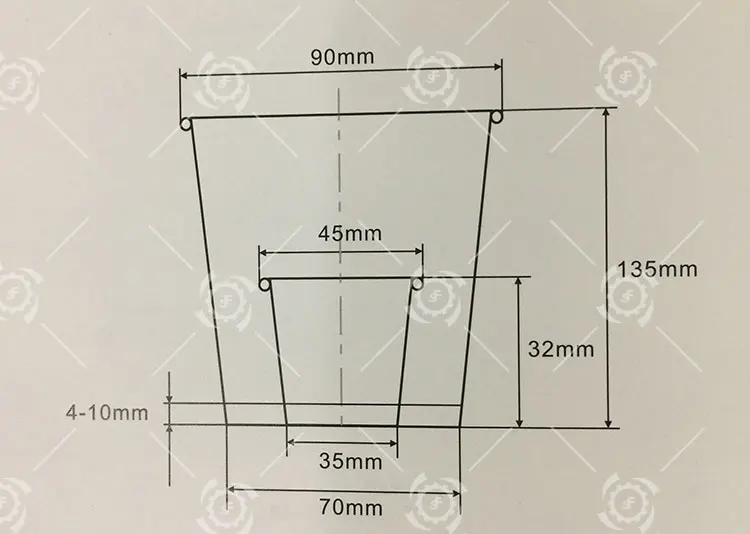

1 | Cup Size | 3 to 16 oz |
2 | Mainframe Size | L:2100mm*W:1200mm*H:1800mm |
3 | Mainframe Weight | 2000kg |
4 | Cup Holder Size | L:900mm*W:600mm*H:1500mm |
5 | CUP Weight | 100KG |
6 | Voltage power | 380V(220V) 50HZ |
7 | Air pressure | 0.4-0.6 Mpa; 0.4m³/min |
8 | Capacity | 80 pcs/min |
9 | Paper type | Singe PE or Double PE coated paper |
10 | Paper gram | 150-350g/m³ |
11 | Cup Side Sealing | Ultrasonic |
12 | Bottom | Hot Air System |
PRODUCT CONFIGURATION

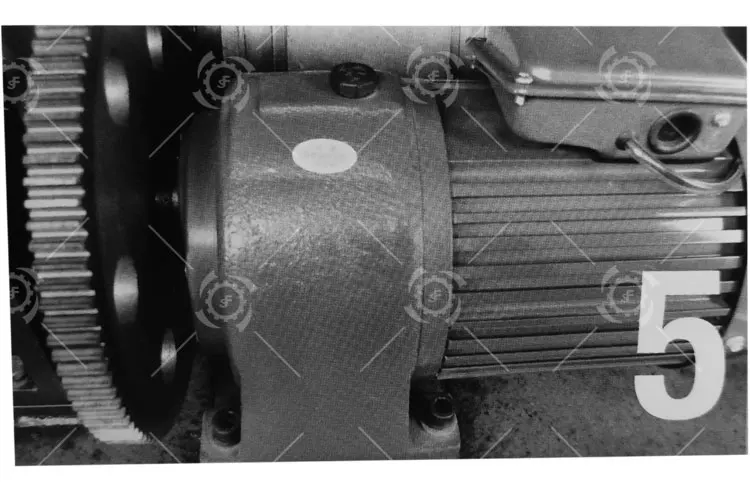

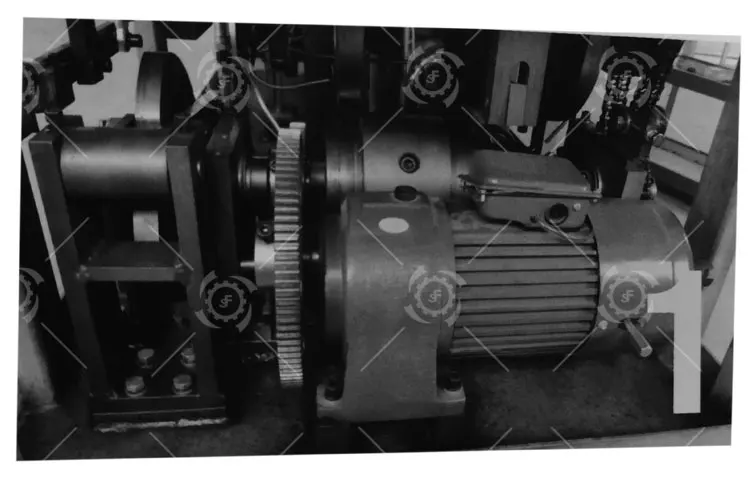

Main motor | SBG |
Knurled Motor | SBG |
Bottom feeding motor | Inovance |
Bottom stepping motor | Inovance |
Lubricating motor | Trochold PUMP |
Screen | Huichuan |
Total switch | Zhengtai |
Frequency converter | Huichuan |
PLC | Huichuan |
AC contactor | Zhengtai |
Sensor | OMRON |
Ultrasonice system | Changrong |
Driver | Taizhong |
Button switch | Autonics |
Temperature module | Autonics |
Penumatic components | Pneulead |
Our customer
Certifications

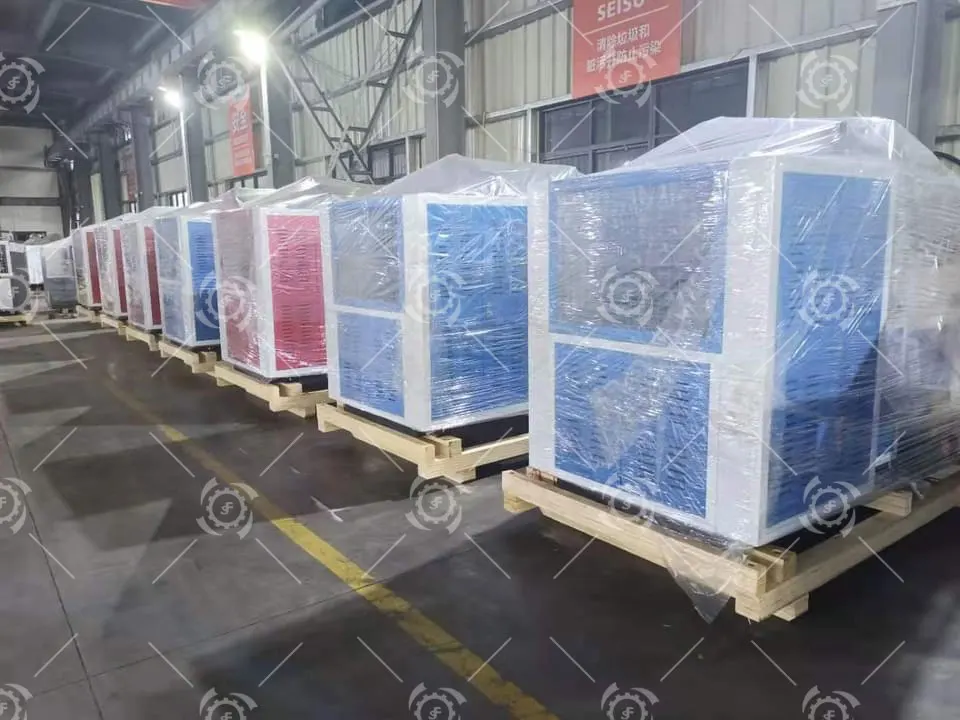

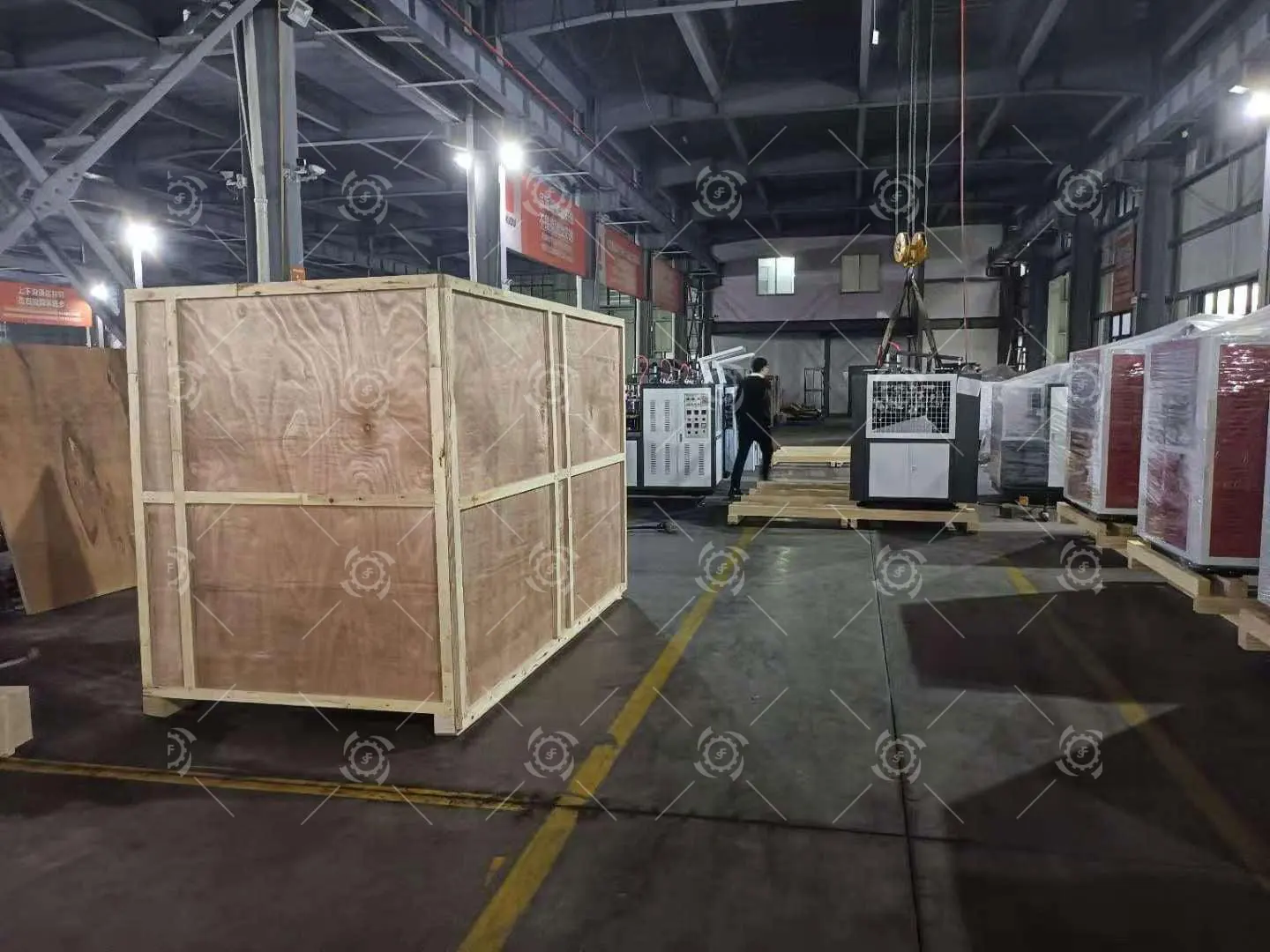

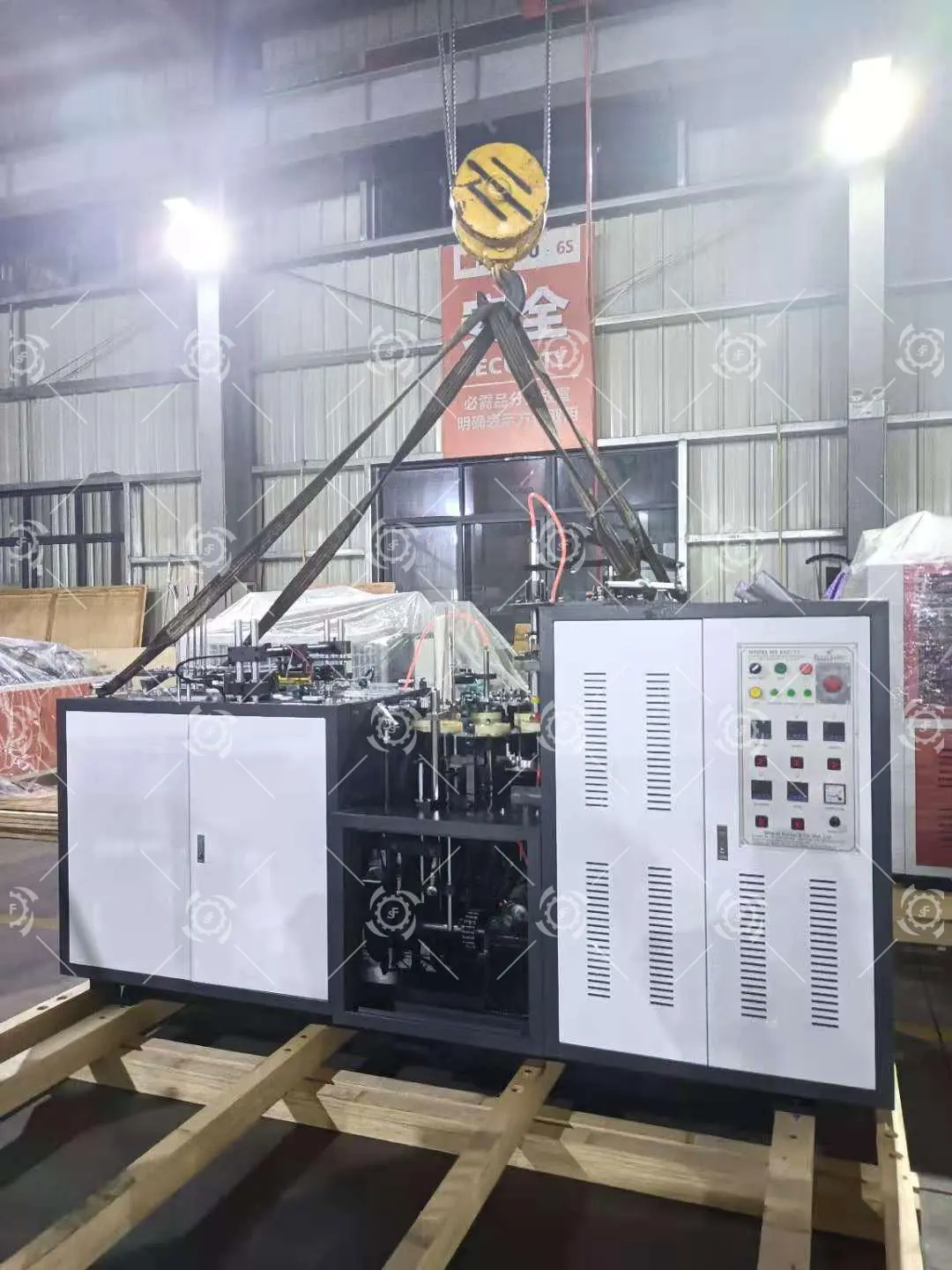

Packing & Shipping
FAQ
Q1:Are you a factory or trading company?
A1: We are established in 1995, a actual factory and manufacturer in the line of printing&package machine for 20 years.
Q2:Where is your factory located? How can I visit there?
A2: Our factory is located in Rui'an City, Zhejiang Province, China, about one hour by air from Shanghai. All our clients, from
home or abroad, are warmly welcome to visit us!
Q3: Which industries are widely used in of your machine?
A3: Those are mainly used in making plastic bags and labels in the maket. Examples of stand up pouch, zipper pouch, plastic bag for dialy necessities and food, plastic label for drink bottle, Foil yogurt cup, Medical pouch, laminated film or soft carboard,etc.
Q4: How about the payment term?
A4: For new customer, our payment terms is 30% T/T in advance before production, the balance 70% should be paid before delivery.
Q5: What about your main market?
A5: Ourproducts be sold well in 30 provinces and have good reputation in China, also we pay attention on developing the overseas market, such as Europe, Russia, Southeast Asia, Middle and South America, Africa, and other countries.
Q6: How does your factory do regarding quality control?
A6: Quality is the most important principle. GREAT WALL people always attach great importance to quality controlling from the very beginning to the very end. Our factory has passed ISO and CE certification.
Q7:What about warranty and do the engineers available to overseas?
A7: One year warranty. During this period, if the machine has some problems, our engineers can go abroad to fix for you.
Q8:What about the service after sale?
A8: One you have bought our machine, you can call us or email us telling us the machine problems and any questions about the machines. We will reply to you with 12hours and help you to slove the problem.
A1: We are established in 1995, a actual factory and manufacturer in the line of printing&package machine for 20 years.
Q2:Where is your factory located? How can I visit there?
A2: Our factory is located in Rui'an City, Zhejiang Province, China, about one hour by air from Shanghai. All our clients, from
home or abroad, are warmly welcome to visit us!
Q3: Which industries are widely used in of your machine?
A3: Those are mainly used in making plastic bags and labels in the maket. Examples of stand up pouch, zipper pouch, plastic bag for dialy necessities and food, plastic label for drink bottle, Foil yogurt cup, Medical pouch, laminated film or soft carboard,etc.
Q4: How about the payment term?
A4: For new customer, our payment terms is 30% T/T in advance before production, the balance 70% should be paid before delivery.
Q5: What about your main market?
A5: Ourproducts be sold well in 30 provinces and have good reputation in China, also we pay attention on developing the overseas market, such as Europe, Russia, Southeast Asia, Middle and South America, Africa, and other countries.
Q6: How does your factory do regarding quality control?
A6: Quality is the most important principle. GREAT WALL people always attach great importance to quality controlling from the very beginning to the very end. Our factory has passed ISO and CE certification.
Q7:What about warranty and do the engineers available to overseas?
A7: One year warranty. During this period, if the machine has some problems, our engineers can go abroad to fix for you.
Q8:What about the service after sale?
A8: One you have bought our machine, you can call us or email us telling us the machine problems and any questions about the machines. We will reply to you with 12hours and help you to slove the problem.
