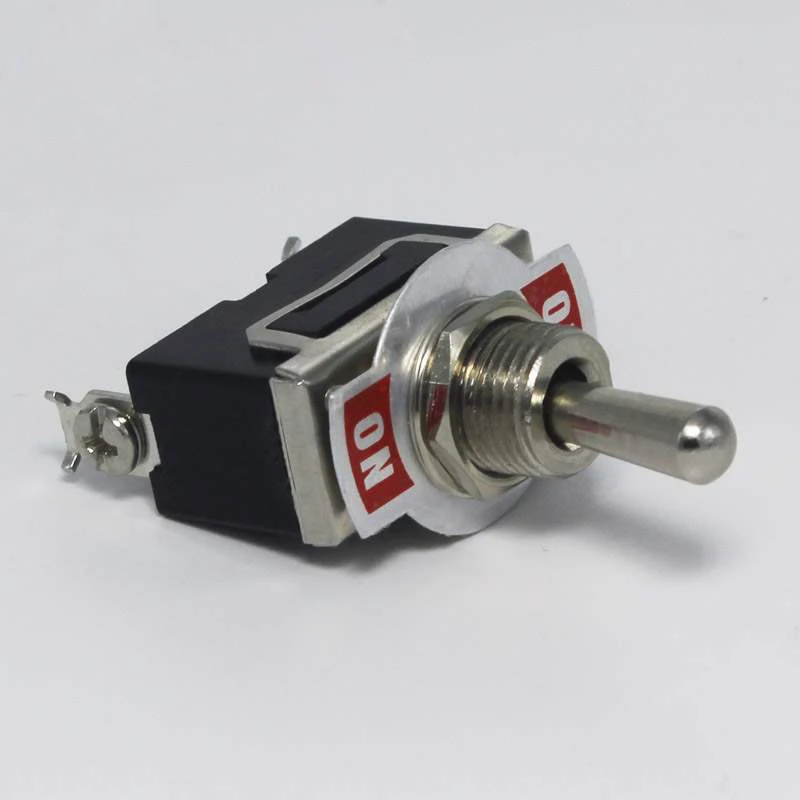

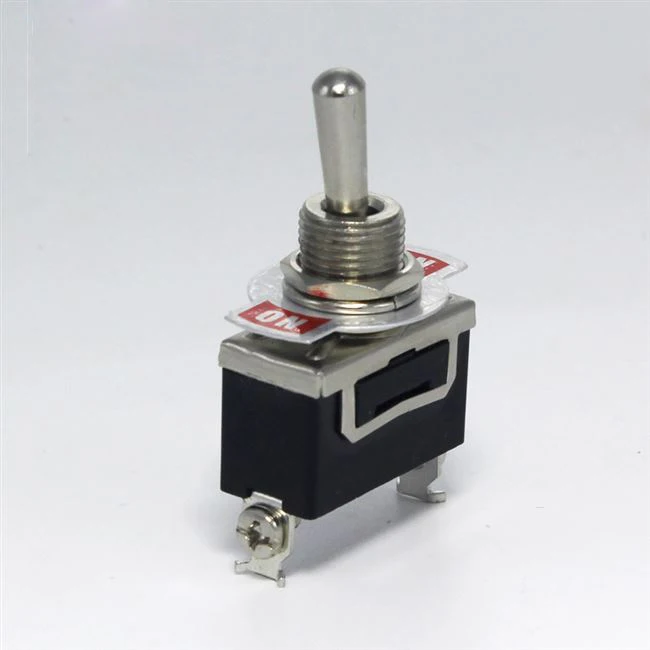

High quality momentary double 15A Auto Reset (on)-off-(on) toggle switch
Feature
The current has 10A and 15A
Movement way has fixed type and auto-return type (both single-throw and double-throw can return)
The terminal block has screw terminal and solder terminal (tab terminal also can be used)
Rainproof cap, water-proof and oil-proof, it is suitable for full series products
Mounting hole Φ12mm
Characterstics
Contact ressitance | 100 MΩ above under 500VDC | ||||||
Insulation resistance | 100 MΩ max initial | ||||||
Dielectric strength | 2000VAC, 50/60Hz for 1 minute | ||||||
Vibration | 10 To 55Hz, 1.5mm double amplitude | ||||||
Life | 500000 Mechanical operations/min | ||||||
100000 Electrical operations/min | |||||||
Ratings
Load | Type | AC /Rating | DC/ Rating |
Resistance Load | CO | 10A 250V 15A 125V | 0.4A 250V 0.8A 125V |
C5 | 15A 250V 20A 125V | 0.5A 250V 0.9A 125V | |
Inductive Load | CO | 10A 250V 15A 125V | 0.2A 250V 0.4A 125V |
C5 | 15A 250V 20A 125V | 0.3A 250V 0.5A 125V 15A 30V | |
Lamp Load | CO | 300W 100V 500W 200V | - |
C5 | 400W 125V 800W 250V | 7A 30V | |
Motor load | CO | 200W 125V 300W 250V | |
C5 | 400W 125V | ||
CO | 550V 250V | ||
C5 | 750V 250V |
Items | Code | Description |
Type | CO | 10A 250VAC |
COR | 10A 250VAC /Spring return | |
C5 | 15A 250VAC | |
C5R | 15A 250VAC /Spring return | |
Contact | 11 | Single pole single throw ON-OFF |
12 | Single pole double throw ON-ON | |
13 | Sinlgle pole double throw (central OFF) ON-OFF-ON | |
131 | Sinlgle pole double throw (central OFF single return) ON-OFF-ON | |
21 | Double pole single throw ON-OFF | |
22 | Double pole double throw ON-ON | |
23 | Double pole double throw (central OFF) ON-OFF-ON | |
231 | Double pole double throw (central OFF single return) ON-OFF-ON | |
Terminal | A | Tab terminal |
B | Screw terminal | |
C | Solder terminal |
