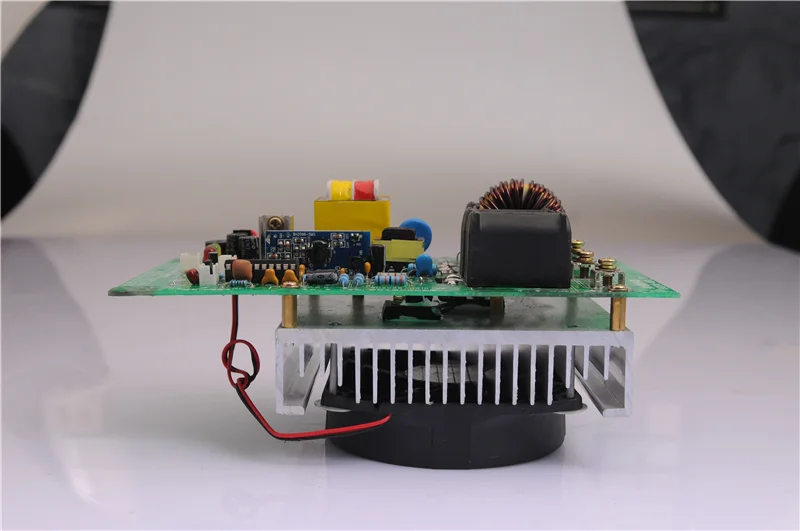

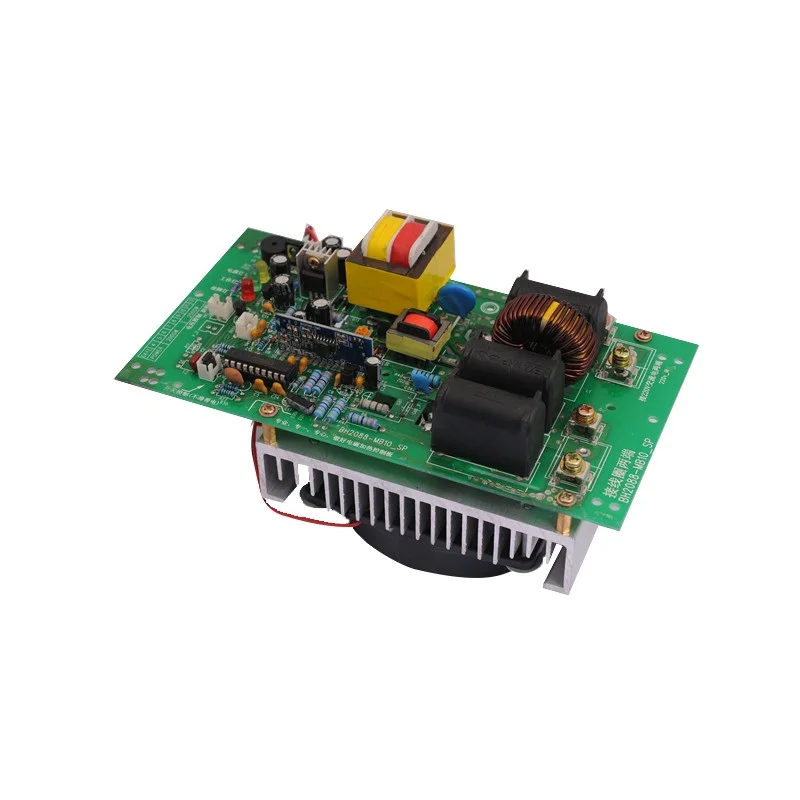

Induction heater connects coils to heat the plastic extruder

Share on (1600166484239):


Price:$38.00 - $43.00

Quantity:


Product Overview

Description


Induction heater connects coils to heat the plastic extruder


Caution:


The control board is only a component of induction heater(cooker), you also need some knowledge of induction technology for assembly the system for another components like coil and temperature controller etc. To ensure the product work normal, you should have proper installation technology to install the board correctly as per our operation manual.























































Product model

Working voltage



Power range



Capacity of inductance


Conversion efficiencyWorking temperatureSurge protectionDistance from inductin coil to heater
BH2088-2KW220V1600-2000W160uH+20>90%-10 ℃ ~ 50 ℃

±1500V


20-23MM
BH2013-MB-2.5KW

220V


2000-2500W120uH+20>90%-10 ℃ ~ 50 ℃±1500V17-25MM
BH2098-MB10-3.5KW220V2500-3500W120uH+10>90%-10 ℃ ~ 50 ℃±1500V16-22MM
BH2013-MB-5KW220V3000-5000W80uH+10>90%-10 ℃ ~ 50 ℃±1500V15-20MM

2kw-1-1-1



Company Information


Zhongshan Assume Import and Export Trading Co. LTD, located in Zhongshan city, is an enterprise mainly engaged in the development and production of household appliances.


Main business small household appliances products, thermos kettles, commercial induction cooker and air source water heaters and a series of electrical products.


Company has its own technical research and development team, which can set up electromagnetic oven PCB program according to customers' requirements, forming a complete system from product research and development, production, sales to after-sales service. We will continue to find new products, to give you the most sincere service.







Our Services










FAQ


1. May I take some samples to test before placing the order?
 One to two samples of each model can be offered for your test before placing the order. But you should pay the sample fee and freight first.





2. How long can you offer the samples?
 1-7 days after receiving the payment.





3. What`s your payment term for sample?
 You can pay through RMB account or USD account. For USD account, you can pay by paypal or T/T payment.





4. What is the MOQ of your products?
 It depend on models. Some MOQ of our products is 10 pieces for one model one size, But the MOQ of OEM is 500pcs.





5. We`d like to print our logo on the appliances. Can you make it?
 We provide OEM service which including logo printing, gift box design and carton design if you can give me the license at sign.





6. How about the delivery time?
 15-30 days after the receipt of deposit and confirmation on all designs based of normal condition.
