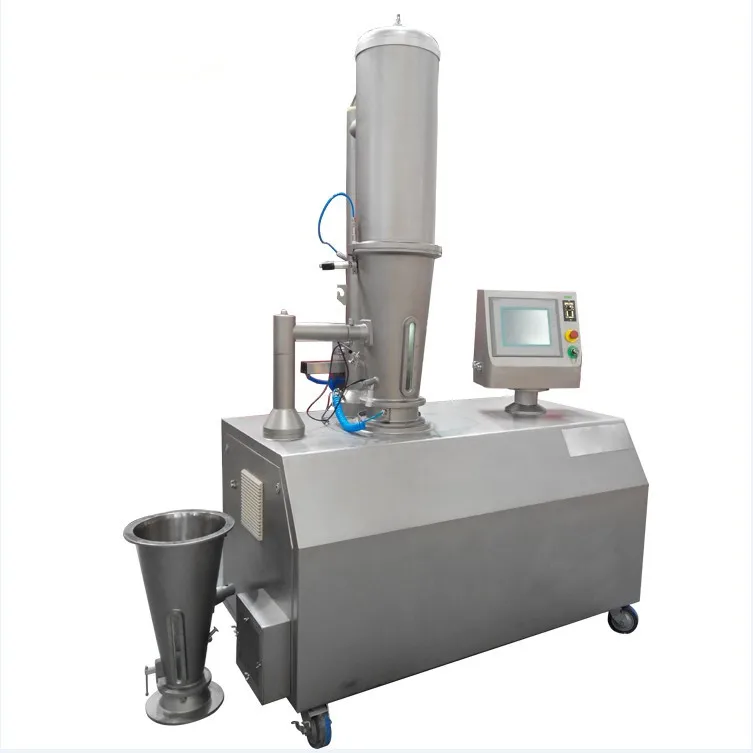

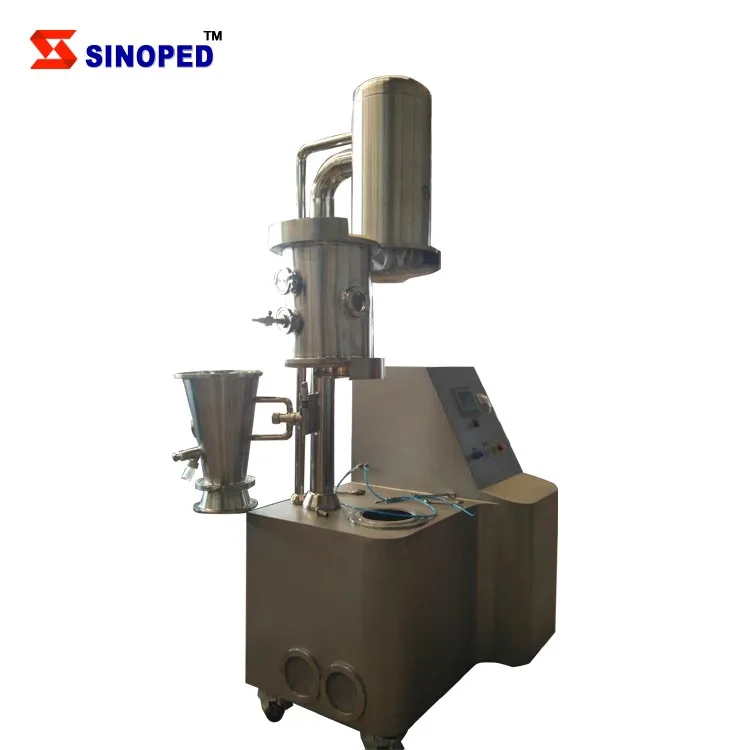

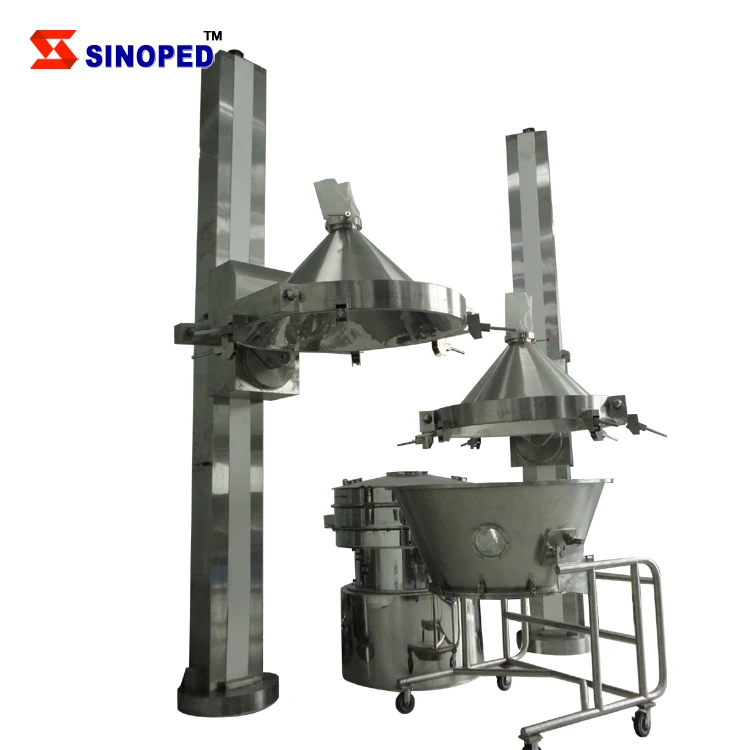

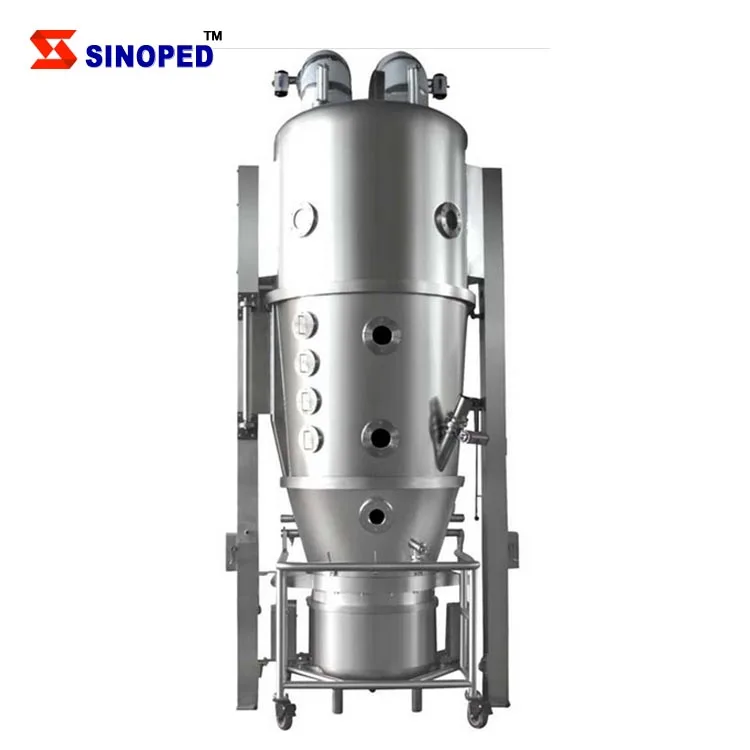

Model FL 100 fluid bed Granulator fluid bed dryer granulator machine pharmaceutical
- Category: >>>
- Supplier: Sinoped International (Liaoning) Co. Ltd.
Share on (1600166532771):
Product Overview
Description
Product Description
Professional and Reliable China Manufacturer Fluid Bed Dryer Granulator Fluid Bed Drying Equipment
forpowder and granules.
The principle of action is based on: Put the raw material into the fluid bed. The cold air is drawn into the fluid bed through
thepre filters and passes through the heating chamber behind the main machine, heated to the desired temperature by the heater.
thepre filters and passes through the heating chamber behind the main machine, heated to the desired temperature by the heater.
Thematerial is fluidized in the fluid bed regularly . The evaporating moisture is drawn out by the fan. The advantage of FL Fluid Bed Dryer Machine technology rests with maintaining evenness and recurrence of product quality, which reflects an ideal balance between production efficiency and product quality. In the process of fluidization, the materials floats above the air, with surface in full contact with the heated air, and the materials therefore is evenly eated and reaches an ideal state for heat exchange thus to have a high efficiency. Configurated with proper spraying system and through further structural improvement, the fluid bed then becomes a multi-purpose processing facility in combined functions of drying, granulating, solution coating, and powder dressing. Final product usually instant solute granule.
Application:
Medicine granulation and coating
Granulation: tablet granules, granules for granules and capsules.
Coating: granules, protective layer of pills, color preparation, slow release, film, enteric coating.
Food Granulation and Coating
Sugar, coffee, cocoa powder, butter, powdered fruit juice, amino acids, condiments, puffed food.
Pesticide, Pigment Pigment and Dye Granulation
Drying of Powdery, Granular and Block Materials
Granulation: tablet granules, granules for granules and capsules.
Coating: granules, protective layer of pills, color preparation, slow release, film, enteric coating.
Food Granulation and Coating
Sugar, coffee, cocoa powder, butter, powdered fruit juice, amino acids, condiments, puffed food.
Pesticide, Pigment Pigment and Dye Granulation
Drying of Powdery, Granular and Block Materials
Samples
Feature:
1). Mixing - granulation - drying - in one machine (one step granulation).
2). Adopting double chamber filtering bags system, removing dust completely. Using antistatic filter material, the equipment is safe to operate.
3). The binder nebulizer adopts multi-fluid spray gun, which has uniform spray particles, the content of powder is very low,
greatly improves the qualified rate of finished products.
4). Can choose two bars explosion-proof design
5).The equipment has no dead angle, the loading and unloading material is light, fast and clean.
2). Adopting double chamber filtering bags system, removing dust completely. Using antistatic filter material, the equipment is safe to operate.
3). The binder nebulizer adopts multi-fluid spray gun, which has uniform spray particles, the content of powder is very low,
greatly improves the qualified rate of finished products.
4). Can choose two bars explosion-proof design
5).The equipment has no dead angle, the loading and unloading material is light, fast and clean.
Model | 5 | 30 | 60 | 120 | 200 | 300 | 500 | ||||||
Capacity(Kg/Batch) | 5 | 30 | 60 | 120 | 200 | 300 | 500 | ||||||
Material Yield Rate(%) | >=99% | ||||||||||||
Qualified Rate(%) | <=85% | ||||||||||||
Container Volume(L) | 22 | 100 | 220 | 420 | 670 | 1000 | 1500 | ||||||
Diameter(mm) | 500 | 700 | 1000 | 1200 | 1400 | 1600 | 1800 | ||||||
Powder of Fan(Kw) | 3 | 7.5 | 11 | 18.5 | 22 | 30 | 45 | ||||||
Liquid Feed Power(Mpa) | 0.37 | ||||||||||||
Pressure of Steam(Mpa) | 0.4~0.6 | ||||||||||||
Consumption Steam(Kg/h) | 18 | 60 | 120 | 140 | 180 | 310 | 400 | ||||||
Compress Air Pressure(Mpa) | 0.4~0.6 | ||||||||||||
Consumption of Air(m3/min) | 0.3 | 0.9 | 0.9 | 0.9 | 1.1 | 1.1 | 1.5 | ||||||
Working Temperature C | Room Temperature~120C Adjustable | ||||||||||||
Noisy(db) | Installed Separaterd With Fan <=75 | ||||||||||||

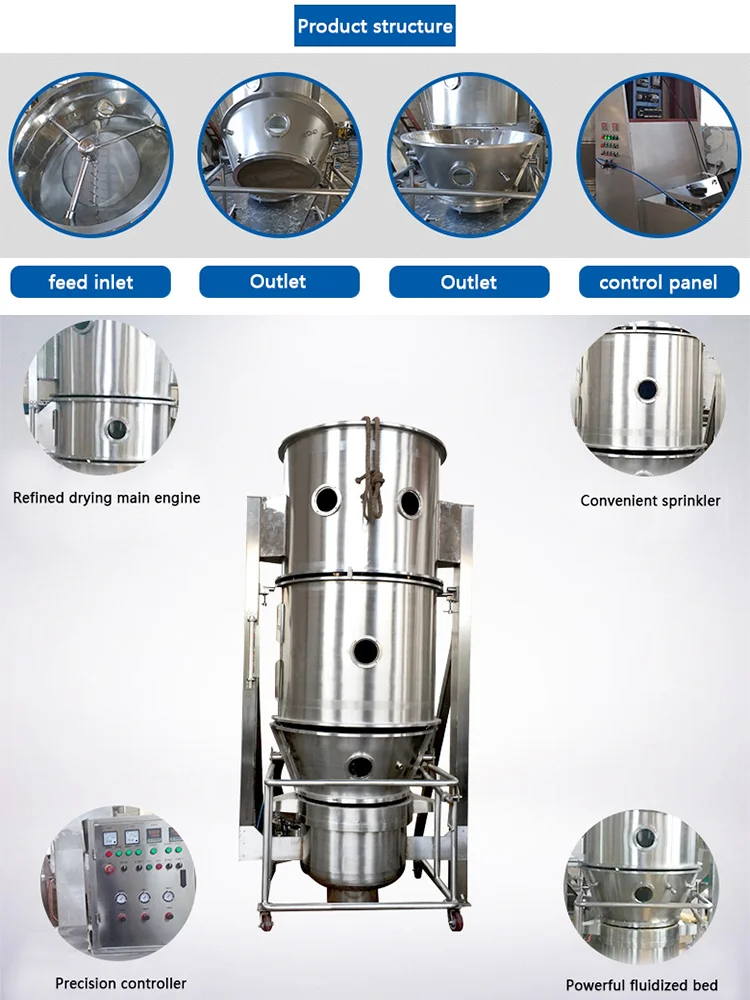

Detailed Images

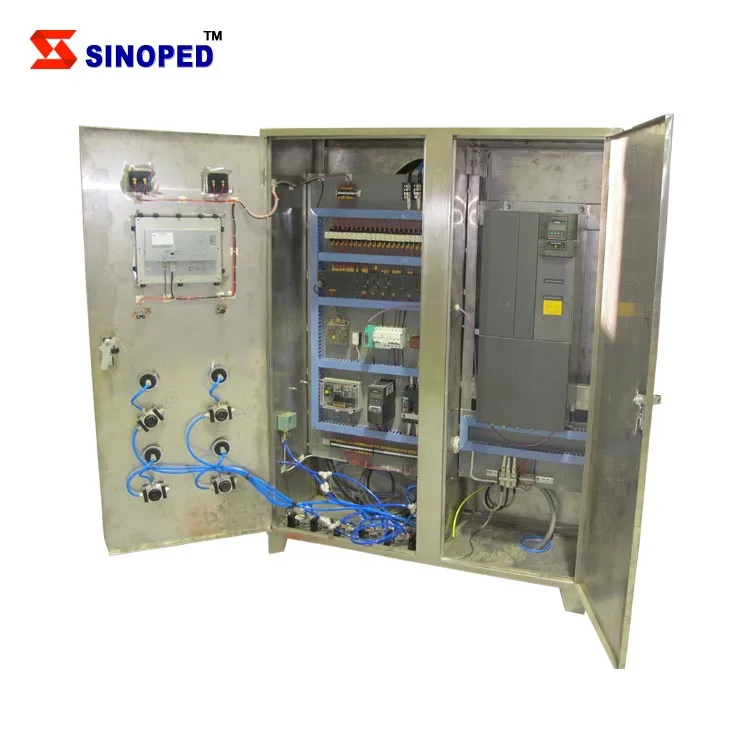

Name: Control Cabinet
Brand: SINOPED
Original: China
All SS304. IP55 Protection degree, able to design according to different electricity safety standard.
Brand: SINOPED
Original: China
All SS304. IP55 Protection degree, able to design according to different electricity safety standard.

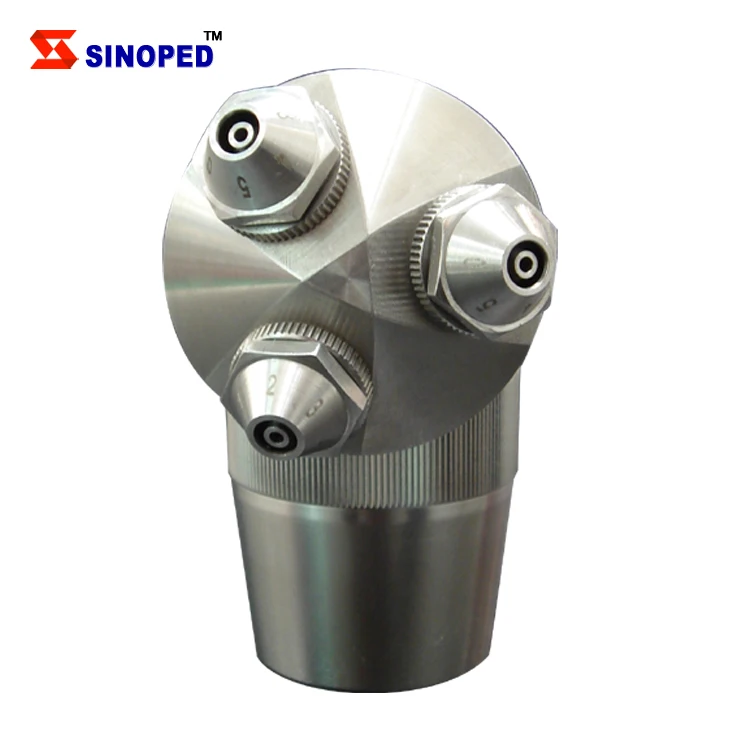

Name: Two Fluid Spray Gun
Brand: SINOPED
Original: China
Adopting multi-fluid nozzle, it gurantees that the formed granule is uniform and the content of powder is very low.
Brand: SINOPED
Original: China
Adopting multi-fluid nozzle, it gurantees that the formed granule is uniform and the content of powder is very low.

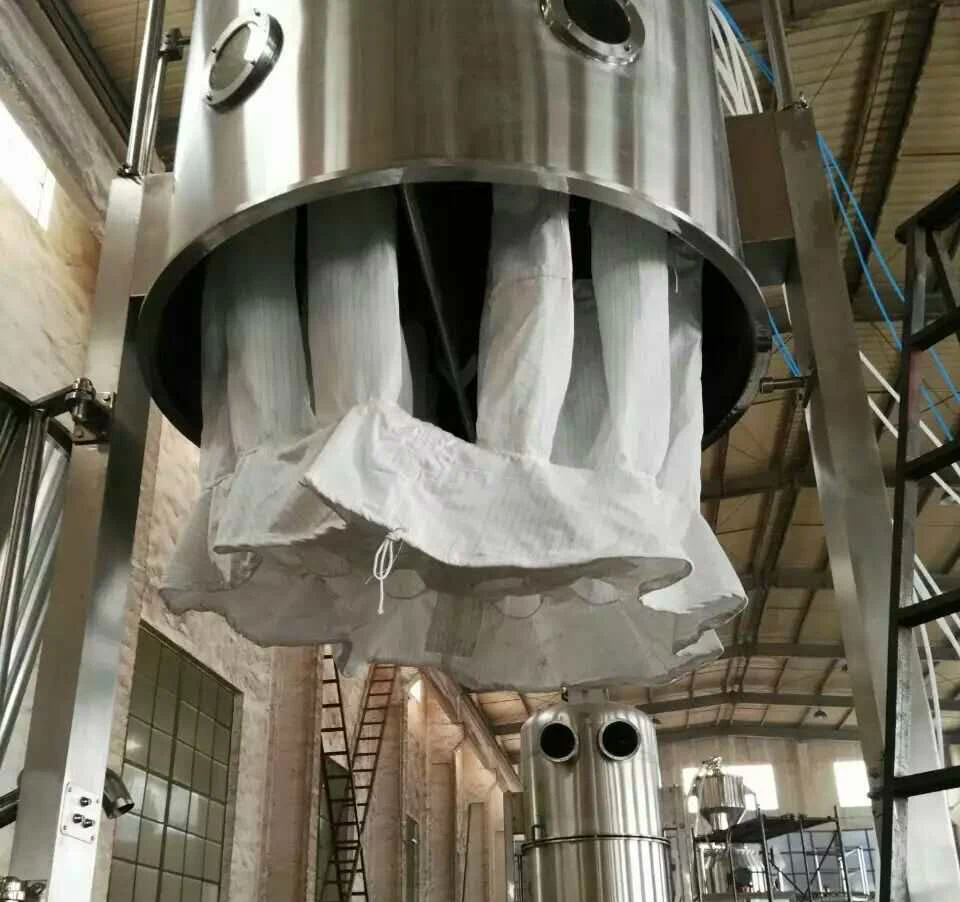

Name: Shake Bag Frame
Brand: SINOPED
Original: China
Adopting double chamber filtering bags system, removing dust completely.
Brand: SINOPED
Original: China
Adopting double chamber filtering bags system, removing dust completely.
Name: Anti-drop Bags Frame
Brand: SINOPED
Original: China
Ensure bags cannot drop during up and down .
Design&Manufactured in accordance with JB20014-2004
Brand: SINOPED
Original: China
Ensure bags cannot drop during up and down .
Design&Manufactured in accordance with JB20014-2004

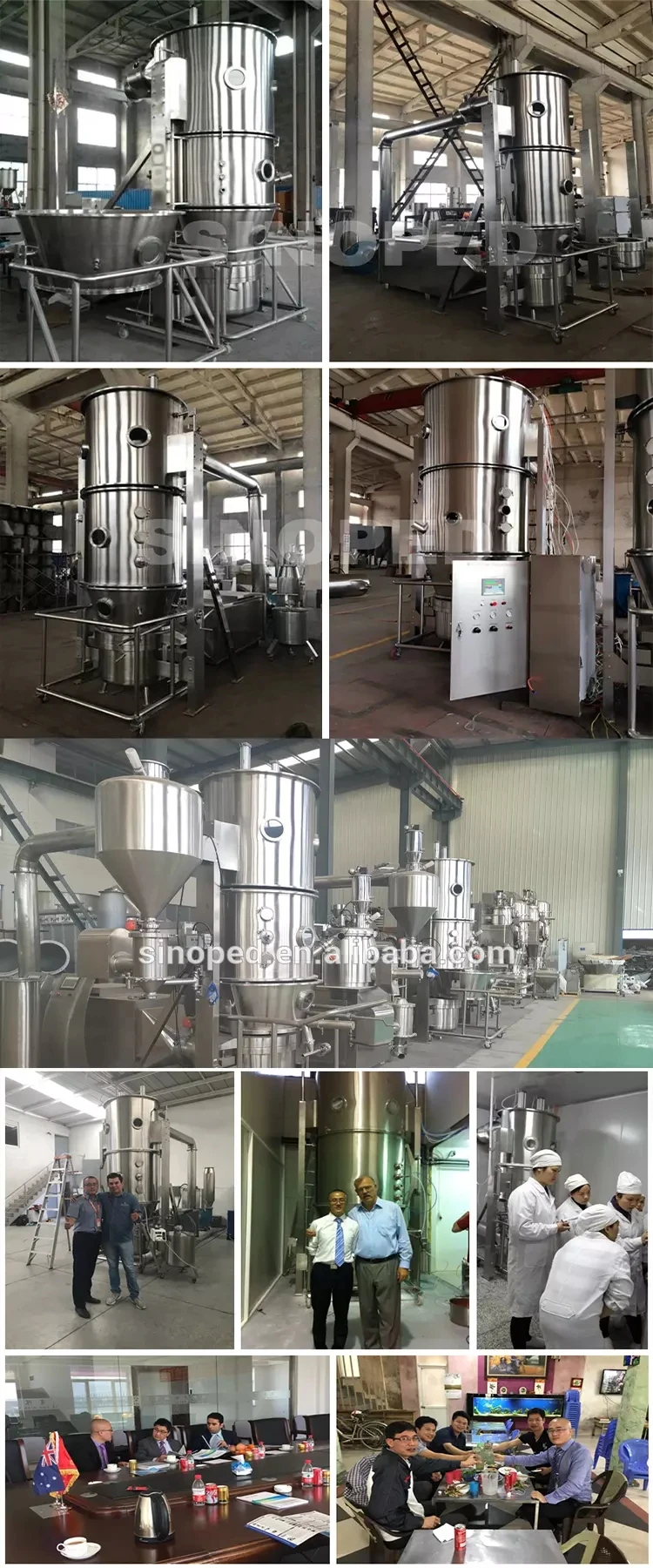

Our Company
Sino Pharmaceutical Equipment Development (Liaoyang) Co., Ltd. (SINOPED) is a professional manufacturer and supplier of pharmaceutical and chemical machinery and equipment in China. We belong to SINOPEC International Group.
We have a well-experienced team to manufacture pharmaceutical machinery and equipments and a professional design institute. With rich experiences in pharmaceutical machinery and equipment field and numbers of professional engineers, we have designed and developed many types of machinery and equipments including clean room project, soft-gel production line, glass-lined reactor, fermentor, centrifuge, granulator, mixer, dryers, pulverizer, tablet press, soft and hard blister packing machine, capsule filling machines, cartoner and rollers, etc.

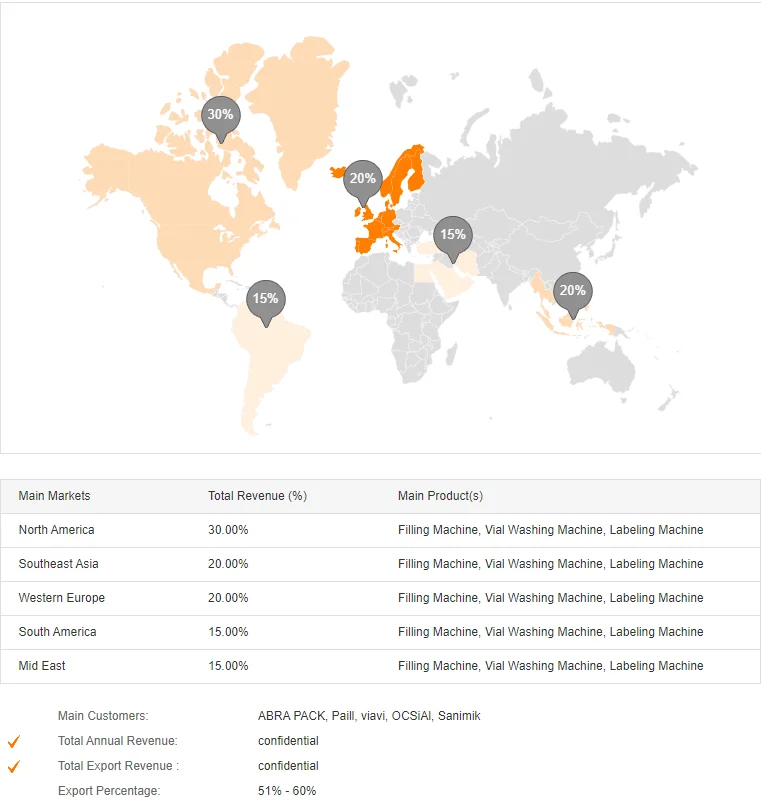

Due to our good credit and service, , we have made great achievements in the past years. We have established long-term business relations with many customers and some of our overseas customers have appointed us to be their purchase agency in China. Our products are exported to many countries & areas, such as Korea, India, Indonesia, Pakistan, Thailand, Vietnam, Japan, Denmark, Romania, Bulgaria, Russia, South Africa, Nigeria, the USA, Australia, Canada, Argentina and Chile. Besides machinery and equipment, we also supply production lines and turn key projects.
In SINOPED you can get your desired goods with the best prices and good quality. Welcome your enquiries from all over the world.
Packing & Delivery
Our Service & FAQ
One-year warranty period for whole machine except of tubes and human factors etc, and 12-month of after-sale service from the date when you receive machine or 12 months when installation finished;
Consultant services for whole machine life, and 24 hours technical support by email;
UPS, English software, user manual and the installation & debugging by our experienced technicians.
1. Can your machine meet our need well?
We will supply you a proposal as to your specific requirement, and each machine is customized to satisfy customer's need well.
2. Are you a factory or a trading company?
We are the manufacturer, and have been in industry for more than ten years.
3. What's your payment way?
T/T by our bank account directly, or by Alibaba's trade assurance service, or by the West Union, or in cash.
4. How can you ensure the machine's quality after we put the order?
Before the delivery, we will send you machine's pictures and videos, or you can come to us to have the quality checking by yourself, or by the third party inspection organization contacted by your side.
5. We are afraid you won't deliver us the machine after we pay you the money.
Please note our above business license and certificates. And if you don't trust us, you can use Alibaba's trade assurance service or by LC.
6. Why choose your company?
We have been engaged in the manufacturing of various packing machines professionally over 10 years, and we can provide better after-sales service.
