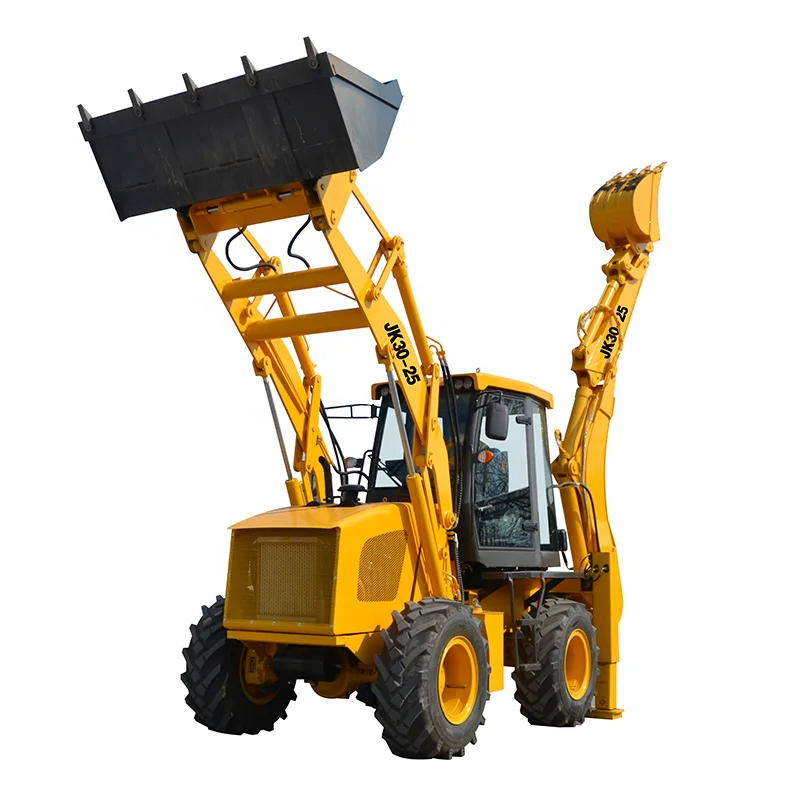

China top brand manufacturer New mining and agricultural Multi function 4x4 wheel drive backhoe loader for sale
- Category: >>>
- Supplier: Shandong Jk Machinery Co. Ltd.
Share on (1600166551108):
Product Overview
Description

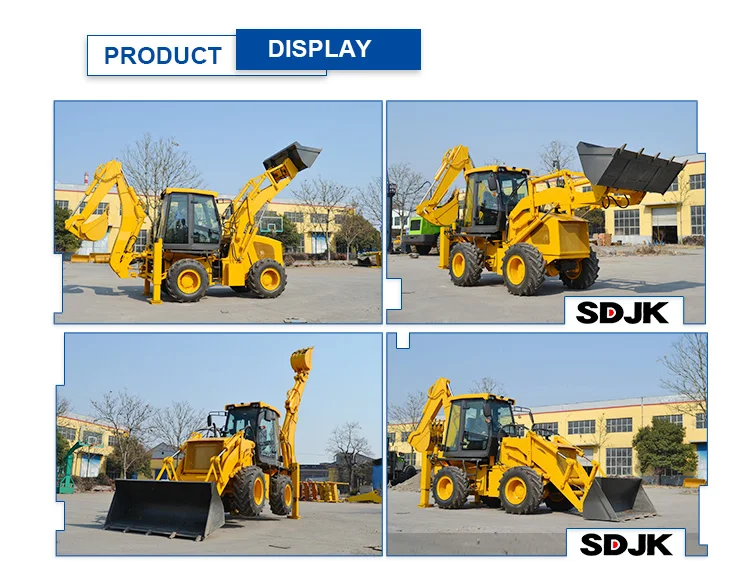

Product Display

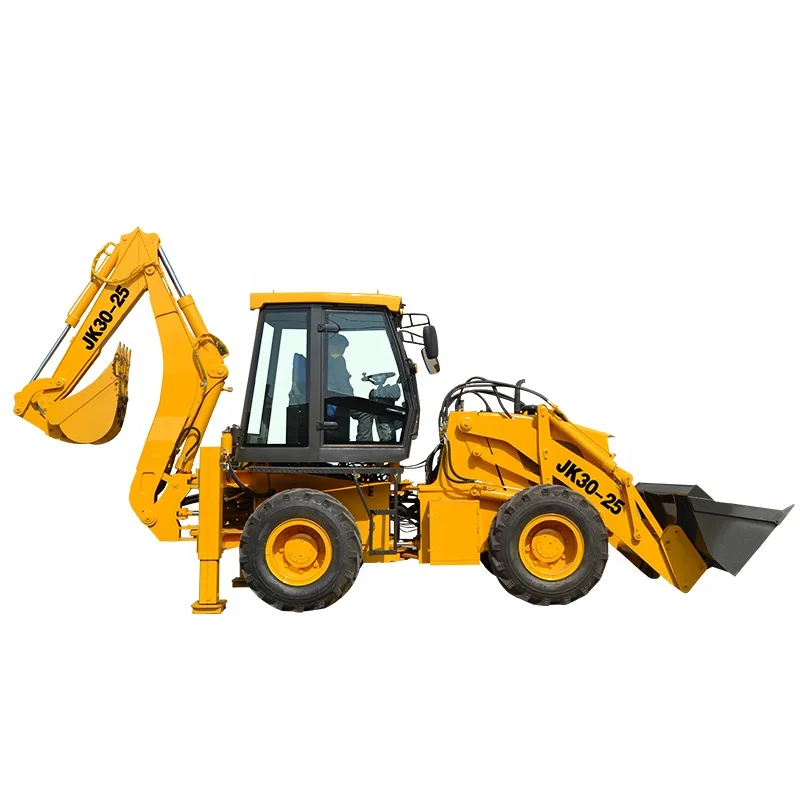

JKW30-25 backhoe loader is a new design model, front shovel at 1.2CBM and 2.5Ton, backhoe bucket at 0.3CBM, with excellent excavation, trenching, backfill and material handling capacity.

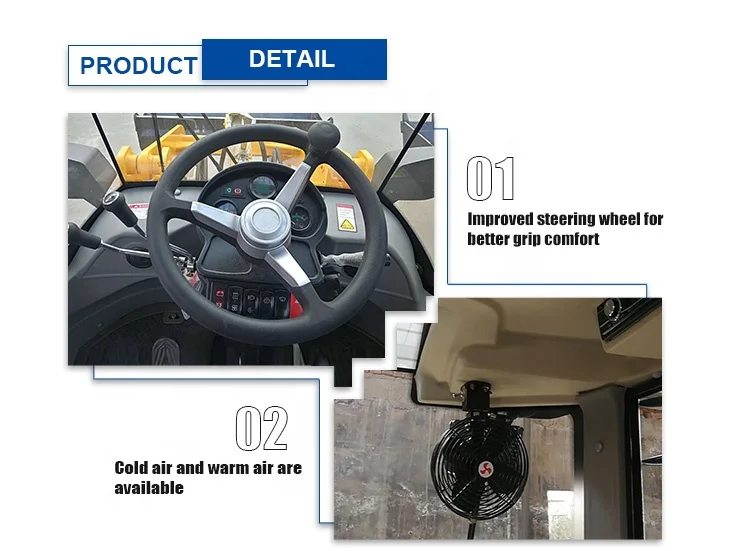

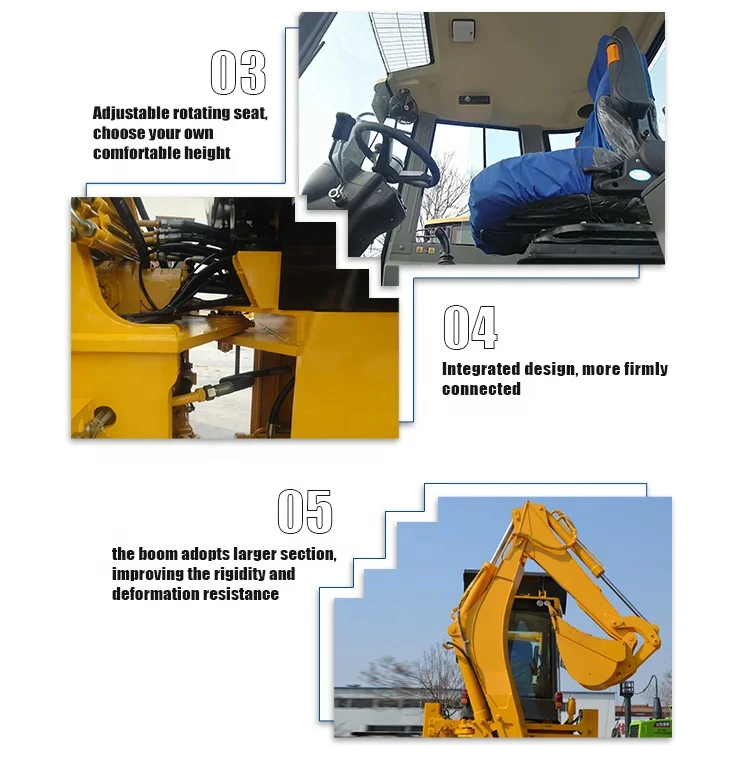

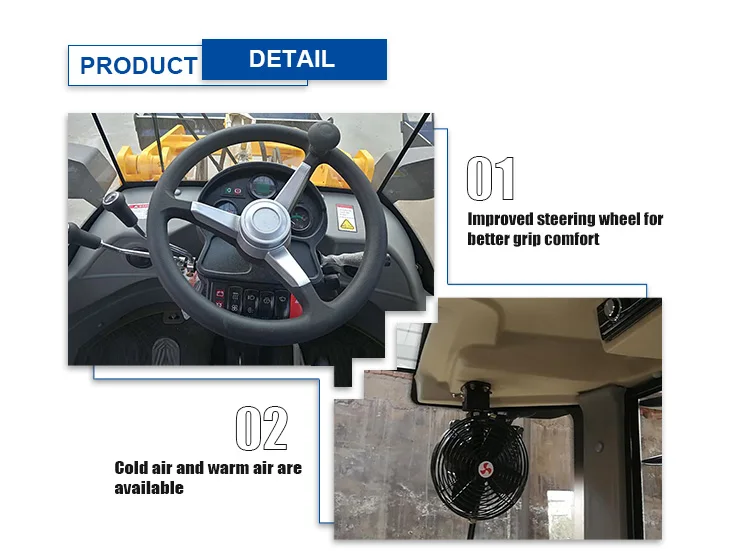

It's hinged structure to keep good passage capacity, with interior trim cab, fan(Air Conditioner available), luxury adjustable rotating seat, adjustable instrument panel, 4 in 1 front shovel, and all moves are operated by hydraulic joystick.
The cab is equipped with push-pull window, and the cab can be supported forward by jacks to facilitate maintenance much easily.
Total operating weight | 7500Kg | Steering system | ||
Length*width*height(mm) | 7600x2260x2900 | Type | Articulated hydraulic steering | |
Wheel base | 2250mm | Model of steering control valve | BZZ5-250 | |
Axle track | 1700mm | Steering angle | 36° | |
Minimum ground clearance | 300m | Minimum turning radius | 3660mm | |
Loading bucket capacity | 1.2m³ | System pressure | 16Mpa | |
Digging up capacity | 38KN | Transmission system | ||
Loading lift capacity | 2500Kg | Torque converter | YJ-280 | |
Bucket discharge height | 2742mm | Pump | CDXaf3026-IL | |
Bucket discharge distance | 1062mm | Type of gearbox | Fixed shaft power shift transmission | |
Bucket indicator | yes | Gear | 2gears ahead,2gears reverse | |
Backhoe bucket capacity | 0.3m³ | Maximum speed | 22Km/h | |
Backhoe discharge height | 3878mm | Axles | ||
Maximum digging depth | 4082mm | Main transmission type | Circular Arc Bevel gear, single stage | |
Bucket slewing angle | 180° | Wheel reduction type | Single stage planetary type | |
Bucket stick revolving radian | 180° | Wheel | ||

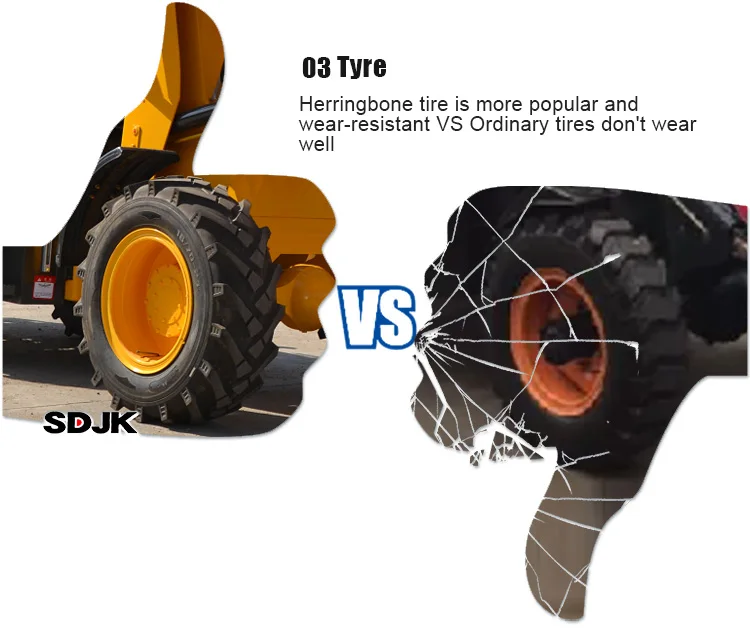

Maximum puling force | 39KN | Tire size | 16/17-20 | |
Enging | Front wheel pressure | 0.22Mpa | ||
Model | YUCHAI YCD4T22T-105 turbo engine | Rear wheel pressure | 0.20Mpa | |
Type | Inline,direct injection,our-stroke,liquid cooled | Service braking | Air over hydraulic caliper disc brake parking | |
Cylinder –internal diameter*stroke | 4—102x125mm | Emergency brake | Flexible shaft operated external drum | |
Rated power | 78KW 2200R/MIN | Hydraulic system | ||
Minimum fuel consumption | 239g/kw.h | Folw | 120L/min | |
Maximum torque | 600NM | Four-wheel drive whole hydraulic system | ||
Displacement | 4.33L | |||
Related Products

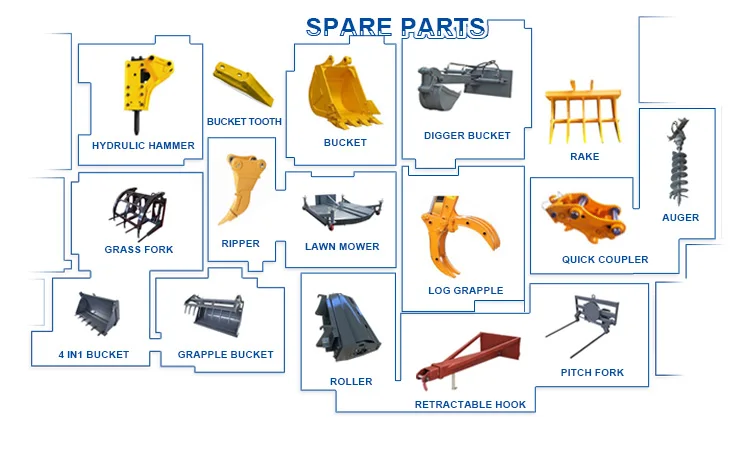

Optional Accessories
Product Details

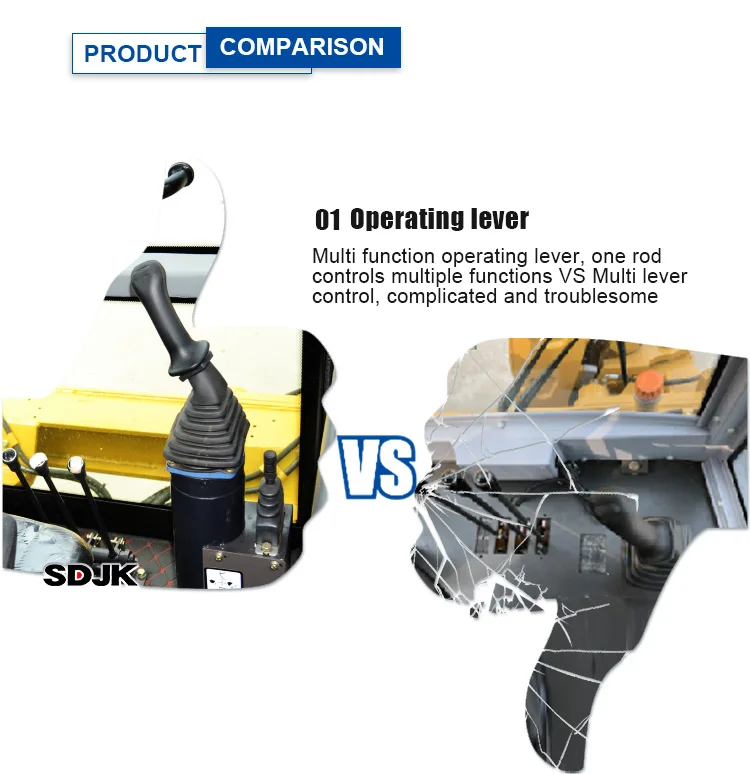

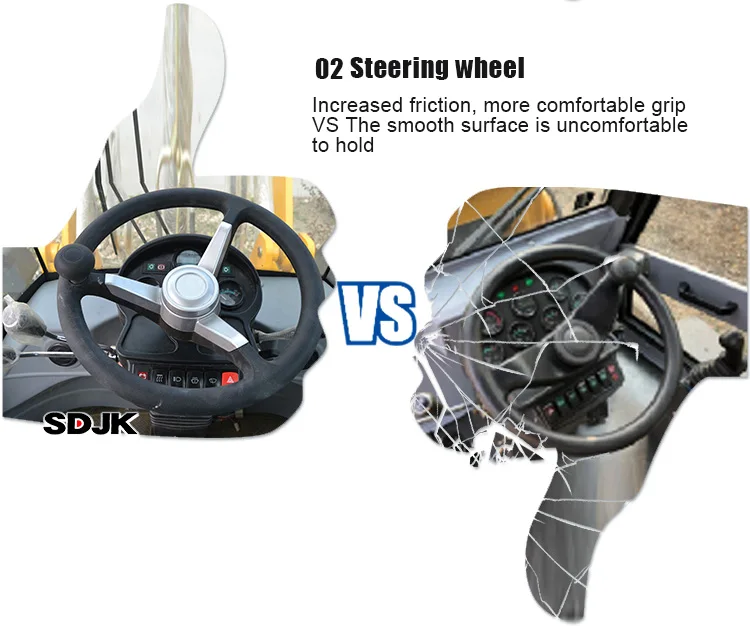

Product Comparison
