RH AUDIO 100V Line Amplifier with 5 Zone Volume Control for PA System
- Category: >>>
- Supplier: Guangzhou Xinghongde Electronics Technology Co. Ltd.
Share on (1600166806014):
Product Overview
Description

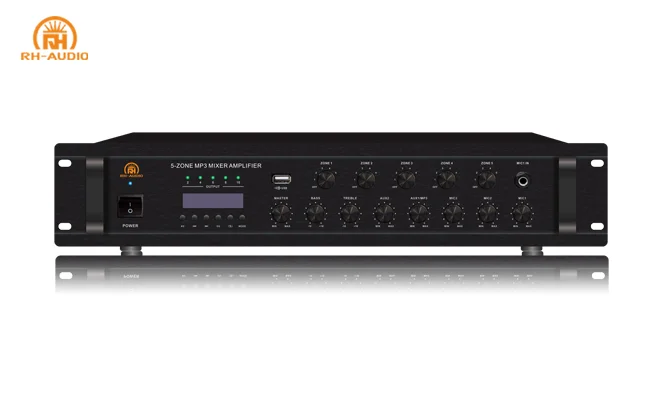

RH-AUDIO 100V Line Amplifier with 5 Zone Volume Control for PA System
Product Description
The 5 Zone Mp3 Mixer Amplifiers are designed for background music/paging and public address system installations,these units are exceptional values, and are easy to install in a variety of system designs.
The mixer amplifiers have features of built-in MP3 player with USB slot for connecting external audio source,built-in FM receiver with frequency range 87.5MHz~108 MHz,and featured Bluetooth connectivity with mobile device.
60/120/240/350/500/650 watts of amplifier power are available with either 70/100 volt or 4 to 16 ohms(Ω) loads.Also included a line level output for adding additional amplifiers.
With provided an audio output to 5 different zones within the venue,each zone has its own individual volume control manually operated on front panel.Three 6.35mm microphone inputs,MIC1 overrides MIC2,MIC3 AUX1,AUX2 with 0~30dB attenuation.
And features complete protection is provided for output short circuit,overload,high temperature,peak current limiters.
1)Media source:USB,FM Tuner and Bluetooth.
2)Power rates: 60W/120W/240W/350W/500W/650W available.
3)5-zoned 100V speaker outputs with individual volume control.
4)70V/100V and 4~16Ω speaker loads.
5)Standard 19" 2U height.
6)3 MIC inputs,2 AUX inputs,1 LINE output.
7)Individual volume controller for MIC & AUX inputs.
8)MASTER volume controller.
9)BASS and TREBLE tone controller.
10)MIC1 has priority over other inputs.
11)Protections of short circuit,overload,high temperature.
Specification
Model | RH2807MF | RH2813MF | RH2826MF | RH2836MF | RH2850MF | RH2865MF |
Rated Power | 60W | 120W | 240W | 350W | 500W | 650W |
Output Mode | 4-16 ohms;70V/100V line voltage | |||||
MIC Input | MIC1/ MIC2/MIC3:600 ohms 5-8 mV , Unbalanced | |||||
AUX Input | AUX1/ AUX2:10k ohms 150-470 mV , Unbalanced | |||||
Frequency Response | 60Hz~15kHz(±3dB) | |||||
THD | <0.5% at 1kHz,1/3 rated power | |||||
S/N | Line:85 dB,MIC:>72 dB | |||||
Tone | BASS:100 Hz(±10dB),TREBLE:12kHz(±10dB) | |||||
Muting Function | MIC1 overrides MIC2,MIC3,AUX1,AUX2 with 0~30dB dB attenuation | |||||
Cooling | DC 12V FAN | |||||
Protection | AC fuse, short circuit,overload,high temperature | |||||
LED Indicators | POWER,SIGNAL, CLIP,PROTECT | |||||
Power supply | Optional | |||||
Power Consumption | 95W | 185W | 350W | 485W | 675W | 880W |
Dimensions | 89(H)x483(W)x366(D)mm | |||||
Packing Size | 185(H)x520(W)x435(D)mm | |||||
Net Weight | 10.5Kg | 11.5kg | 13.8Kg | 14.5Kg | 15.5Kg | 19.8Kg |
Gross Weight | 11.8Kg | 13.1Kg | 15.4Kg | 15.8Kg | 17.2Kg | 21.5Kg |
