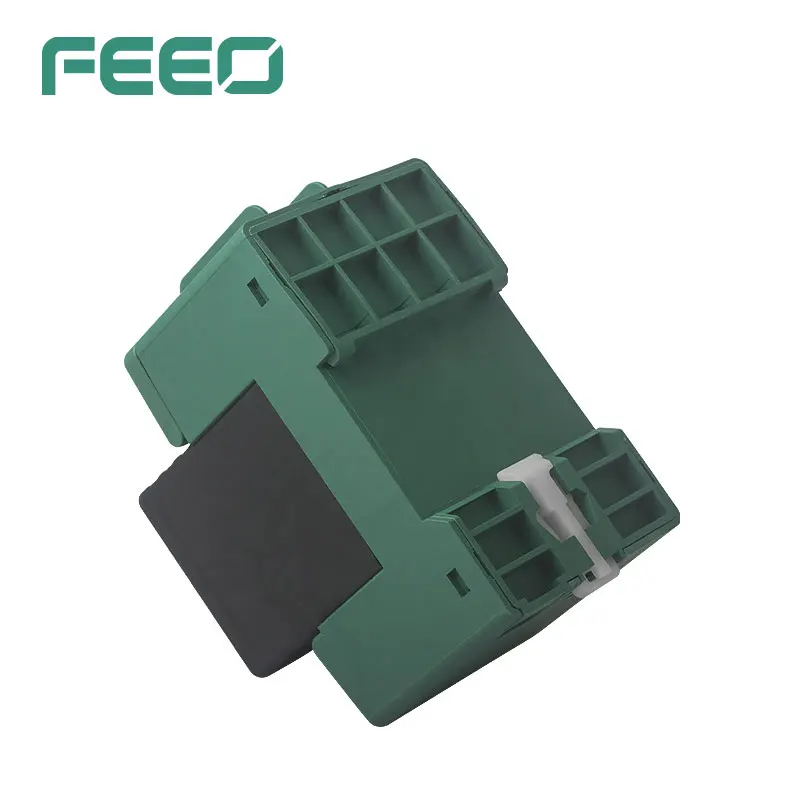

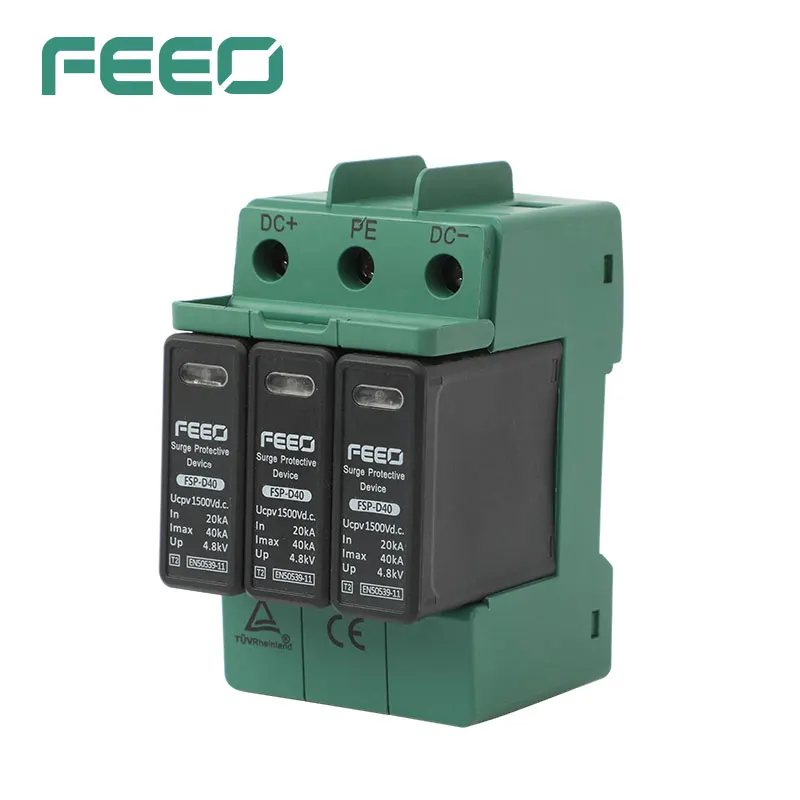

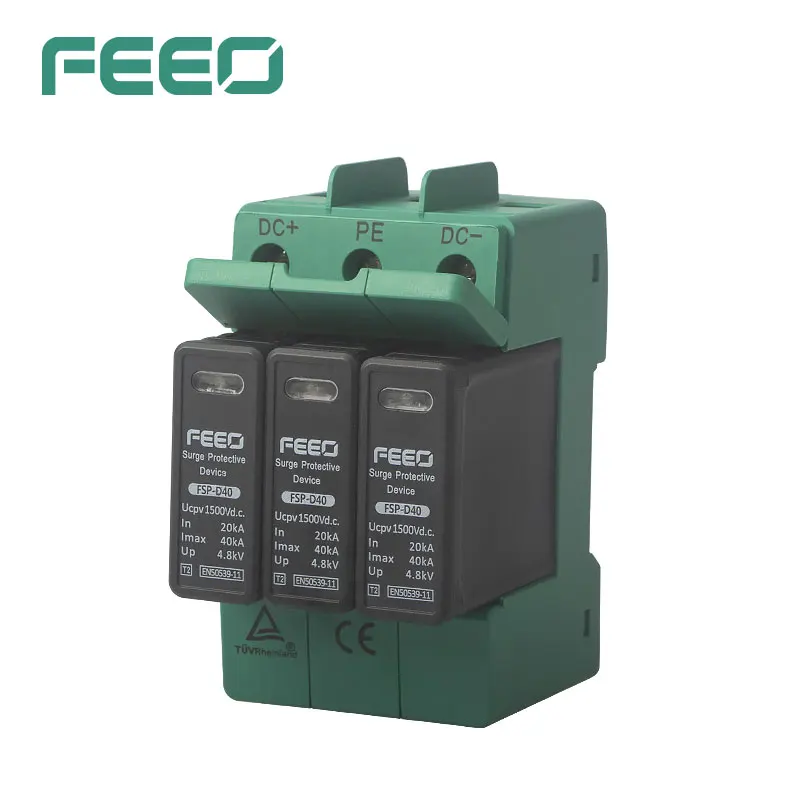

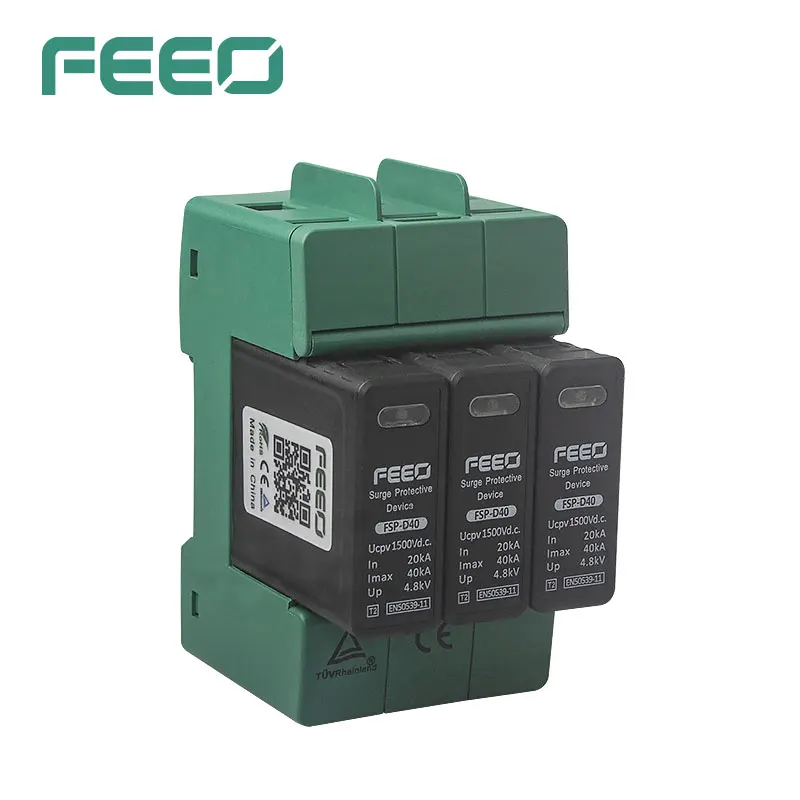

600V Solar Photovoltaic DC Power SPD/Surge Protector solar surge protective device
- Category: >>>
- Supplier: Yueqing Feeo Electric Co. Ltd.
Share on (1600167172868):
Product Overview
Description
Product Description
600V Solar Photovoltaic DC Power SPD/Surge Protector solar surge protective device
Surge Arrester Application:
FSP-D40 Surge protective device, protect against lightning surge voltages in solar system (photovoltaic power supply system).
These units must be installed in parallel on the DC networks to be protected and provide common and different modes protection. Its installed location are recommended at both ends of the DC power supply line (solar panel side and inverter/converter side), especially if the line routing is external and long.
High energy MOVs equipped with specific thermal disconnectors and related failure indicators.
Surge Arrester Features:
1. Indicator window is obvious (green is OK, red indicates failure)
2. Fully enclosed terminal
3. The shell is made of PC flame retardant material, fire insulation

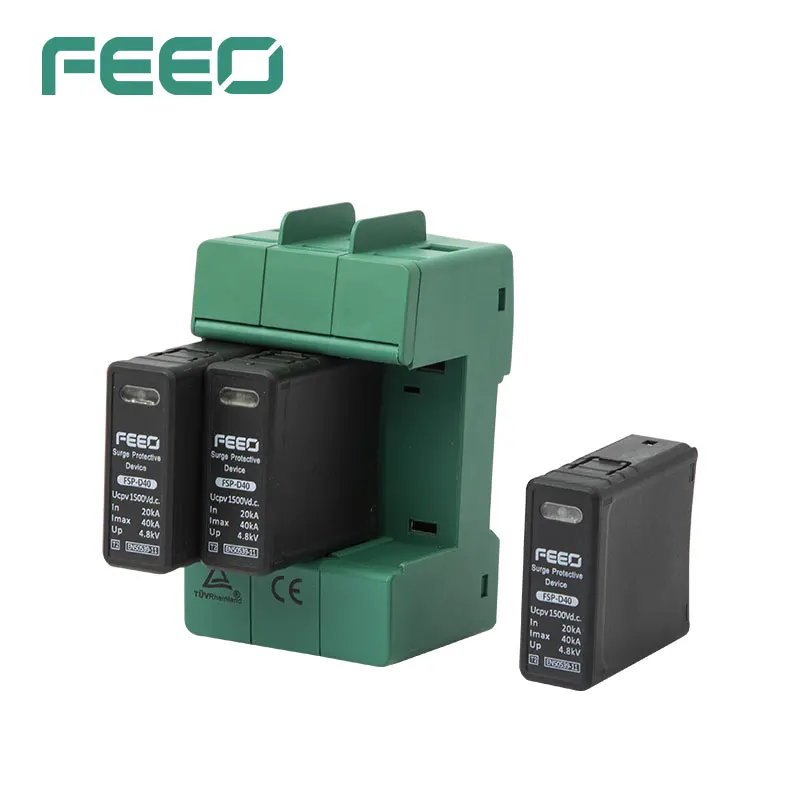

4. Replaceable module
Surge Arrester Parameters:
| Item | Surge Arrester | |
| Code | FSP-D40 | |
| Pole | 2P | 3P |
| Voltage | 600VDC/ 800VDC | 1000VDC-/1200VDC |
| In(8/20)us(KA) | 20KA | |
| Imax(8/20)us(KA) | 40KA | |
| Standard | IEC/EN61643 | |
| Type | II | |
| Characteristic Curve | B,C,D | |
| Working Temperature | -5 to +40 | |
| Protection Degree | IP20 | |
| Electrical life | More than 8000times | |
| Mechanical life | More than 2000times | |
| Dimension(W)X(H)X(D) | 35x90x49 | 53x90x49 |
| Installation | 35MM DIN RAIL | |

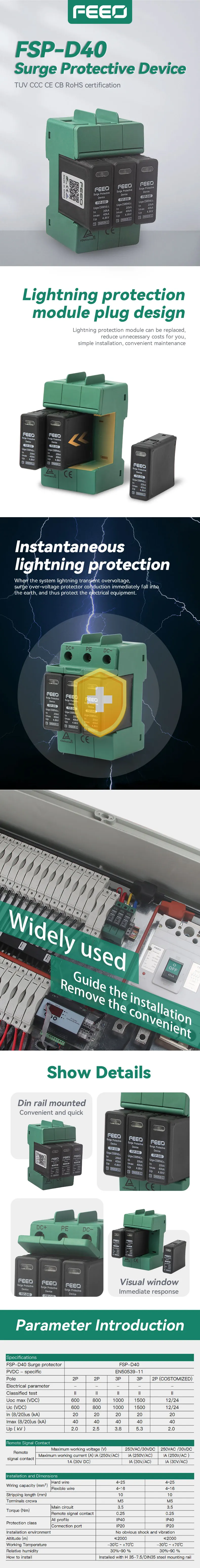

Detailed Images
Packaging & Shipping
Surge Arrester Package:
Standard export carton packing:
2P DC SPD 72pcs/ctn
3P DC SPD 48pcs/ctn
Carton Size 48*29.5*15.2CM3
G.W./N.W.: 20.7/20.1kgs
Surge Arrester Delivery Time:
3-15 days after confirming order,detail delivery date should be decided according to production season and order quantity.
Surge Arrester Shipping:
1. Shipment port:SHANGHAI/NINGBO
2. By Air or by Sea for batch goods,Airport/ Port receiving;
3. Customers specifying freight forwarders or negotiable shipping methods!
Company Information
YUEQING FEEO ELECTRIC CO.,LTD.
is one of the leading manufactures and exporters in the field of solar PV products withmanufacturing facilities in Mainland China. We are specialized of DC MCB, DC SPD, DC FUSE, DC ISOLATOR, MC4
.
