BSD 102LF Low torque Compact Semi Automatic for production line electric screwdriver
- Category: >>>
- Supplier: Kilews Electric Tools (shanghai) Co. Ltd.
Share on (1600167257561):
Product Overview
Description
Product Overview

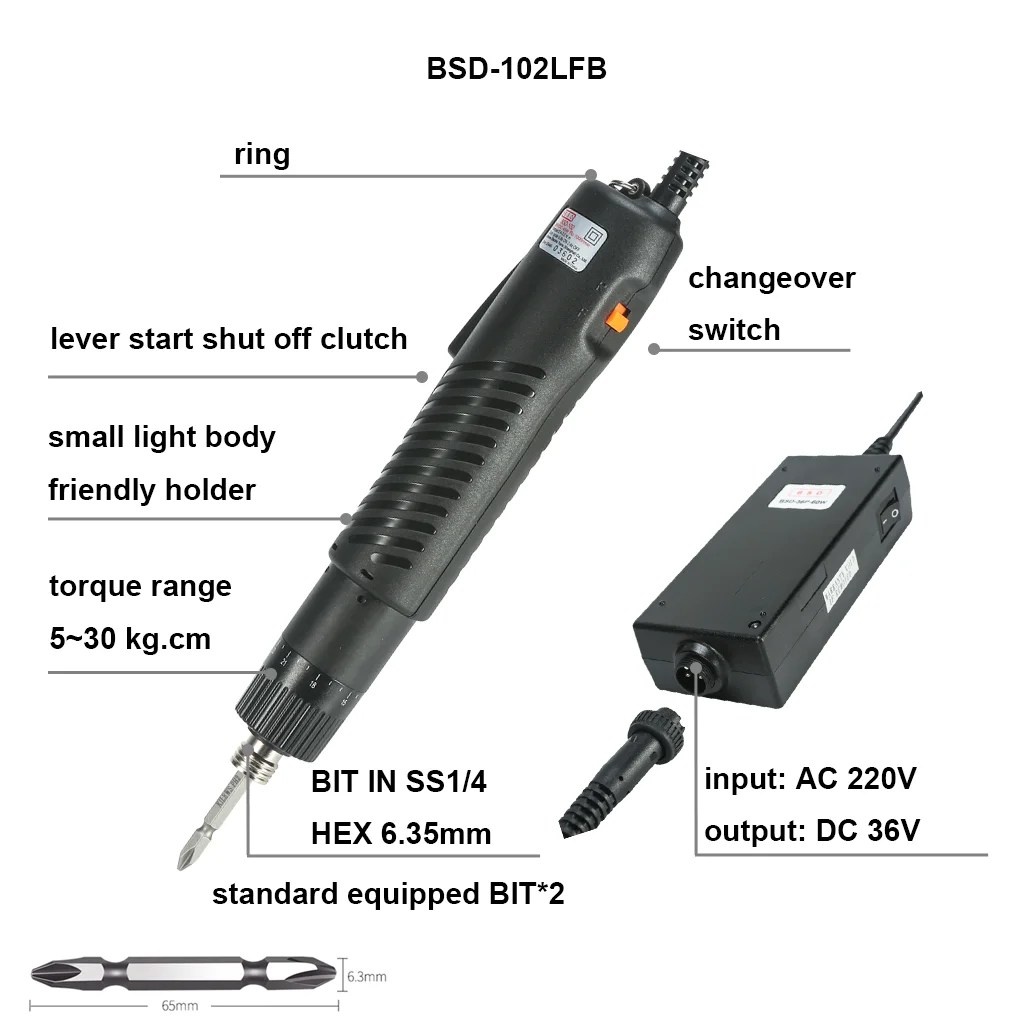

Low torque Compact DC Semi-Automatic Electric Screwdriver (electric screw driver for assembly)

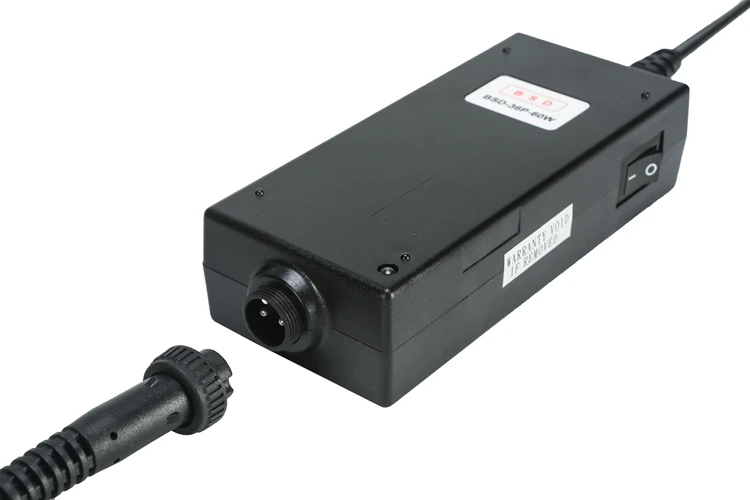

1) The power controller features:
a) Model: BSD-36P-60WF
b) Input voltage: AC 220V 50/60HZ
c) Output voltage: 36V DC
d) Outside dimensions: 155*60*35mm
e) Weight: 260g
f) Remark: RoHS
2) Screwdriver features:
a) Torque range: 0.5-3.0 N.m
b) High stability,not impact of Voltage changes,free from fatigue under long-time using
c) Small,light body,specially design for the precise needing of tiny screws
d) Best applied to Small appliances.Electronics,Toys,Processing and assembly industry
1) The power controller features:
a) Model: BSD-36P-60WF
b) Input voltage: AC 220V 50/60HZ
c) Output voltage: 36V DC
d) Outside dimensions: 155*60*35mm
e) Weight: 260g
f) Remark: RoHS
2) Screwdriver features:
a) Torque range: 0.5-3.0 N.m
b) High stability,not impact of Voltage changes,free from fatigue under long-time using
c) Small,light body,specially design for the precise needing of tiny screws
d) Best applied to Small appliances.Electronics,Toys,Processing and assembly industry
FEATURES AT A GLANCE
Economical solution for general assembly
High speed model available
Carrying case available upon request
PRODUCT SPECIFICATIONS
No | Item | Data | ||
1 | Torque | 0.50~3.0 N.m | 5.10~30.60kgf.cm | 4.43~26.55Lbf.in |
2 | Unloaded Rotation Speed(r.p.m) | 2000 | ||
3 | Torque Adjustment | Stepless | ||
4 | Screw Size Dia(mm) | 2.6~5.0(Machine Screw) | 2.6~4.0(Tapping Screw) | |
5 | Power Consumption | 45W | ||
6 | Weight(g) | 445 | ||
7 | Length(mm) | 230 | ||
8 | Repeatable Torque Accuracy (%) | ±5% |
