Long Endurance Flying UAV drone Fixed Wing Using Full Composite Carbonfiber VTOL radio control Drones aircraft

Share on:


Price:RUB 460,051.80
Price in USD:Details

Quantity:


Product Overview

Description

item
value
Combo Set Offered
1
Type
Helicopter
Condition
New
Year Built
2020
Place of Origin
China
Guangdong
Place of Origin
China
Type
Remote Control, VTOL
Flight duration
> 2 hours (1kg payload)
Max take-off weight
18kg
VTOL battery
33.6v 8000mAh Li-po
Application
Surveillance,security,survey,mapping
Function
mapping,surveying,aerial photography,security
Material
Full composite,Carbonfiber
Control Distance
180 +km
color
gray
EFFICIENCY
We designed the Eagle Hero VTOL to be the most efficient of its kind. That means low stall speeds, high max efficiency, a largecruise window and payload capacity, self cooling fuselage, built in component bays and an entirely electric propulsion system.This equates to less energy expended and more time in the air.

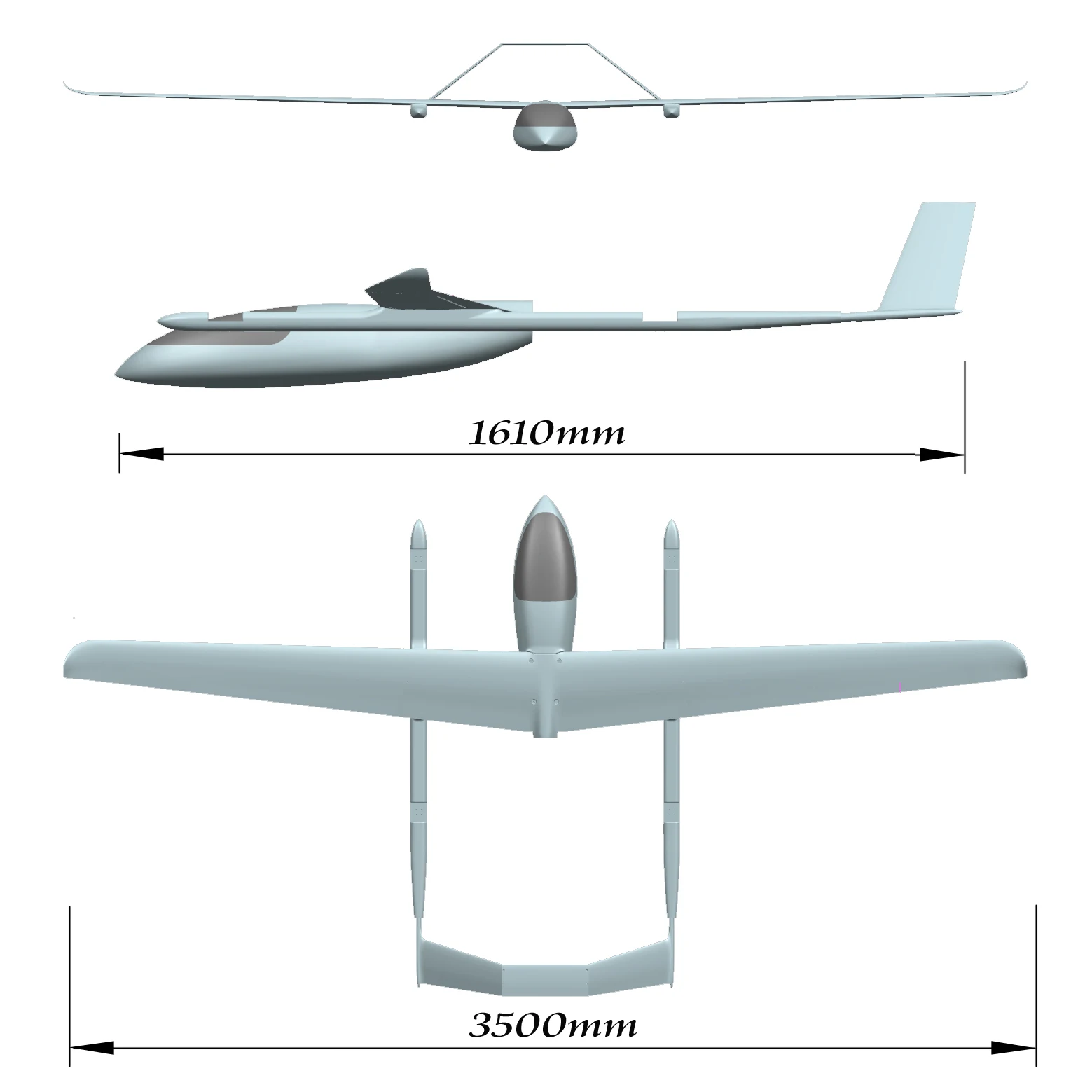

WING (Forward swept wing)

The forward swept wing means its leading edge and trailing edge are swept forward, that is, the sweep angle is an acute angle. The tip string is in front of the root string, and the left and right wings are projected in a plan view to form a V shape. Since the airflow on the forward swept wing points to the wing root, the airflow is first split from the wing root at high angle of attack,which fundamentally overcomes the wing tip stall problem, so the low speed performance is excellent, the lift being increased and at the same time improving the aerodynamic efficiency of the wing panel.

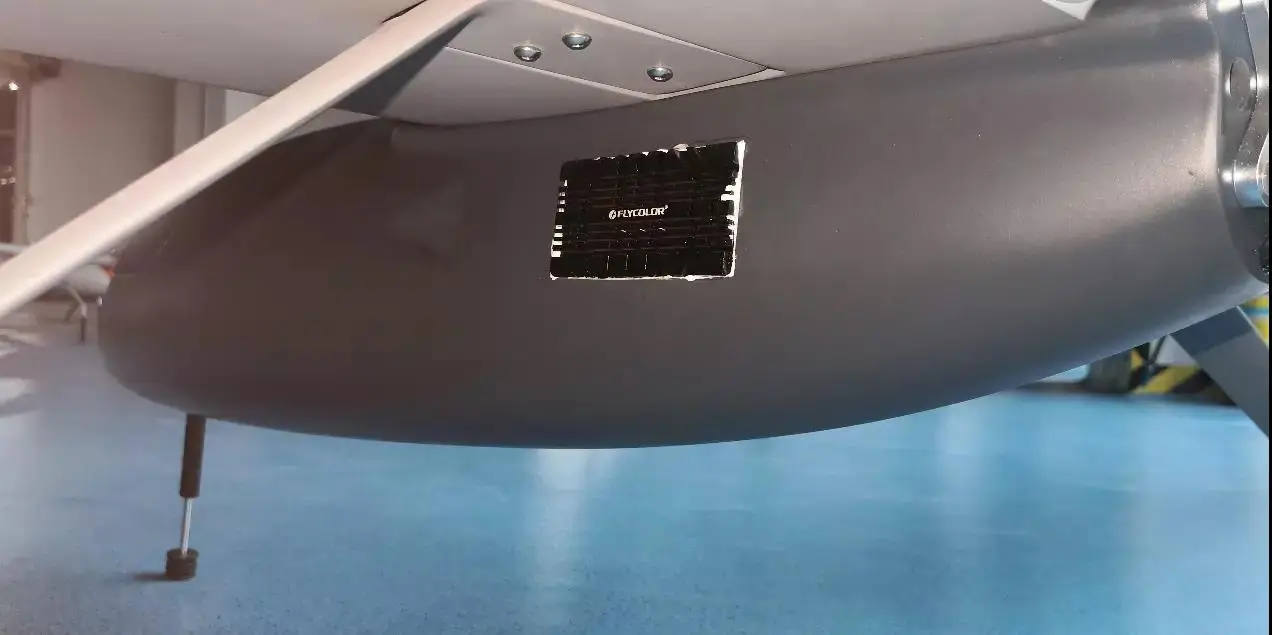

FUSELAGE
The trapezoidal shape of the fuselage minimizes the fuselage to wing interaction, drag and interference. It was designed with a high pressure region in the nose and a low pressure region behind the wing, on top and below the motor mounting area. This acts to create a pressure differential, essentially "pulling" air through the fuselage. The layout allows for smarter cooling, by cooling off lower temperature components towards the front, and higher temperature components in the rear (motor). The cooling exhaust placement was purposely in an area with turbulent airflow, so as to not disturb the otherwise laminar airflow over the rest of the fuselage.

TAIL
Inverted /--\ design improves efficiency while decreasing drag
Packing & Delivery

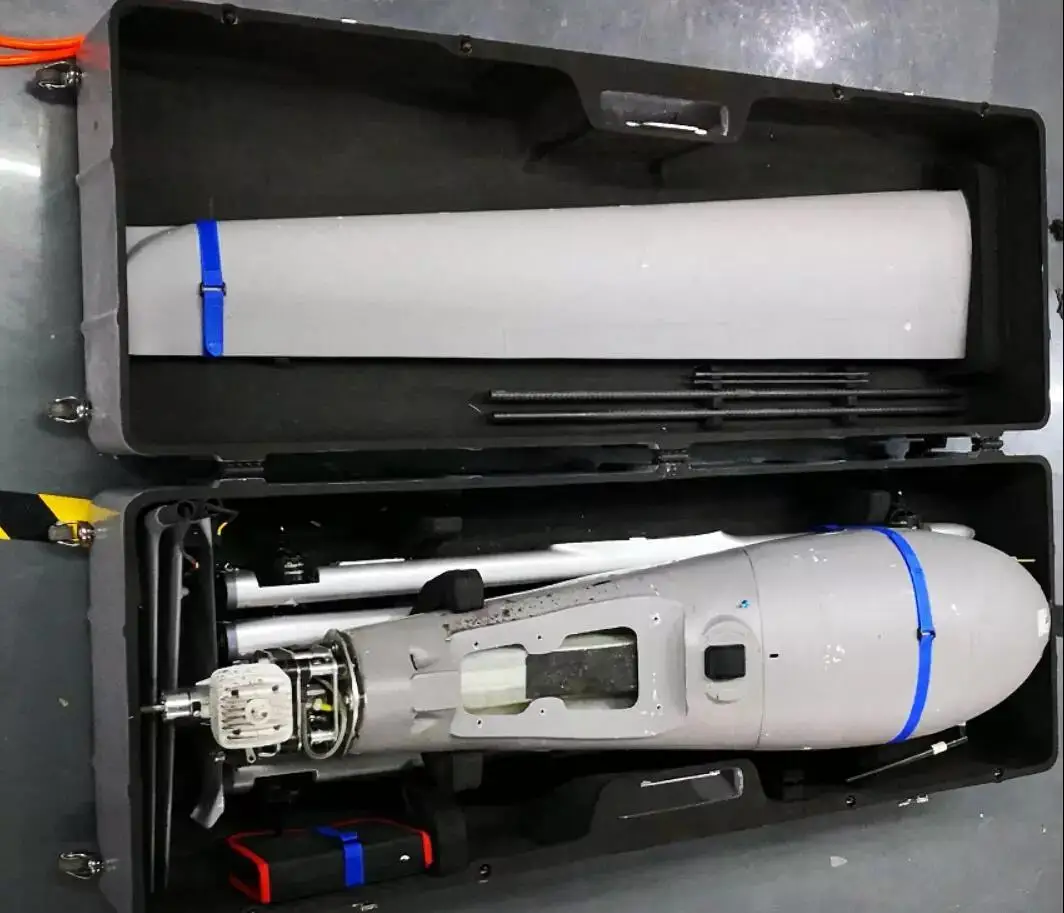

We have two packaging options for clients to choose. One is the case made with full composite material same as the airframe.Detachable roller made it easily moving round freely. There is a charge for this box. Of course, we also have free packagingoption, carton packing.
Company Profile
CUAV Tech Inc.,Ltd, short for CUAV, provides reliable application and system module for your aircraft. We were founded in 2012. We have accumulated rich achievements and experience in the research and development and production of UAV system modules and applications, and have launched 4 types of UAV applications, 11 types of autopilot, 10 types of communication links, 6 types of positioning system modules, 5 types of power supply modules, etc. We has obtained ISO9001 quality management system certification, and most of its products have obtained CE and FCC certification. Up to now, our products have been sold to 78 countries and regions, including the United States, Canada, Japan, Germany, Switzerland, Spain, India, South Korea, japan, Russia, Middle East, Egypt, Brazil...... We launched CUAVCloud system, using LTE network to conduct UAV communication, realizing the real-time high-definition video transmission of UAV, mutual cooperation among teams, authority management and distribution, break through the obstacles of difficulty in collaboration between teams. We actively participate in the development and cooperation of the open-source community PX4 and Ardupilot of UAV. In terms of hardware development of UAV, we share scientific and technological achievements open-source, promoting the development of the UAV industry.
FAQ
1. who are we?
We are based in Guangdong, China, start from 2015,sell to Eastern Asia(35.00%),Domestic Market(5.00%),South Asia(5.00%),Southern Europe(5.00%),Northern Europe(5.00%),Central America(5.00%),Western Europe(5.00%),North America(5.00%),Mid East(5.00%),Oceania(5.00%),Africa(5.00%),Southeast Asia(5.00%),Eastern Europe(5.00%),South America(5.00%). There are total about 11-50 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Flight controller,Autopilot,GPS,Telemetry,Remote controller

4. why should you buy from us not from other suppliers?
8 years of industry accumulation Since its establishment in 2012, we have accumulated rich achievements and experience in the development and production of UAV system modules and applications for 8 years.

5. what services can we provide?
Accepted Delivery Terms: FOB,EXW,Express Delivery;
Accepted Payment Currency:USD,EUR,HKD,CNY;
Accepted Payment Type: T/T,L/C,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
