Sunine LD20i handheld portable laser metal engraving printer for hard plastic
Specifications

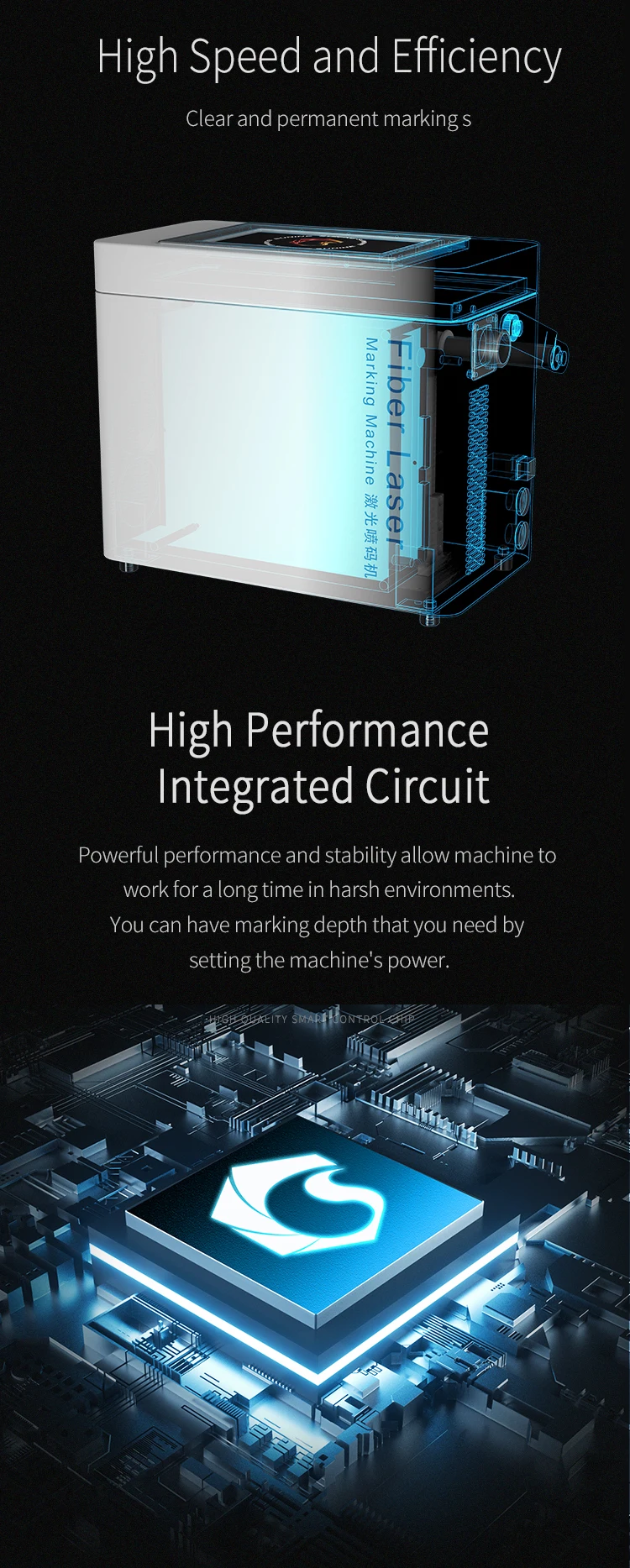

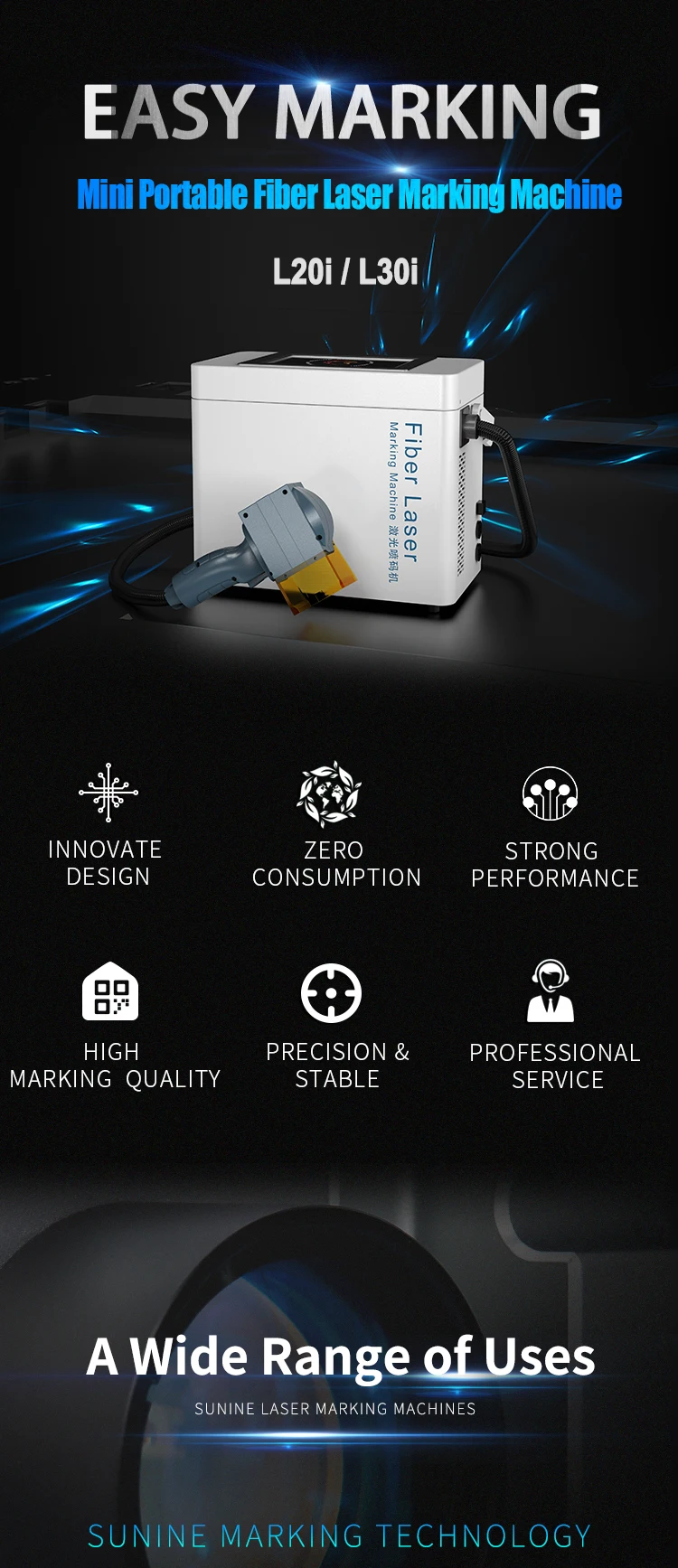

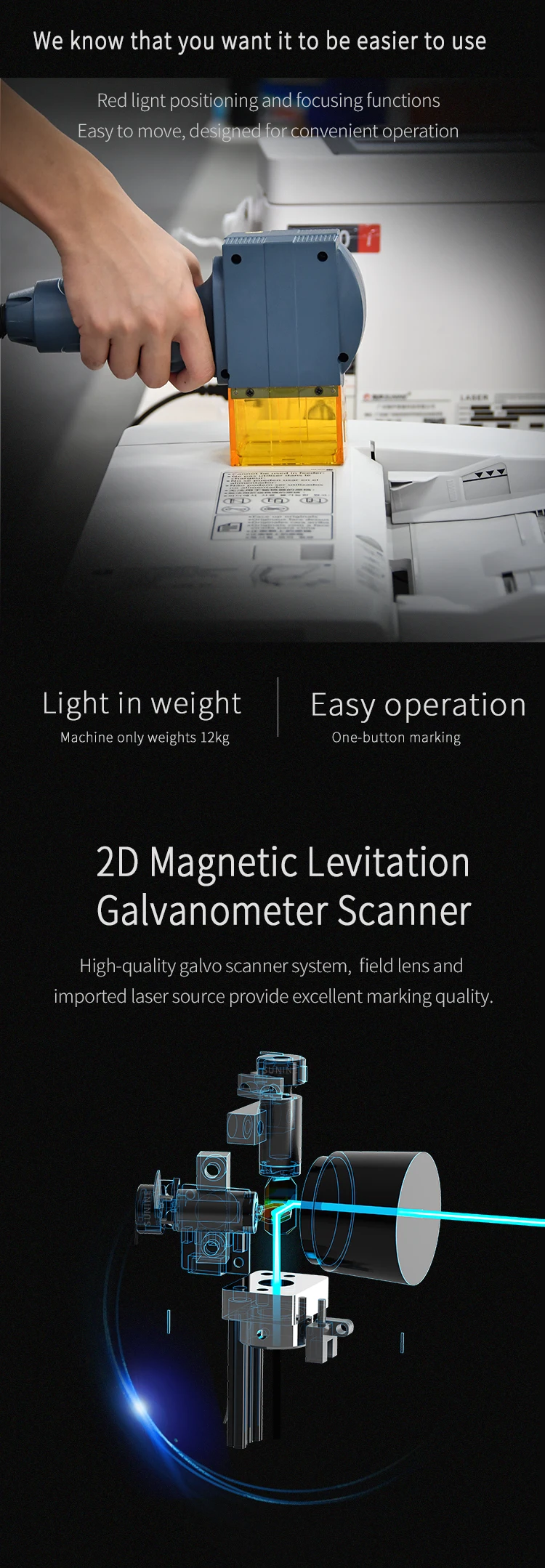

FEATURES OF LD20i LD30i PROTABLE FIBER LASER MARKING MACHINE
Fiber is arguably the best technology for laser marking due to it’s flexibility when it comes to materials, encompassing most plastics, metal and many organics.
- Fiber beam delivery with integrated optical isolator

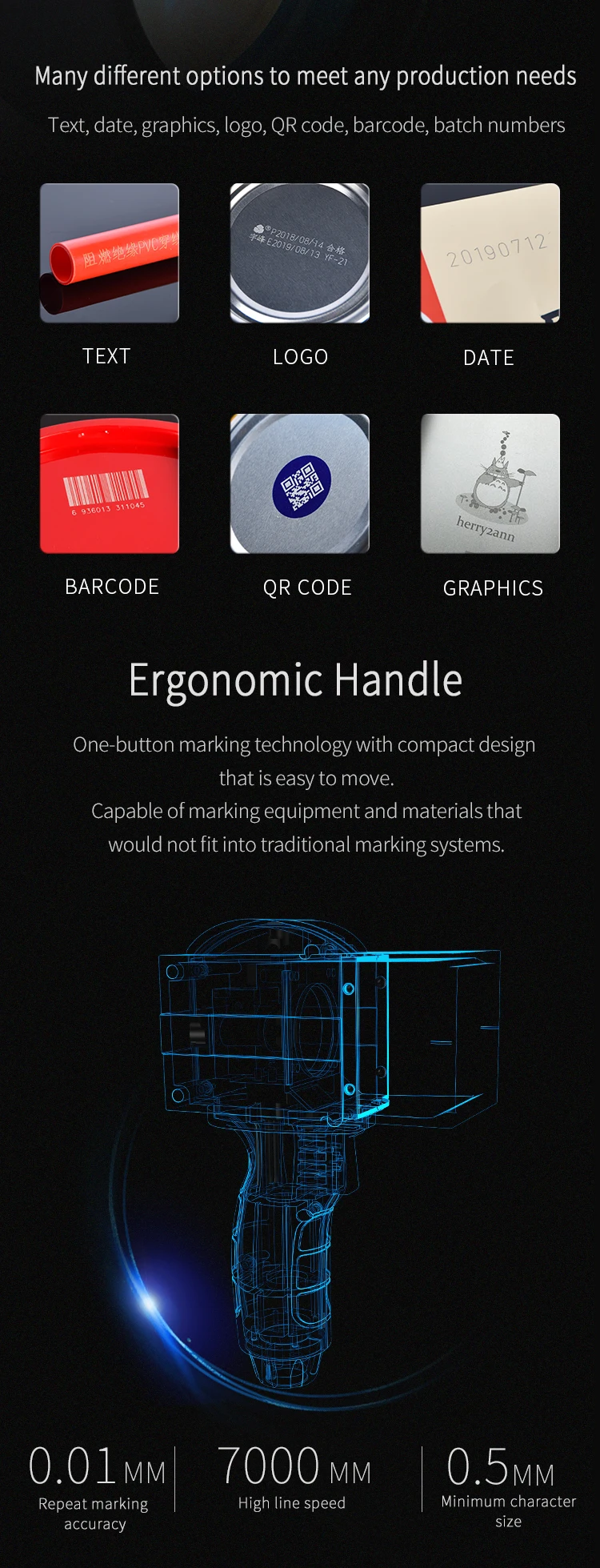

- Extremely lightweight and equipped with a handle for increased portability
- 55mm x 55mm Marking Area
- Compact design, easy to move
- Built in touch screen dispay for easier operation
- Air cooled, no need for a water chiller unit
- Power consumption is significantly less
- NO maintenance
- NO consumables

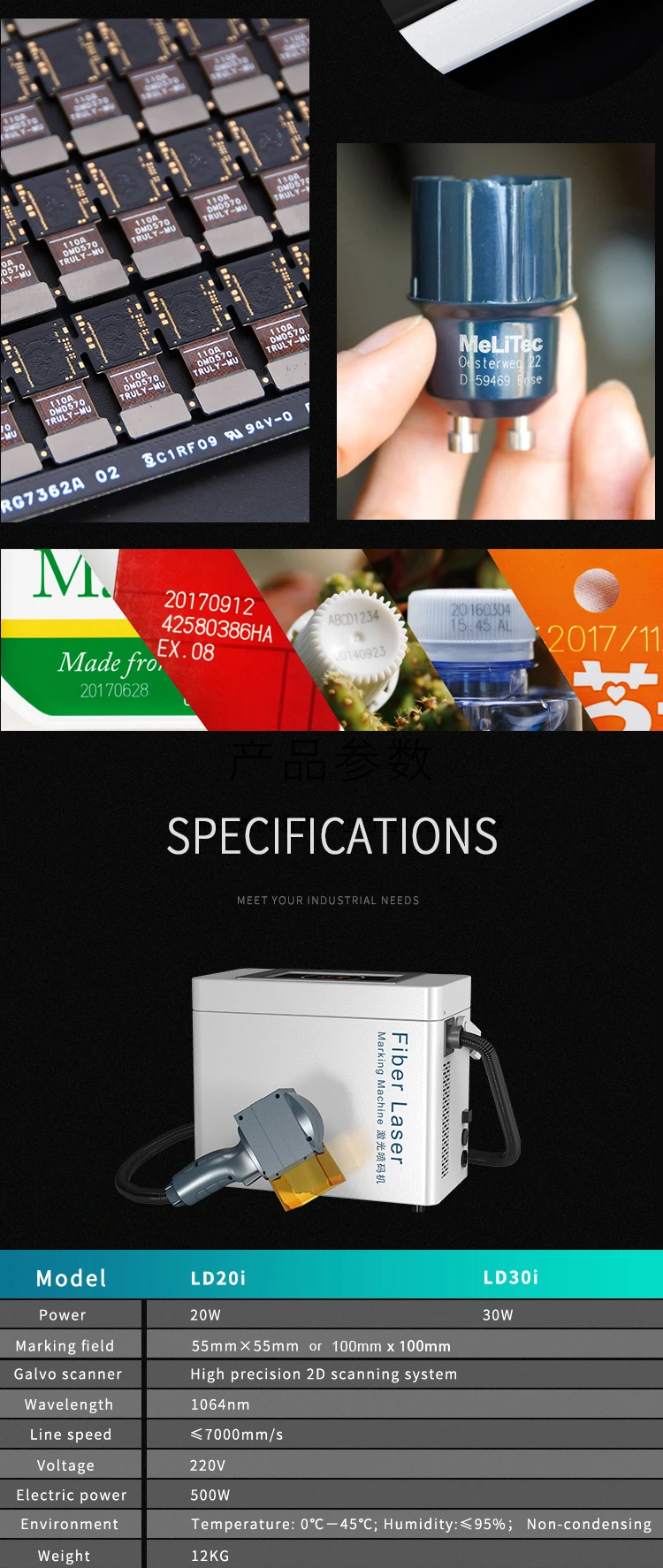

SPECIFICATIONS OF LD20i LD30i PROTABLE FIBER LASER MARKING MACHINE
Model
LD20i
LD30i
Output power
≥20-watt
≥30-watt
Material
Anodized aluminum
Laser type
Fiber laser source
Laser wavelength
1064nm
Marking method
High-precision 2D scanning
Marking speed
≤7000mm/s
Control system
Highly- integrated motherboard, a 7-inch touch display built-in. Can be connected to extra 10-inch touch screen.
Operating system
WIN CE
Cooling system
Air cooling
Type of marking line
Dot matrix / vector (both are available)
Reflector size
Standard size:8.5mm
Marking range
Standard:55mm×55mm
Positioning method
Red light positioning
Lines of marking
Any number of lines within the marking field
Marking speed
650 characters/sec (the specific speed is related to product material and printing content)
Font
Simplified Chinese, Traditional Chinese, English, Korean, Russian, Arabic numerals and other standard font libraries
File format
BMP/DXF/HPGL/JPEG/PLT
Bar code / QR code
CODE39,CODE128,CODE126,QR,Z-code,DM, visual code, etc.
Power
220V
Max. power
≤300W
N.W.
12kg
Handle dimension
241.5mmx79mmx151mm
Control box dimension
320mmX170mmX270mm
Pollution level
2
Overvoltage category
Ⅱ
Working temperature
0-40℃
Working humidity
30%-85 % RH (non-condensing)
Product Description
Related Products
Certifications
Company Information
Packaging &Shipping
FAQ
What are the advantages of laser marking?
Laser marking systems offer reduced downtime, elimination of consumables (both for cost and environmental reasons), permanent marks and reduced preventive maintenance and cost usually associated with ink-based printers.
What materials can be laser marked?

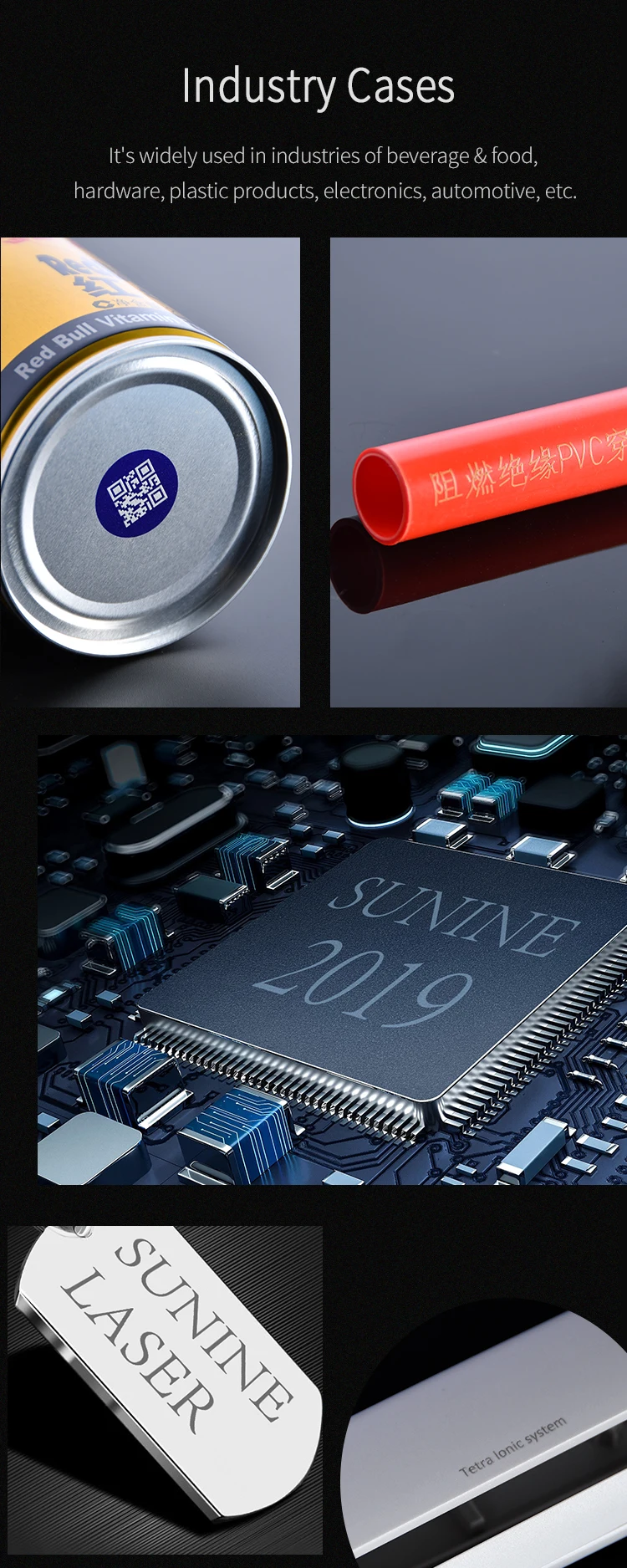

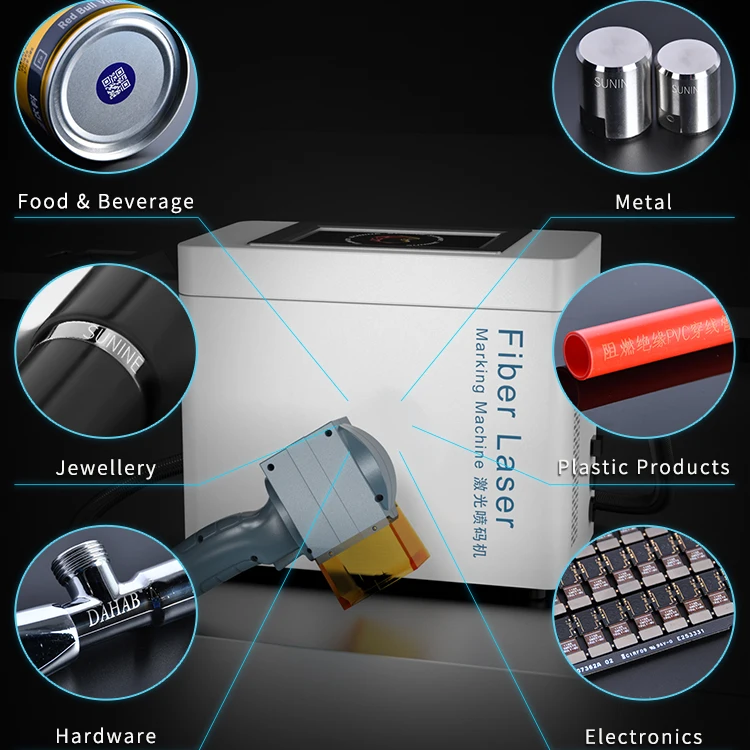

A variety of materials are suited to laser marking, here are just a few examples:

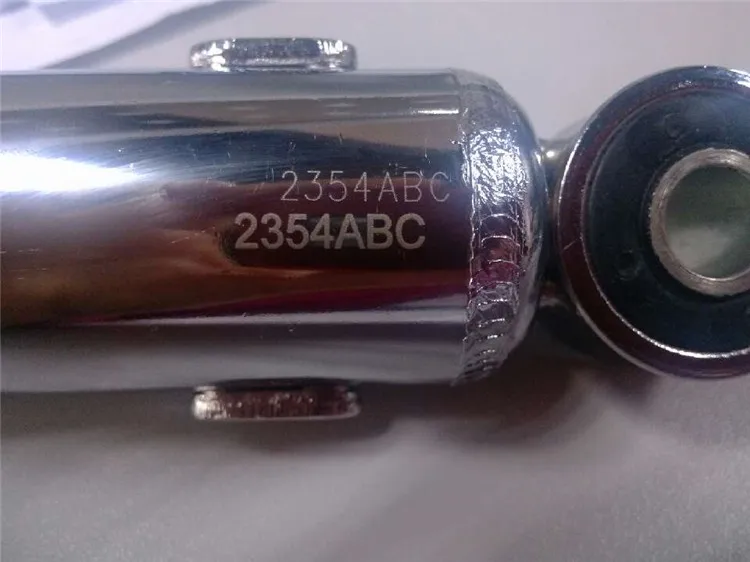

Glass, paperboard, ceramics, metals such as aluminum, cast iron, copper, steel, titanium, etc. Plastics and polymers (PET, PVC, PE, HDPE, LDPE, PPR)
If you are not sure your product’s material, please send some samples to us, our expert will test them for evaluation.
What types of laser can be used for marking?
The three most commonly types of laser used are CO2 laser, fiber laser and UV laser. Different kinds lasers can work on different material. If you are looking for a good recommendation, contact us immediately.
What variables should be considered when selecting the appropriate laser marking system?
Factors to be included in evaluating the correct system include line speed, pitch (spacing) between products, substrate (material) to be marked, code content (amount and field size), environmental conditions and integration needs.
Why should i choose your company?
A powerful R&D team with high education level, a well-trained after-sales team, a wealth of working experience in laser marking industry (more than 10 years), we are the TOP manfacuturer of fly laser marking machines in China. Also, we are not just machine seller, but also solution expert. We are able to provide custom service based on your requirements. Many cases will be shared with you. If you are looking for a supplier who offer high quality laser printers at compeitive price, then do not hesitate to contact us.
If I buy machines from your company, do you provide technical support?
Yes. We have a whole after-sales team at your service. We will provide video of installation as well as online technical training.
What’s your warranty?
Our warranty is 12 months. During the warranty period, we provide customers with free parts for repair; if you need to return to the factory for repair, all repair costs and freight will be borne by us. After the warranty period, we will continue to provide maintenance services. Besides, we offer permenant softeware upgrading service for free.
