FOTON AUMAN EST M 4x2 LHD 7M FREEZER BOX 15T REFRIGERATED TRUCKS

Product Overview

Description

FOTON AUMAN EST-M 4x2  LHD 7M FREEZER BOX 15T REFRIGERATED TRUCKS



1.Function introduction



Refrigerated trucks are used to transport frozen or fresh goods of the closed van, refrigerated trucks are equipped with refrigeration units and refrigeration equipment, polyurethane insulated car for refrigerated transport vehicles, refrigerated trucks can be by the manufacturer, chassis carrying Ability, type of car to classify.
Refrigerated trucks are commonly used in the transport of frozen food (frozen cars), dairy products (milk transport vehicles), fruits and vegetables (fresh truck), vaccine drugs (vaccine carriers) and so on.



Brand recommendation:DF FOTON JAC HOWO SINOTRUK SHACMAN



Tonnage:1T-30T customized

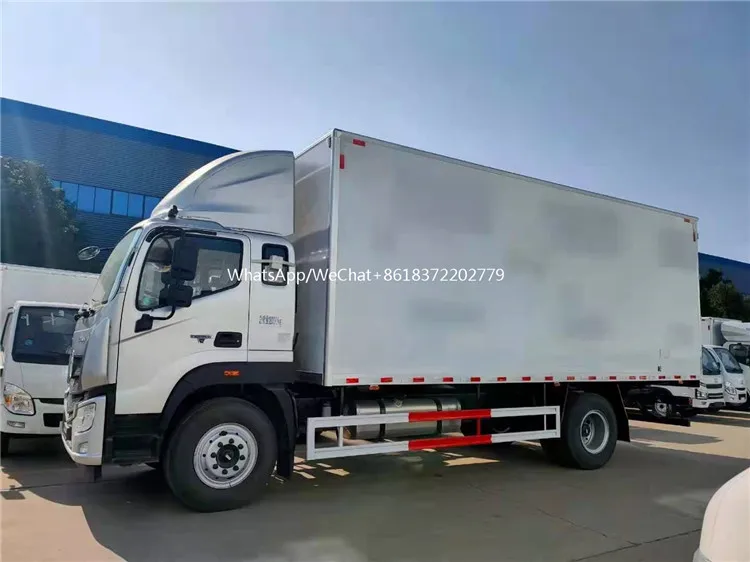

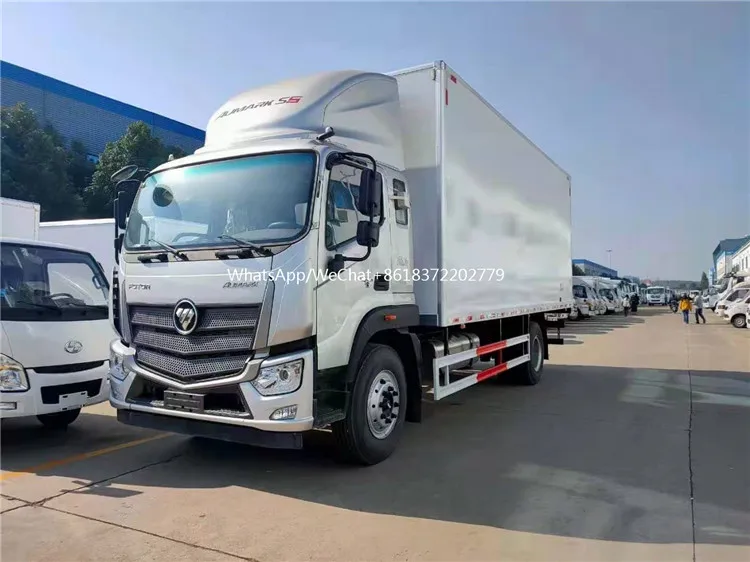

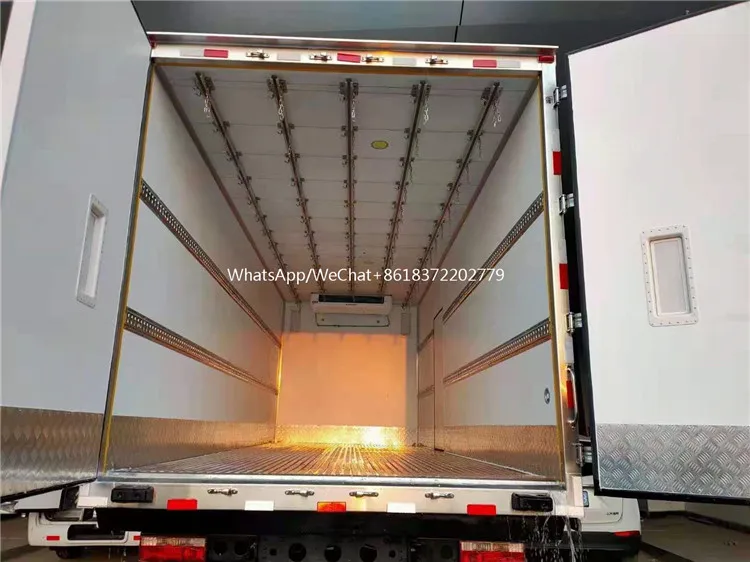

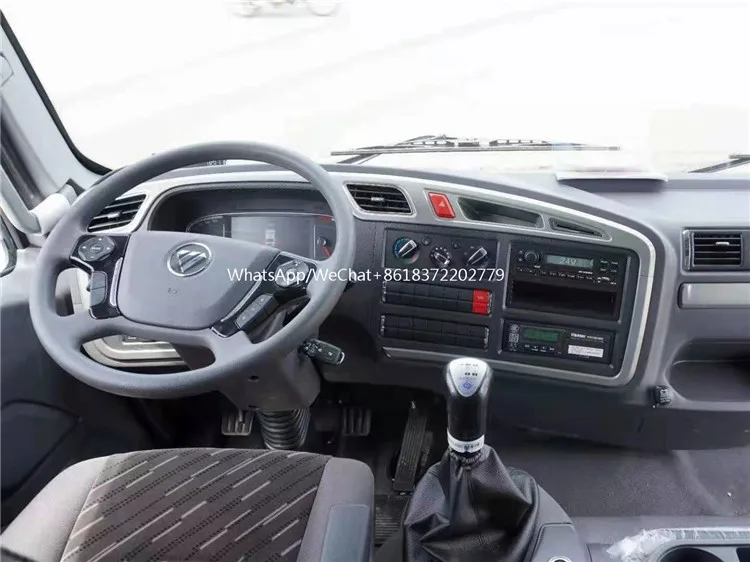

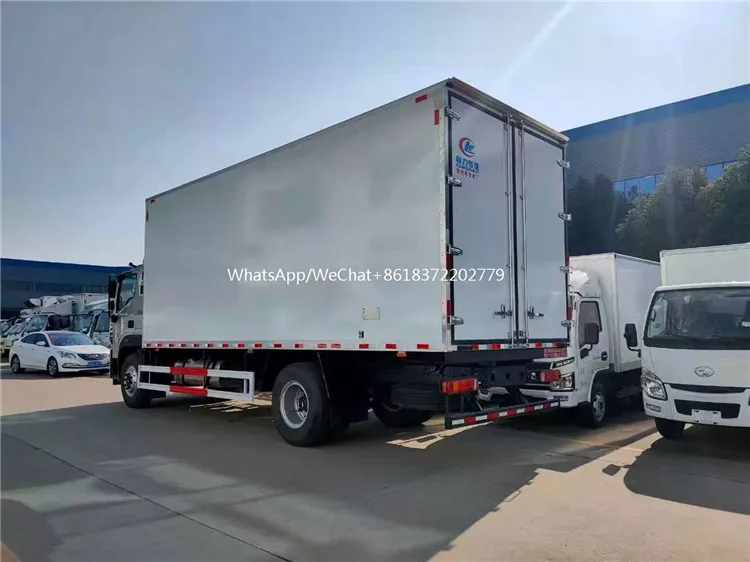

2.Pictures show





3.Technical parameter reference



A   OVERVIEW
Product name	Foton refrigerated truck	Product brand	CLW
Condition	new	Color	white
Overall size	9300x2600x3995 mm	box size	7000*2450*2500 mm
total mass	18000(kg)	Load capacity	15000(Kg)
Cab	single cab with sleeper	ABS	with
Approximate angle / departure angle	19/10 (°)	Front suspension / rear suspension	1495/2750 (mm)
Axle load	5000/10000(kg)	Wheelbase	5150(mm)
Number of axes	2	Maximum speed	89(km / h)
Number of springs	10/10+8	Drive type	4x2
Number of tires	10+1	Tire specifications	11R2.5
Front /Rear track	1970/1830( mm)	Brake	air brake
B   CHASSIS
Fuel type	diesel	Emission standard	EURO 3
Engine Model	Displacement (ml)	Power (hp/kw)	Engine manufacturer
YC6A240-33	7250	240/177	YUCHAI
refrigerated truck load capacity can be customized refrigerator system many brands optional !
