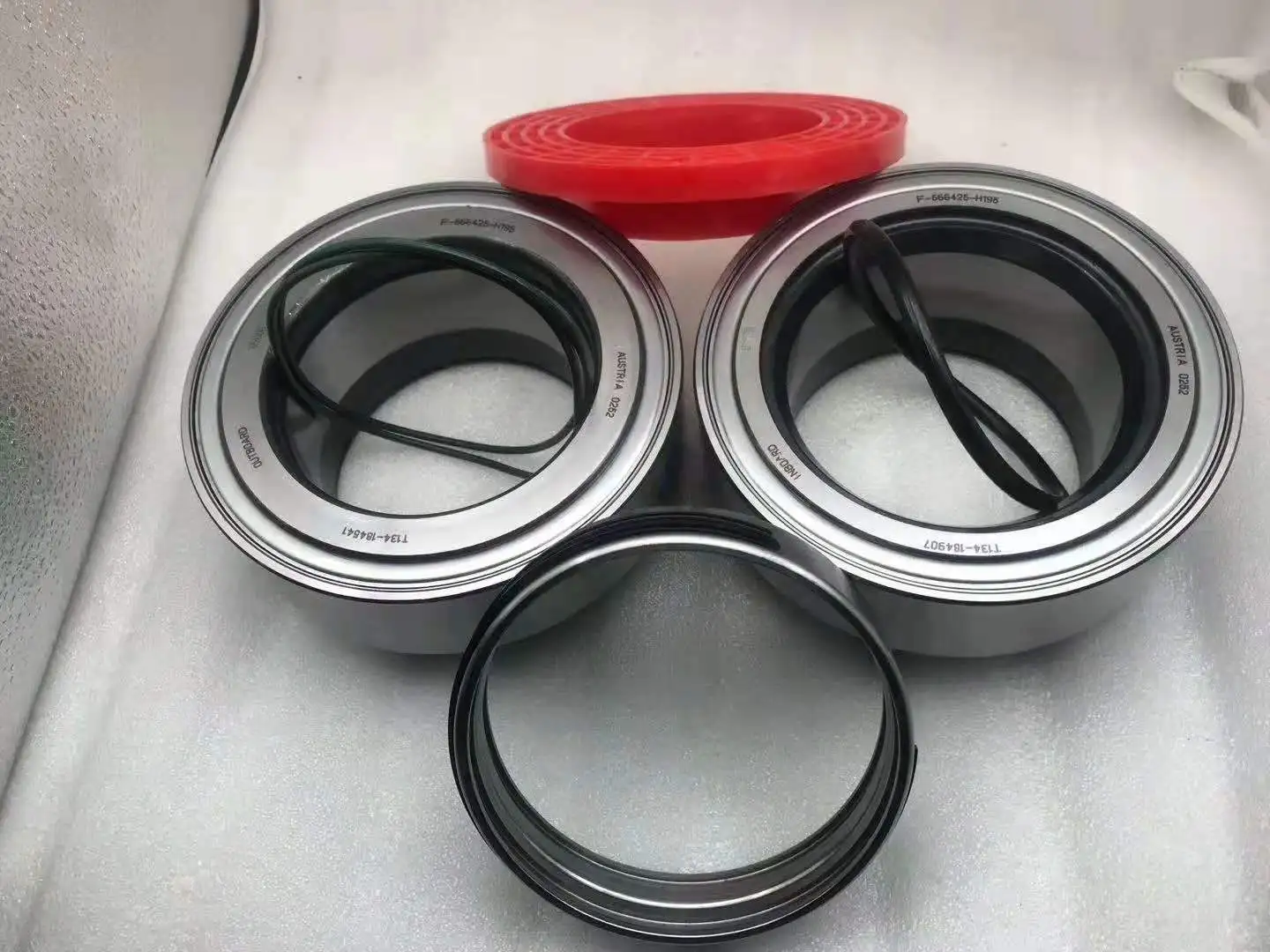

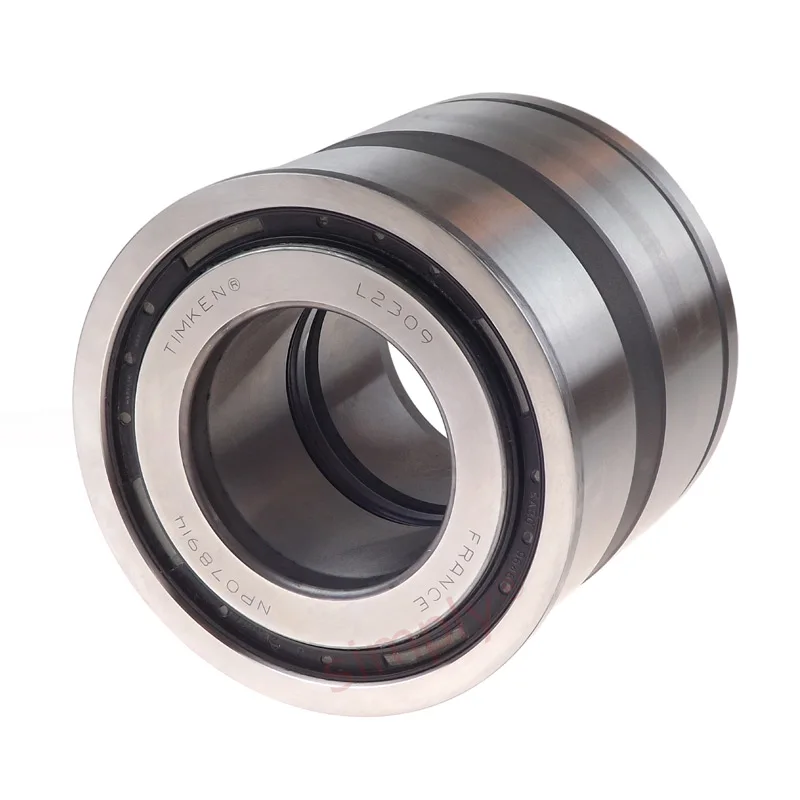

Ma/n tag truck release bearing 566283.h195 Ma/n truck bearing
- Category: >>>
- Supplier: Jinan Shunfang Bearing Co. Ltd.
Share on (1600167599151):
Product Overview
Description
Product Description

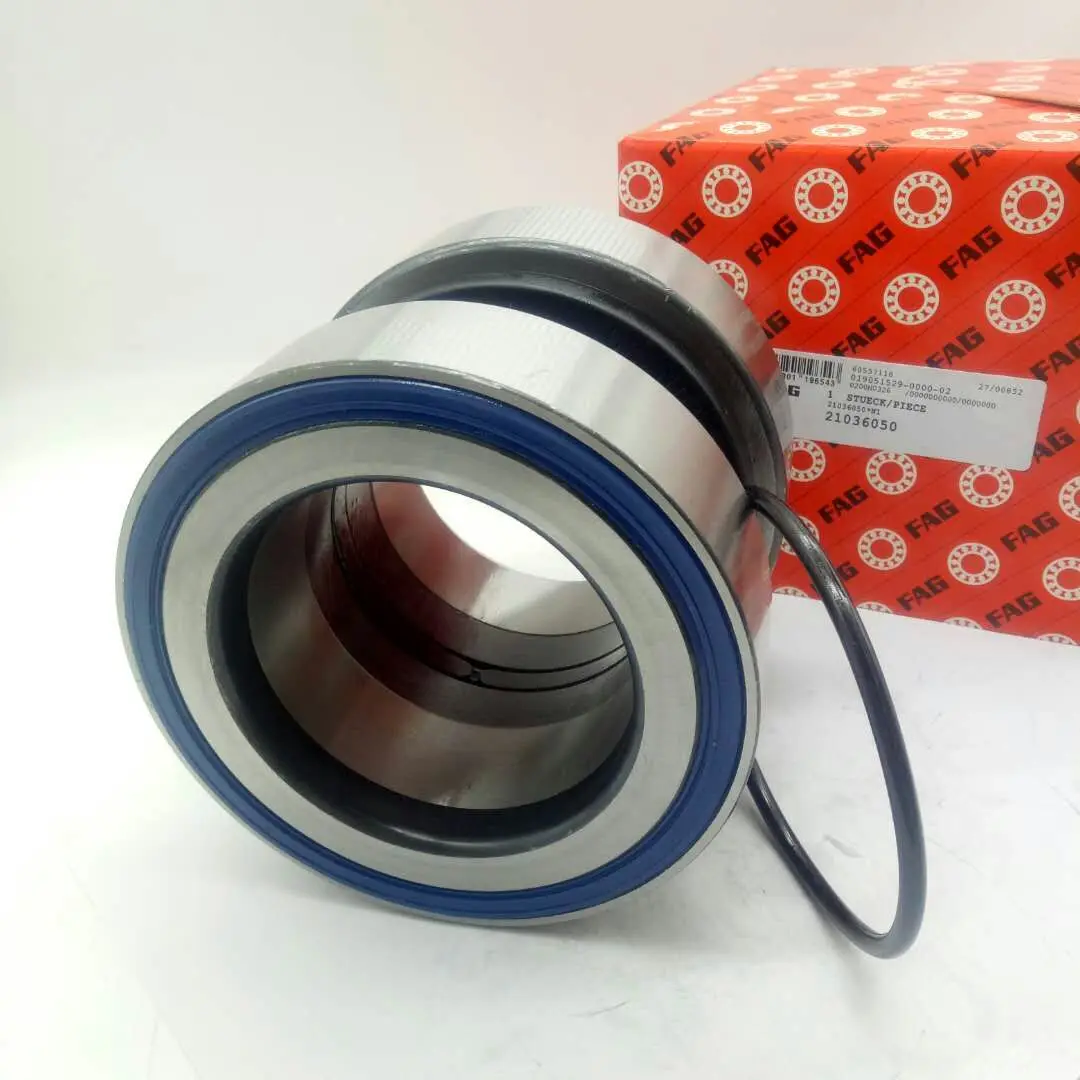

Truck Hub Units
Truck fleet operators are under pressure to deliver a financial profit. However, this can only happen when their trucks areoperational. Yet, the conditions they experience can lead to frequent unplanned downtime.
Truck hub unit benefits:
* Pre-adjusted, for easy installation
* Greased and sealed, to extend lifetimes
* Resistant to extreme operating conditions
* Cost-effective mounting process
* Low maintenance
* Pre-adjusted, for easy installation
* Greased and sealed, to extend lifetimes
* Resistant to extreme operating conditions
* Cost-effective mounting process
* Low maintenance
How does it work?

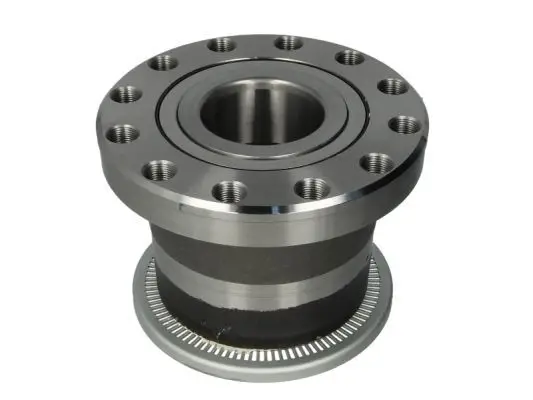

Truck hub units, which contain two tapered roller bearings, are pre-adjusted, greased and sealed at the factory in order to
simplify installation. The wheel bearing units are intended for use in truck, trailer and buses. They are designed to withstand typical harsh operating conditions and require less maintenance than the conventional wheel bearing sets they replace. Some variants have an integrated impulse ring which makes some variants suitable for use with anti-lock braking systems. The units can also save time and cost during brake maintenance.
Truck hub units, which contain two tapered roller bearings, are pre-adjusted, greased and sealed at the factory in order to
simplify installation. The wheel bearing units are intended for use in truck, trailer and buses. They are designed to withstand typical harsh operating conditions and require less maintenance than the conventional wheel bearing sets they replace. Some variants have an integrated impulse ring which makes some variants suitable for use with anti-lock braking systems. The units can also save time and cost during brake maintenance.
Specification
This wheel bearing unit integrates various functions such as adjustment, lubrication with a specially developed grease and sealing.
* Easy, reliable and effective bearing mounting process
* Reduced number of components
* Low risk of damaging during assembly (raceway and seal lip)
* No risk of grease pollution during assembly
* Optimized pre-load
* Simpler housing and stub axle geometry possible
* Reduced number of components
* Low risk of damaging during assembly (raceway and seal lip)
* No risk of grease pollution during assembly
* Optimized pre-load
* Simpler housing and stub axle geometry possible
This wheel bearing unit integrates various functions such as adjustment, lubrication and sealing. An ABS pulse ring as an option.
* Easy, reliable and effective bearing mounting process
* Reduced number of components
* Low risk of damaging during assembly (raceway and seal lip)
* No risk of grease pollution during assembly
* Optimized pre-load
* Simpler housing and stub axle geometry possible
* Easy, reliable and effective bearing mounting process
* Reduced number of components
* Low risk of damaging during assembly (raceway and seal lip)
* No risk of grease pollution during assembly
* Optimized pre-load
* Simpler housing and stub axle geometry possible

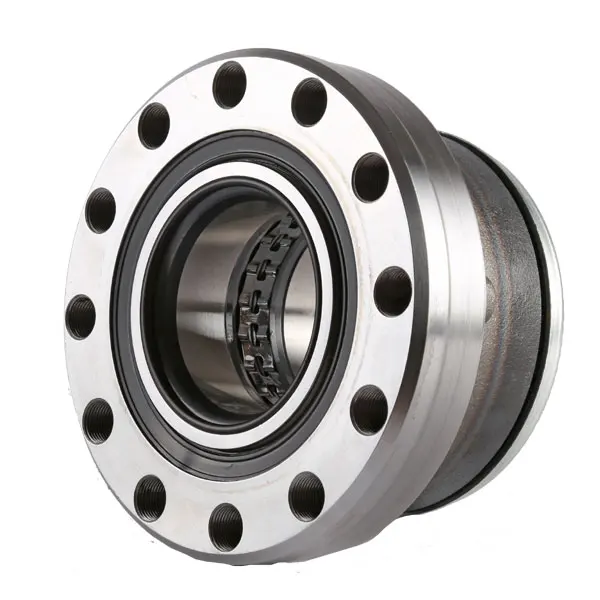

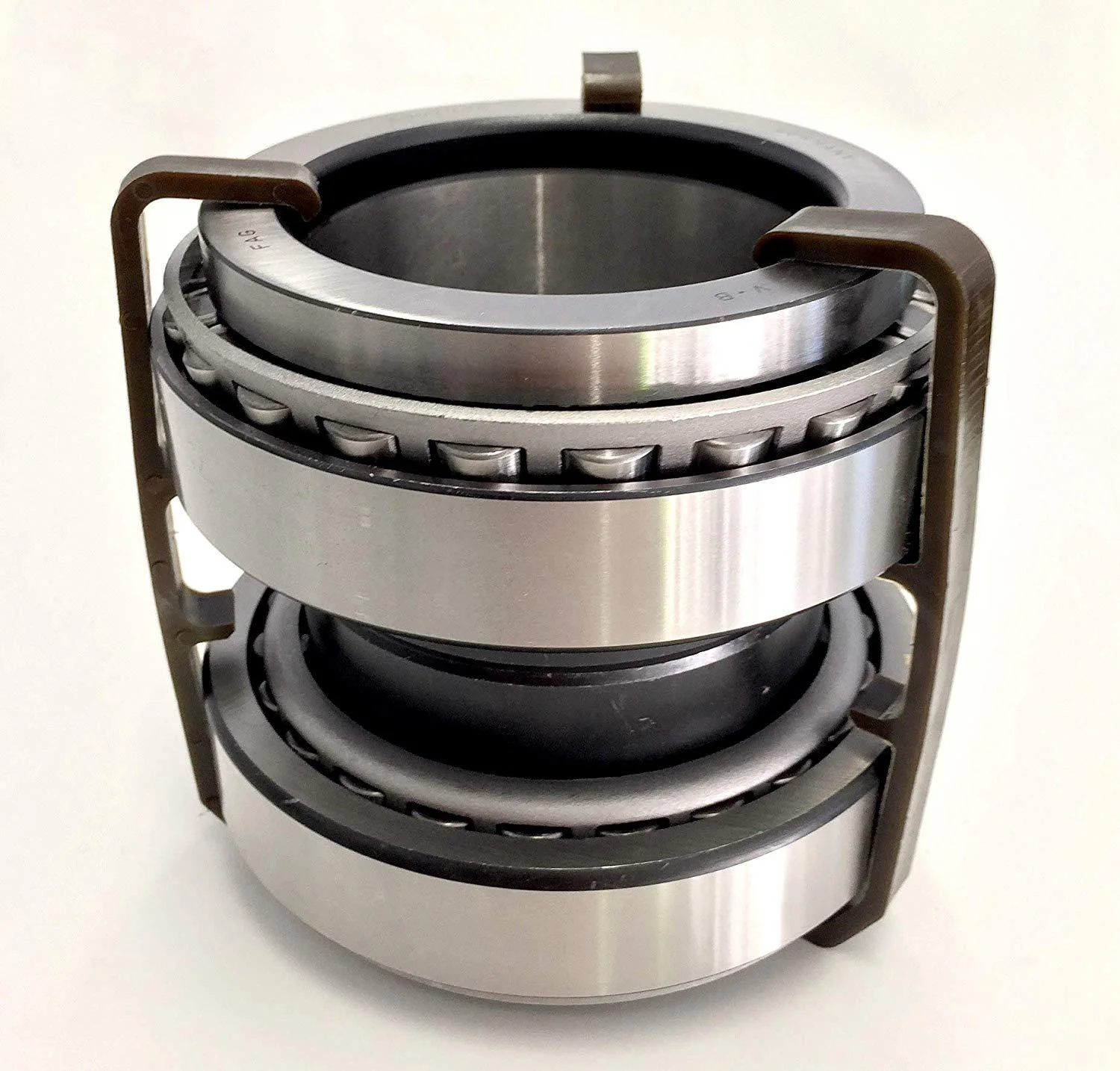

Assembled truck matched unit
The assembled truck matched unit is preassembled in the respective housing and compared to the truck matched unit its axial
clearance is better controlled. The solution is greased and sealed in the SKF factory in order to eliminate assembly errors.
Depending on the housing, an assembled truck matched units can also integrate the wheel adapter for the direct rim assembly. The
unit can be used for front axle, driven axle and trailer axle applications.
axial bearing clearance. It can be provided with loose seals.
* Reduced number of components
* Optimized pre-load
* Higher system stiffness compared to single tapered roller bearing solution
Part number and OEM number as below
No. | PN. | OEM N. | PN. | OEM N. |
1 | 566425.H195 | 21036050 | 805003A.H195 | 149819905 |
2 | 800792AC | 20967828 | 201034 | 169812805 |
3 | VKBA5423 | 20518661 | VKBA5412 | 179815105 |
4 | SET1314 | 20792439 | BTH0022 | |
5 | BTH0055 | |||
6 | 566426.H195 | 20967831 | SET1310 | |
7 | 581079AC | 20518637 | ||
8 | VKBA5425 | 20558950 | 201050 | 159811905 |
9 | SET1312 | 21021391 | DU60108 | 149815705 |
10 | SET1349 | |||
11 | 566427.H195 | 20967830 | ||
12 | 805165AC | 20518617 | BTH1011 | 7180066 |
13 | VKBA5424 | 21021381 | VKBA3552 | |
14 | SET1311 | 22008157 | ||
15 | 805012.06.H195 | 1408086 | ||
16 | 566283.H195 | 1801594 | 201059 | 1905487 |
17 | 805008AC | VKBA5397 | 2996882 | |
18 | 805052C | VKBA5413 | 7183074 | |
19 | SET1352 | BTH0025 | ||
20 | BTH0053 | |||
21 | 566834.H195 | 1801595 | SET1242 | |
22 | 803628 | NP318274 | ||
23 | SET1351 | |||
24 | 803194A | 1703859 | ||
25 | 566834.H195 | 1801595 | BTH0010D | 139812205 |
26 | 803628 | VKBA5415 | ||
27 | SET1351 | NP793154 | ||
28 | ||||
29 | 803750B | 81934206097 | 805011C | 833211 |
30 | VKBA5408 | 81934200342 | VKBA5409 | 7184079 |
31 | BT2-0130A | 503126457 | SET1237 | 2994058 |
32 | SET1335 | SET1277 | 85103258 | |
33 | ||||
34 | 804162A | 81934200346 | 805092C | 833202 |
35 | VKBA5416 | VKBA5418 | 7181863 | |
36 | SET1263 | 81934200336 | ||
37 | 566830.H195 | 4200101602 | 85103257 | |
38 | 803904 | 3434301000 | ||
39 | ||||
40 | 570530.H195 | 3434019000 | 564734.H195 | 1003457 |
41 | 808918 | 3200102000 | VKBA5549 | 3434365000 |
42 | SET1370 | 3434302000 | SET1334 | 3200200151 |
43 | 4200200100 | |||
44 | 569868.H195 | 4200101900 | 100167600 | |
45 | 805415A | 3434301800 | ||
46 | 201043 | |||
47 | 568879.H195 | 21363715 | 579205.H195 | 504189654 |
48 | VKBA5420 | 5010439770 | ||
49 | 566193.H195 | 1801593 | SET1350 | 20764313 |
50 | HDS001 | |||
51 | 571762.H195 | 1439070 | ||
52 | 201037 | 1724482 | 801974AE.H195 | 5006207845 |
53 | VKBA5314 | 1868087 | BTF0110 | 42541578 |
54 | BTH0018A | 1413785 | VKBA5377 | 81934200349 |
55 | SET1231 | 1476945 | BTF0021A | |
56 | NP078914 | 2310169 | ||
57 | NP273671 | 1365570 | 805531 | 5010587029 |
58 | VKBA5411 | 20550678 |
Recommend Products
Packing & Delivery
A: 1pcs/polybag+box
B: Customized Packing Box, with customized LOGO and design, 1pcs/polybag+Box
D: OEM your prefer.
B: Customized Packing Box, with customized LOGO and design, 1pcs/polybag+Box
D: OEM your prefer.
Company Introduction

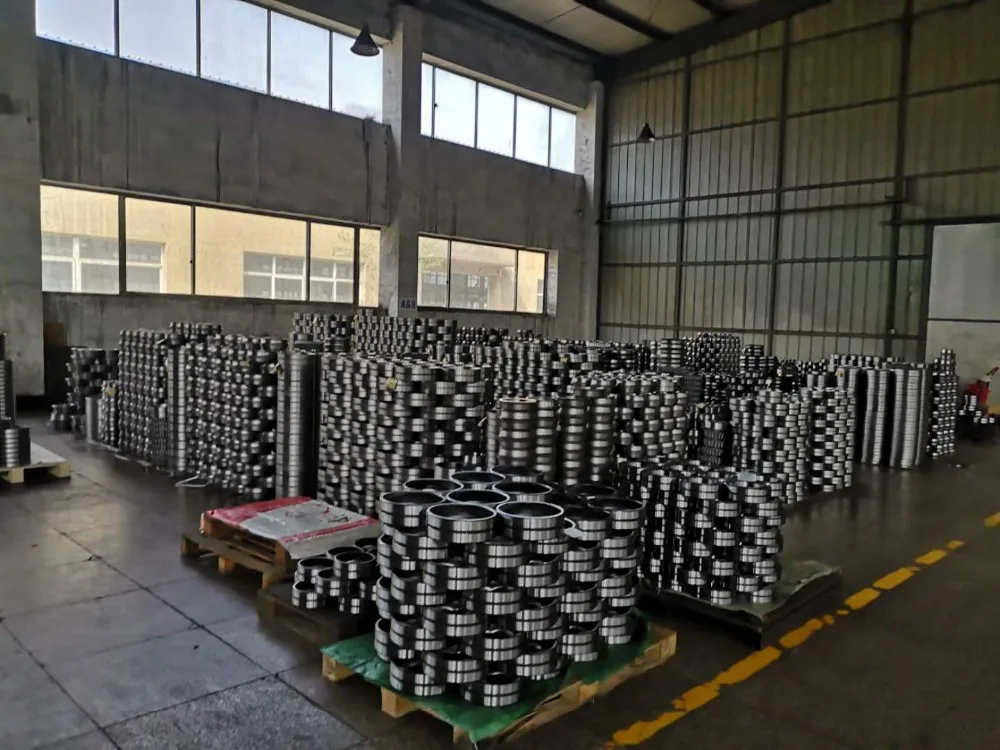

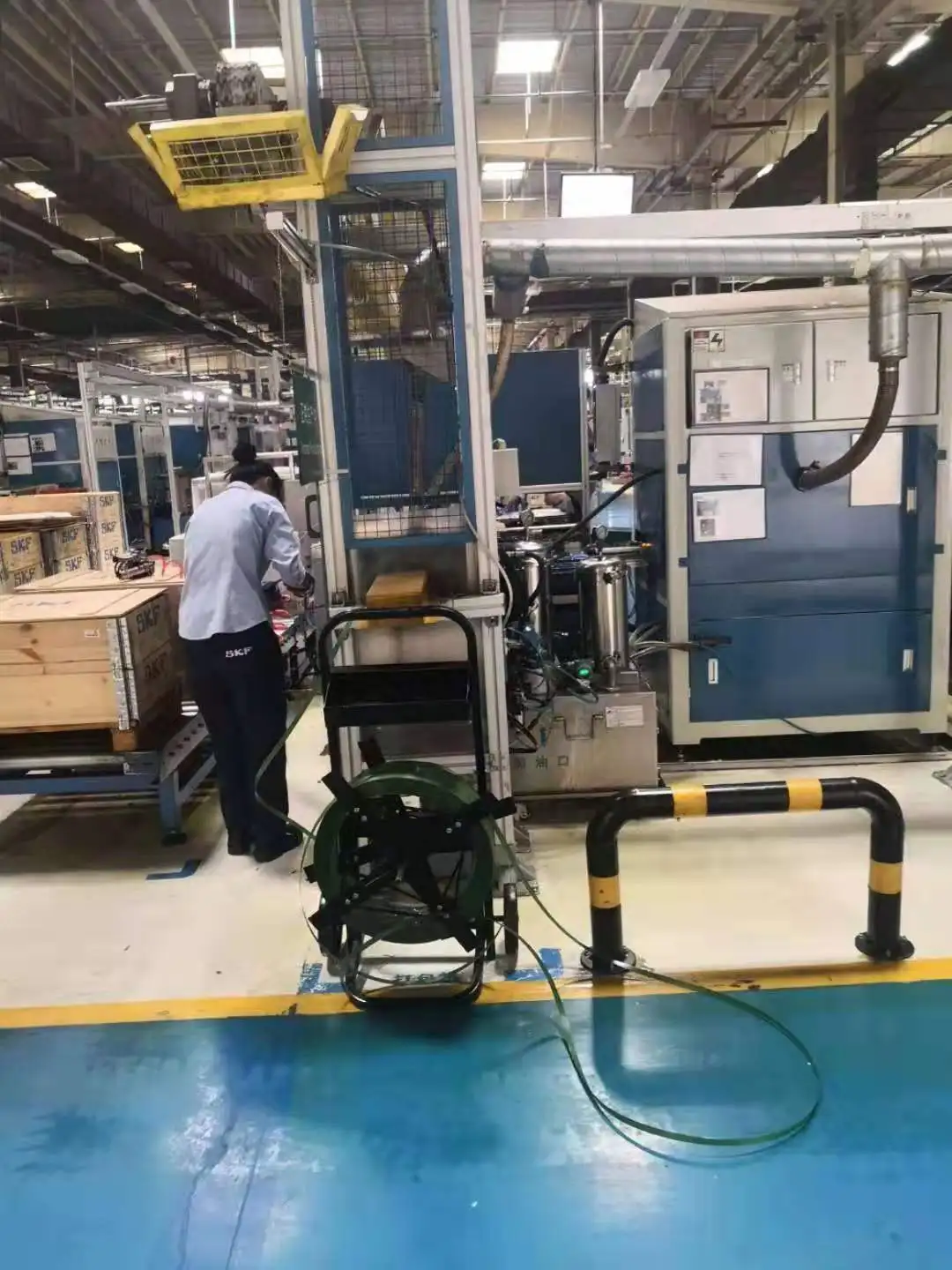

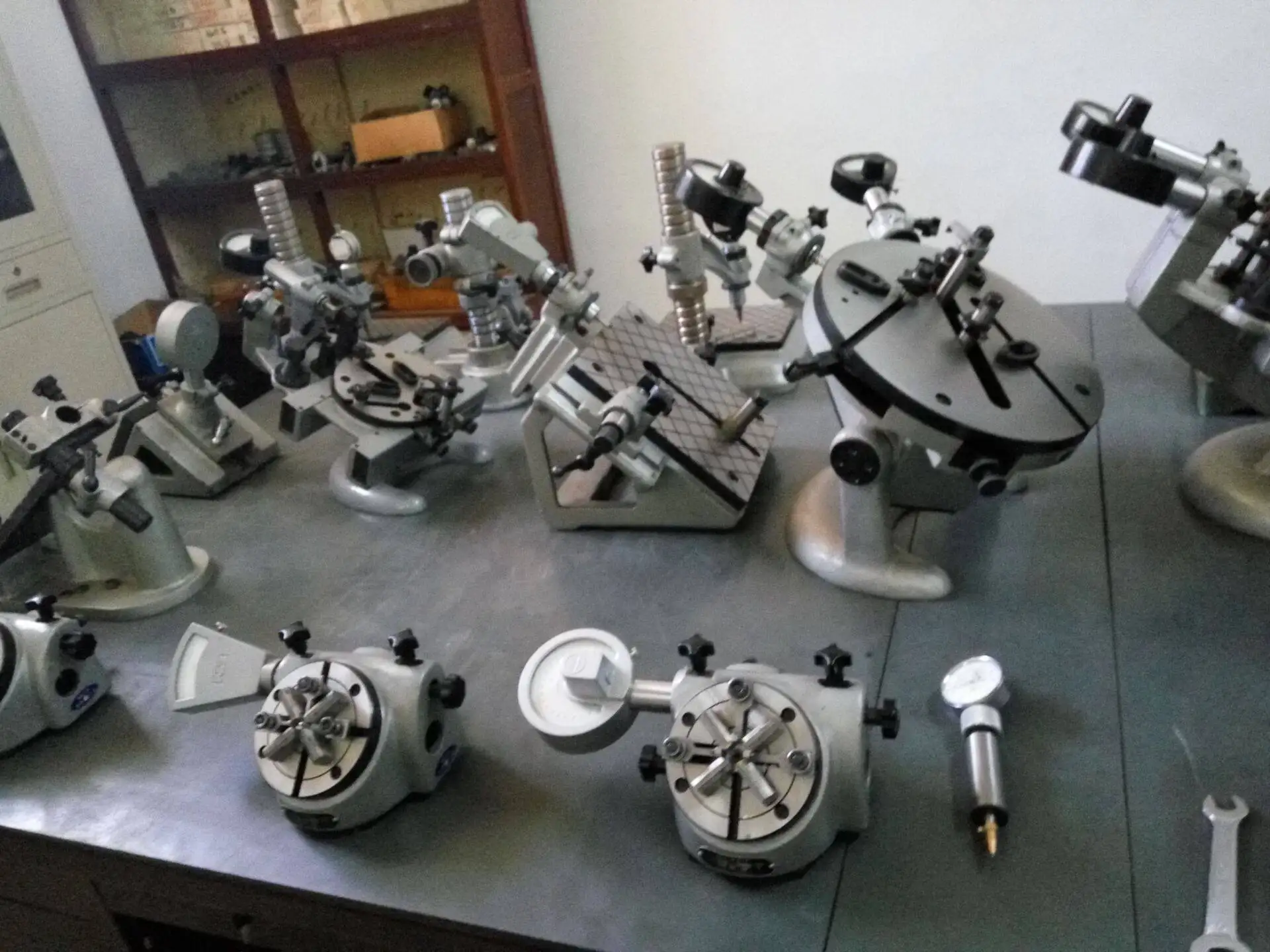

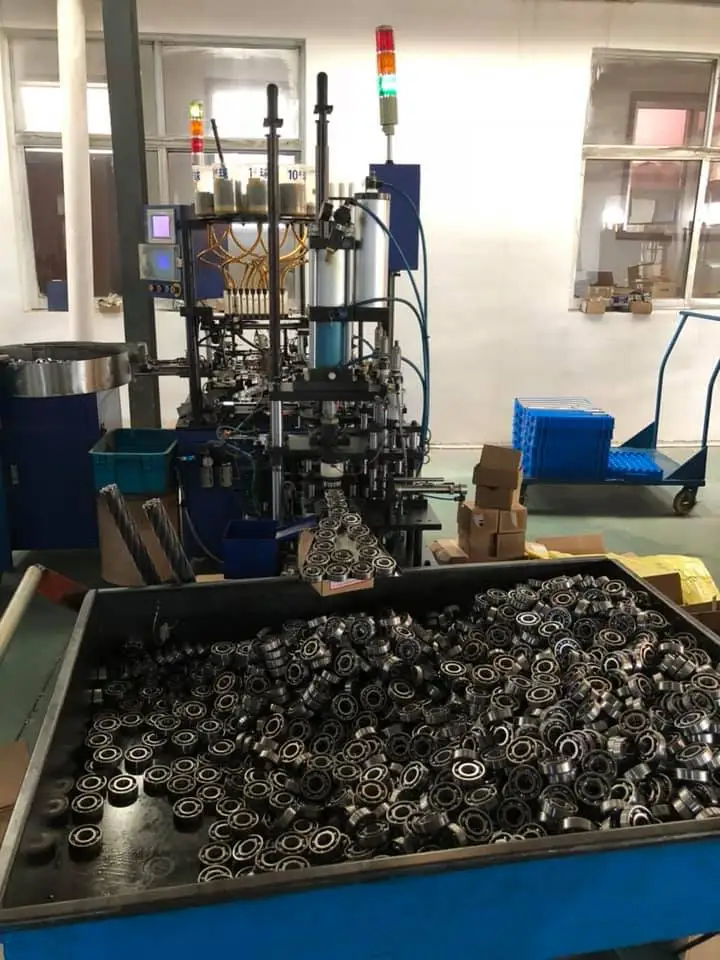

LAB and plant workshop

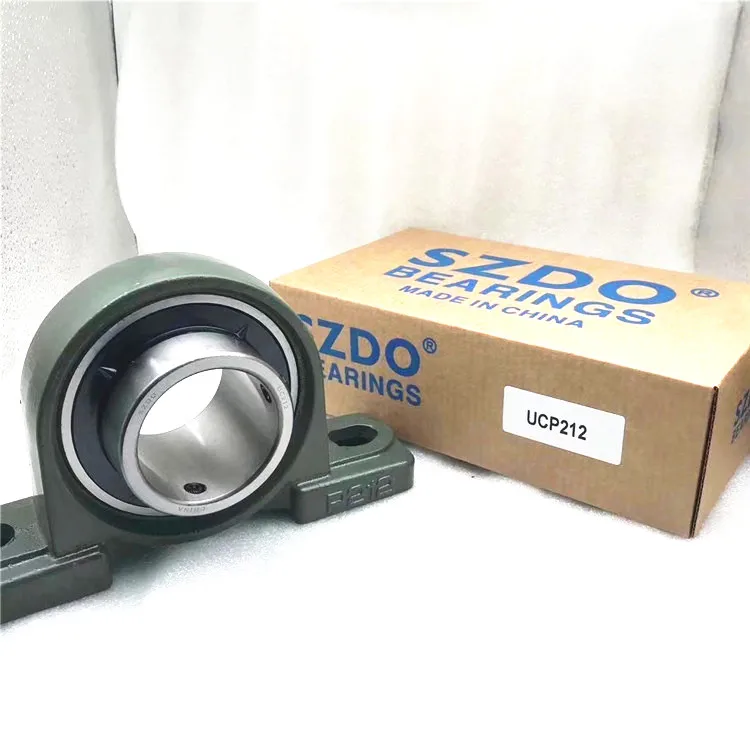

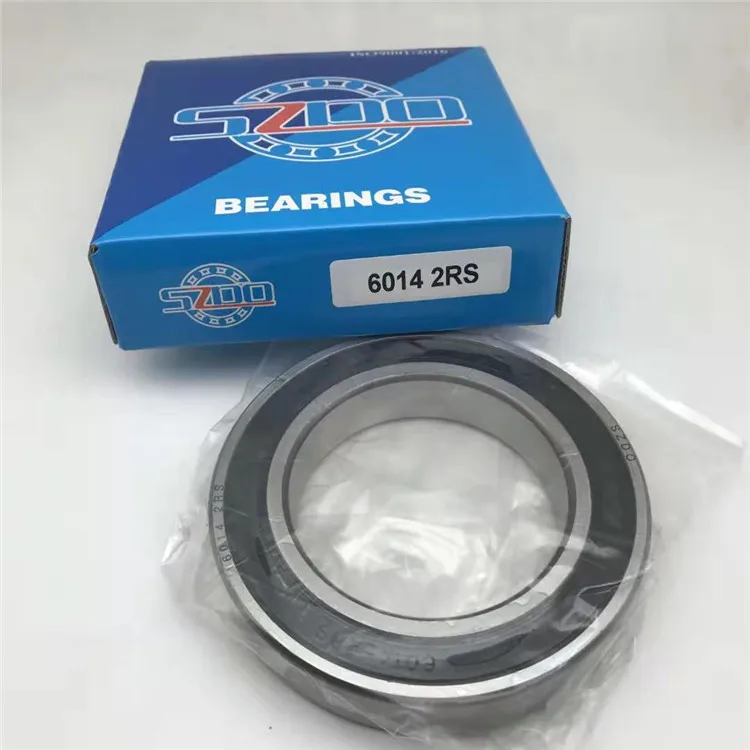

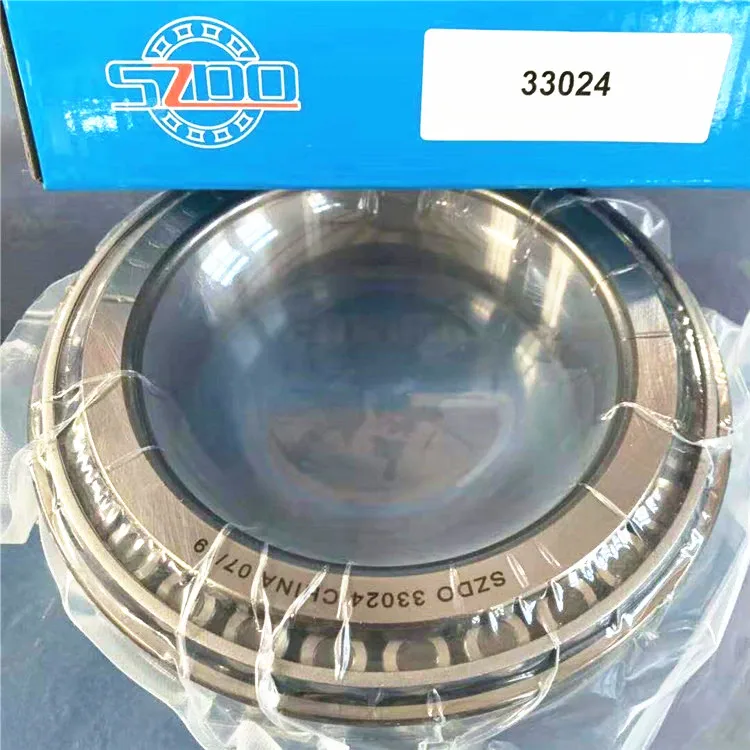

Our own brand SZDO
