Product Overview
Description
Product Description

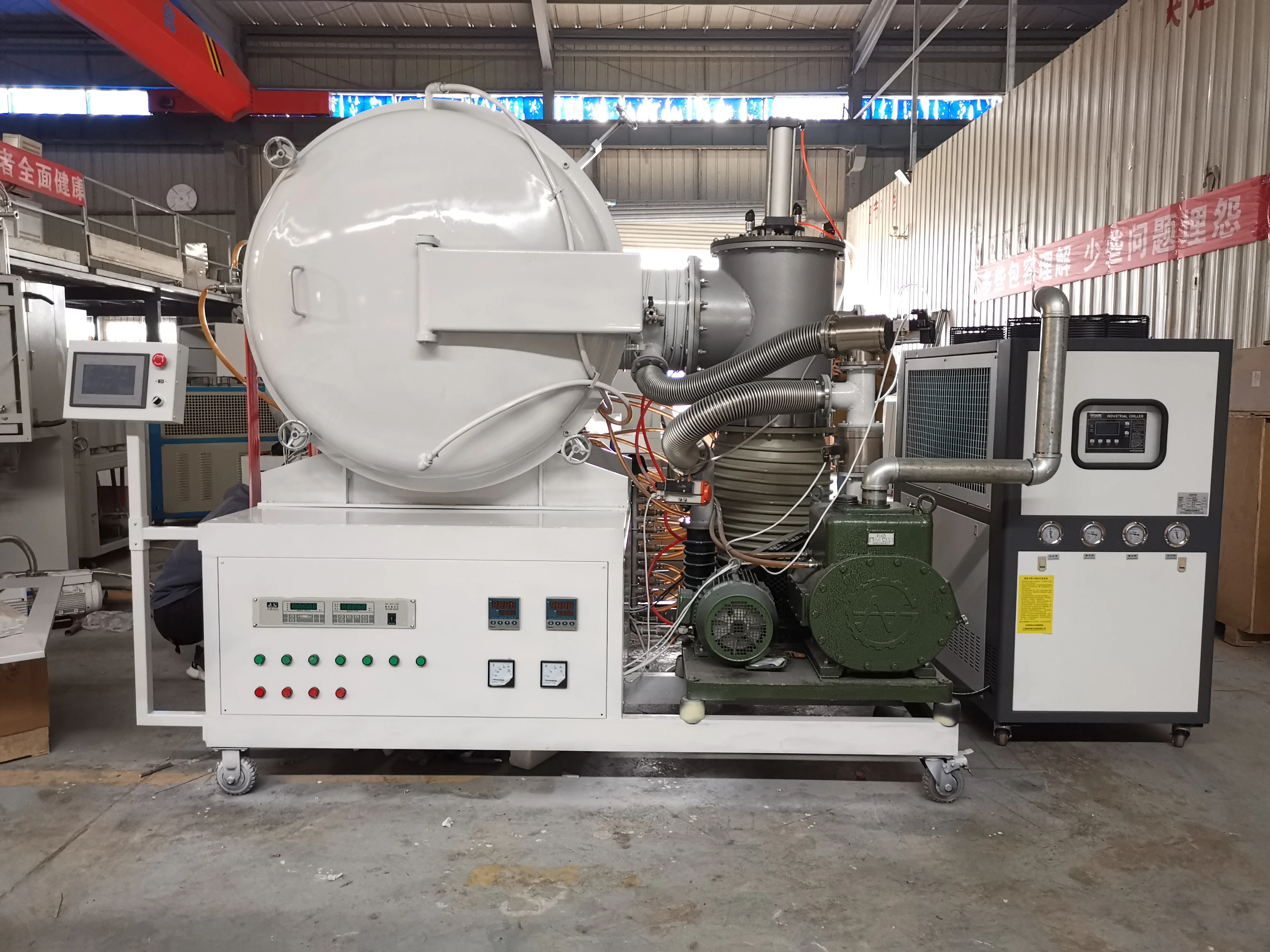

KEJIA 1500C programmable vacuum stainless steel annealing brazing heat treatment furnace machine
Main USES:
Vacuum molybdenum furnace is mainly used for high speed steel, hot and cold working mold steel, Martensitic stainless steel, elastic alloy, superalloy, magnetic material and titanium alloy vacuum heat treatment, vacuum degreasing, vacuum brazing and vacuum sintering.
Product Features:
1. Integrated design, compact structure, beautiful appearance, with its own casters, convenient and fast transfer
2. Horizontal structure side door, exquisite structure, easy loading and unloading materials
3. The sintering temperature data can be recorded in real time, and the data can be inquired, exported and downloaded
4. High sintering vacuum degree, the vacuum degree up to 6.0* 10-3Pa is far more than the disadvantages of the traditional vacuum annealing furnace thousands of pa, so as to ensure that the product does not oxidize.

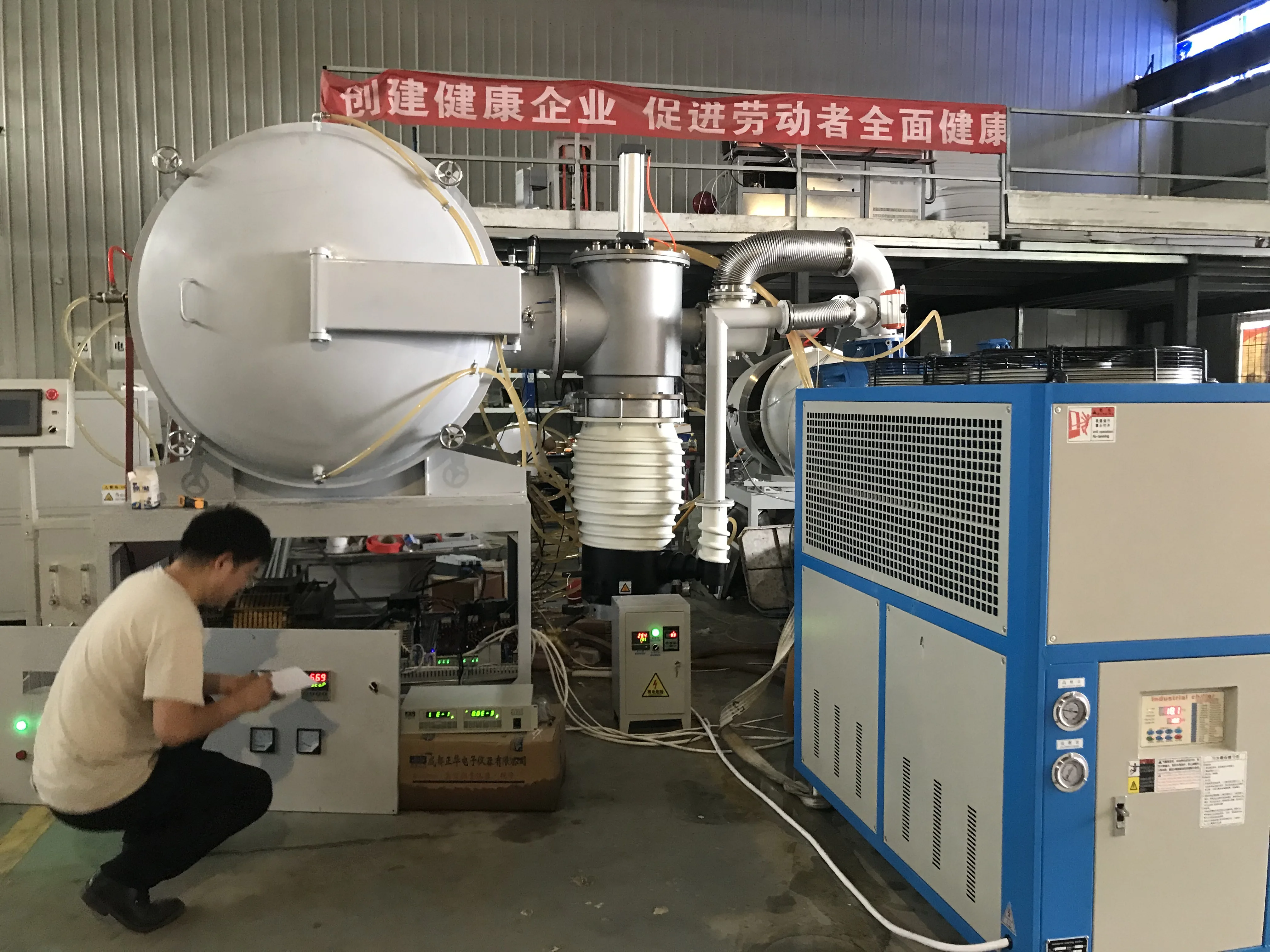

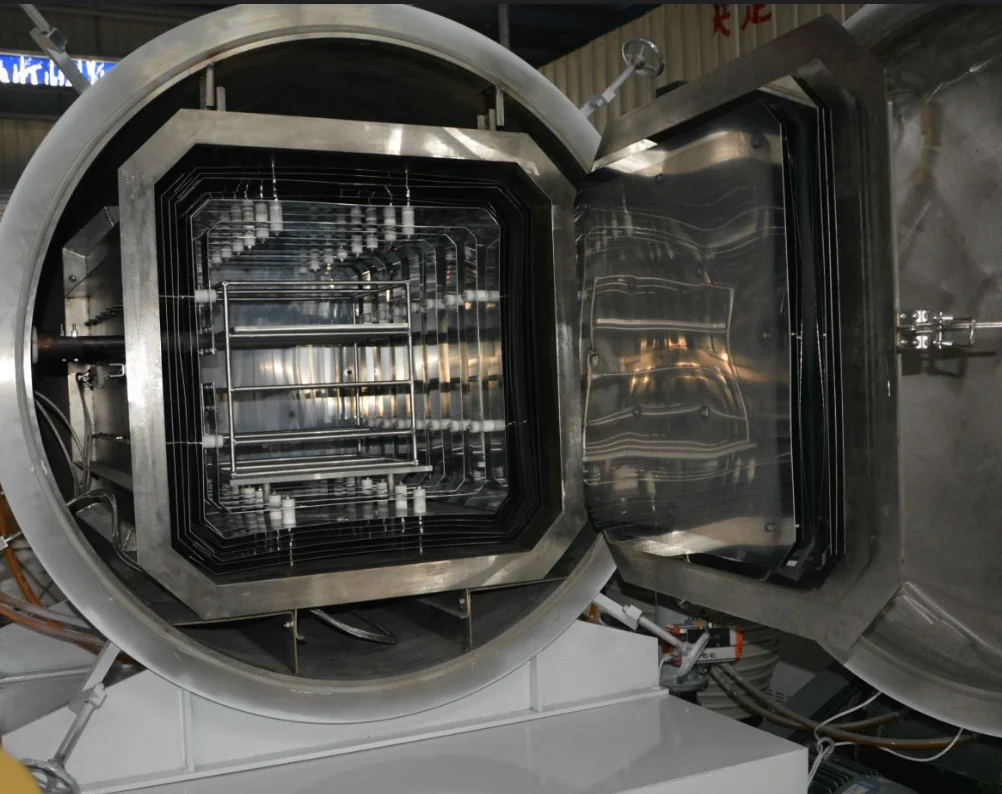

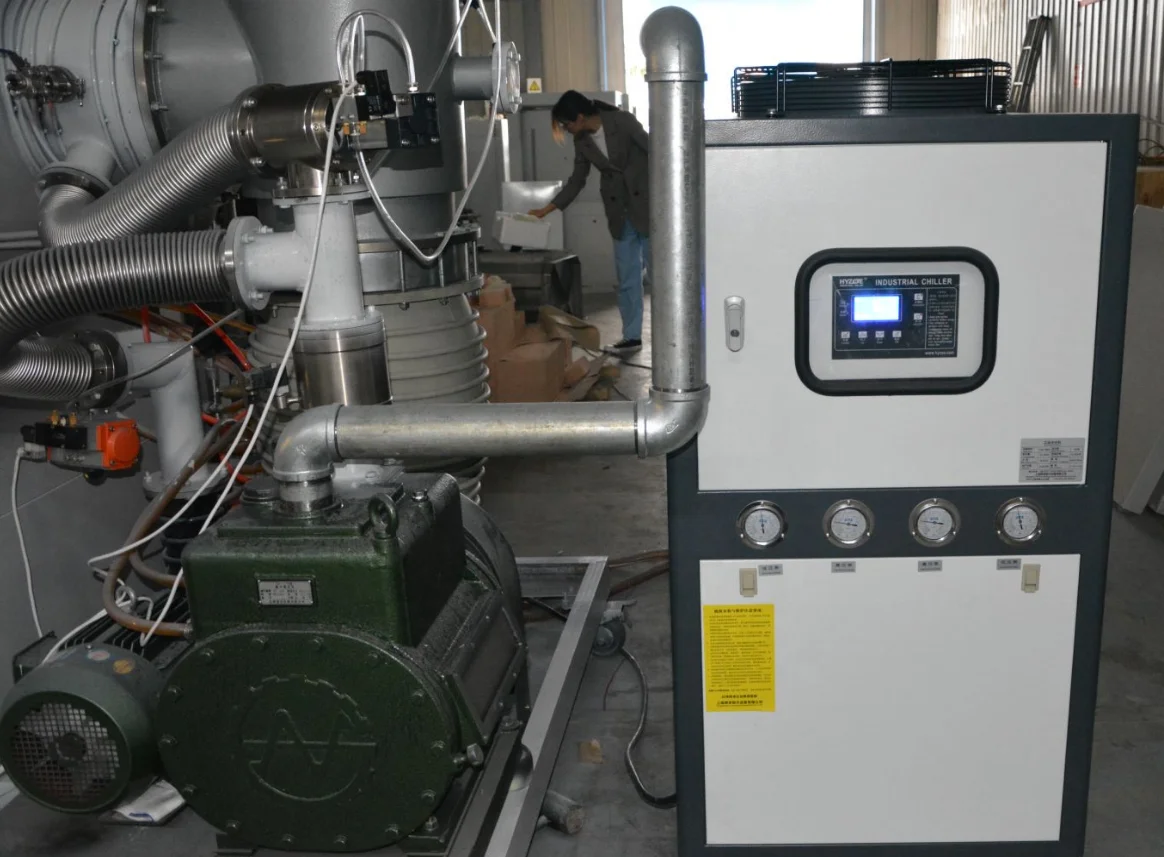

1.vacuum molybdenum heat treatment furnace is a complete set of equipment for high temperature heat treatment under vacuum (or other atmosphere) conditions. It mainly adopts high temperature resistant alloy as furnace material, heating molybdenum belt as heating element, double-layer water-cooled vacuum chamber, and can be configured with circulating water refrigeration system for furnace body cooling.

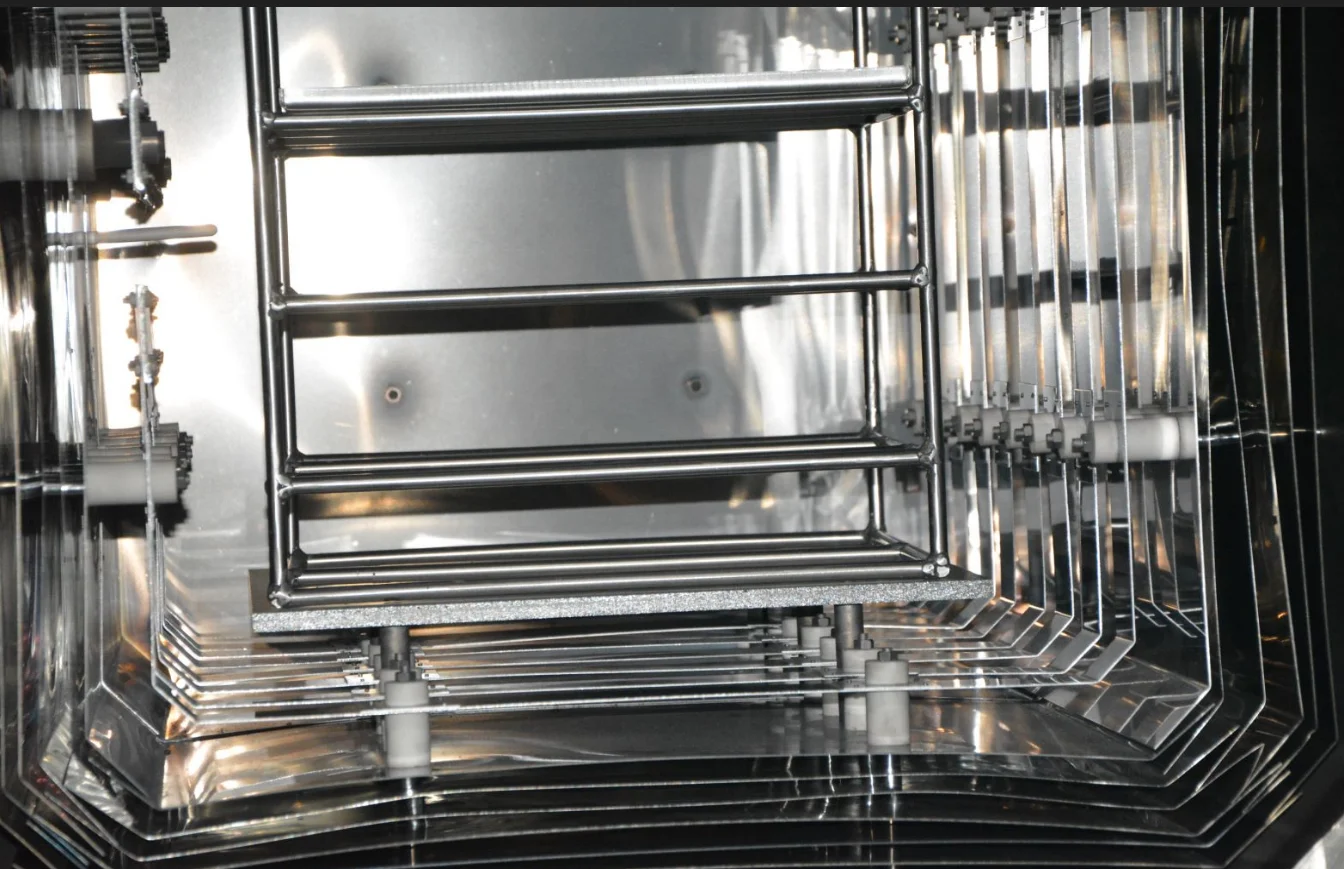

2.The heat insulation screen vacuum heat treatment furnace has reached the international advanced level, which can realize rapid heating and cooling, no oxidation, no decarburization, no carburizing, can remove the phosphorus chips on the surface of the work piece, and has the function of degreasing and degassing, so as to achieve the effect of bright surface purification.
Technical parameters
KEJIA 1500C programmable vacuum stainless steel annealing brazing heat treatment furnace machine
| KEJIA 1500C programmable vacuum stainless steel annealing brazing heat treatment furnace machine | |
Model | KJ-VM1400-64CWG |
Working temperature | 1300℃(continuous) |
Heating element | molybdenum alloy |
Insulation layer | molybdenum Plate |
Thermocouple | S type |
Chamber size(mm) | 400*400*400(W*H*D) |
Chamber material | Stainless Steel Metal shield |
Heating rate | 0-20℃/min |
Temperature control accuracy | +/-1℃ |
Temperature control | Programmable PID Intellectual |
Power | 15-50Kw |
Max.vacuum | 10Pa /6.67*10-3 Pa |
Furnace cooling | Nature air cooling/ water cooling |
Chamber size | 200*200*300 mm 200*200*400 mm 400*400*500 mm (width*height*depth) |
customer design sizes and volume is accepted. | |
Packaging & Shipping
Company Information
Zhengzhou Kejia electric furnace co.Ltd is a high-tech enterprise with more than 10 years' experience on research, development, production and sales of heat treatment equipment. We offer the widest and deepest range of furnace including box muffle furnace,tubular resistance furnace, vacuum furnace, atmosphere furnace, CVD/PECVD system, dental furnace, which are widely used in powder metallurgy, vacuum brazing, ceramic sintering, battery material research, drying, metal bright processing, parts annealing and other industries scientific research in many fields.
For years, in the customer-oriented direction, with excellent technology and rich practice accumulation, we commit to continuous improvement on product quality and technical services and have developed a series of experimental electric furnaces and industrial furnaces of international advanced level.our products are exported to the United States, Germany, Italy, France, Russia, Canada, the United kingdom, Australia, India, Pakistan, South Africa, Brazil, Thiland, Singapore and so on.satisfied customers in more than 30 countries and regions offer proof of our commitment to excellent design, quality and cost efficiency. Our integrity, quality and pre-sales and after-sales service have been widely recognized by our users. We will continue to uphold the concept of befriending the world in good faith and winning the market with quality.
Our Services
1.we supply the pre-sales service,including machine test and commissioning to ensure the safety and stability of furnace.
2.we supply the after-sales service,if you have any question about the use and quality of furnace, please contact us when you are free. The warranty of furnace is 12 months.
.
FAQ
Q1. Are you a manufacturer?
Yes, we are the manufacturer specialize in high temperature furnaces and heating elements.
Q2. How to get a quotation?
You can contact us online or send email directly.
Generally,we need to know the furnace type,the temperature and the working room size you need.If you have no specific idea,let us know your test request.We would try our best to recommend a suitable item to you.
Q3. How long does it take to get the goods?
Normally 7-30 working days.
Q4. How to transport the products?
By sea,by air and by express is optional depending on the demand of client.
Q5. Why choose us?
1.We are a manufacturer so that we have the punctual delivery time.
2.One sales representative serves you from inquiry to products shipped out.Communicate directly and conveniently.
3.Professional R&D team.
4.Strict QC.
5.Smooth shipping.
6.Rich experience. Our customers are all over the world like USA, UK, Russia, Korea, Southeast Asia, etc. so that we are quite experienced.
7.Certificate: All our products are CE approval.
8.Fast reply: Our team will respond your requests within 8-working-hour.
