Falcon Cheap Price Automatic Sliding Door Sensor 24G Motion Sensor

Share on (1600168222995):


Price:$15.00

Quantity:


Product Overview

Description




Falcon Cheap Price Automatic Sliding Door Sensor 24G Motion Sensor



Product Description



Description

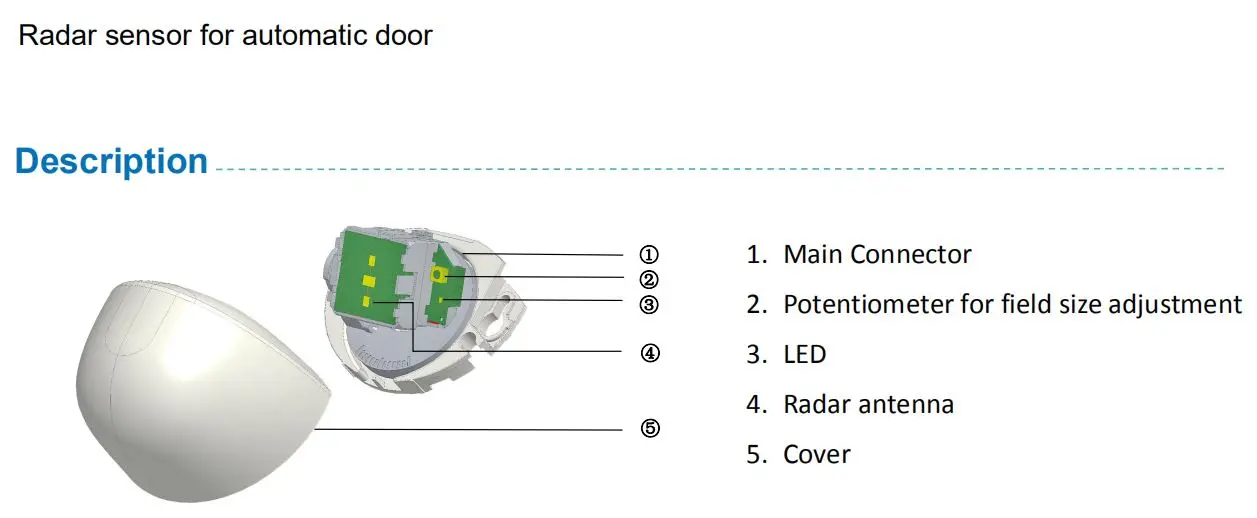

Falcon is a radar sensor, which uses microwave doppler technology for activation of door. It can be mounted on all types of standard automatic doors. Falcon 2.0 is with unidirectionality function, to reduce the heat loss from building and save energy.




Feature



Function and Advantages





radar motion sensor for automatic door


Unidirectional and bidirectional detection optional


Intelligently opening & closing


High sensitivity and accuracy

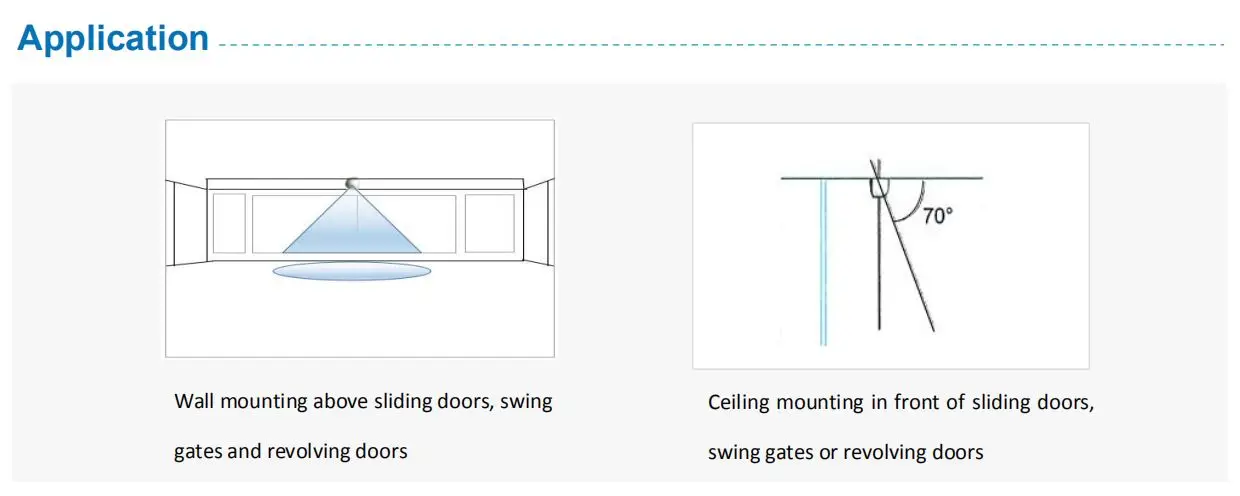

For all kinds of automatic doors











Product Parameter








































































Technology:Microwave doppler radar
Transmitter frequency:24.150 GHz
Transmitter radiated power:< 20 dBm EIRP
Transmitter power density:< 5 mW/cm²
Min. detection speed:5 cm/s
Supply voltage:12V - 24V AC -/+10% 12V -24V DC +30%/-10%
Mains frequency:50 Hz - 60 Hz
Max power consumption:< 2 W
Output:solid state relay(free of potential change-over contact
Current max.output:2A(MAX)
Degree of Protection:IP54
Mounting height:1.8 m to 5 m
Temperature range:-25'C TO +70'c
Dimensions:80 mm(L) * 60 mm(H)* 50 mm (W)

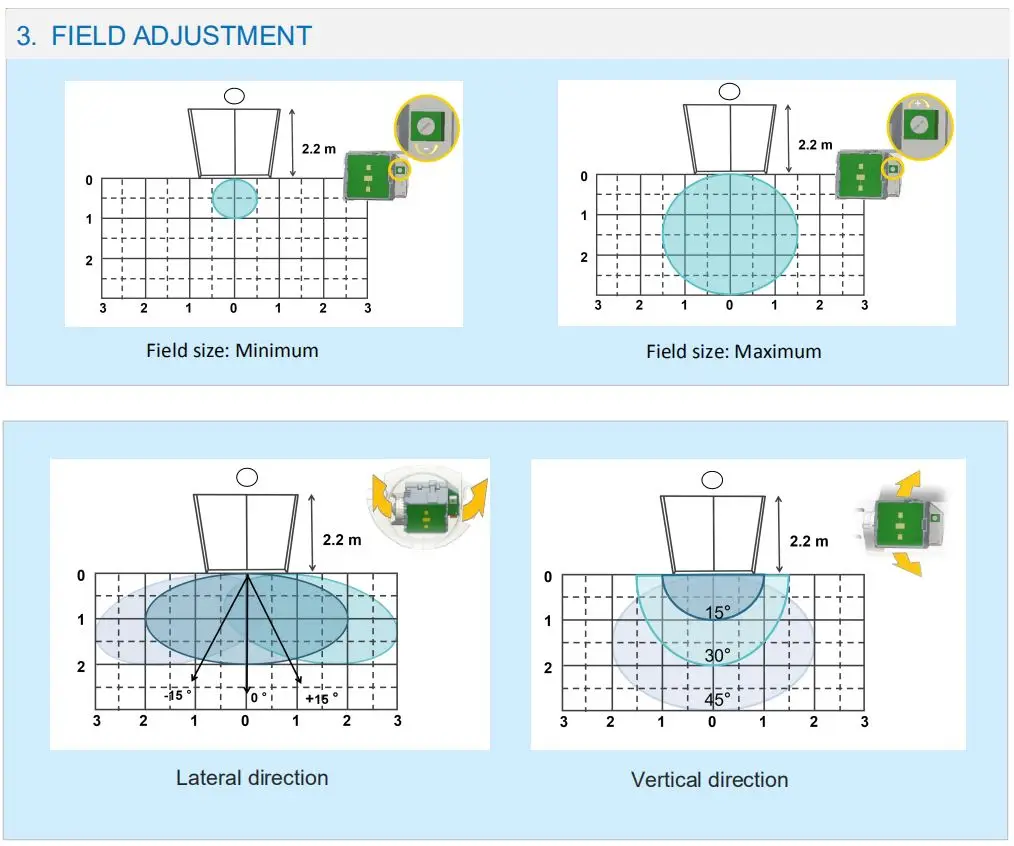

Angle of inclination:0' to 90' (vertical direction); -30' to + 30'(lateral direction)
Cable length:3 M

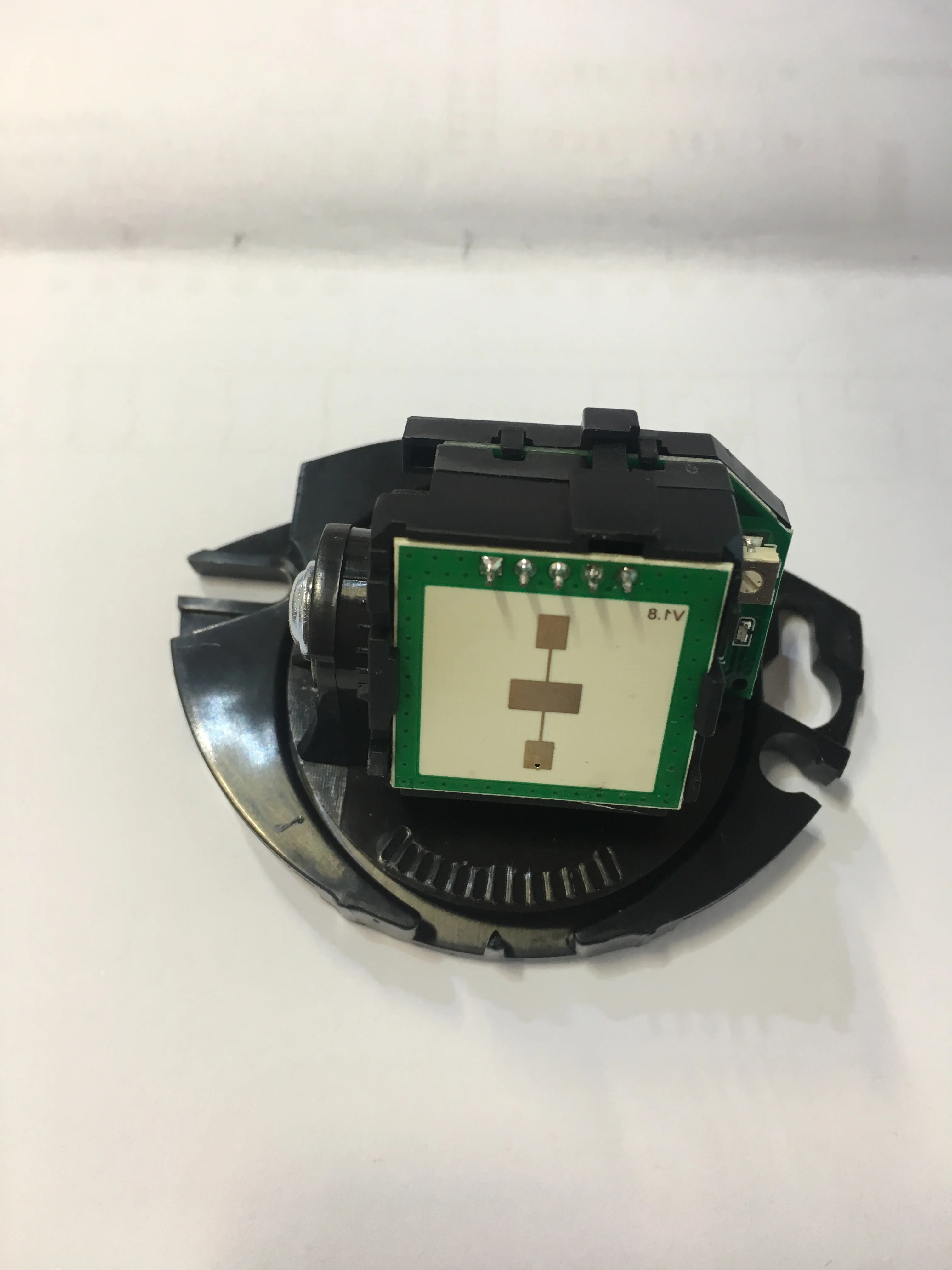

Detailed Images







Packaging & Shipping

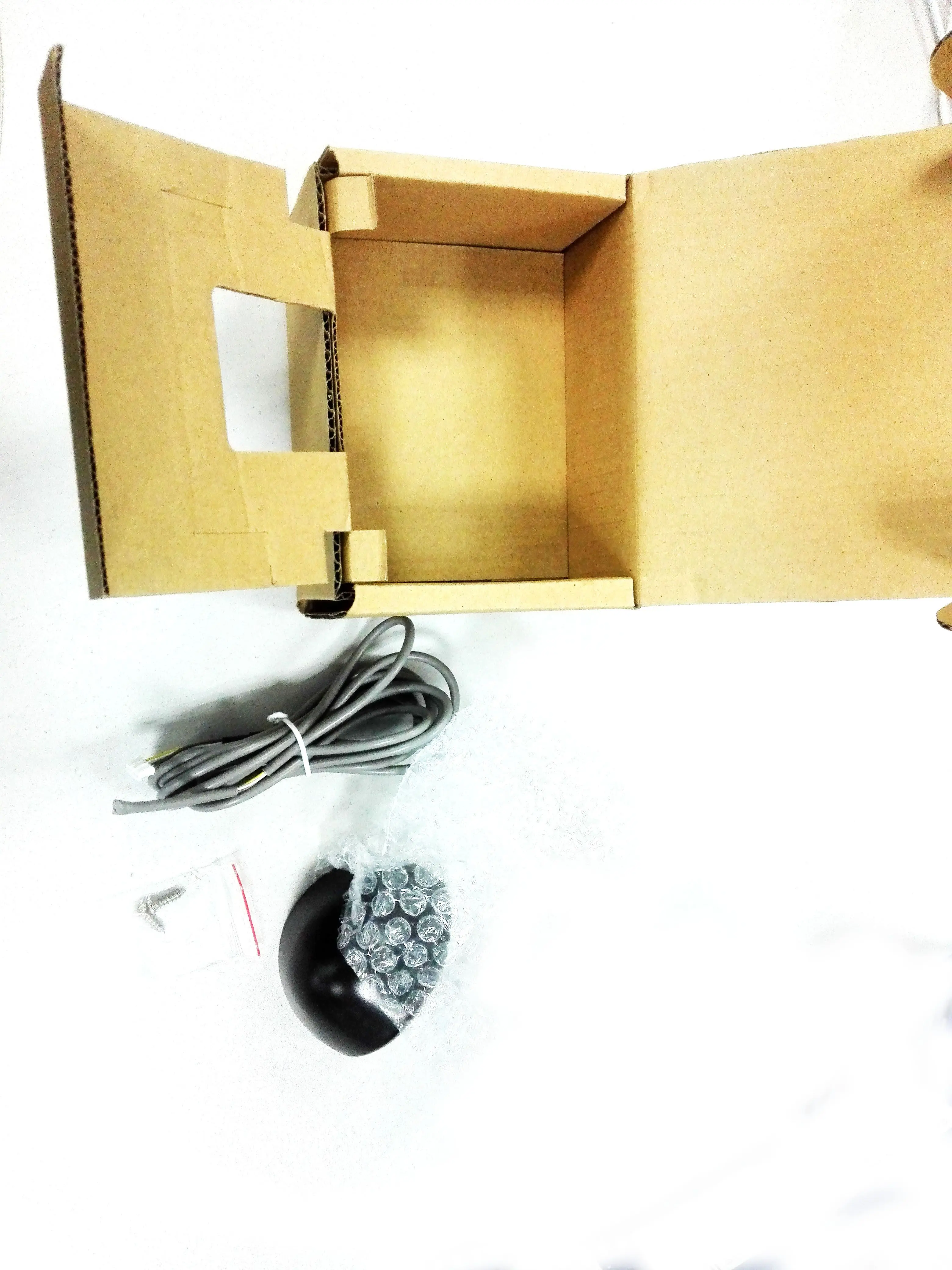

 Standard packaging: polybag for each product, and inner box for a pack, carton outside.


OEM packaging is acceptable!





.jpg











Shipping:







































Method



 Time Needed



 Details



 DHL, Fedex, UPS



 5 workdays normally



Freight Pre-paid or Freight Collect,


DHL is most frequently used



 EMS, TNT



 8 workdays normally



Freight Pre-paid or Freight Collect



Registered Mail



more than 30days



---



By Air







Forwarder Appointed or We help to Find One for You



By Ship







Forwarder Appointed or We help to Find One for You











Company Information


Qinuo Electronics is professional manufacturer who dedicate to providing various RF products for over 5 years,  including car key fobs/ remote controls /duplicators /auto gate control boards /auto gate control box /receiver /kits /receiver modules /detecting device etc......


about us 1.jpgabout us 2.jpg

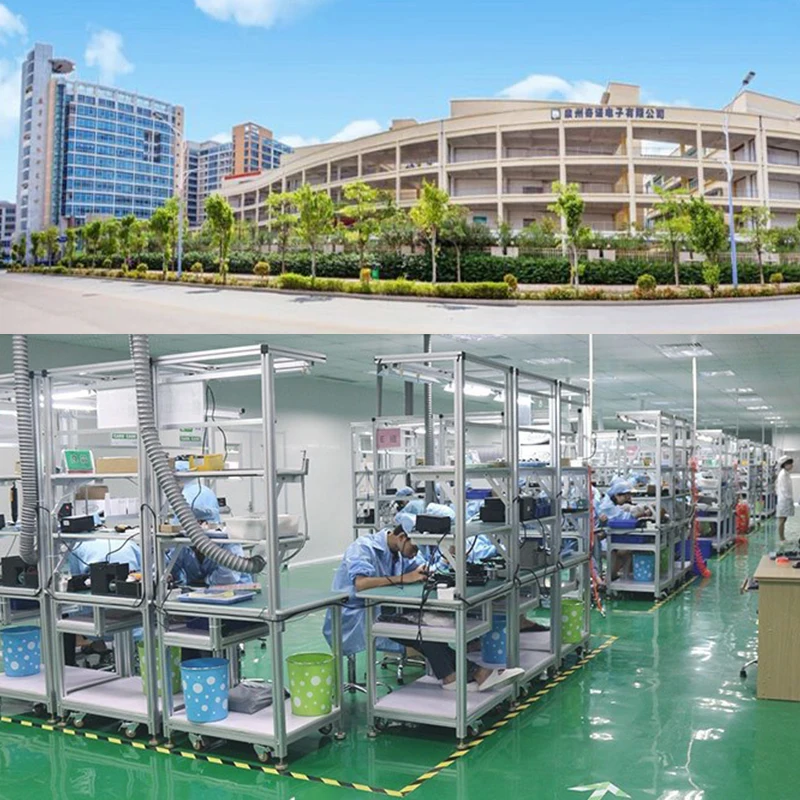

Our New Factory--DUST FREE PLANT:



  • 2484 square meters DUST FREE PLANT

  • Air Shower room, anti-static working uniform

  • 3 pcs imported SMT machines

  • Automatic screwing machines

  • Automatic jointing machines

  • Complete Quality Control Systemabout us 3.jpg


  • Our Certificates:about us 4.jpg
