Black pvc electrical antistatic insulation civil engineering construction strong adhesion tape for air conditioner
- Category: >>>
- Supplier: KYOWA LIMITED
Share on (1600168677239):
Product Overview
Description
Products Information
This product provide you great workability by strong adhesive which can deal with many usage and exellent hand cutting.
Its high quality and performance have received good evaluation for long time all of the world.
Therefore this product is used in many scene like civil engineering, construction, factory, workshop and heavy or light electric machinery.
Its high quality and performance have received good evaluation for long time all of the world.
Therefore this product is used in many scene like civil engineering, construction, factory, workshop and heavy or light electric machinery.
■Product Feature:
・It can be sticked to almost all of materials like metal, wood, glass, fabric and others with strong adhesion.
・It can stick for long time.
・Soft and Flexible, good workability on many scenes.
・Excellent adhesion and softness even in clod weather.
・Hand cutting is available, so it can be used earsily at terminarion or joint parts.
Manufactured in Kyowa grades and checked by our laboratory during the production with regard to the fulfillment of specification.
■Usages :
・Bundling Automotive wiring harness.
・Identification of Jigs.
・Insulating joint part of electric wires and cable and terminal.
■Structure:
Backing material : Soft PVC
Adhesive : Rubber based Total
Thickness : 0.18mm
Size : 19mm or 50mm x 10m or 20m
(Other size is also available) Available
Color : Black, White, Yellow, Red, Blue, Green, Gray, Transparent, Ivory, Tan, light blue, light green, pink

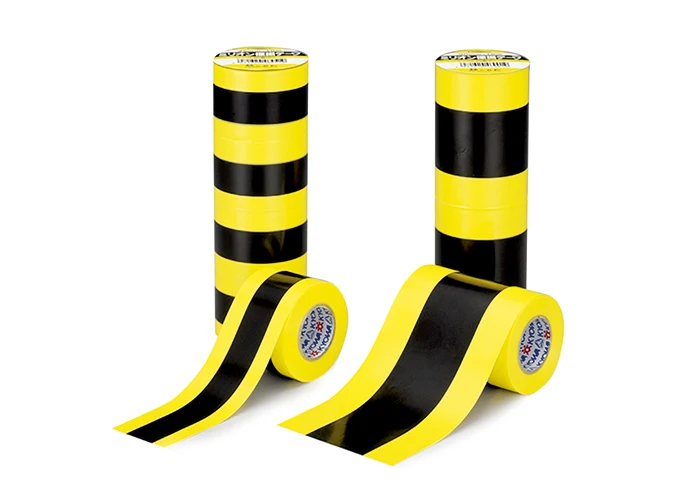

Million Signal tape

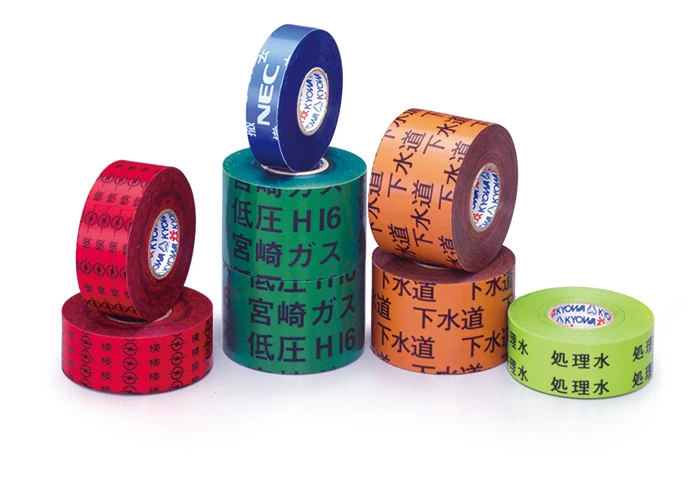

Million Buried Pipe tape
The price, MOQ and other conditions can be negotiated.
The volume discount may be applied.
If you have any questions/requirements, please feel free to contact us.
The volume discount may be applied.
If you have any questions/requirements, please feel free to contact us.
We are working on quality management and environment management based on ISO9001, ISO14001 and ISO13485.

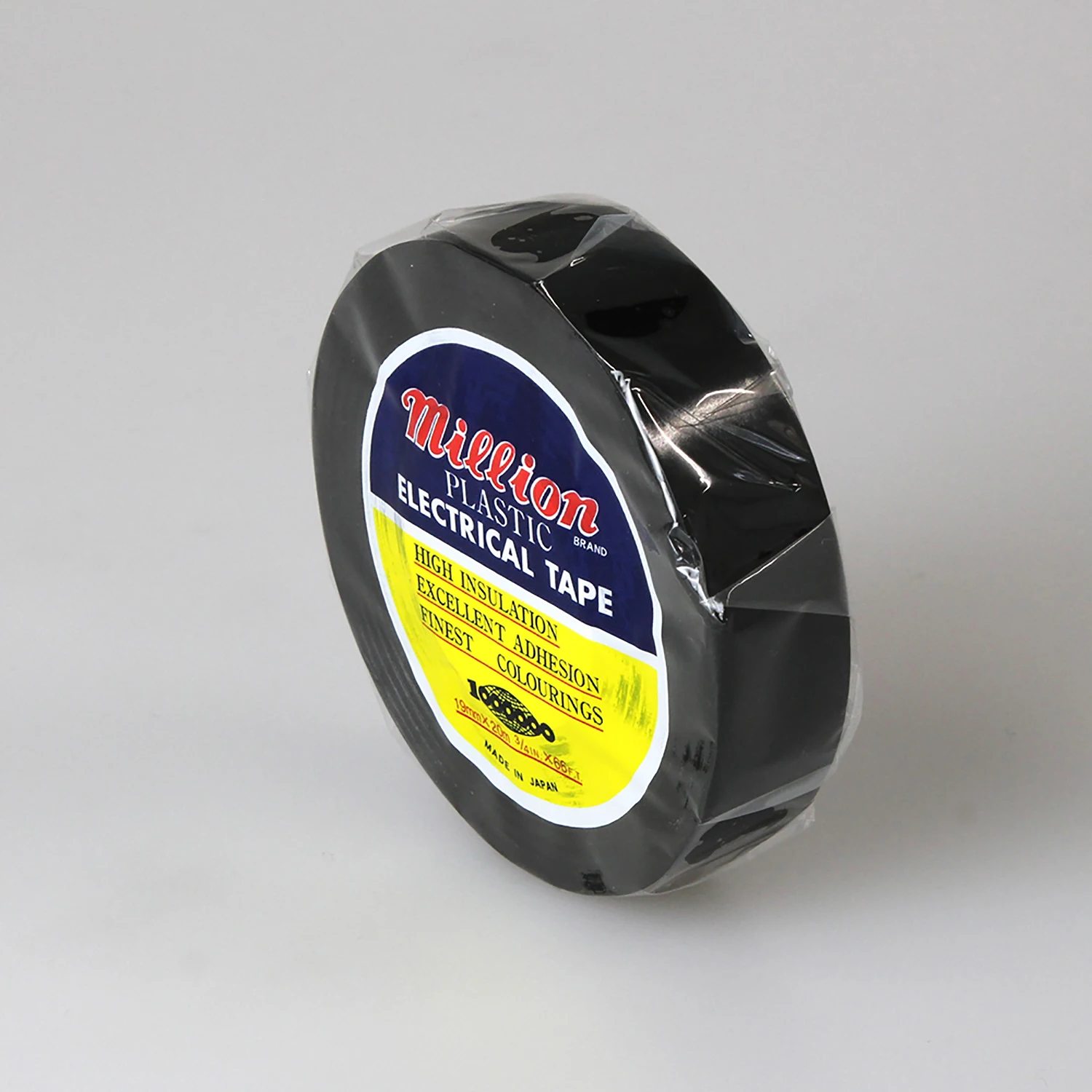

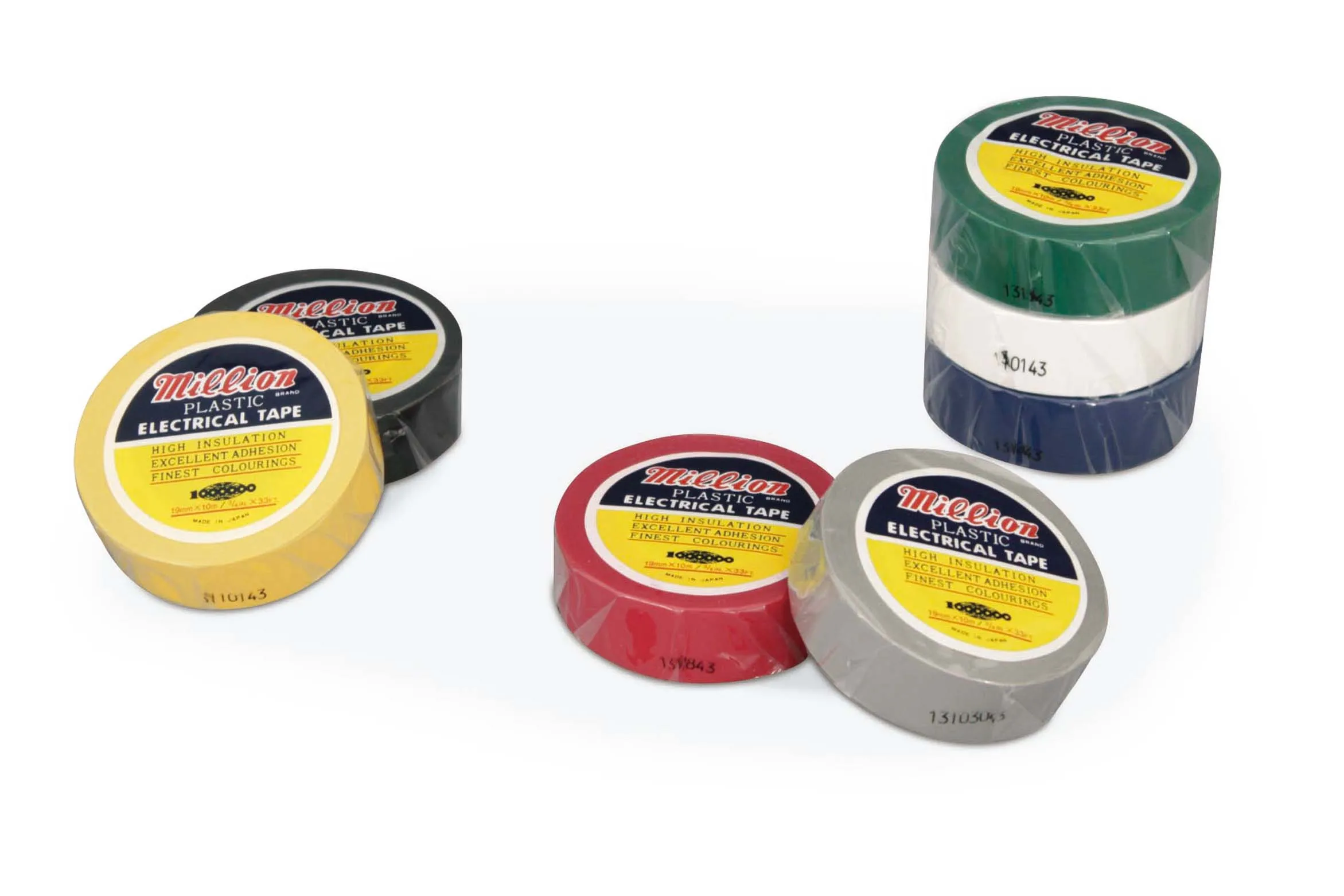

Million Electrical Insulation tape (19mm width)
Test Item | Stanard | ||||||
Adhesion to test board | 1.30N/cm | ||||||
Adhesion to rear surface itself | 1.50N/cm | ||||||
Tensile Strength | 30.0N/cm | ||||||
Elongation | 180% | ||||||
Electric strength - at room temperature | 60kV/mm | ||||||
Million Signal tape
Test Item | Stanard | ||||||
Adhesion to test board | 1.70N/cm | ||||||
Adhesion to rear surface itself | 1.60N/cm | ||||||
Tensile Strength | 30.0N/cm | ||||||
Elongation | 200% | ||||||
Milion Buried tape
Test Item | Stanard | ||||||
Adhesion to test board | 1.70N/cm | ||||||
Adhesion to rear surface itself | 1.60N/cm | ||||||
Tensile Strength | 30.0N/cm | ||||||
Elongation | 200% | ||||||
JIS C 2336 authentication number: JQ0508107
RoHS approved
Product | Width | Length | Thickness | Individual package | Shrink Package | Outer Package |
Million Electrical Insulation tape | 19mm | 10M | 0.2mm | 1 roll | 10 rolls | 200 rolls |
20M | ||||||
50mm | 20M | 0.2mm | - | 4 rolls | 80 rolls | |
Million Signal tape | 45mm | 10M | 0.2mm | - | 4 rolls | 100 rolls |
90mm | 2 rolls | 50 rolls | ||||
Buried Pipe tape | 19mm | 20M | 0.2mm | - | - | 630 rolls (MOQ) |
30mm | 380 rolls (MOQ) | |||||
50mm | 230 rolls (MOQ) | |||||
100mm | 115 rolls (MOQ) |
Packaging
Medical/Home use
Company Information
Since our foundation in 1923, we have developed our business and production technique of Rubber products, packaging materials, many kinds of tape and medical products.
We have long history and tremendous experience of business with foreign countries, and has been progressing in globalization since more than 50 years ago.
Wide range of Kyowa’s quality products are available for various applications and need in the ever changing world market.
