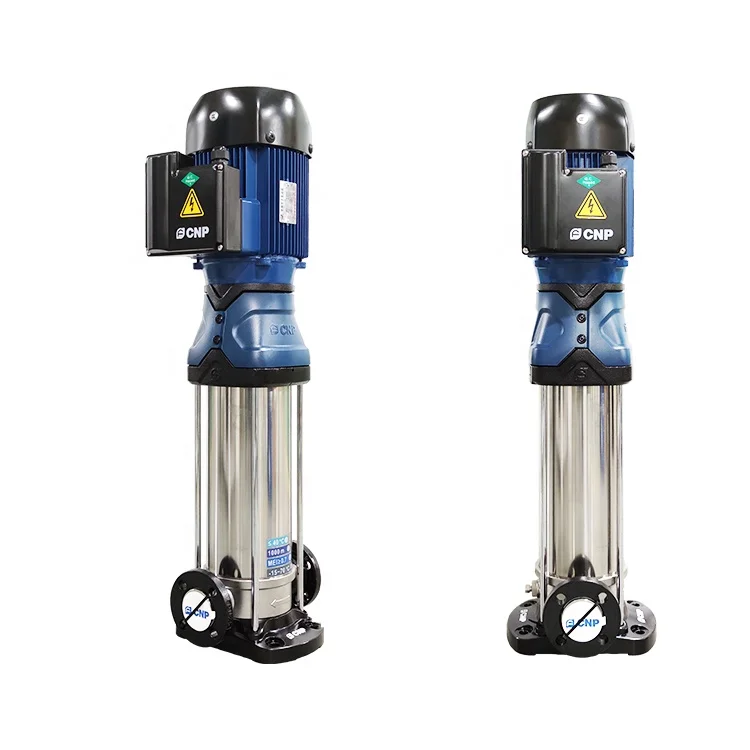

Производитель CNP CDM3 50 Гц Электрический Вертикальный Многоступенчатый Центробежный промышленный водяной насос высокого давления
- Category: Water Treatment Machinery >>>
- Supplier: Tiger,(hangzhou),Flow,Systems,Co.,Ltd.
Share on:
Product Overview
Description
Recommend Products
Product Description
Product name | Manufacturer CNP CDM3 50HZ Electric High Pressure Vertical Multistage Centrifugal Industrial Booster Water Pump |
Material | Stainless Steel(Except Flow Passage Components) |
Packaging | Wooden case or carton box will be provided. |
Product Description
Motor
Totally enclosed, fan cooled, 2 pole standard motor
IP class: IP55
Insulation class: F
Voltage: 50Hz:1×200-230/240V Totally enclosed, fan cooled, 2 pole standard motor
IP class: IP55
Insulation class: F
3×200-220/346-380V
3×220-240/380-415V
Working conditions
Thin, clean, non-flammable, non-explosive, solid free, fiber free, physically and chemically water-like liquid.
Liquid temperature:
Normal temperature type: -15℃ to 70℃
Hot water type:-15℃ to 120℃
Ambient temperature:up to +40℃
Altitude: up to 1000m
Performance curve
Following conditions are suitable for performance curve below.
1.All curves are based on the measured values of 50Hz;constant motor speed 3500rpm or 3540rpm.
2.Curve tolerance in conformity with ISO9906:2012, Grade 3B.
3.Measurement is done with 20℃ air-free water, kinematic viscosity of 1mm2 /sec.
4.The operation of pump shall refer to the performance region indicated by the thickened curve to prevent overheating due to too small flow rate or overload of motor due to too large flow rate.
Following conditions are suitable for performance curve below.
1.All curves are based on the measured values of 50Hz;constant motor speed 3500rpm or 3540rpm.
2.Curve tolerance in conformity with ISO9906:2012, Grade 3B.
3.Measurement is done with 20℃ air-free water, kinematic viscosity of 1mm2 /sec.
4.The operation of pump shall refer to the performance region indicated by the thickened curve to prevent overheating due to too small flow rate or overload of motor due to too large flow rate.
Material
NO | Name | Material | ANSI/ASTM | |||
1 | Motor | |||||
2 | Pump Head | Cast Iron | ASTM25B | |||
3 | Mechanical Seal | Tungsten carbide /Carbon | ||||
4 | Top Diffuser | Stainless Steel | AISI 304 | |||
5 | Diffuser | Stainless Steel | AISI 304 | |||
6 | Support Diffuser | Stainless Steel | AISI 304 | |||
7 | Inducer | Stainless Steel | AISI 304 | |||
8 | Impeller | Stainless Steel | AISI 304 | |||
9 | Bearing | Tungsten carbide | ||||
10 | Shaft | Stainless Steel | AISI304 | |||
11 | Impeller Sleeve | Stainless Steel | AISI 304 | |||
12 | Cylinder | Stainless Steel | AISI 304 | |||
13 | Coupling | Carbon Steel/Powder metallurgy | AISI 304 | |||
CDMF | Submersible motor | |||||
14 | Inlet&Outlet Chamber | Stainless Steel | AISI304 | |||
15 | Lining | Stainless Steel | AISI 304 | |||
16 | Base Plate | Cast aluminum | ||||
CDM | ||||||
17 | Inlet&Outlet Chamber | Cast Iron | ASTM25B | |||
