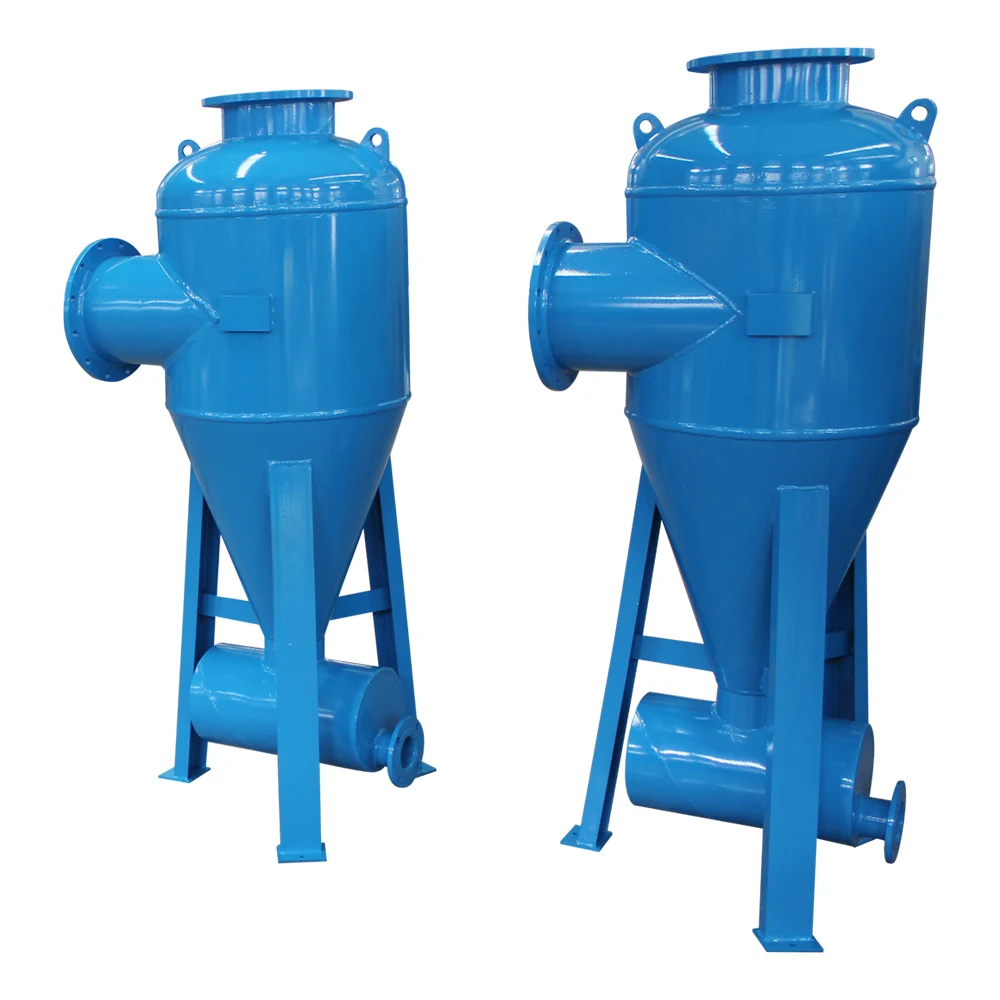

High efficient 6' Hydro cyclone sand separator protect the irrigation components from damage caused by debris

Product Overview

Description

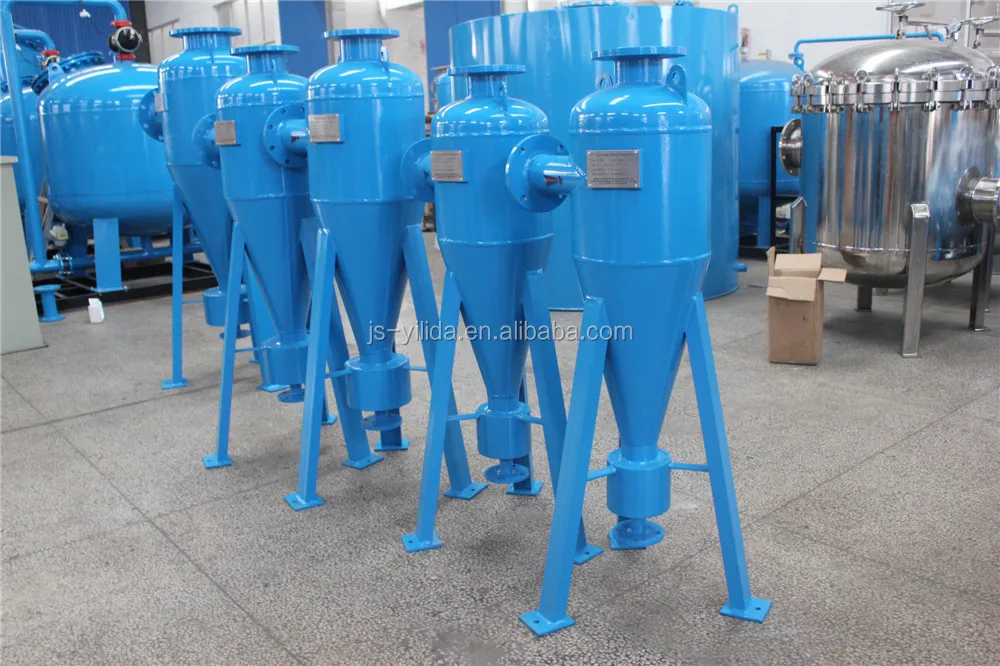

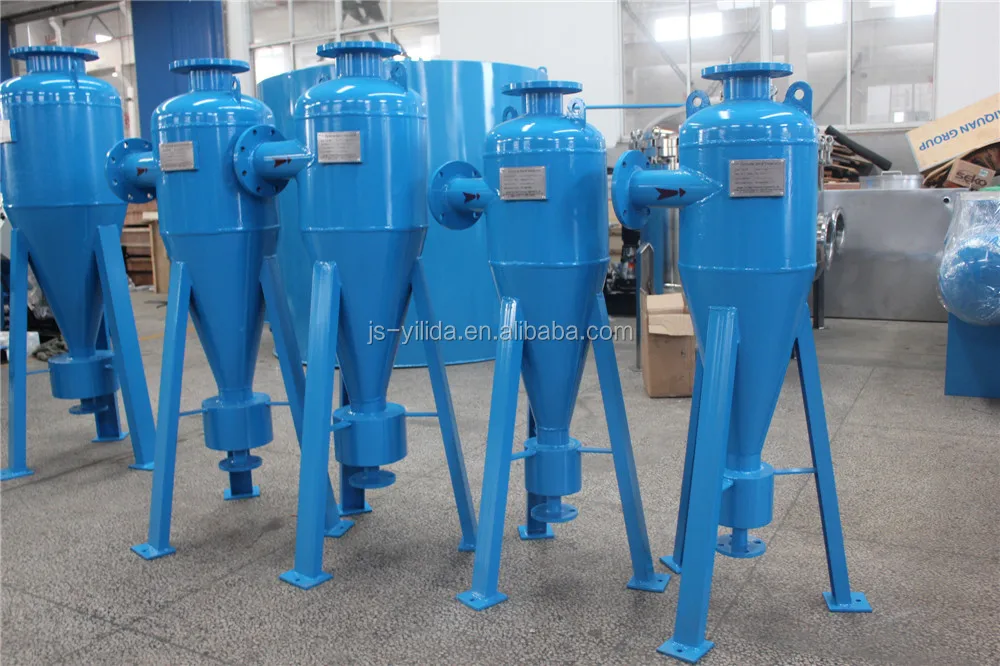

Centrifugal sand separator



Introduction



A centrifugal sand separator, often used for pre-filtration, removes larger particles of sand. Water entering the separator is forced into a spiral flow pattern, developing centrifugal forces that cause the sand particles to move to the outer edge of the separator. These particles then settle out of the water into a collection chamber at the bottom. Clean water flows out of the separator at the vortex of the rotation, along the separator’s axis.



A sand separator is effective in removing as much as 98 percent of particles that are too large to fit through an equivalent 200-mesh filter. The device does not remove organic material.



A sand separator should be used as the initial filter on any irrigation system that is pumping appreciable quantities of sand, and should be followed by another type of secondary filter to take out the finer particles.



Cyclone sand separator/desander is to separate the solid particles in the flowing liquid while swirling in the desander on the principle of screening and separation,which integrates the function of cyclone and filtering and show good effect in desanding,turbidity reduction and solid-liquid separating.it is widely used in water source hot pump,water treatment,food-stuff,Pharmaceutical and other industry.also it is used in river water,desanding for well water,coal washing water,mining water,liquid-solid separating,air exhasuting and non-dissolved liquid separating.



Working principle
Cyclone sand filter is designed and manufactured on the screening principle that solid particles in the fluid swirling and flowing in the sand filter. It is a new separation device which combines filtering device, when the water flow is under certain pressure, it flows from the inlet tangentially enters the sand filter, and generates violent whirlpool, since the sand and water is different in density, under the comprehensive action of centrifugal force, centripetal force and fluid drag force, the low density water rises and discharged from the water outlet, high density sand discharges from the sewage outlet at bottom of the device. Individual particles joint floating along the water flow will be filtrated by the second stage filtering device, so as to realize the purpose of sand removal.

Application field
1. Mainly applied to water quality treatment and control for the raw water and water supplying, such as: River water, well water desanding, coal washing water, mineral separation, solid-liquid separation, gas and liquid immiscible liquid separation.
2. It can be widely applied to the water source heating pump system, a heating water, central air conditioning cooling water, chilled water, steel, power, chemical and other industrial and mining enterprises, tap water, sea water, surface water, ground water.







Operation:

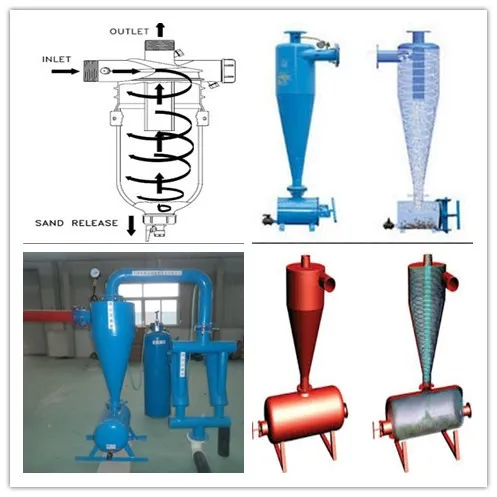

Water enters the hydrocyclone via the tangential inlet which creates a spiral flow along the walls of the filter. The centrifugal force separates the waste and sand particles and pushes them towards the walls of the sand separator. Those particles gravitate downwards and into the sedimentation tank, while clean water moves upwards and exits through the top outlet.
For the sand separator to operate correctly, the lead loss must remain between 2-5m. The separation efficiency is not affected by the accumulation of dirt in the sedimentation tank. The sedimentation tank is drained by opening a flush valve for a few seconds manually or automatically by timer.

Product characteristics:
1. No energy consumption, good sand removing effect, especially suitable for sand content higher system using.
2. Low cost, convenient installation and operation, safe and reliable operation, small size, processing a large quantity of water, small occupied area.





3.Conical shape accelerates the velocity of the water increasing centrifical forces and maximizing separation.

4.Easy to operate and maintain with no moving parts or screens.

5.No headloss build-up or clogging during separation.

6.Specially designed rubber cone/insert protects the neck from erosion and increases separation.

7.Large holding capacity of sedimention tank reduces flushing frequency.

8.Maximum anti-corrosion protection with durable and long-lasting coating materials.

technical parameters

material:low carbon steel ,SS304

 raw water turbidity≥300°c

 water turbidity≤10NTU

 water pressure≥0.2~0.25

 head loss:2mm

 grit diameter>0.1mm

 work temperature: room temperature.



Hydrocyclone Sand Separators utilize a conical shaped separator that accelerates the velocity of water maximizing separation of sand and other solid matter with greater than 90% efficiency. Flushing frequency is reduced due to the large holding capacity of our sedimentation tanks.  Hydrocyclones protect the irrigation components from damage and abrasion caused by debris and add years of performance to the life of your irrigation system.



PRODUCT ADVANTAGES

Conical shape accelerates the velocity of the water increasing centrifuge forces and maximizing separation.

Easy to operate and maintain with no moving parts or screens.

No headloss build-up or clogging during separation.

Specially designed rubber cone/insert protects the neck from erosion and increases separation.

Large holding capacity of sedimention tank reduces flushing frequency.

Maximum anti-corrosion protection with durable and long-lasting coating materials.



APPLICATIONS

For separation of sand and other solid matter from water.

Protection of valves and irrigation systems from damage/abrasion caused by sand and other solid matter

Pre-filtering of water with high loads of sand, disc and screen filters
