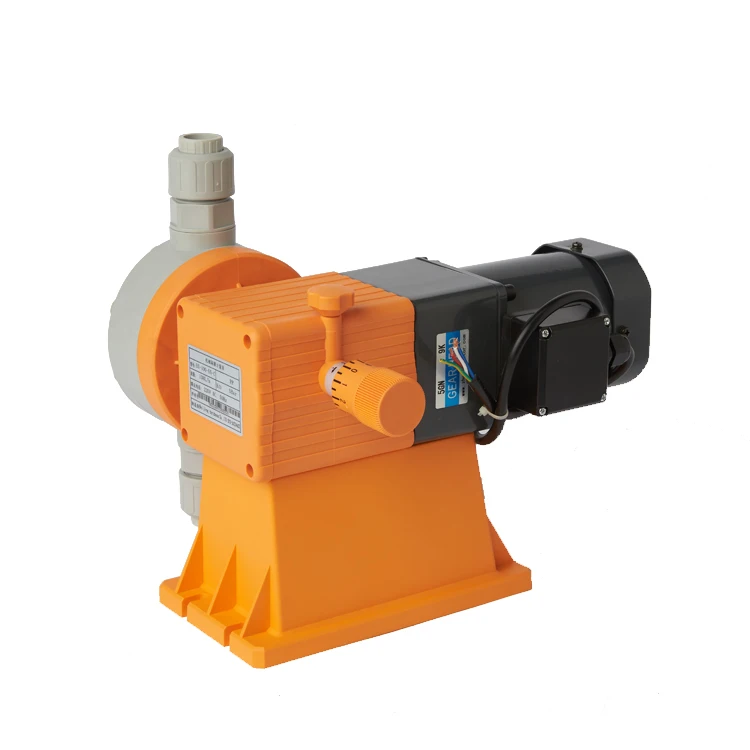

120L/H Mechanical Dosing Pump for chemical liquid coagulant flocculant polymer metering pump
- Category: >>>
- Supplier: Beijing Well-Off Environmental Protection Technology Co. Ltd.
Share on (1600169089986):
Product Overview
Description
Video Description
Product Description

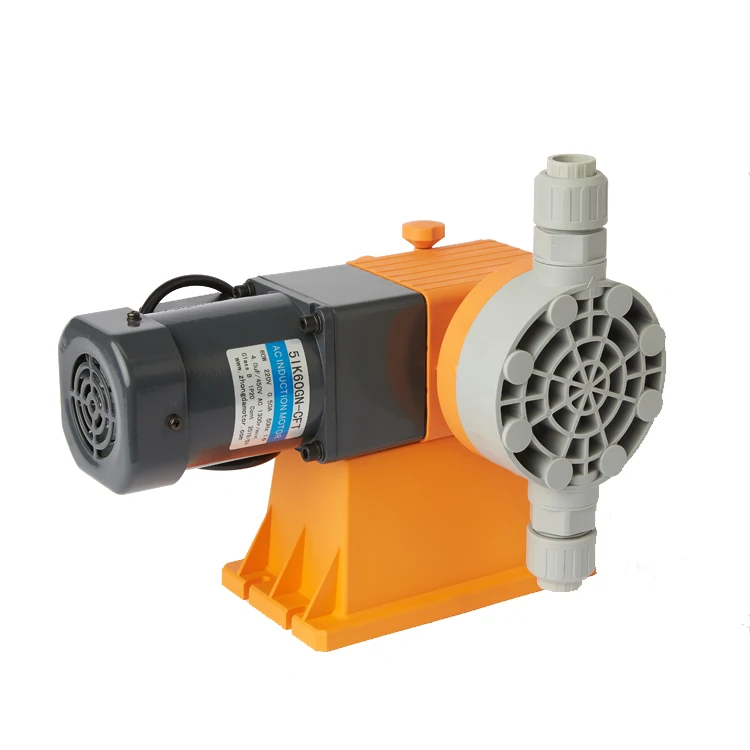

WELLOFF Mechanical diaphragm metering pump
More than 15000 units are sold annually in mainland China.
Application: Disinfection and chlorination of water treatment, boiler antiscalant , Aquarium &Swimming pool chlorine automatic
dosage, Air conditioning circulating water treatment, Ice machine industry
Flow range :15-150L/H
Pressure:3bar,5bar,7bar
Operation mode: Manual adjustment
More than 15000 units are sold annually in mainland China.
Application: Disinfection and chlorination of water treatment, boiler antiscalant , Aquarium &Swimming pool chlorine automatic
dosage, Air conditioning circulating water treatment, Ice machine industry
Flow range :15-150L/H
Pressure:3bar,5bar,7bar
Operation mode: Manual adjustment

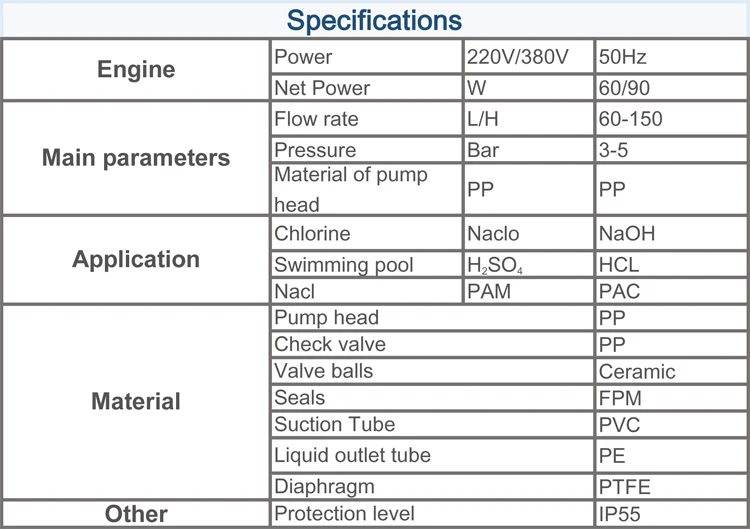

Model | Flow rate (L/H) | Pressure (Bar) | Frequency stroke/min | Suction (m) | Power （Watt） | Voltage (V) | GW (kg) |
WL-60-05-SR | 60 | 5 | 90 | 2 | 60 | 380v 50Hz | 8 |
WL-80-05-SR | 80 | 5 | 143 | 2 | 60 | 380v 50Hz | 8 |
WL-100-05-SR | 100 | 5 | 143 | 2 | 60 | 380v 50Hz | 8 |
WL-120-03-SR | 120 | 3 | 143 | 2 | 60 | 380v 50Hz | 8 |
WL-150-03-SR | 150 | 3 | 143 | 2 | 90 | 380v 50Hz | 8 |
WL-60-05-CR | 60 | 5 | 90 | 2 | 60 | 220v 50Hz | 8 |
WL-80-05-CR | 80 | 5 | 143 | 2 | 60 | 220v 50Hz | 8 |
WL-100-05-CR | 100 | 5 | 143 | 2 | 60 | 220v 50Hz | 8 |
WL-120-03-CR | 120 | 3 | 143 | 2 | 60 | 220v 50Hz | 8 |
WL-150-03-CR | 150 | 3 | 143 | 2 | 90 | 220v 50Hz | 8 |

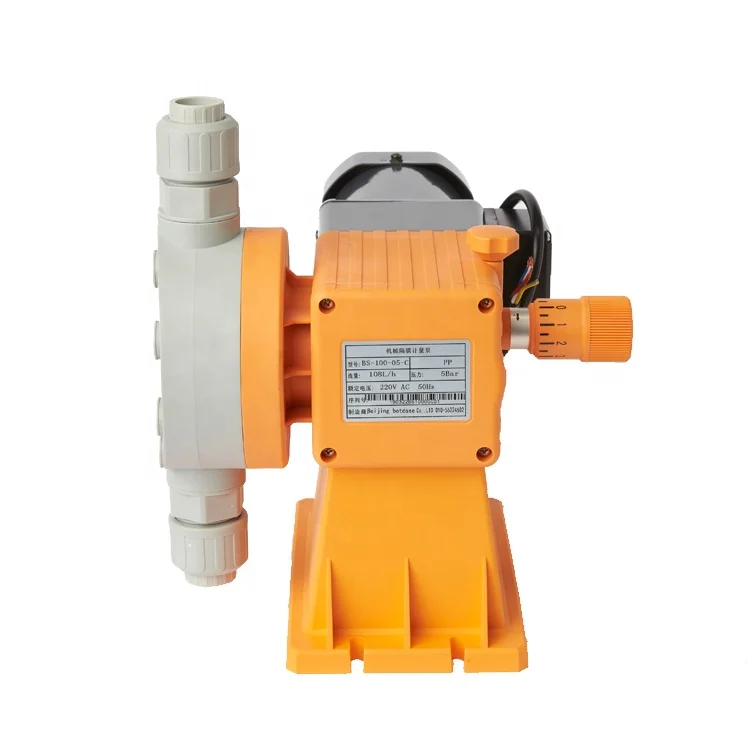

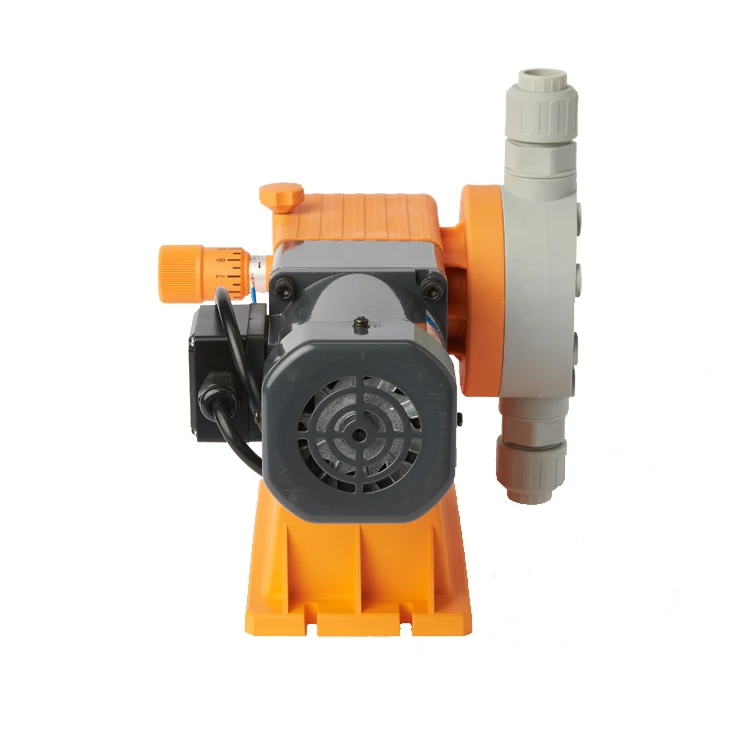

Product show

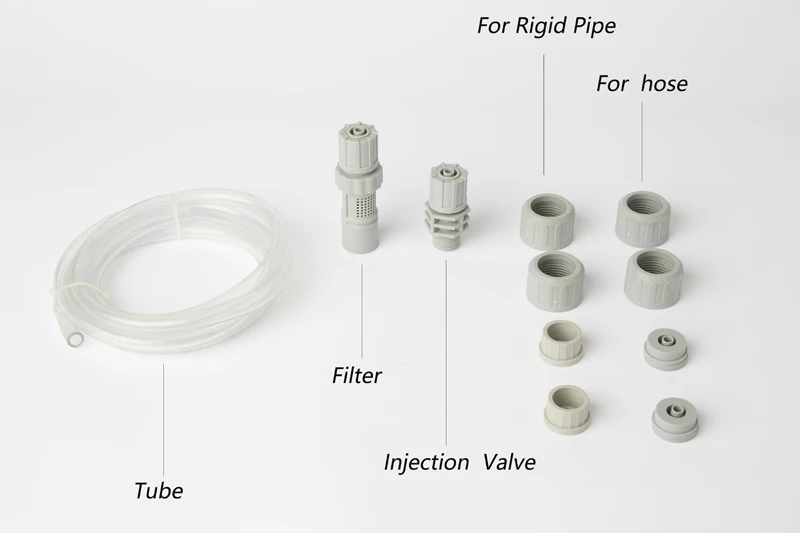

Accessories
Installation
Recommend Products

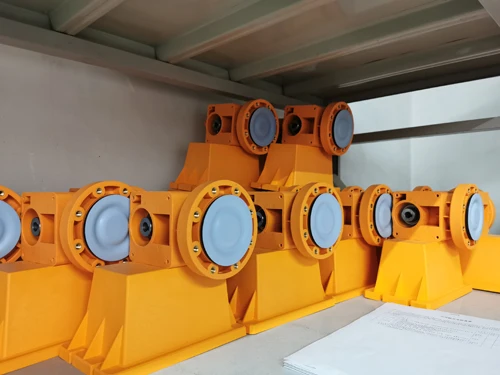

Production Process
