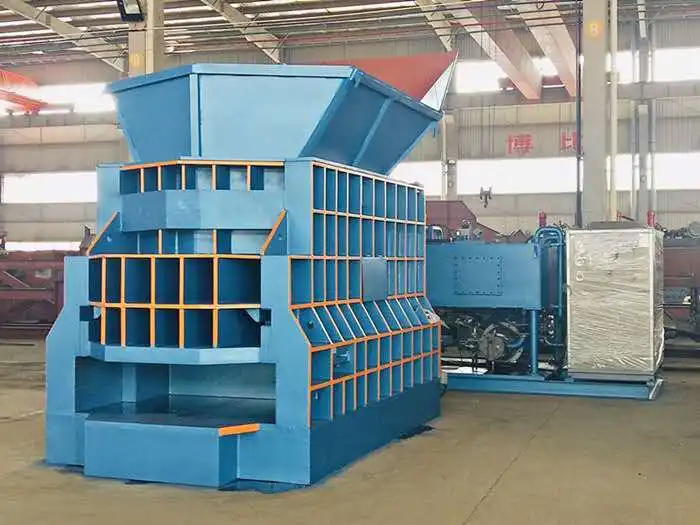

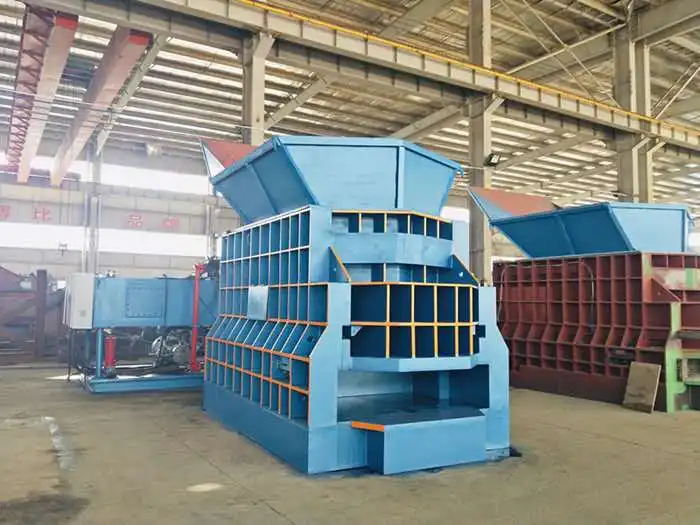

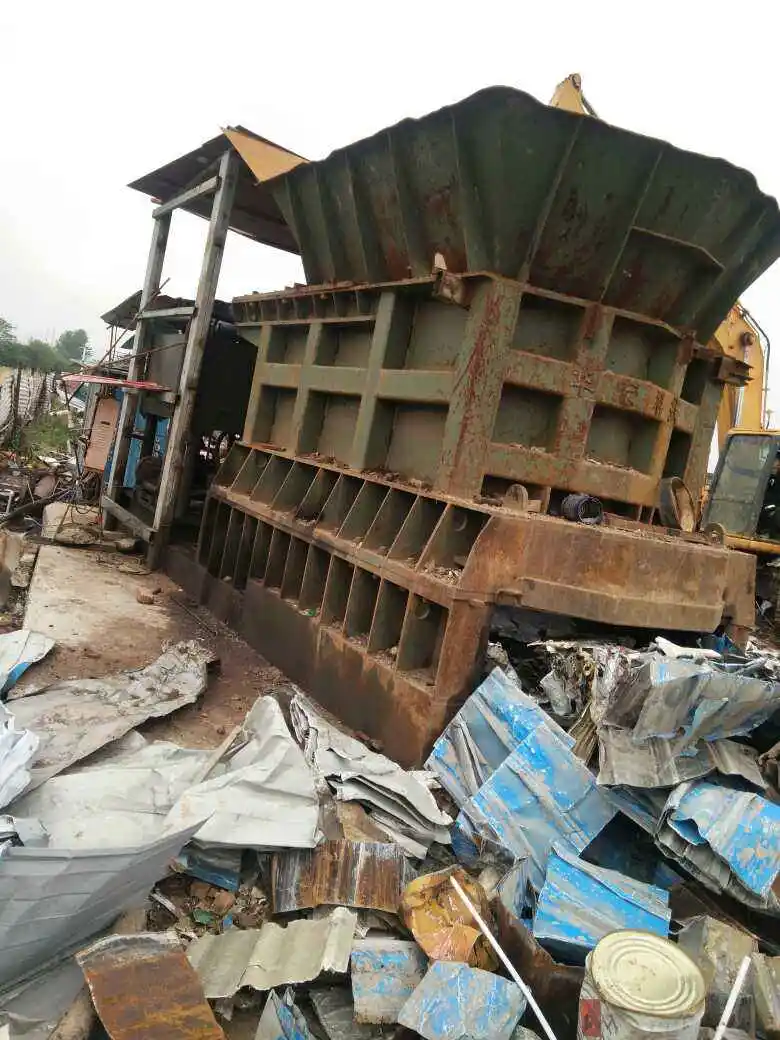

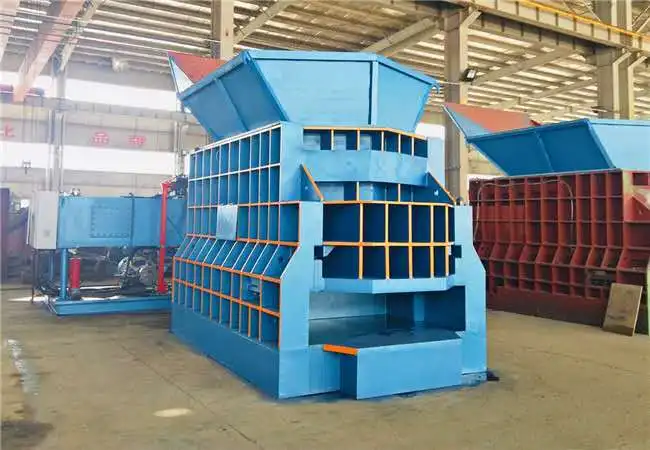

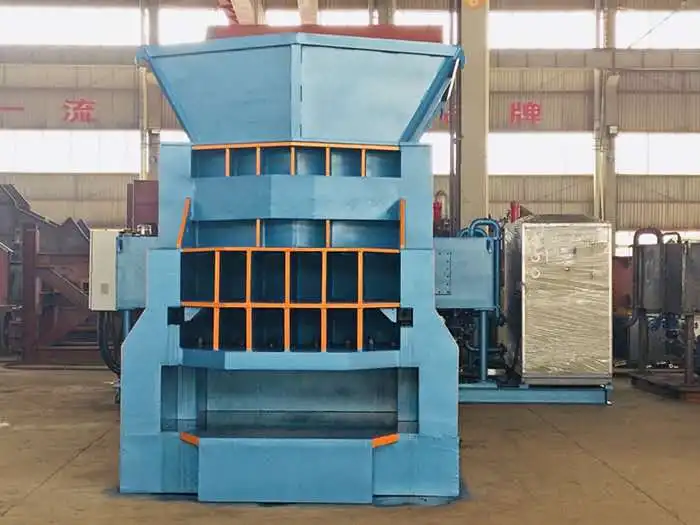

Automatic Hydraulic Scrap Metal Waste steel car bodies shell Container Shear for metal recycling plant

Product Overview

Description

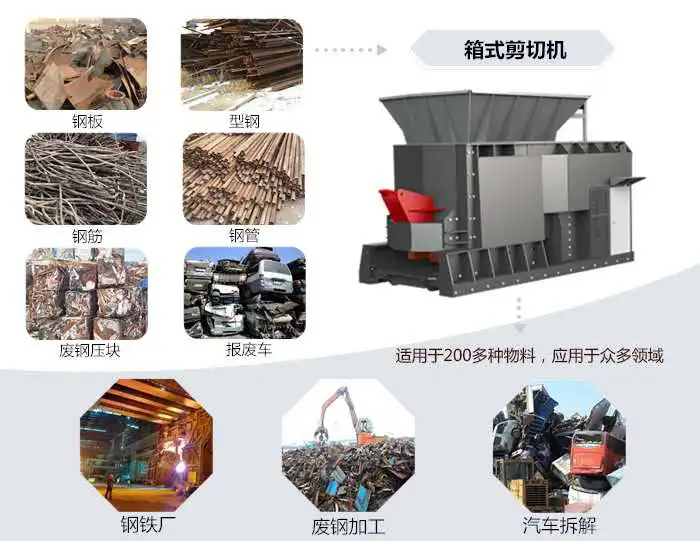

Applications

The container shear is particularly suited to:

• Operation at scrap yards without a power supply


• as an additional unit when capacity is reached on other scrap shears


• to prepare scrap for shredding


• processing scrap at sources of waste generation


• as a low cost alternative to guillotine shears when using several container shears beside one another with a scrap handling machine


• as a processing unit for impurities in commercial waste that cannot be processed further by a shredder

Dinghua CS-6300 Container shear Specification
No.	Parameters of the content								Remark
1	Main cylinder	Model	YG360/250-1000			quantity		2sets
		Nominal thrust	3150KN*2			Stroke		1000mm
2	Hold down cylinder	Model	YG280/220-800			quantity		1set
		Nominal thrust	1600KN			stroke		800mm
3	Chamber size(L×W×H)			2400×1600×2000mm
4	Feed opening size (W×H×L)			3200×2400×900mm
5	Hydraulic system Working pressure			25MPa
6	Shear length			1600mm
7	Electric specification			three-phase four-wire system(380V/50Hz) Customized
8	Total power			45KW*2
9	Main motor	Model	Y280S-6		quantity		2sets
		power	45KW*2		rated revolution		980rpm
10	Plunger pump	model	250YCY14-1B		quantity		2sets		foreward
		Rated discharge	250ml/r		rated pressure		31.5MPa
11	Shear frequency		2.5times/min









FAQ:

Q1: How can i get the after-service?
A: We provide  one year guarantee and lifelong maintenance.
     We will send you the spare parts by free if the problems caused by us.
     If it is the men-made problems,we also send the spare parts,however it is charged.
     Any problem, you can call us directly.

Q2: Can I have a visit to your factory before the order?
A:  Sure,welcome to visit our factory.
      Our factory address:  27 Hongtu Road, Guanshan Asean Park, Nanzha Street, Jiangyin City
   Our factory is near Shanghai Pudong Airport.We can pick you up in the airport.
      Hotel booking service is available .

Q3:Are you a factory or trade company?
A:We are manufacturer with own factory for 10 years, export proportion 50~60%.

Q4:How can i trust your company?
A:With 10-years-professional design, we can provide you suitable suggestion and lowest price
1. Assessed by third party, national patents and CE, ISO for all equipment,  .
2. Welcome to inspect anytime. We are near to Shanghai Pudong airport.
3. For our machine, we do very well on hydraulic balers,hydraulic shears.

Q5 :Is your price competitive?
A:  Only good quality machine we supply. Surely we will give you best factory price based on
superior product and service.
