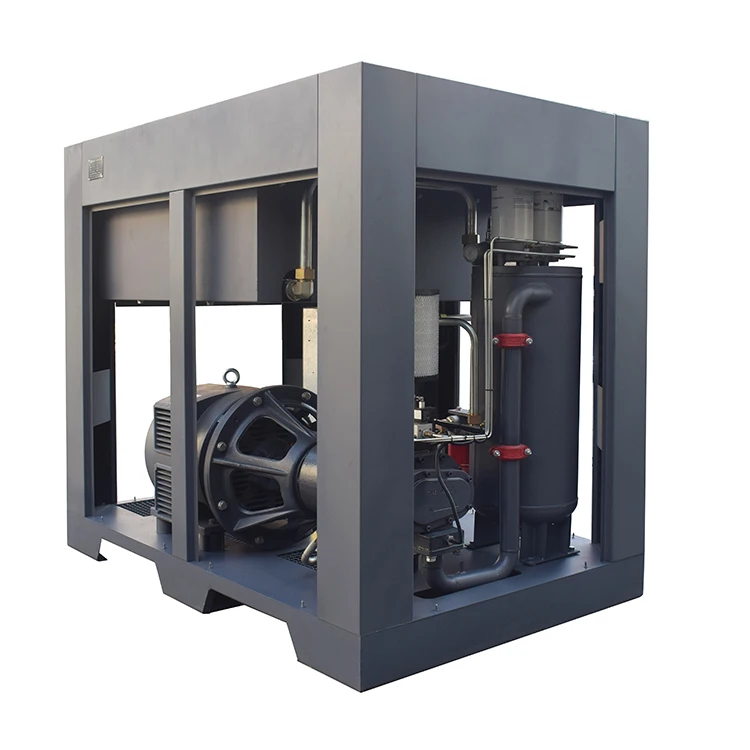

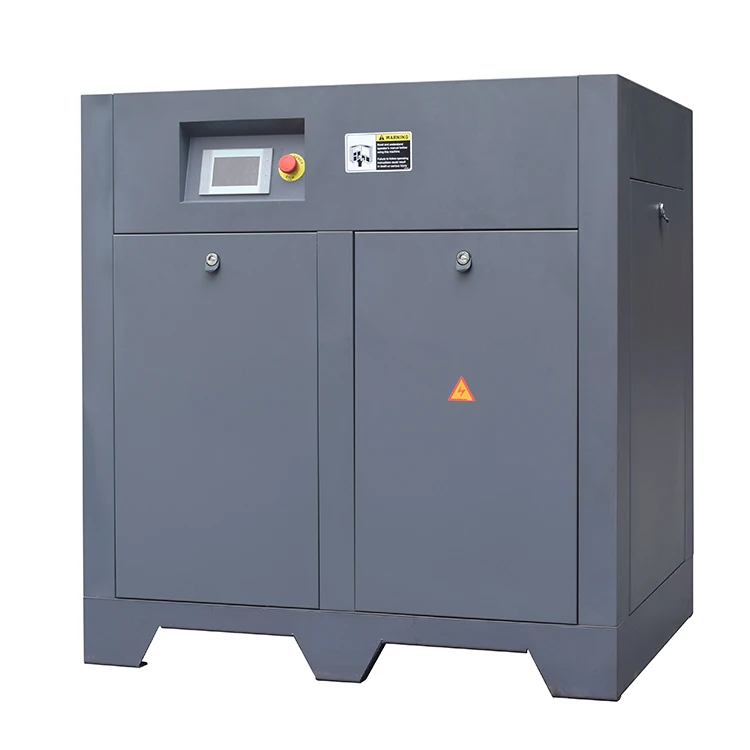

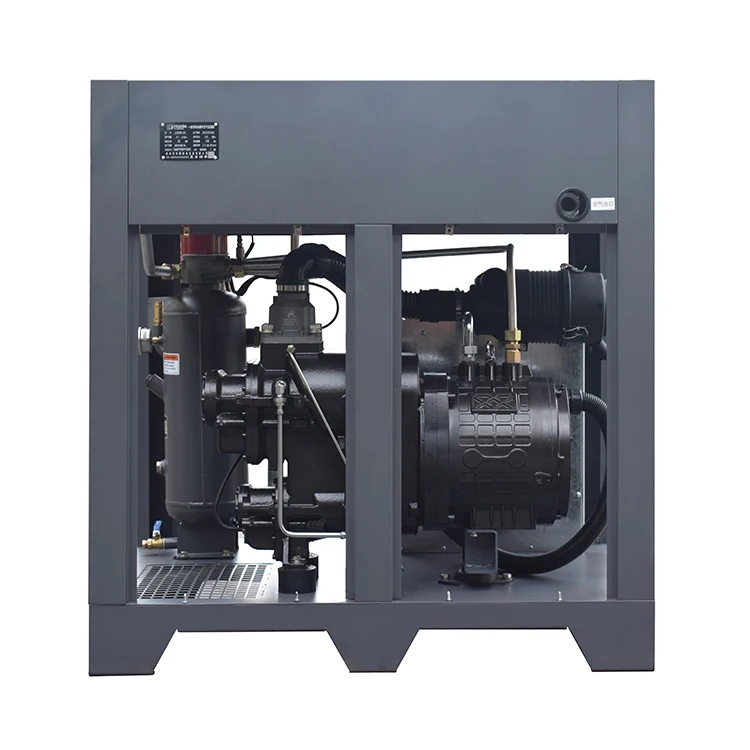

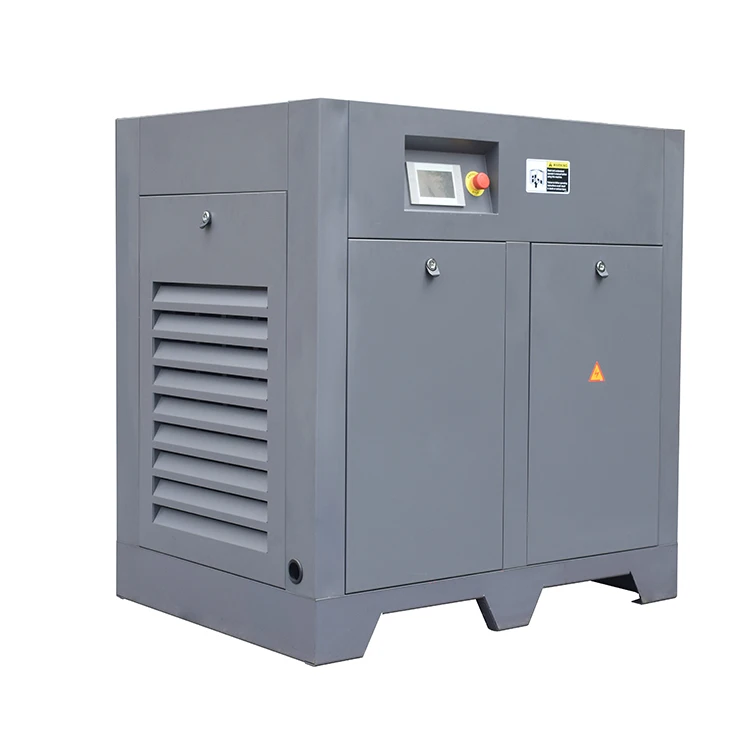

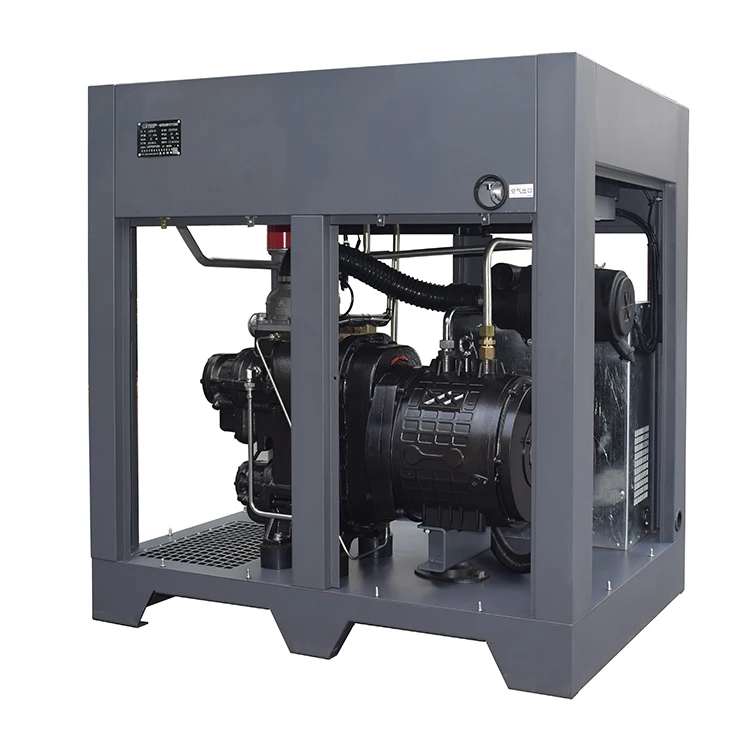

75kw 100hp energy saving low noise heavy duty screw type air compressor kaesar
- Category: >>>
- Supplier: Huade Mechanical & Equipment Co. Ltd. Quanzhou
Share on (1600169239191):
Product Overview
Description
Model | SV-10 | SV-15 | SV-20 | SV-30 | SV-50 | SV-60 | SV-75 | SV-100 | |||||||||
Discharge Pressure(Mpa) | 0.8 | 0.8 | 0.8 | 0.8 | 0.8 | 0.8 | 0.8 | 0.8 | |||||||||
Free Air Delivery (m3/min) | 1.1 | 1.75 | 2.35 | 3.4 | 6.3 | 7.15 | 9.3 | 12.7 | |||||||||
Power (KW) | 7.5 | 11 | 15 | 22 | 37 | 45 | 55 | 75 | |||||||||
Lubricant (L) | 3 | 5 | 5 | 5 | 12 | 12 | 31 | 31 | |||||||||
Drive method | Frequency conversion starting | ||||||||||||||||
Cooling | Air | ||||||||||||||||
Discharge Temp (℃) | < Ambient temperature+15℃ | ||||||||||||||||
Electricity (V/Hz) | 380V/50Hz | ||||||||||||||||
Air outlet pipe (inch/mm) | G 3/4 | G 3/4 | G 3/4 | G 1 | G 1 1/4 | G 1 1/2 | G 2 | G 2 | |||||||||
Dimension | Length(mm) | 880 | 1100 | 1100 | 1200 | 1680 | 1700 | 1860 | 1860 | ||||||||
Width(mm) | 660 | 730 | 730 | 900 | 1000 | 1100 | 1200 | 1200 | |||||||||
Height(mm) | 1000 | 1050 | 1050 | 1220 | 1450 | 1450 | 1600 | 1600 | |||||||||
Net weight (kg) | 185 | 290 | 290 | 450 | 550 | 650 | 780 | 830 | |||||||||
Quanzhou Huade Electric Machinery&Equipment Co.,Ltd Fujian PRC (formerly Quanzhou city of Fujian province Huade Machinery Co.,Ltd) is located in West Coast city of Quanzhou .
Our company is one of the Air Compressor professional manufactures with the largest domestic and the equipment is the most advanced currently. And our company is an innovative and high-technology enterprise. We specialized in developing designing and producing series of piston and screw air compressors.
Our company have obtained the certification ISO9001:2000 . Chinese Universal machinery certification and the quality testing of CCC certification, CE certification,CQC certification, and ETL certification.
In 2002, we have cooperated with the air end manufacture in Germany that are GHH-RAND and ROTORCOMP and AERZEN and COMER to improve production technique. And the production update, quality and global sale is our company market strategy all the time.
