Bridge Pressure Sensors 10000Kg Load Cells For Truck Scales 80 Tons Manufacturers
- Category: >>>
- Supplier: Shenzhen Sensor And Control Company Limited
Share on (1600169333207):
Product Overview
Description

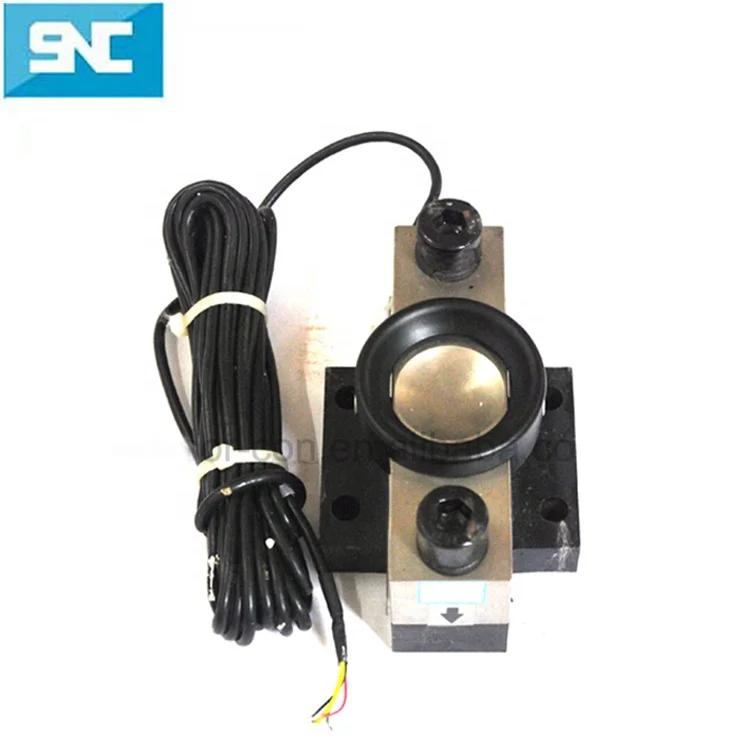

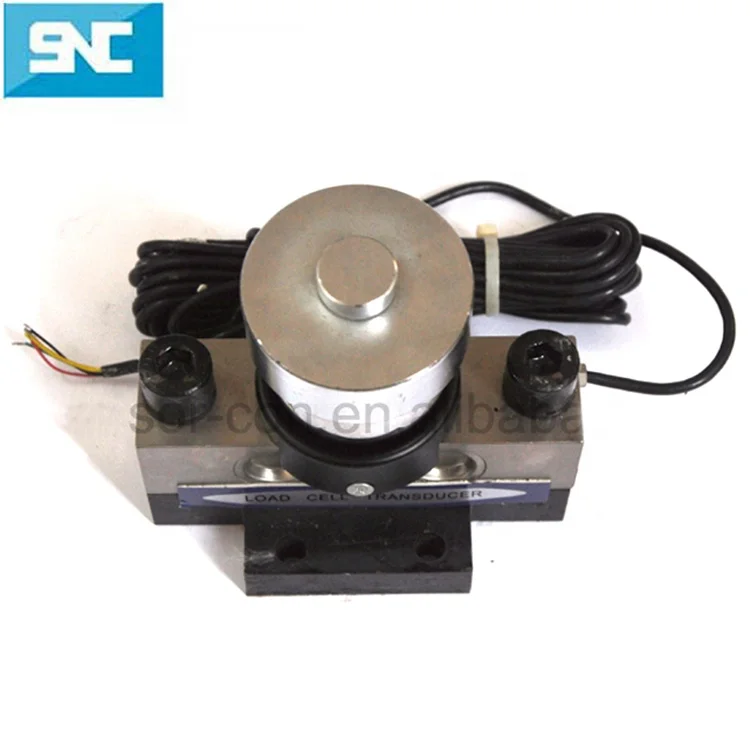

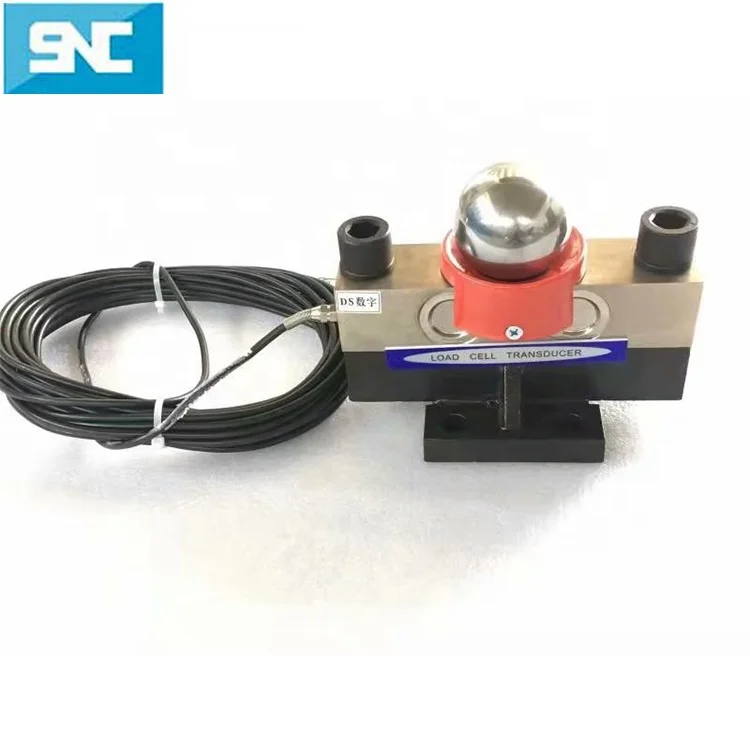

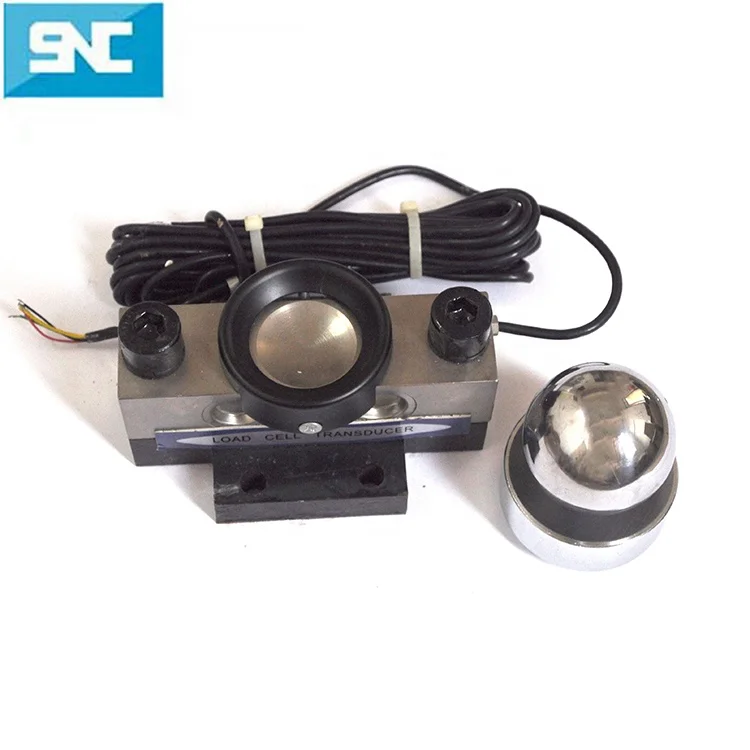

Bridge Pressure Sensors 10000Kg Load Cells For Truck Scales 80 Tons Manufacturers
Feature:
Model: SC9
Capacity:10-50T
Voltage: 10-15V
Type: super beam load cell with side connector

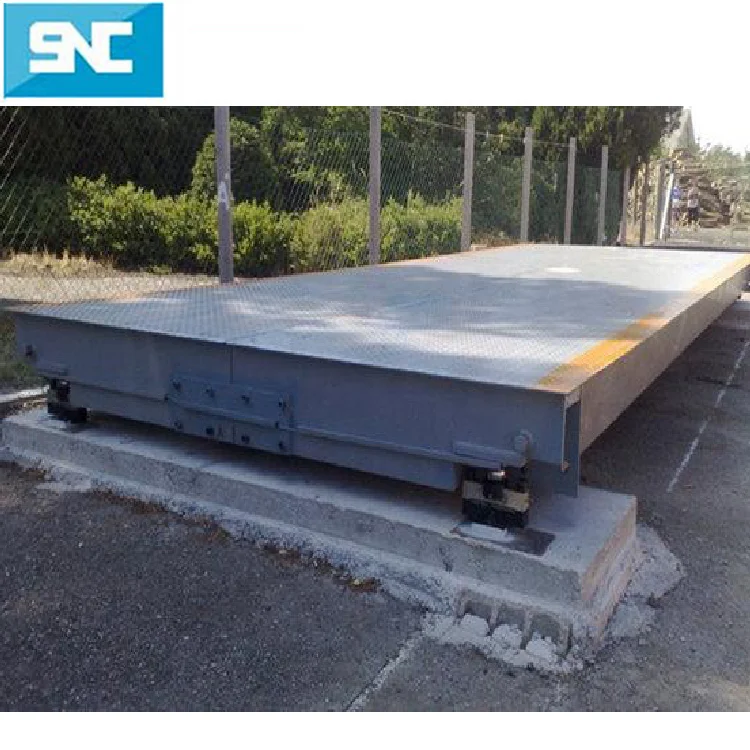

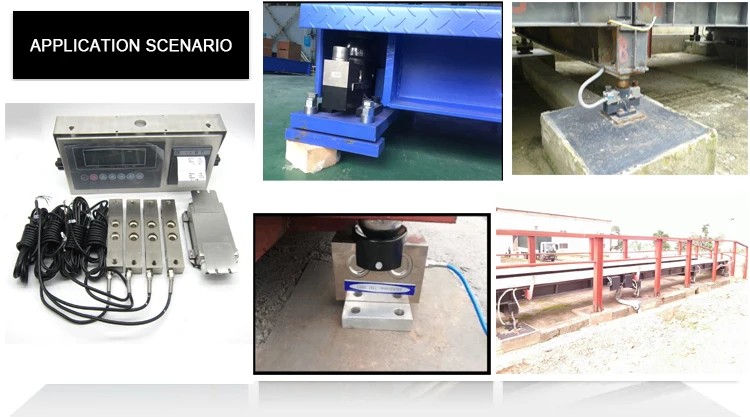

Application: weighbridge, on board truck scale, weigh balance
Bridge Pressure Sensors 10000Kg Load Cells For Truck Scales 80 Tons Manufacturers

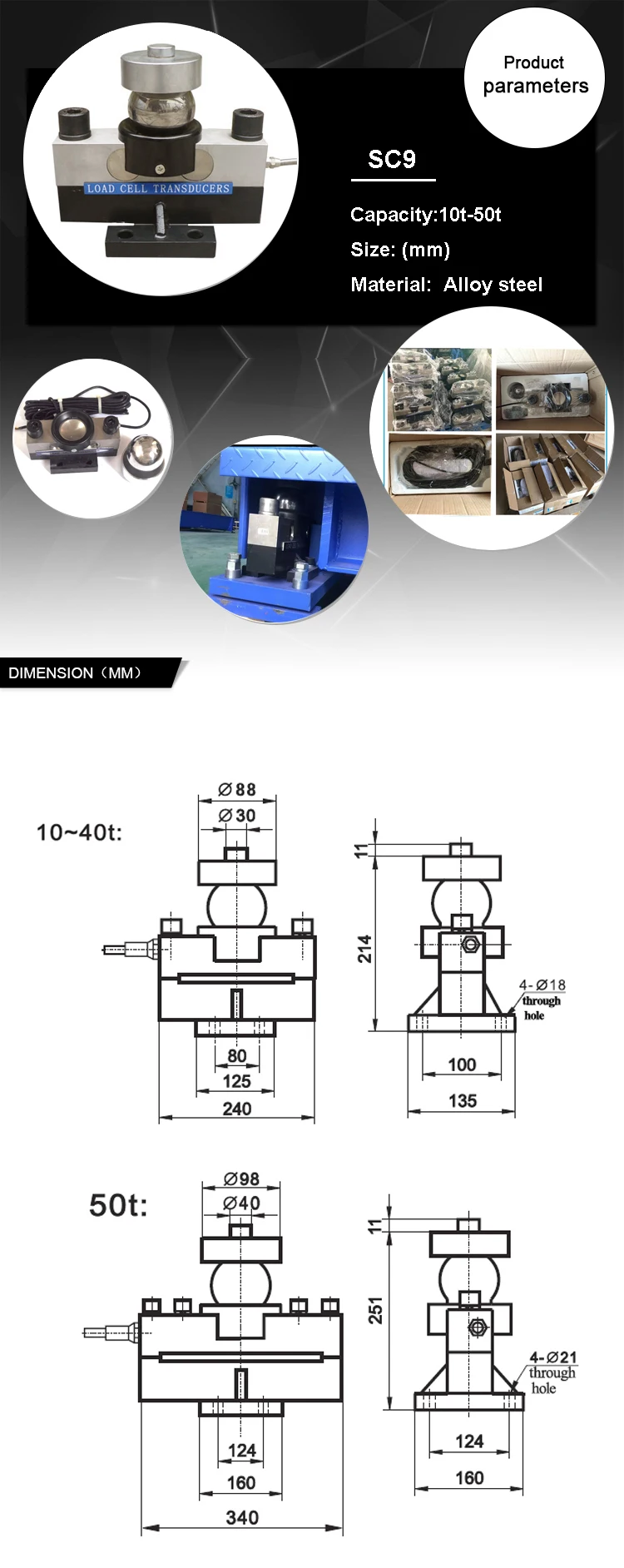

Product Description
| Capacity | 10T, 20T, 25T, 30T, 40T,50T |
| rated output | 2.0±0.004mV/V |
| Accuracy class | C2 C3 |
| maximum number of verification intervals | 2000 Nmax 3000 Nmax |
| Minimum loadcell certification intervals | Emax/5000Vmin Emax7500 Vmin |
| Combined error | ≤±0.030 % RO ≤±0.020 % RO |
| Creep | 0.03 %RO/30min 0.02 %RO/30min |
| Temp. effect on sensitivity | 0.003 %RO/℃ 0.0016 %RO/℃ |
| Temp.effect on zero | 0.003%RO/℃ 0.002%RO/℃ |
| Zero balance | ±1.0 %RO |
| Input resistance | 700±3 ohm 2050±10 ohm (optional) |
| Output resistance | 700±5 ohm 2000±10 ohm (optional) |
| insulation resistance | 5000 MΩ(50V) |
| Recommended excitation voltage | 5-18V |
| Compensated temperature range | -10-+40℃ |
| operating temperature range | -30-+70 ℃ |
| safe overload | 150 %RO |
| Ultimate overload | 250%RO |
| loadcell material | Alloy steel |
| Connecting cable | 10-20T: Φ6.3x12m |
| 25-30T: Φ6.3x16m | |
| 40-50T: Φ6.3x18m | |
| Method of connecting wire | Red- input+, black- Input-. Green- Output+, White- output - |

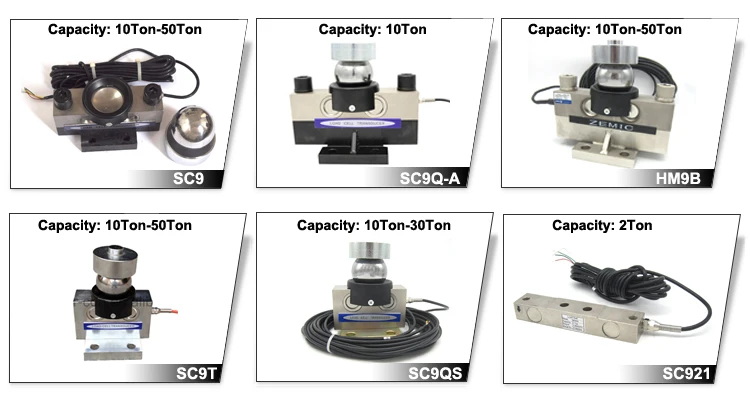

Related Products
Production Process
Company Information
Sensor and Control Co., Ltd. was founded in 2006, mainly engaged in Torque Sensor, Load Cell, Pressure Transducer, Strain Gauges and Weighing Indicators. Since establishment, we insist the guidelines of "Customer Oriented, Quality Focused, Professional Service "All products we supply are environment friendly and has passed RoHS test.
Sensorcon, in accordance with the principle of the introduction of advanced professional ultrasonic gas cleaning, clean Room patches, automatic temperature compensation and detection, high and low temperature testing and thermal experiments, laser welding and printing, CAD design, manufacturing and testing sensor test equipment and production technology ,manufacture all varieties of sensors, high precision, stable performance and also has antiseptic, waterproof, anti-explosion, anti-lightning, etc favored deeply by users.
Packaging & Shipping
Why Choose Us
FAQ
1.How to place an order ?
Please provide us more details of what you want, such as: application, measurement range, output, accuracy, thread type, electric connector and other related parameters.
2.Does SNCoffer any discount ?
Yes, if you buy large QTY, please contact us, we will give you a big discount.
3.What terms of payment are available ?
We accept T/T, L/C, Trade assurance, Western Union, Paypal, etc.
4.When will you arrange the production ?
We will arrange the production immediately after receiving your payment.
5.How do you ensure good product quality ?
We have a complete quality control system, all of our products are fully checked by IQC, OQC departments
before shipping to our clients.
6.Do you have warranty ?
Yes, we provide 1 year warranty for most of our products. Some products we offer 15month to 24 months warranty.
