20 Вт 30 Вт 50 Вт лазерная печатная машина с логотипом, волоконно лазерная маркировочная машина с источником raycus
- Category: Industry Laser Equipment >>>
- Supplier: Wuhan Lianchuang Photoelectric Techonology Co. ltd.
Share on (1600169728043):
Product Overview
Description
Hot Products
Products Description
Introduction:
New fiber laser marking machine uses advanced laser technology developed using the fiber laser output laser, and then system to achieve high-speed scanning galvanometer marking function. Fiber Laser Marking Electrical and optical conversion efficiency, by way of cooling , compact machine, the output beam quality, high reliability. Metallic materials can be engraved and some non-metallic materials ,mainly used for depth, smoothness, finesse higher areas.
Technical Parameters: | ||
Product name | Fiber laser marking machine | |
Mark range | 110X110MM(175X175mm Optional) | |
Output Power | 20W/30w/50w/100w | |
Beam quality | <=1.3M² | |
Power supply | AC220V,50Hz | |
Pulse repetition frequency | 1-400KHz | |
Scanning speed | <=7000mm/s | |
Marking line width | 0.03-0.1mm(according to material) | |
Repeat accuracy | ±0.001mm | |
Safety | Low frequency protector,over heat protector | |
Continuous working time | >=24h | |
Power input | <=300W | |

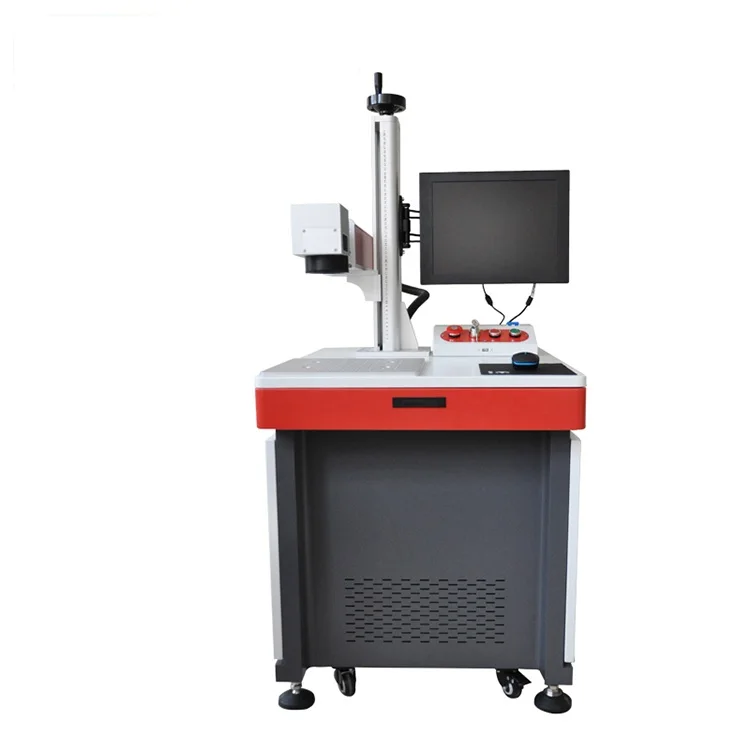

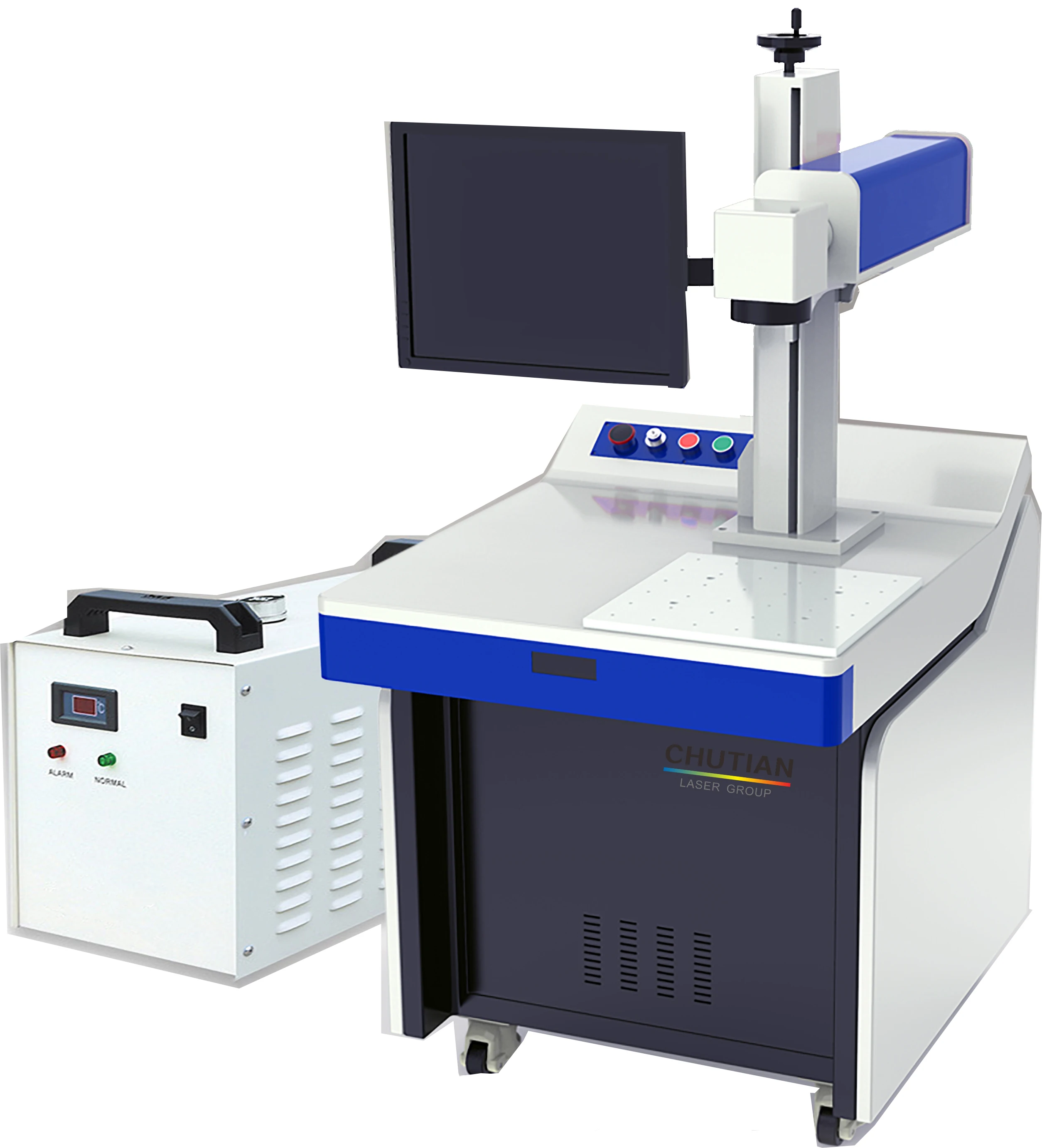

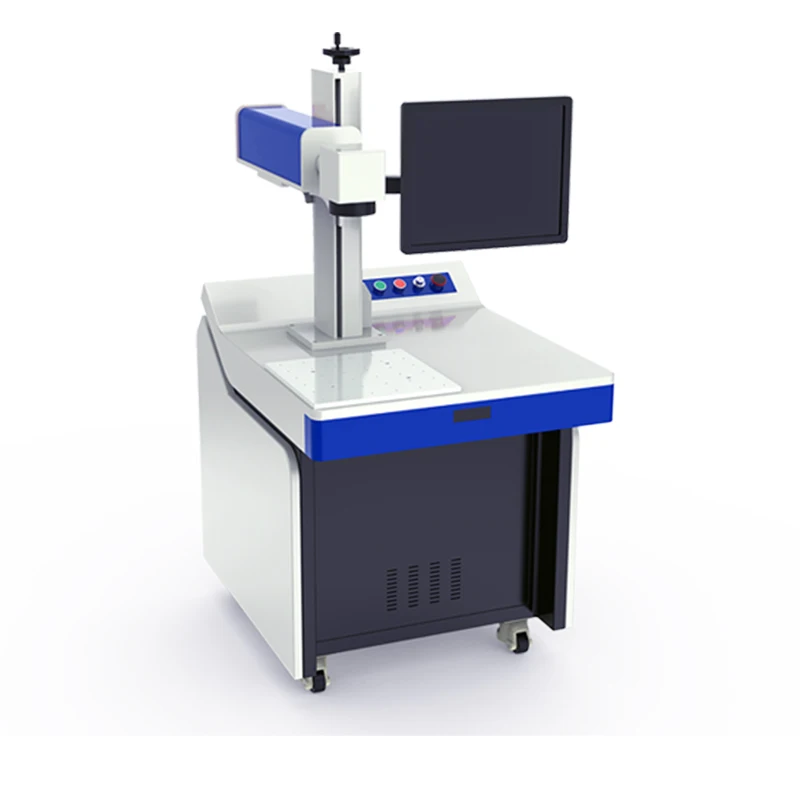

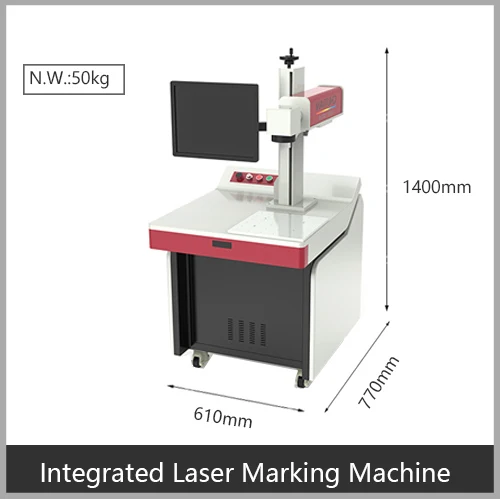

Product Show:

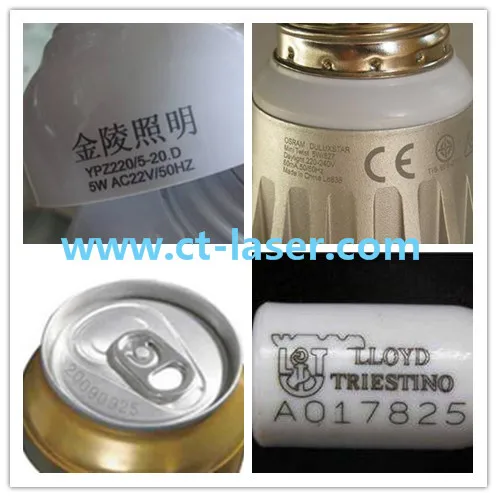

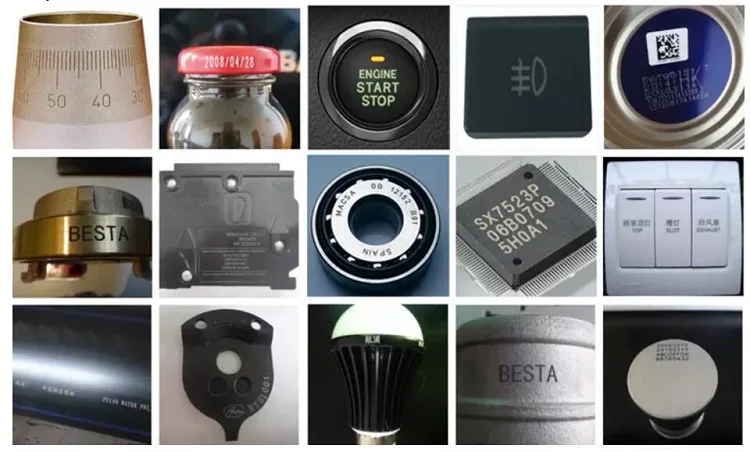

Marking Samples
Applicable Industry:
This machine is widely used in metal manufacturing and electronic communication, electrical and electronic, instrumentation, precision hardware, automotive and marine, clothing and daily use, food packaging and other industries of metal and non-metal marking.
Applicable Materials:
For the processing of non-metallic materials such as wood products, fabrics, leather, plexiglass, epoxy resin, acrylic,
unsaturated resin, etc., fine marking results can be achieved.
unsaturated resin, etc., fine marking results can be achieved.
Our Advantages
Product packaging
Packaging | Wood case or as per required. |
Delivery Time | The delivery lead time would be 7-15 day against down payment. |
Shipping | As for the wholesalers/distributors,we could send the cargo by air, by sea or by railways via reliable forwarder |

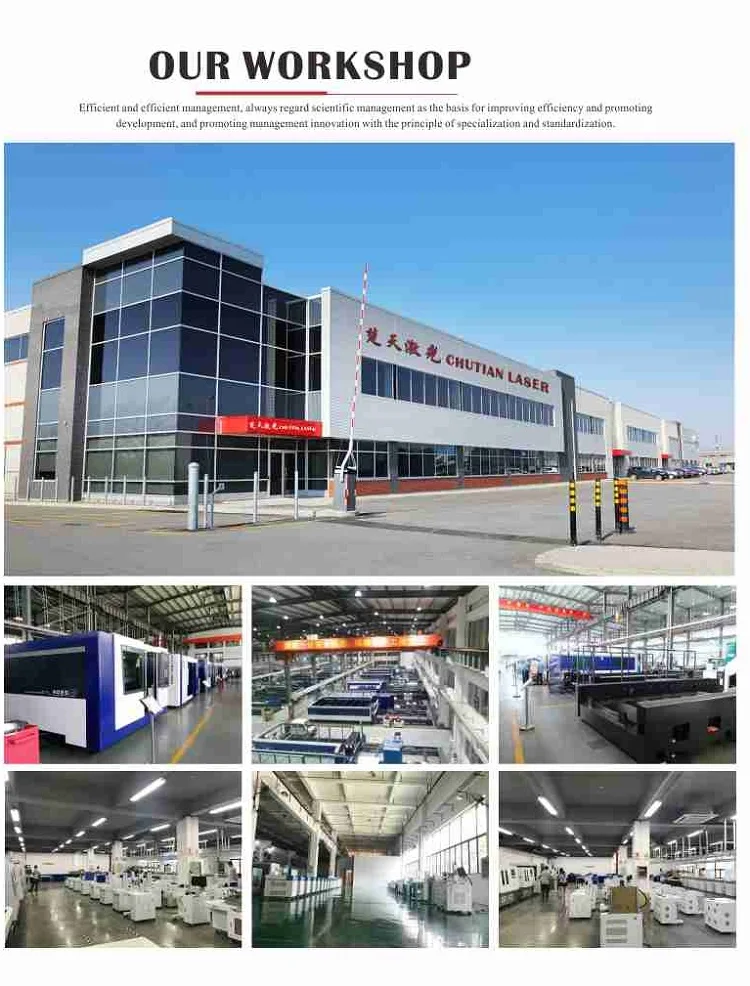

Company Profile
ABOUT CHUTIAN LASER
As a leading laser system manufacturer, Wuhan Chutian Industrial Laser Equipment Co., Ltd. has been devoted to the design and production of industrial laser systems for over 30 years. Based on the domestic and international cooperation with laser, laser system and laser related components manufacturers worldwide.
From high power to small power Chutian Laser has been a major laser solution provider as Laser marking, Laser welding, Lasercutting as well as laser micro machining and 3D printing in China.
After 30 years of developing we've been able to continually upgrade with European and American laser technology. We sincerelywelcome all the customers to visit our company!
From high power to small power Chutian Laser has been a major laser solution provider as Laser marking, Laser welding, Lasercutting as well as laser micro machining and 3D printing in China.
After 30 years of developing we've been able to continually upgrade with European and American laser technology. We sincerelywelcome all the customers to visit our company!
