21.5" Inch (16:9 LED)
350cd/㎡ (higher brightness is available as option)
Display Panel Details
display panel brand
LG,Samsung,AUO,Chimei,etc... original brand new & grade A+
7 inch to 55 inch
Customize Frame Color
Black, white, green, pink, ivory, wine red, blue, violet, ......can be customized

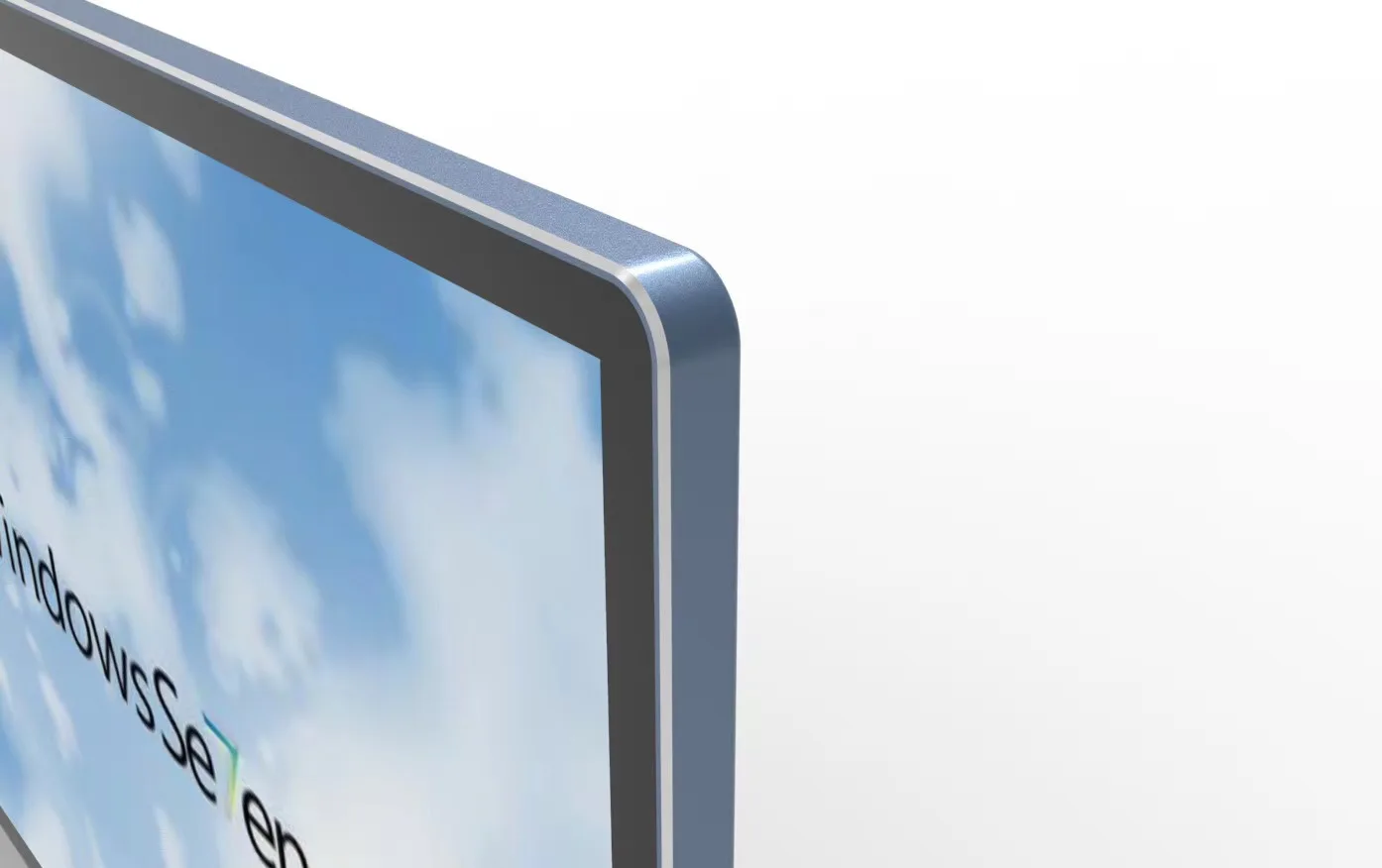

Durable aluminum frame & tempered glass to protect LCD panel against external impacts. front panel compliant NEMA / IP65 waterproof and dustproof standard,so that it can adapt to the harsh industrial site work environment, the most suitable for factory automation, machinery manufacturing, CNC equipment, textile equipment, communication networks, power automation and other industrial applications.
Intel i3 i5 i7/ Celeron J1900/J1800/J2900, RK3288 RK3399...... as options
Quad core upto 5Ghz
Intel Bay trail SOC
1GB DDR3 SDRAM (16GB max)
32GB high speed solid state disk upto 3TB (optional)
150Mbps 802.11b/n/g Wifi Integated, (2.4G&5Ghz dual WIIF module as option)
Realtek HD ALC662 HD
Line-In/Line-Out/Speaker out with 1W AMP Circuit
Realtek RTL8111EL PCI-E Gigabit Ethernet LAN RJ45 port
Default *1 (options)
Default *2 COM (options)
Default *4 USB (3*USB2.0; 1*USB3.0) (options)
Win7, Win7 Embedded, Win8, Win10, Ubuntu, VXWORKS, QNX, Linux, Android etc...
Resistive(4-wire/5-wire); capacitive; SAW/IR as options
Serial (RS232) or USB or COM as options
Mohs' Number 7; Transmittance >75%
DC12V or 24V
-20 ~ 60°C (-4~140°F)
-30 ~ 80°C (-22 ~ 176°F)
5~95% (Non condensation)
Shake: SSD applied
1.5 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis
Shock: SSD applied
10 G, IEC 60068-2-64, Half-sine wave, 11ms duration
CE/FCC Class A
Front panel IP65
Our industrial panel pc are fully-integrated‚ waterproof and dustproof that combine high-performance different touch screen technologies in industrial-grade TFT-LCD flat panels, with sleek, IP65 / NEMA 4-4 x Ingress rating flat front surface industrial design.
Our industrial pc provide reliability, durability, and long expected product life. Impervious to environmental conditions such as liquid spills, splashes and wash-downs, these screens are the most contamination-resistant units available in the market. Our industrial IP65/ NEMA 4 touch computer are designed for process control, food processing equipment, machine control, human interface, automation equipment and in-vehicle use applications. Our panel pc have 8 inches to 55 inches
1. Long lasting product cycle for continuity thru all phases of project rollouts and servicing
2. Exceptional quality and highly engineered industrial monitors
3. Delivers drift-free operation with lifetime of more than 35 million finger touches like resistive, IR, SAW, Scap, Pcap, etc
4. All steel construction designed for harsh and industrial environments
5. Robust design with aluminum NEMA 4/ IP65 front panel or fully steel enclosed chassis
6. Meets NEMA 4/4x/12 and IP65 standards
7. Multiple mounting options (75*100mm VESA mount and clamps mounting)
8. Accuracy in high-use applications
9. Supports Windows, Linux OS, Android, Mac OS, Ubuntu
10. CE, FCC, RoHS, ISO9001:2008 compliance.
11. VGA, DVI, support HDMI, AV, S-Video, BNC multiple inputs/outputs optional
12. Wide operating temperature from -30 to 80 degrees optional and supports 7/24 running
Warranty: 12 months warranty & Life-time maintenance
Trade Terms: EX-Works, FOB, C&F, CIF, DP, DA etc...
Payment terms : T/T bank wire, Western Union, PayPal, L/C, MoneyGram, Cash, Trade assurance.
Shipping: By sea, by air and by international express ......
1) Q:What is the minimum order quantity?
A: Qty: 1 unit. Different order quantity different price.
2) Q:What payment methods your company accept?
A:We accept most often payment methods,but mainly accept bank wire transfer T/T, L/C at sight, Western Union.
3) Q:How long is the warranty time for your products?
A: We warranty 1 year for all of our products and supply life-time maintenance.
4) Q:I haven't done business with your company before,how can i trust your company?
A:Our company is a registered golden member on Alibaba sit for more than 12 years. We have many business partners and order histories all over the world.
5) Q:what's the shipment terms and delivery time of your company?
A: It depends on order quantity, shipping address and shipping methods.
6) Q:Do you give any discount ?
A: Different order quantity different price. We will always offer customers the lowest price based on the best quality.
7) Q:I would like to ask you if it's possible to have my logo on the product.
A: Logo printing service is available.
