11ax WIFI 6 dual band 3600Mbps Outdoor Wireless AP Hotspot For High Density Area,support MU MIMO and DL/UL OFDMA modulation
- Category: >>>
- Supplier: Shenzhen Yunlink Technology Co. Ltd.
Share on (1600169751644):
Product Overview
Description
11ax WIFI 6 dual band 3600Mbps Outdoor Wireless AP Hotspot For High Density Area,support MU-MIMO and DL/UL-OFDMA modulation
Product Description

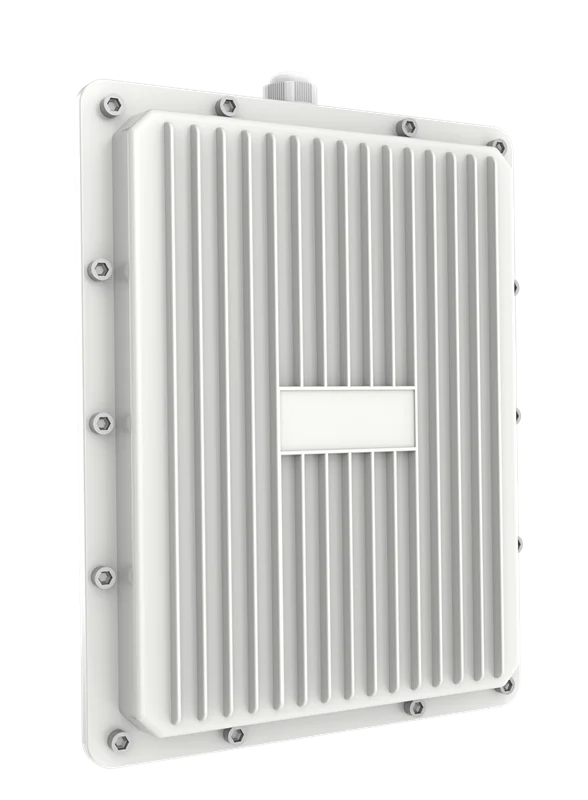

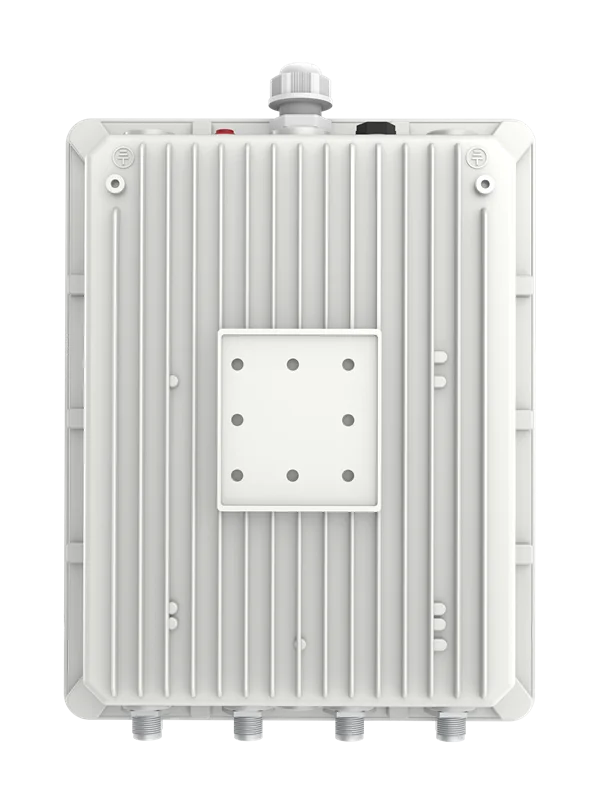

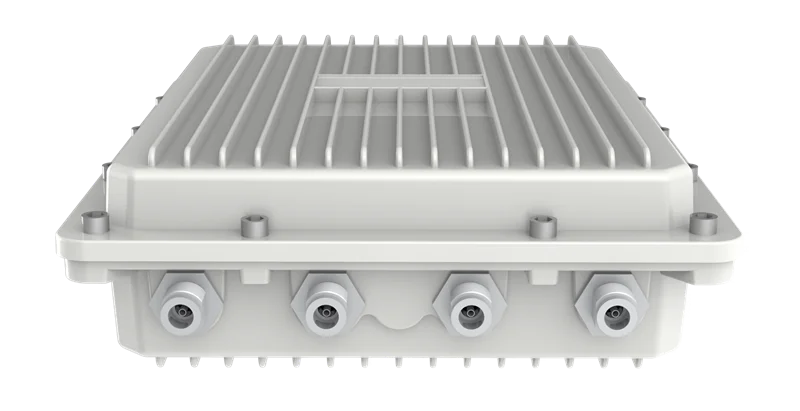

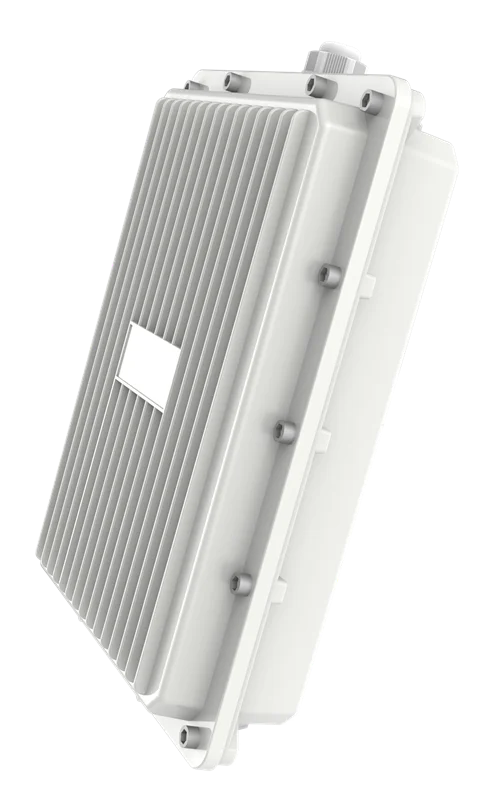

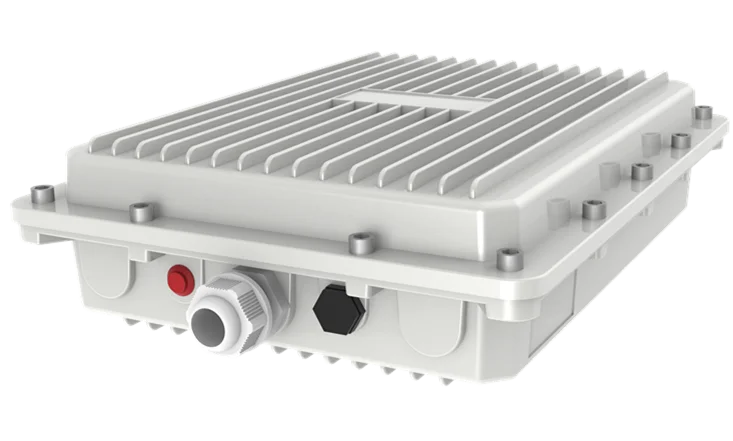

HWAP-AX880 is an 11ax Wi-Fi standard Qualcomm Chipset high power industrial Outdoor Wireless Access Point / Base station support MU-MIMO, Wave2.0, OFDMA and Seamless Roaming.
It comply with 802.11ax, 4*4 MIMO technology, dual band, up to 3657Mbps data rate; equipped with 2.5G RJ45 port, support MU-MIMO and DL/UL-OFDMA modulation, faster Ethernet data rate and more users, then multiple users can upload or download multiple packets at same time, narrower subcarrier spacing and longer symbol time, improved the stability and data processing efficiency, publicly to be used in high density access environment such as university campus, concert venue, gymnasium, etc.
It with QSDK driver, support seamless roaming, 5G prior, OFDMA and DL/UL-OFDMA (37 users in 5.8G, 18 users in 2.4G); What’s more, this device can work with OpenWRT firmware also, our technical firmware team can provide efficient technical support for fast firmware development.
Product Spec.:
Hardware | |
Chipset | IPQ8072A +QCN5054+QCN5024+QCA8081*2 |
Standard | 802.11ax/ac/b/g/n |
DDR | 512MB(16bit)*2=1GB, maxi up to 2GB |
Flash | NOR-8MB AND NAND-256MB |
2.4G Frequency | 2.4GHz - 2.484GHz |
2.4G Wi-Fi standard | 802.11b/g/n/ax |
5.8G Frequency | 5150~5850MHz |
5.8G Wi-Fi Standard | 802.11 a/n/ac/ax |
Interface | 1 * 10/100 /1000/2500Mbps RJ45 WAN Port |
1 * Reset | |
Antenna | N Connector, 4*6dBi omni antennas |
Data Rate | 3657Mbps ( 2.4G: 1182Mbps (11ax 4x4); 5.8G: 2475Mbps (11ax 4x4)) |
End Users | 150+ |
RF Power | 2.4g ≤ 22dBm 5.8g ≤ 22dBm |
PoE | 48V (IEEE 802.3at+) |
Water-proof Level | IP65 |
Surge | Common mode: ±6KV Different mode: ±2KV |
LED light | Sys |
Max Power Consumption | ≤ 35W |
Size | 295.1mm * 231.1mm * 80mm |
Weight | TBD |
Working Temperature | -20°C to 45°C |
Storage Temperature | 0°C to 70°C |
Humidity | 5%~95% (non-condensing) |
