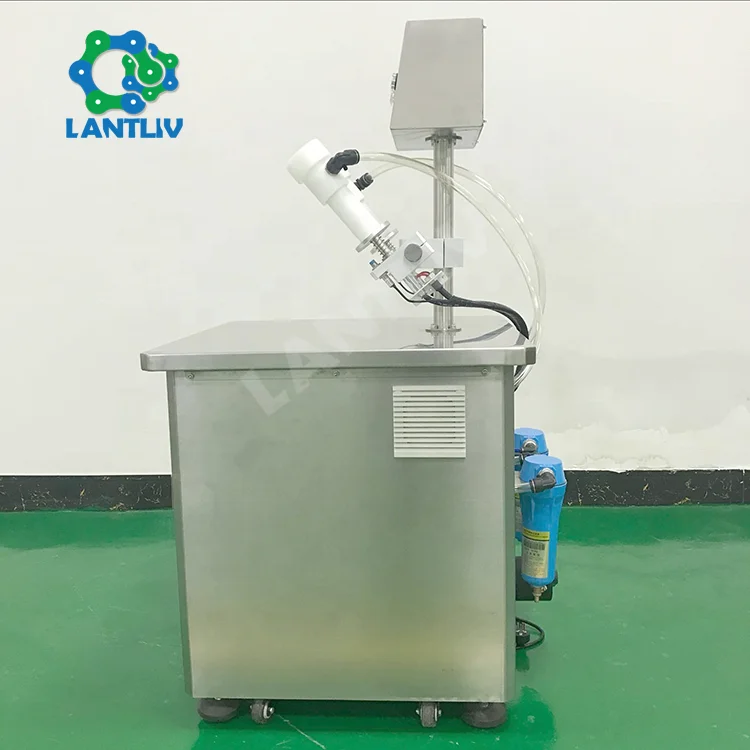

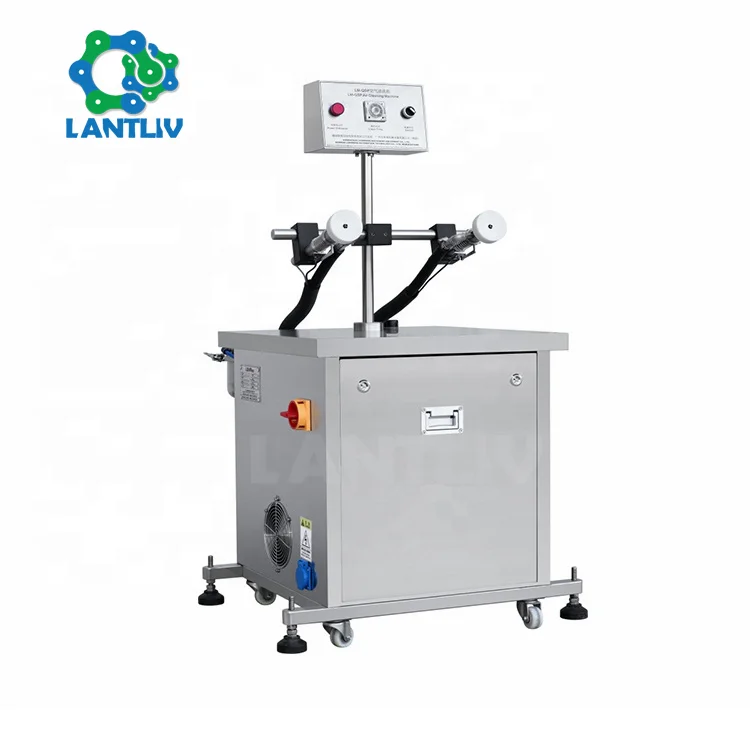

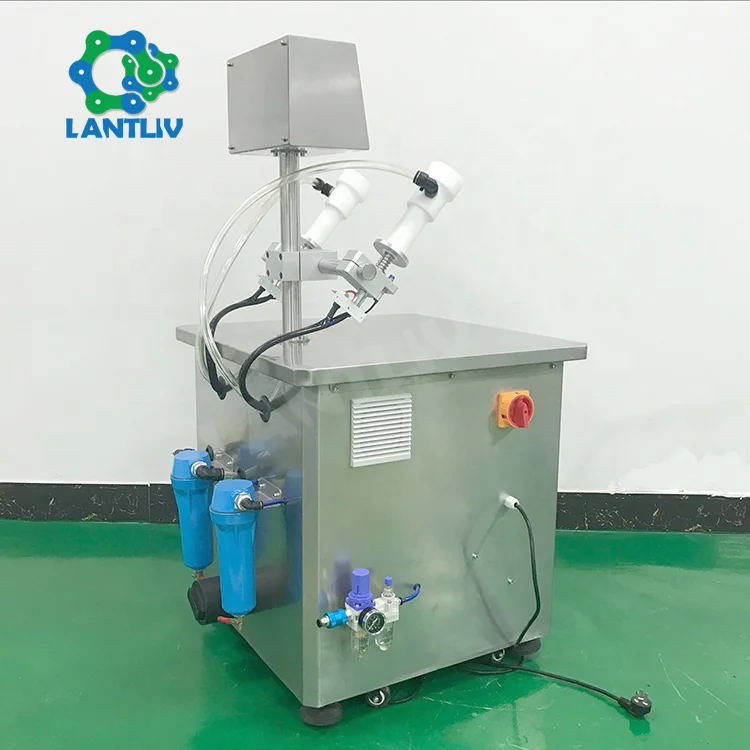

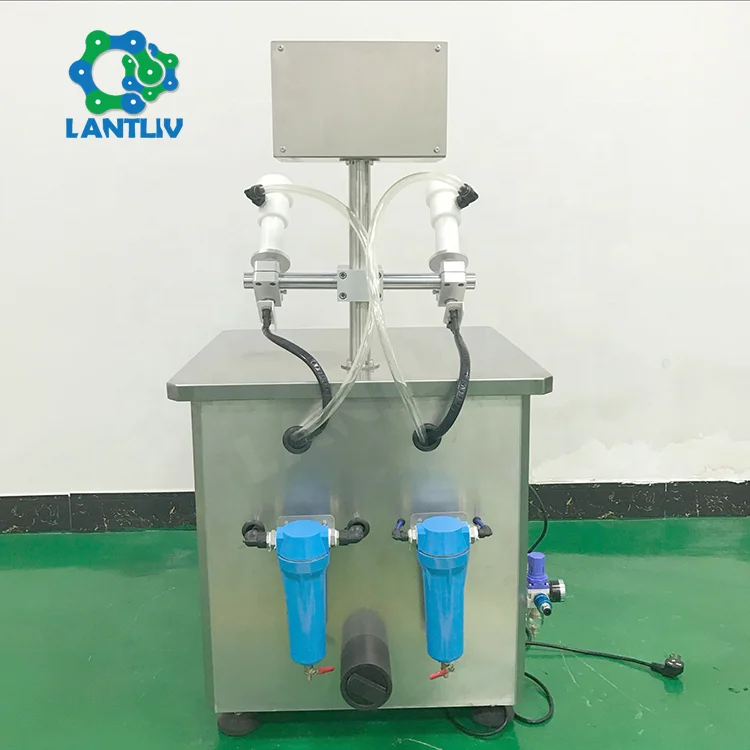

Semi Auto Plastic Tube Glass Bottle Double Heads Cleaning Machine Plastic Bottle Negative Ion Air Washing Machine For Cosmetics
- Category: Washer >>>
- Supplier: Guangzhou Lantliv Machinery Co. Ltd.
Share on (1600169849574):
Product Overview
Description
The air washing machine can be used to clean the interior of various plastic bottles, glass bottles and hoses in the cosmetics and pharmaceutical industries. The trial range is wide, without changing the mold. The machine uses clean compressed air to clean the plastic bottle. The cleaned air is sucked away from the other port. The fully sealed device can effectively suck powder, dust and water droplets in the bottle to achieve the purpose of cleaning plastic bottles and glass bottles.
Working principle
Connect the clean air pipeline of the air compressor, turn on the air supply slide switch to adjust the air pressure to 4-6kg/cm2; turn on the power switch, the vacuum generator starts to run; press the bottle to be cleaned against the working arm and press it down slightly At this time, the cleaning nozzle will open the clean air solenoid valve to automatically spray clean air and inhale into the bottle, wait until the set time to blow and stop working, manually pick up the cleaned bottle; cycle this operation.
Features
1. Low energy consumption, clean and pollution-free; easy to operate, low failure rate; low price.
2. The whole machine is made of 304 stainless steel.
3. Adopt precision double filtration, electrostatic ion generation to ensure no residue of dust particles in the bottle.
4. Automatic storage of dust particles to ensure clean room air and health of the operator.
5. The length of cleaning time can be set according to needs.
6. Use double (blow/inhale) mouthwash to remove dust in the bottle.
7. Use precision filter (0.2um) to ensure clean air source.
8. It is suitable for assembly line operation and can be matched with various assembly lines with high efficiency. It is faster than traditional washing and baking, saving environmental protection.
9. This machine can be used in the production of beverage factories, food factories, chemical factories, cosmetics factories, pharmaceutical factories and other enterprises. Applicable container: PE and glass container, the capacity is less than 500ml.
10. The caster design makes it easy to move.
Technical Parameter
Power supply | AC220V/50HZ |
Power | Above 500W according to user requirements |
Washing speed | 20-40 bottles/min (user setting) |
Bottle mouth diameter requirements | Outer diameter 15-65mm, inner diameter minimum 8mm (customized according to bottle mouth) |
Air pressure requirement | 4-6KG/cm2 |
Air consumption | 60L/min |
Air source interface | 8mm (user docking air pipe) |
Production capacity | 2 heads 1000-2000 bottles/hour |
Frame | SUS304 stainless steel |
Electric box | CNC sheet metal production |
Static eliminator components | 1set |
Blower components | 1set |
Primary air filter | 1set |
Dust filter | 1set |
Secondary air filter | 1set |
Time relay | 1set |
Solenoid valve | 1set |
Magnetic | 2pcs |
Dimensions | L700*W760*H1210mm |
Weight | 80kg |
Wooden box size | L770*W820*H1330mm |
Packed weight | 95kg |
Product Details

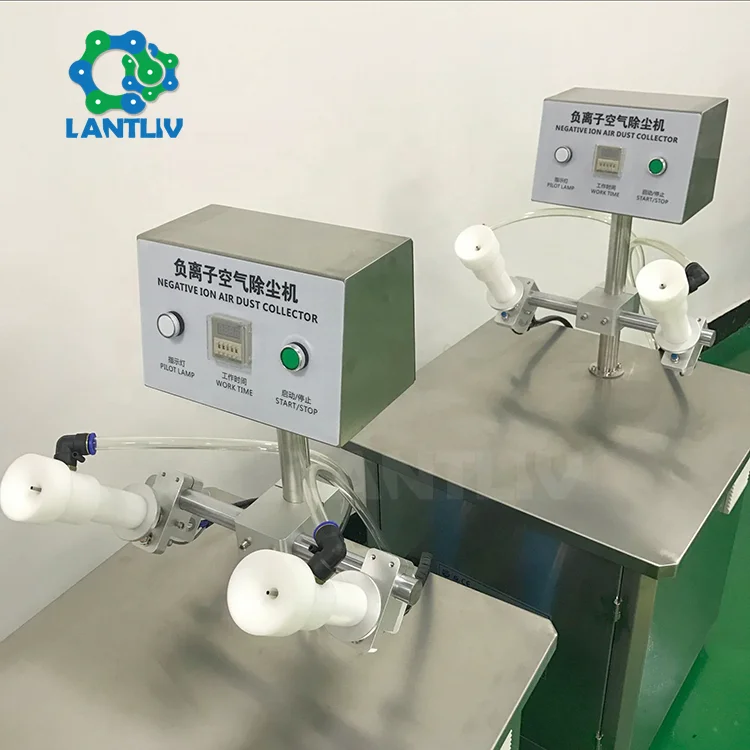

Simple operation panel, dust removal time can be adjusted.Wide application range, not limited by bottle shape.

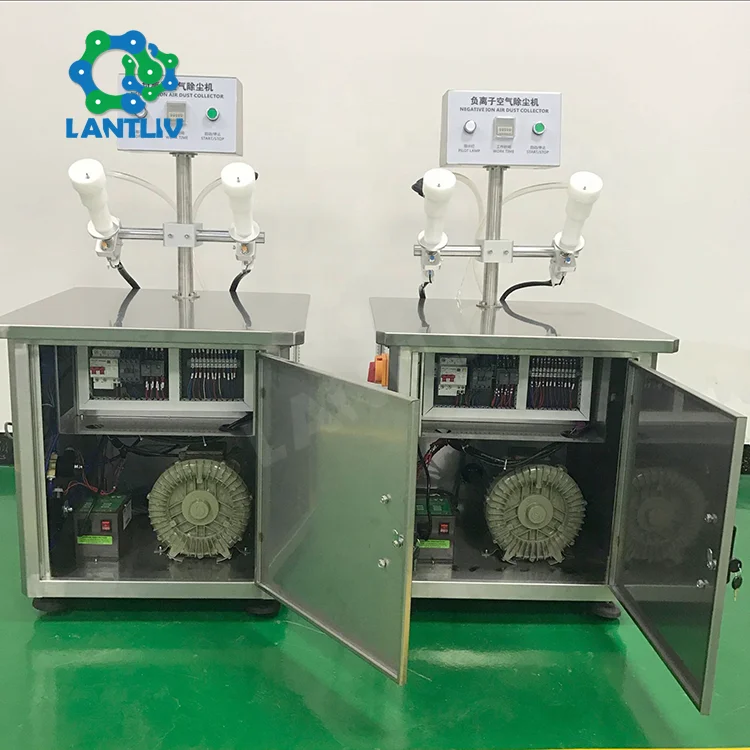

Eliminate static electricity in the bottle and quickly remove dust. Double heads operation.
Stainless steel body, long lasting. Suitable for assembly line operation, high efficiency.
Using precise double filtration, electrostatic ion generation ensures no residue of dust particles in the bottle.
Related Products
Advantages we have:
A. Experienced stainless steel products supplier .
B. Professional design team and sales department for your service .
A. Experienced stainless steel products supplier .
B. Professional design team and sales department for your service .
C. Alibaba golden supplier, factory recognized by 'CE / FSC / ISO9001' and so on .
D. 7/24 service for you, all the question will be dealt within 24 hours .
Benefit you get:
A. Stable quality — Coming from good materials and technic .
B. Lower price — Not cheapest but the lowest at the same quality .
C. Good service — Satisfactory service before and after sale .
D. Delivery time — 15-30 days for mass production .
D. 7/24 service for you, all the question will be dealt within 24 hours .
Benefit you get:
A. Stable quality — Coming from good materials and technic .
B. Lower price — Not cheapest but the lowest at the same quality .
C. Good service — Satisfactory service before and after sale .
D. Delivery time — 15-30 days for mass production .
Certifications
Packing & Delivery
1. The normal package is wooden box(Size: L*W*H). If export to european countries, the wooden box will be fumigated. If container is too tigher, we will use PE film for packing or pack it according to customers special request.
2. Delivery time: 7-12 days after receiving the deposit.
3. For machines are big and heavy parcel, and different country with different delivery cost, so we suggest below delivery
3. For machines are big and heavy parcel, and different country with different delivery cost, so we suggest below delivery
(1) Over 1CBM or 100KG, recommended shipment by Sea.
(2) Below 1CBM or 100KG, recommended shipment by Air.
(3) Below 0.5CBM or 50KG, recommended shipment by Express.
After Sales Service
1. Manuels / Videos of machine installation, adjusting, setting, maintenance are available for you.
2. If any problems happen and you can not find out the solutions, Telecom or Online face to face communication available 24 hours.
3. Our engineers & technicians are available send to your countries for services if you agree pay the expenditure.
4. The machine will have one year guaranty for machine, two years guaranty for electrical part. During the warranty year if any of the parts broken not by man-made, free charge to replace the new one to you. The warranty will begin after the machine send out we received the B/L.
5. Independent team for after-sale service 24/7 technical support. Any emergency please call the salesman or our after-sales manager.
