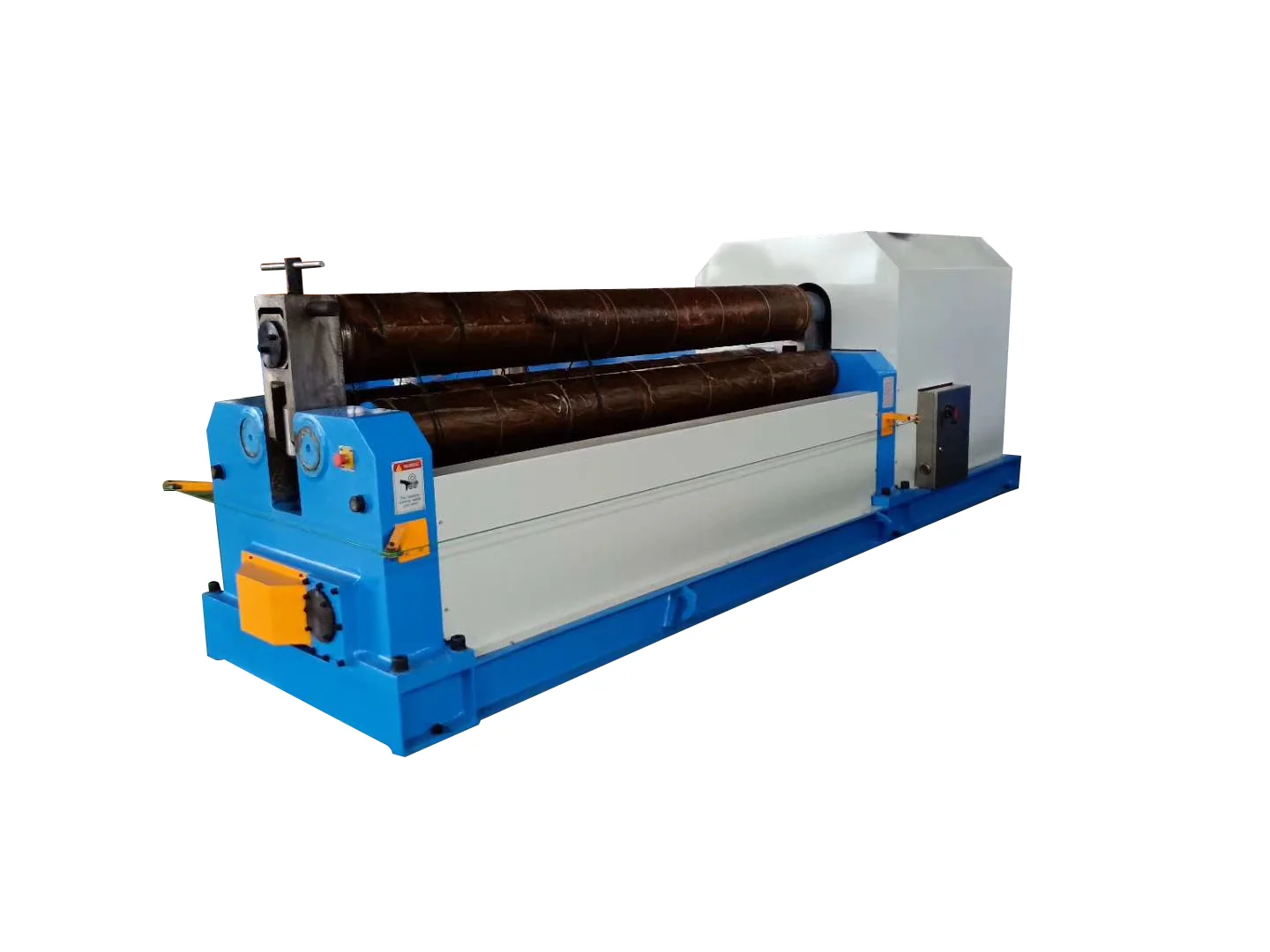

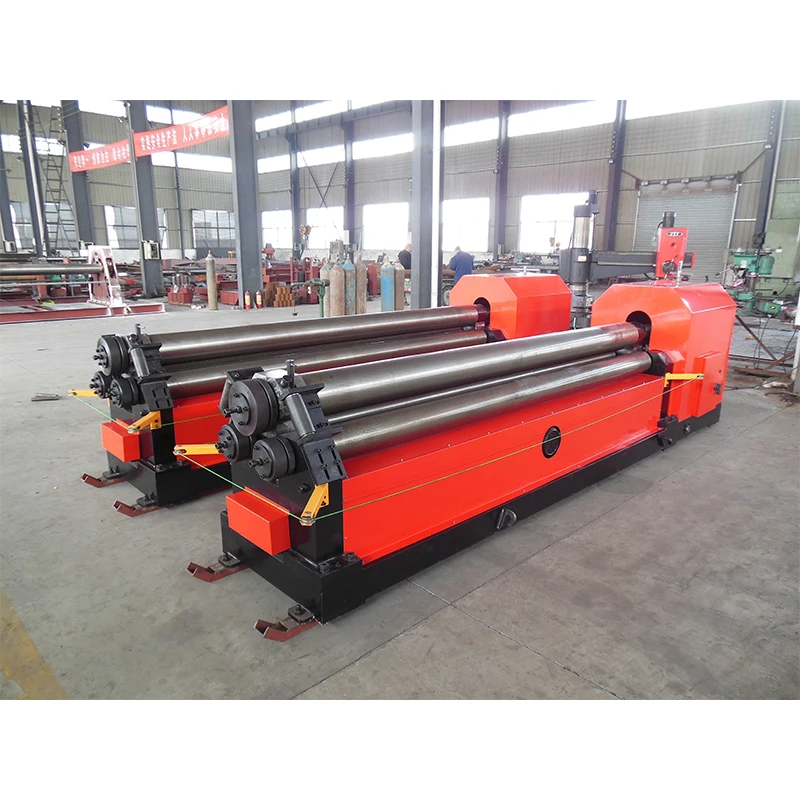

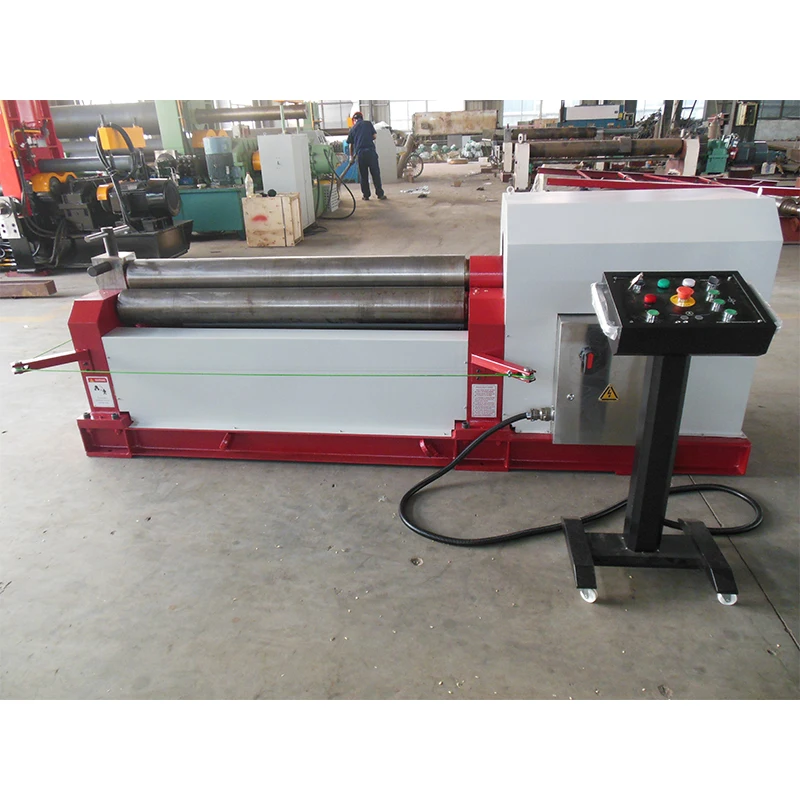

W11 16x2500 CE certified 3 roll mechanical symmetry plate rolling machine sheet metal round or conical shape

Share on (1600169919166):


Price:RUB 326,017.40

Quantity:


Product Overview

Description


Specification model

unit

W11-16x2500

product name



Mechanical symmetrical three-roll

Maximum board width

mm

2500

Working length of roller

mm

2600

Maximum board thickness

mm

16

Minimum board thickness

mm

2

Sheet yield limit

Mpa

245

Upper roll diameter

mm

260

Lower roll diameter

mm

220

Center distance of lower roller

mm

330

Full load minimum diameter

mm

500

Scroll speed

m/min

About 4

main motor power

KW

11-6

Increase motor power

KW

4


Q1:When can customers contact us?

A1:We are available from Monday to Saturday. 8AM to 6PM Beijing time.We also offer 24-hour online service for customers.



Q2:How do I order a product from you?

A2:If any problems occur with our products or you are in need of assistance.Please send email or call us via telephone.We will reply as quickly as possible.

We offer OEM and ODM services.



Q3:Terms of payment

A3:1) T/T 30% prepayment,70% balance before shipment

     2) L/C at sight



Q4:How about your machine quality

A4:Chunqiu is a mature brand in China. Through our over ten years research in technology, our design including detailed structure and security and precision have been enhanced greatly, and can match all the CE standard or more strict standard. Where there are our machines, there are good reputation and terminal users' satisfaction.
