Product Overview

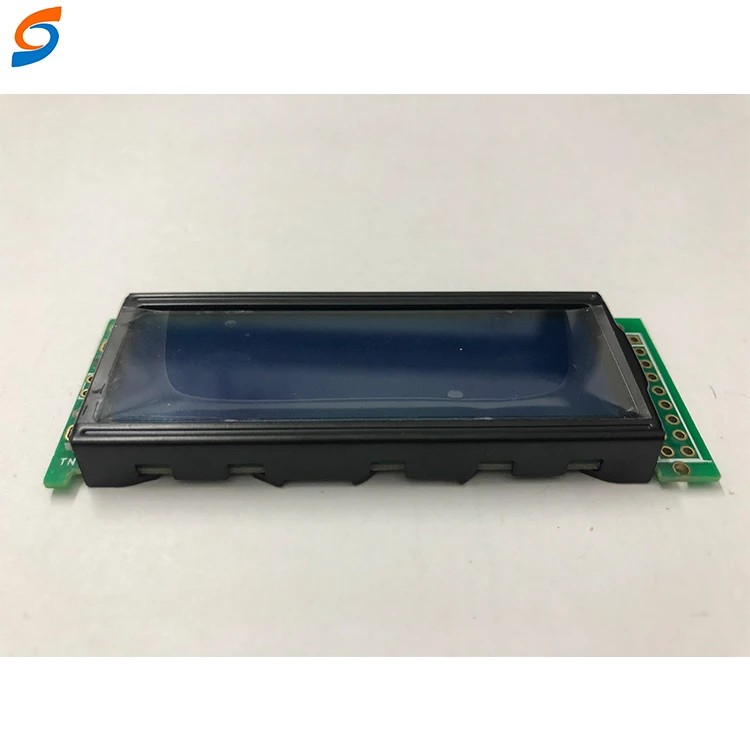

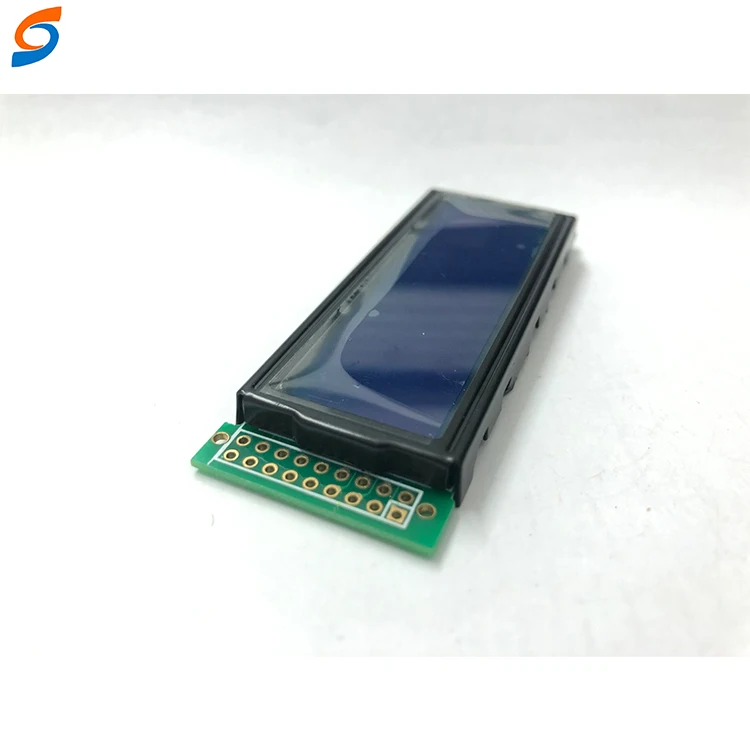

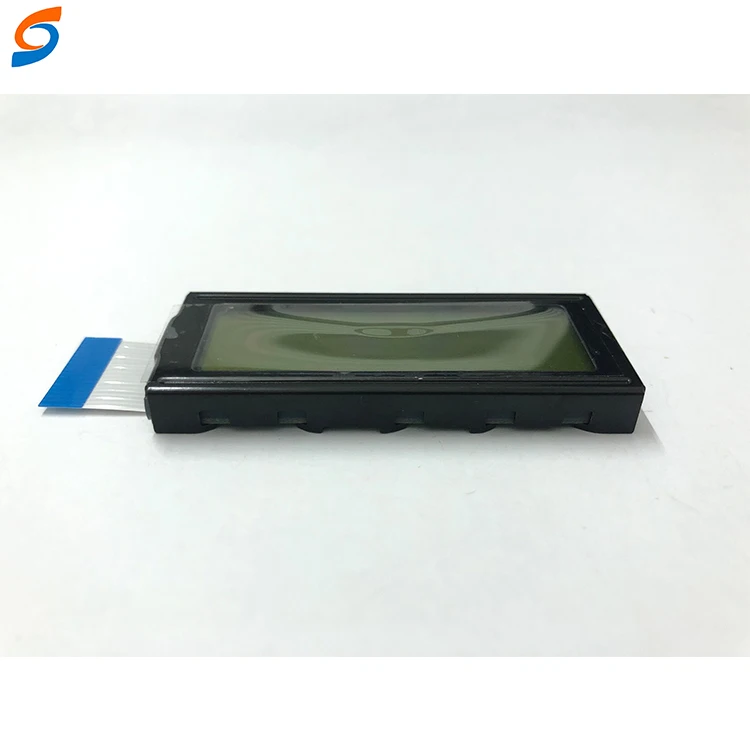

Graphic lcd display module
LCD display and LCD modules can be produced as per following parameter:
Dimensional regular tolerance: +0.2mm
Display type:TN,HTN,STN,FSTN,VA
Display mode: Positive,Negative
Polarizer type:Reflective/Transflective/Full-transmissive
Backlight: LED backlight
Operating normal temperature: 0℃~+50℃
Storage normal temperature:-20℃~+60℃
Operating temperature: the widest temperature is about -35 ° c~+ 85 ° c.
View direction/Viewing Angle: 3 o’clock, 6 o’clock, 9o’clock,12o’clock
Color mode: yellow, green, gray, black, white, blue, etc.
Connection/Interface:metal pin,FPC,zebra or others
LCD structure: COB,COG
Driving conditions: related to the selected driver chip
Working voltage: usually set in 3~5V.
LCD size:
Outline dimension (W*H*T): factory standard or customized
Viewing area (W*H):factory standard or customized
Active Display Area(W*H):factory standard or customized
Driver IC:factory standard or customized
Driving method: factory standard or customized
Power Supply/Driving voltage/Driver:factory standard or customized
Application: Thousands of products produced over the years are mostly custom-made and are widely used in household appliances,communications equipment, automotive display,vehicle display, industrial equipment control and health care, instrumentation, medical equipment and other information terminal display.

Product Description

Related Products


Packing:Foam tray inner+standard carton outer, packing quantity is according to the specific size and shape.Customized package with your logo and your specific images are available.
Packing process consists chiefly of three steps as follows.
(1)confirm every specification of your goods;
(2)place poly foam into carton and pack your goods;
(3)conduct security test.
Lead time:1-7days for sample;25-35 days for mass production
Shipping way:By DHL,FEDEX,UPS or appointed forwarder
Loading Port :Shenzhen/Guangzhou/HK or other port of China

Company Introduction

Liuzhou Liyuan Photoelectric Technology Co., Ltd. was established in 2007 with a plant area of 18,000 square meters. After yearsof development, We have became professional manufacturer of liquid crystal display (LCD) and liquid crystal display module(LCM)integrating R&D, design, production, sales and service.

Thousands of products produced over the years are mostly custom-made and are widely used in instrumentation, household appliances,communications equipment, automotive display,vehicle display, industrial equipment control and health care, instrumentation,medical equipment and other information terminal display.

We supply customized TN, HTN, STN, FSTN, VA LCD and COB, COG and TAB modules, Segment LCD Display, Dots Matrix Character LCDDisplay,Graphic LCD Display,and we are committed to the development and production of large-size (diagonal size 5~20inch)products, special LCD production processes and equipment, and we have advantages in high-quality products (STN, VA) and special process products (Multicolor screen printing LCD, special-shaped LCD and LCD with touch control ) .

We will offer the products solution and estimated price according to your order requirements details.
We are expecting to be your best reliable partner with high quality products, fast and timely delivery and efficient service!


Q1 Are you factory or trade company?
A:We are factory with 13 years’ experience. We have independent technical service center, international sales department and after-sale service department.

Q2 May I have your company profile?
A:Of course, Liyuan was founded in 2009, with professional R&D department,independent technical service center and advanced LCD automated production equipment. Workshop area of 18,000 square meters, the monthly output of more than 100,000pairs. Liyuan has strong design, development and manufacture capabilities in hardware and software. In addition, on special products, researchers have developed special equipment and breakthrough technology. If you want to know more about us, please click here:https://lylcd.en.alibaba.com

Q3 Can you customize according to our designs or requirements?
A:Yes, we support both standard and customized products. Our experienced R&D team will support technical questions.

Q4 How long of mass production?
A:It depends different order quantities and part number. LCD needs about 18-30 working day, LCM needs about 22-30 working days.

Q5 How does your company do regarding quality control?
A:Each batch of goods will be strictly controlled, 100% material checking and display checking; 100% aging test, high temp& low temp test; ensure no fake panels exists!
