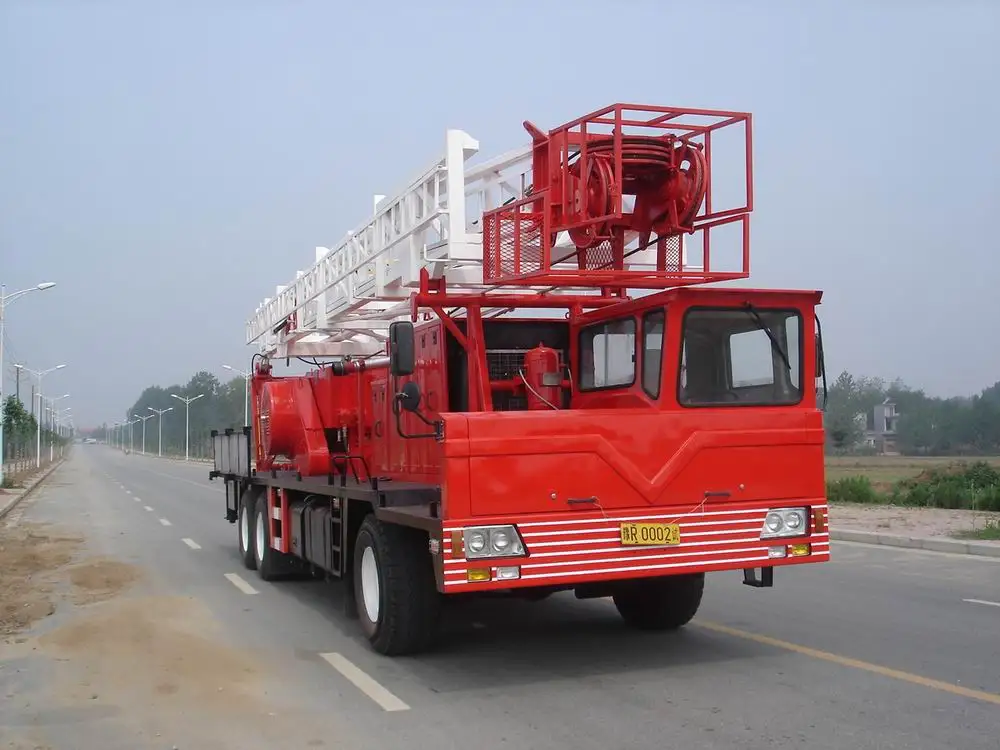

RG API Mountainous Workover Rig Drilling Rig Oil Petro Drilling Equipment
- Category: >>>
- Supplier: RG PETRO-MACHINERY GROUP CO. LTD.
Share on (1600170299353):
Product Overview
Description
Feature:
1.The rig unit is a small module, with the length of a single module at less than 36ft, and its weight less than 33069lb. It is especially suitable for transportation and operation in mountainous areas. The box substructure is convenient for transportation and lifting. The rig floor and height can be designed in accordance with the requirements of the end-users. The mast is a free-standing type without guylines, but with a clearance height of 105f t. The multiple sections of the mast can be rigged up and rigged down telescopically in orders by horizontal hydraulic cylinders, which is particularly useful for narrow well sites due to a highly –integrated designs .

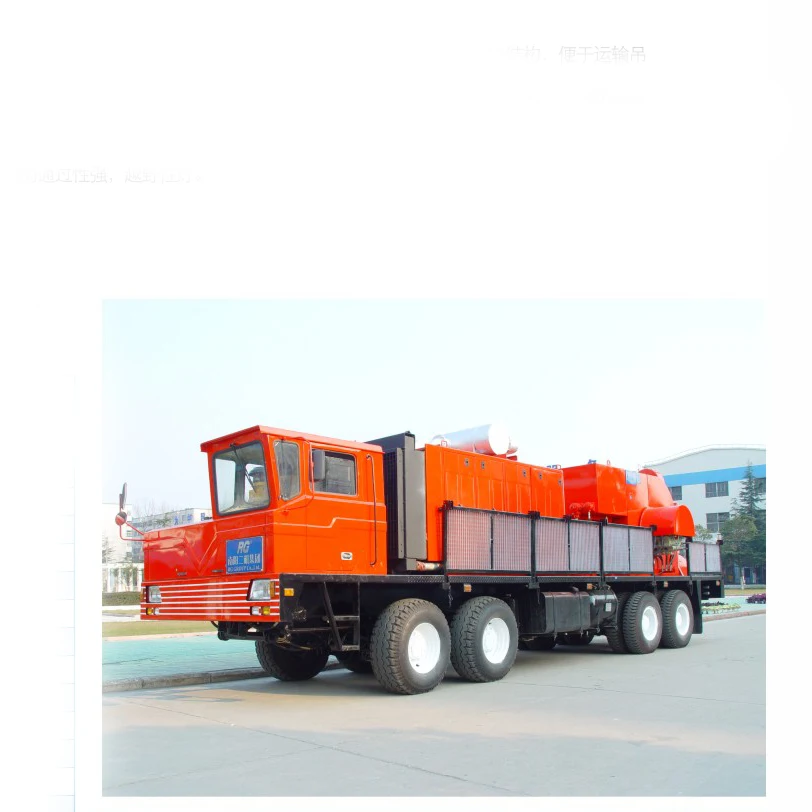

2.This rig uses a heavy-duty, 8*8 all-wheel-drive chassis and has an excellent cruise performance.
2.This rig uses a heavy-duty, 8*8 all-wheel-drive chassis and has an excellent cruise performance.
Parameter:
Model | XJ225 |
Workover depth（ft）（4 1/2" DP） | 13000 |
Workover depth（ff）（3 1/2" DP) | 25000 |
Max. hook load （lbf） | 506000 |
Hook speed （ft/s） | 0.66~4.6 |
Effective height of mast （ ft） | 105（clearance） |
Mast type | Erective telescoping |
Drill floor height （ft） | 20 |
Engine model | C15 x 2 |
Engine power（hp x 2） | 540 x 2 |
Hydraulic transmission （box x2） | S5610HR x 2 |
Transmission type | Hydraulic+ mechanical |
Traveling system | 6 x 5 |
Main wireline diameter（in） | 1 1/4 |
Traveling block model | YG225 |
Swivel model | SL225 |
Rotary table model | ZP275 |
Moving type | Self-propelled |
Chassis model | XD40/8 x 8 |
Approaching/departure angle | 25°/25° |
Max, gradient ability(%) | 46.60% |
Min. turning diameter（ft） | 79 |
Min. ground clearance （in） | 12 |
1. What are the delivery times?
In general, it will take 35-60 days after receiving deposit. The specific delivery time depends on the items and quantity of your order.
2. Do you have a MOQ limit?
Yes it depends on the products size and production process.
3.What are your payment methods?
T/T, L/C,D/P,D/A, Western Unions payments are available.
4. What after-sales service can you provide?
RG GROUP has set up professional service branches for major oil fields abroad. It has developed a whole-process and
all-round after-sales service system, including equipment installation and debugging, maintenance, testing, operation training and spare parts supply.
