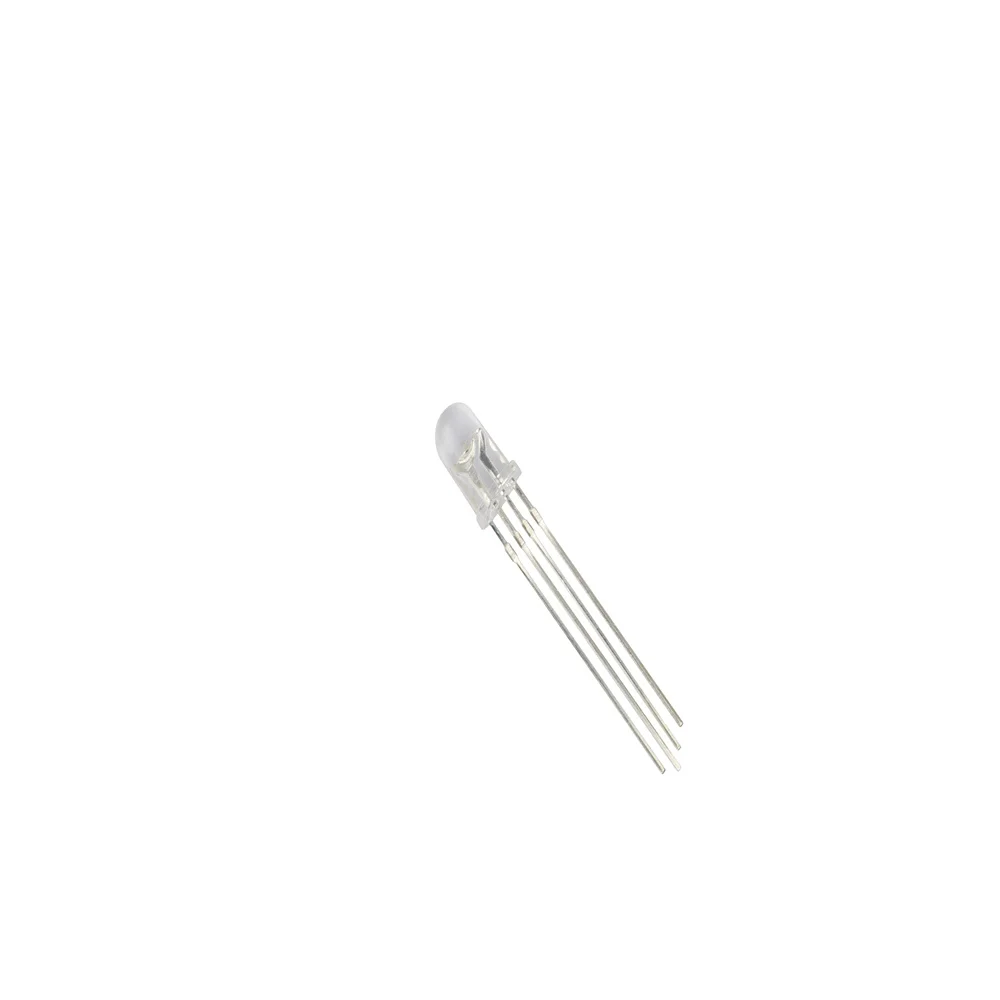

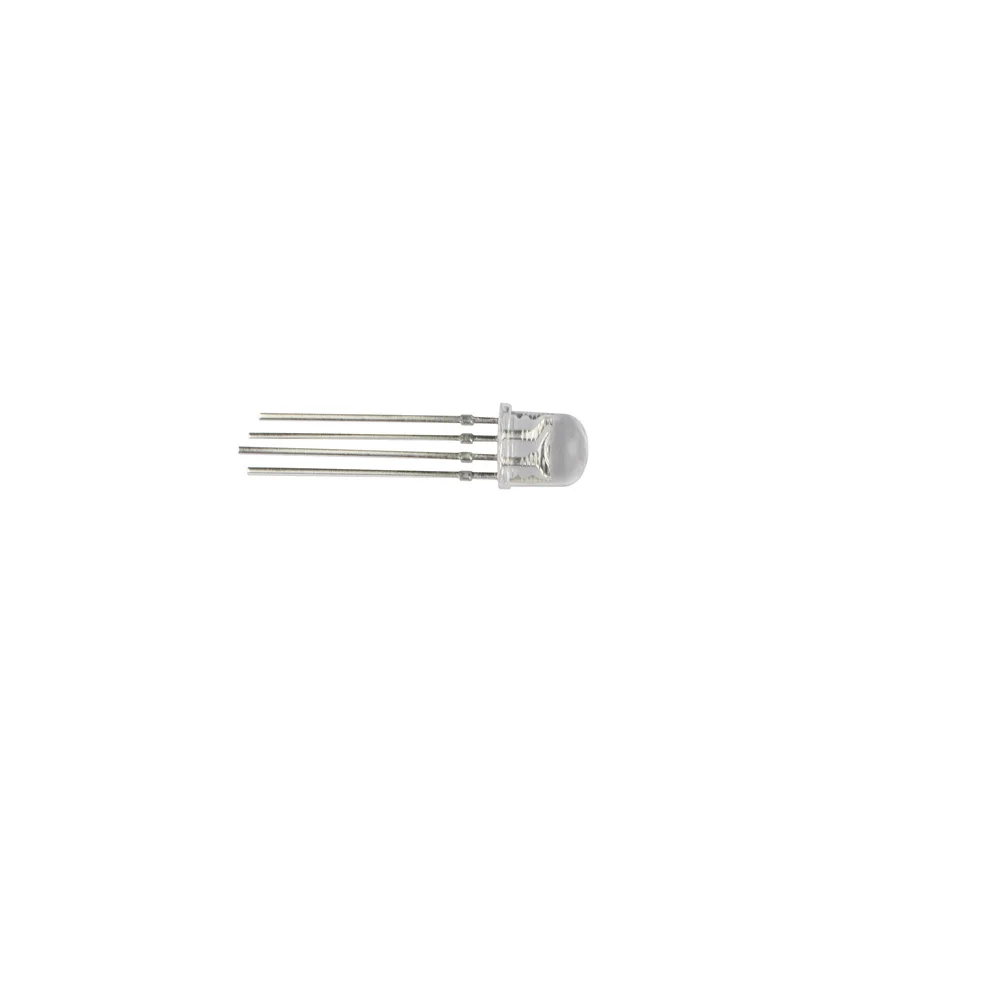

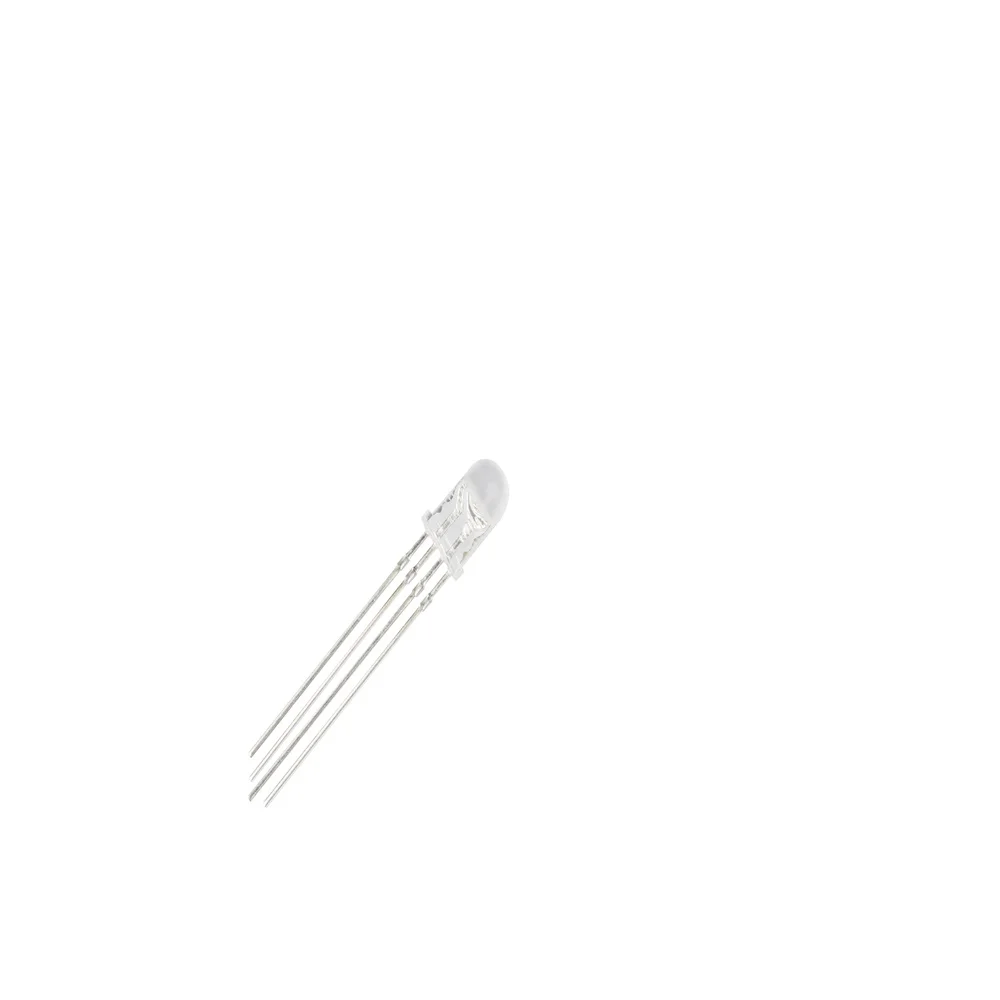

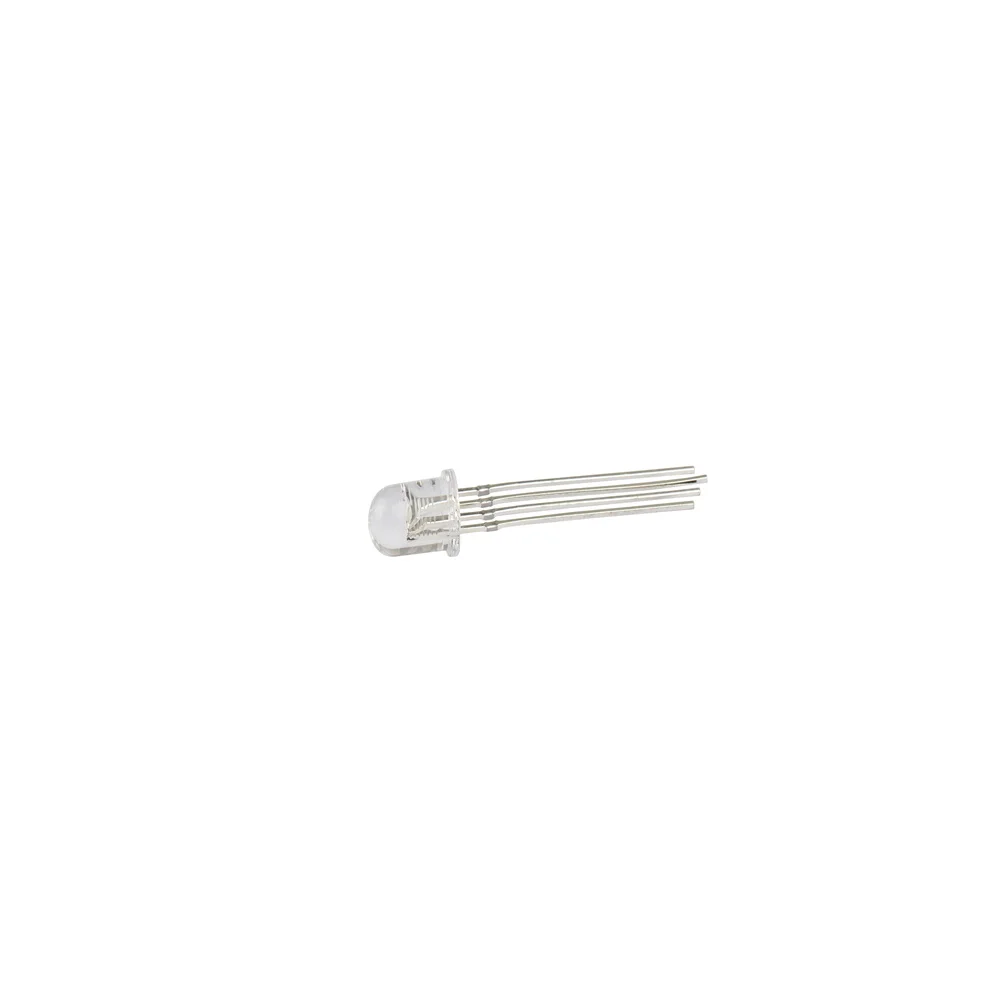

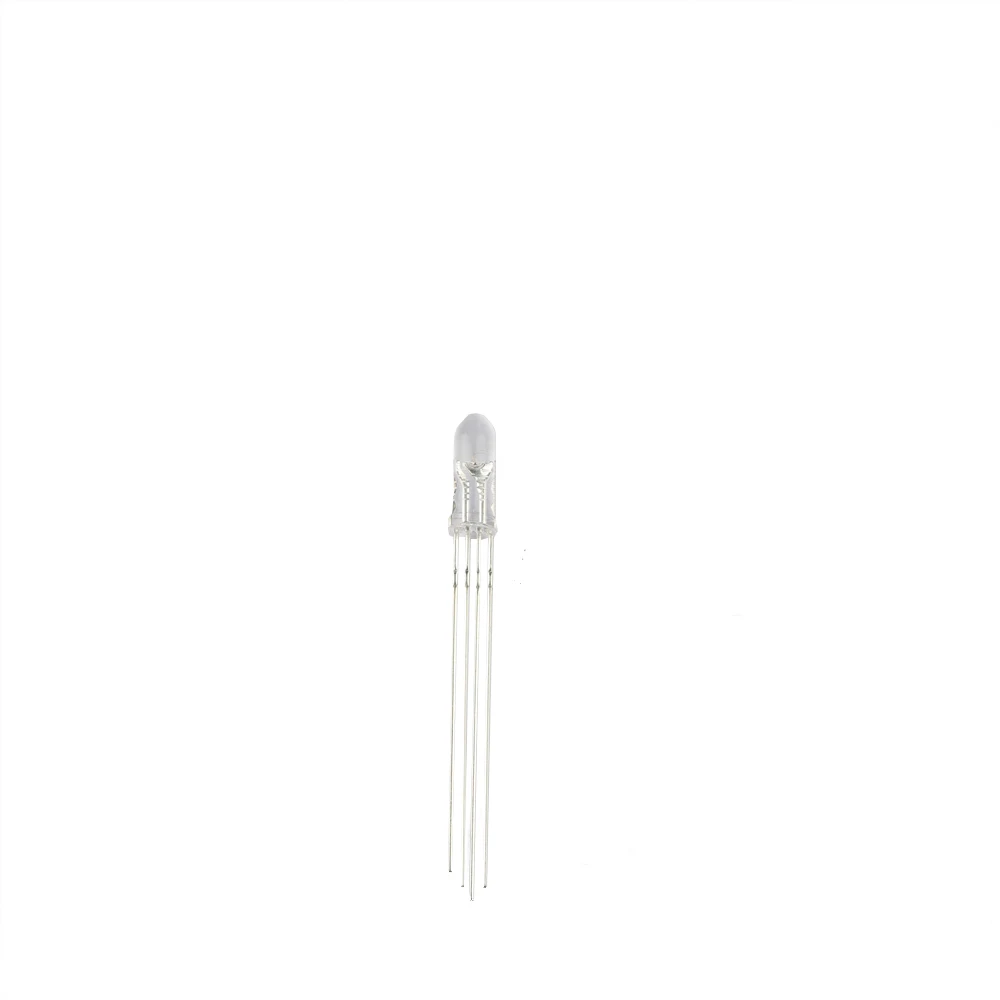

1000Pieces 5MM Slow Flashing Led chip High Brightness RGB round head 5mm LED diode

Product Overview

Description

1000Pieces 5MM Slow Flashing Led chip High Brightness RGB round head 5mm LED diode





Specification:



DIP LED Size: 3MM/ /4MM/5MM/8MM...

Shape: Round/Staw Hat/Helmet/Tower ...
Color: White, Red, Green, Blue, Yellow, Orange ...



Color	Dominant Wavelength (nm)(k)	Luminous Intensity (mcd)(lm)	Viewing Angle 50%	Forward Current (mA)	Forward voltage  (V)	Power  (W)	Packing (SPQ)
Blue	460-470nm	100-200mcd	120°	20mA	2.8-3.0V	0.06W	1K/bag
Green	510-530nm	500-800mcd	120°	20mA	2.8-3.0V	0.06W	1K/bag
Yellow Green	570-575nm	50-100mcd	120°	20mA	2.0-2.2V	0.04W	1K/bag
Yellow	590-598nm	100-200mcd	120°	20mA	2.0-2.2V	0.04W	1K/bag
Orange	600-610nm	100-200mcd	120°	20mA	2.0-2.2V	0.04W	1K/bag
Red	620-630nm	200-300mcd	120°	20mA	2.0-2.2V	0.04W	1K/bag
Purple	390~400nm	50-100mcd	120°	20mA	2.8-3.0V	0.06W	1K/bag
Red+Blue	620-630nm 460-470nm	150mcd/300mcd	120°	40mA	2.0-2.2V/2.8-3.0V	0.1W	1K/bag
Red+Green	620-630nm 510-530nm	150mcd/300mcd	120°	40mA	2.0-2.2V/2.8-3.0V	0.1W	1K/bag
RGB	620-630nm 510-530nm 460-575nm	150mcd/300mcd	120°	60mA	2.0-2.2V/2.8-3.0V	0.18W	1K/bag
Warm White	2500-3500K	600-1200mcd	120°	60mA	2.8-3.2V	0.25W	1K/bag
Nature White	6000-7000k	200-800mcd	120°	60mA	2.8-3.2V	0.25W	1K/bag
Cool White	9000K-	800-1300mcd	120°	60mA	2.8-3.2V	0.25W	1K/bag

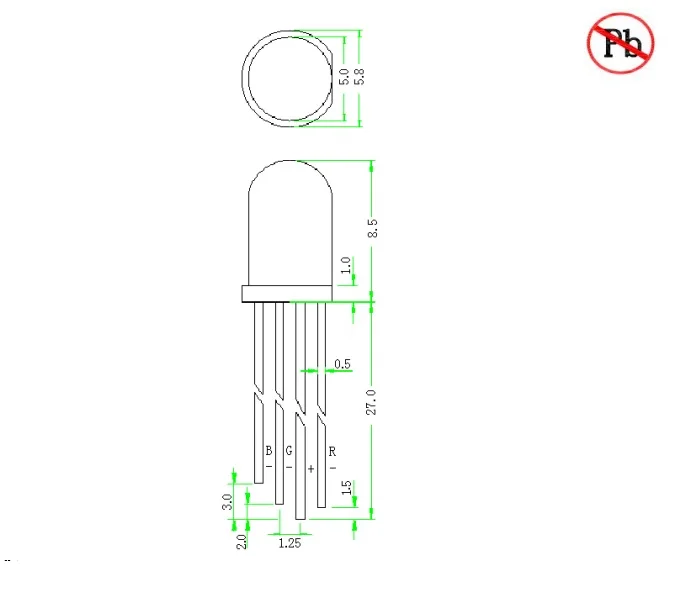

Layout:
