S type force transducers pull force sensor tension measuring Pressure transmitter load cell 10kg 50kg ton 10t
- Category: >>>
- Supplier: Zhuhai Qixinli Technology Co. Ltd.
Share on (1600170640184):
Product Overview
Description
Product Overview

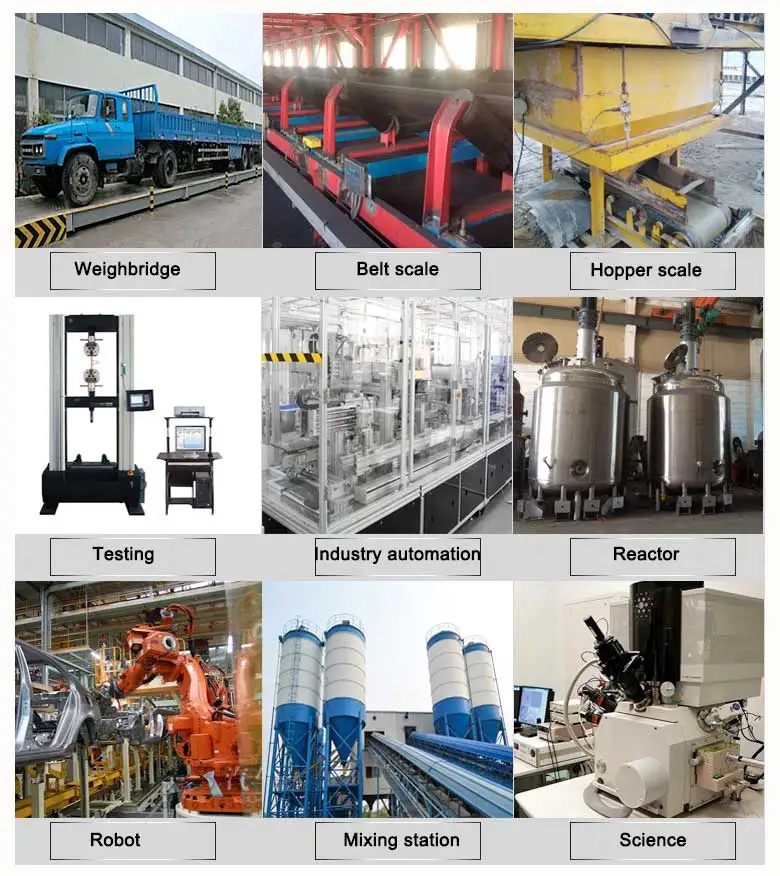

S-type load cell has the function of tension and compression: both tension and pressure can measure its anti-eccentric load ability, and it is also among the best in many sensors. Its advantages are high accuracy, good measurement range, easy installation and many applications in the packaging industry. Tension and compression dual purpose, protection grade IP67 (66), strong versatility, high sensitivity, high reliability, long life, anti-electromagnetic interference and other advantages can be used for tension weighing, pressure weighing, the range is 50kg-10t, can be used Weighing in hook scale, silo/hopper/tank, crane scale, forklift scale, metering/filling, tensile/tension measurement
Working principle of S-type load cell
The sensor is based on the principle: the elastic body (elastic element, sensitive beam) produces elastic deformation under the action of external force, so that the resistance strain gauge (conversion element) pasted on its surface also deforms. After the resistance strain gauge is deformed, its resistance The value will change (increase or decrease), and then the resistance change will be converted into an electrical signal (voltage or current) by the corresponding measuring circuit, thus completing the process of transforming the external force into an electrical signal.
Working principle of S-type load cell
The sensor is based on the principle: the elastic body (elastic element, sensitive beam) produces elastic deformation under the action of external force, so that the resistance strain gauge (conversion element) pasted on its surface also deforms. After the resistance strain gauge is deformed, its resistance The value will change (increase or decrease), and then the resistance change will be converted into an electrical signal (voltage or current) by the corresponding measuring circuit, thus completing the process of transforming the external force into an electrical signal.

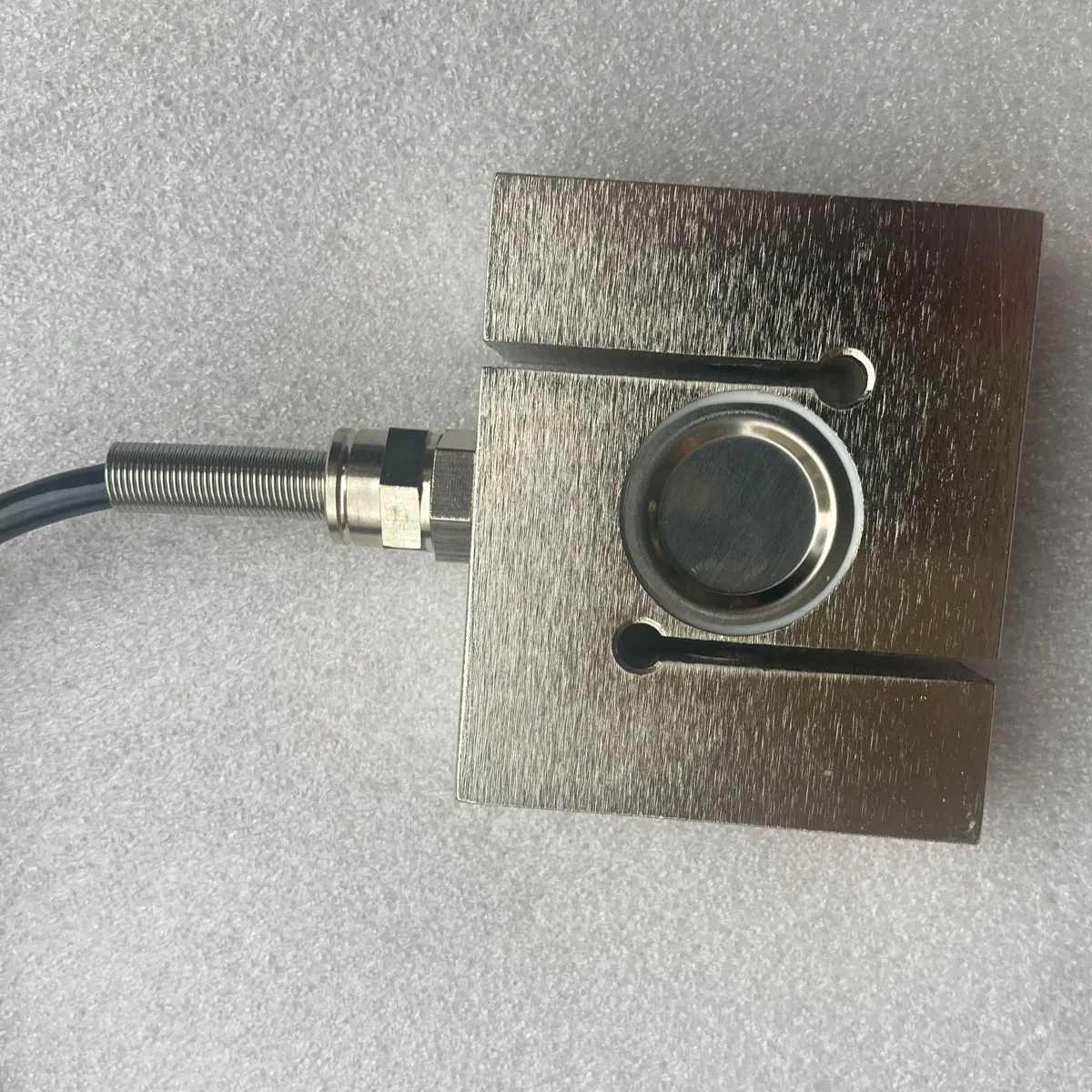

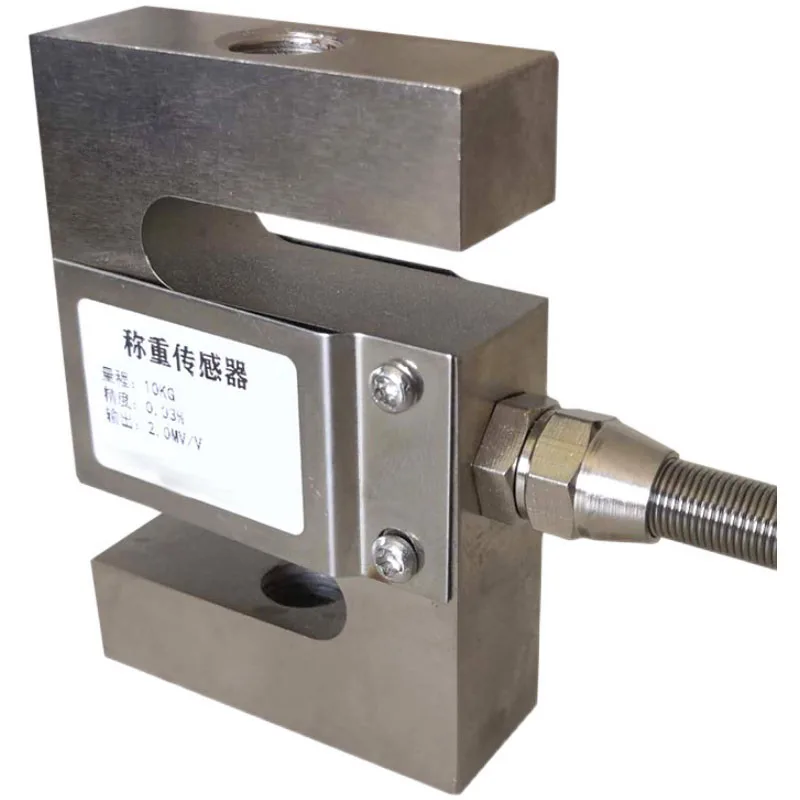

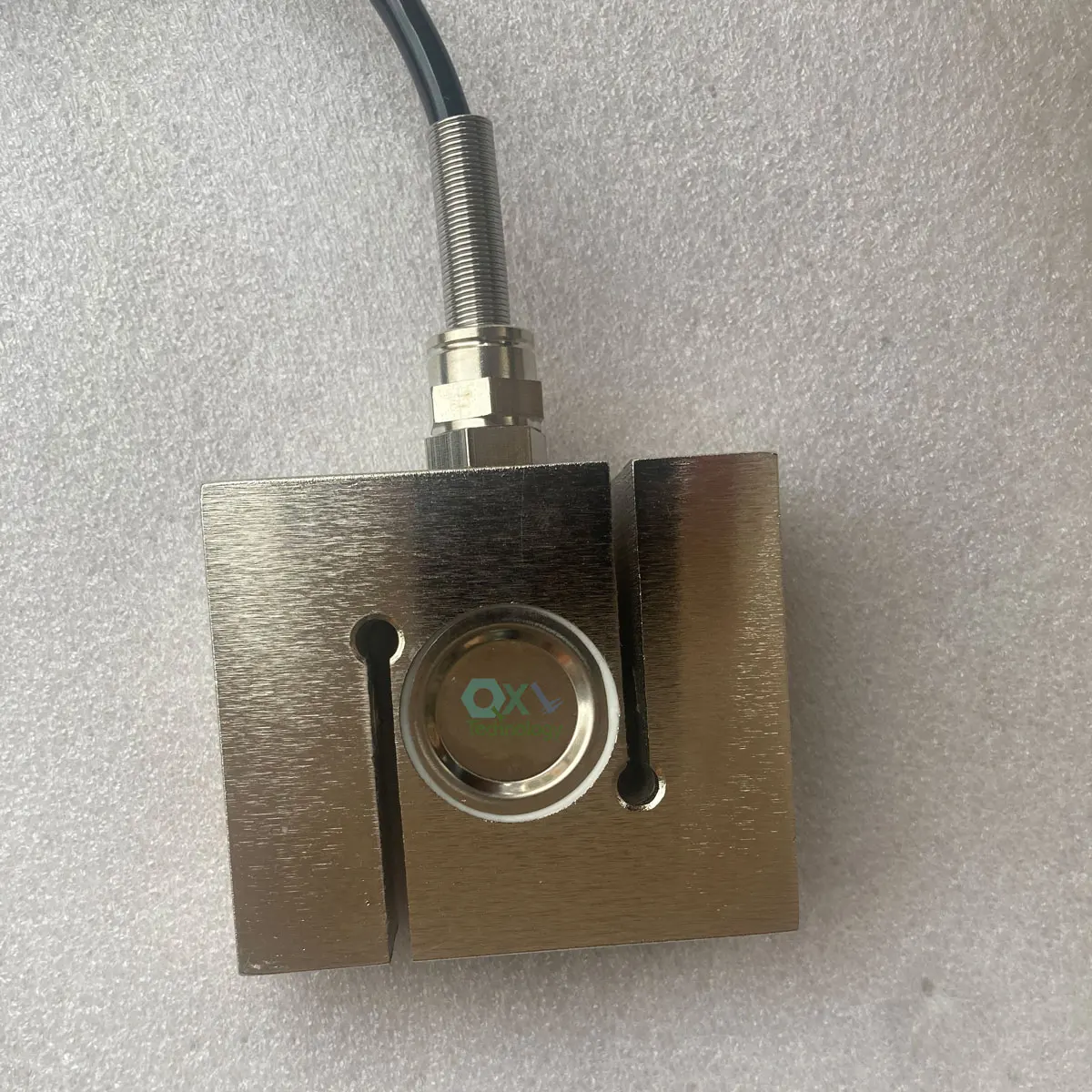

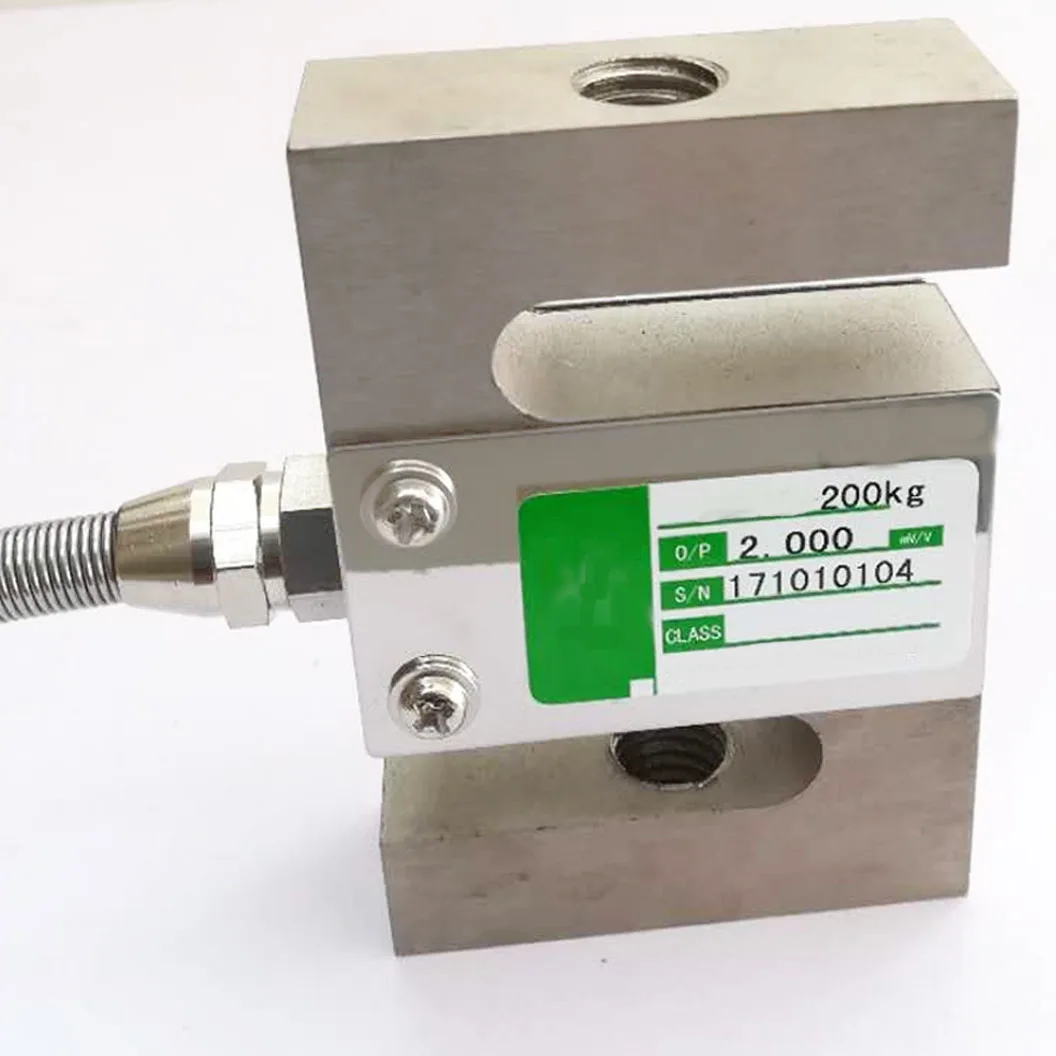

S-type force transducers pull force sensor tension measuring Pressure transmitter load cell 10kg 50kg ton 10t
Specification
Sensitivity | mV/V | 2.0 ± 1% |
Zero output | mV/V | ± 0.02 |
Non-linear | % | < ±0.017 |
Repeatability | % | < ±0.017 |
Hysteresis error | % | < ±0.017 |
Creep | % | < ±0.023 |
Input impedance (red(+)-black(-)) | Ω | 400 ± 25 |
Output impedance (green (+)-white (-)) | Ω | 350 ± 3 |
Recommended excitation voltage | V(DC/AC) | 0.5…10 |
Maximum allowable excitation voltage | V(DC/AC) | 15 |
Insulation resistance | GΩ | >2［50 VDC ］ |
Normal temperature range | ℃［℉］ | -10…+50［14…+122］ |
Safety limit load | % of Cn | 150 |
Damage limit load | % of Cn | 300 |
Sealing method | Glue seal | |
Protection level | Range ≤200kg: IP66; Range ≥300kg: IP67 | |
Elastic component material | alloy steel |
